Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7104-24-1100RELAY REED 4PST 500MA 24V |
218 |
|
Datasheet |
7000 | Tube | Active | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | 4PST-NO (4 Form A) | Non Latching | - | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 0.1 ms | 1 ms | - |
|
2971-05-00RELAY REED SPDT 250MA 5V |
763 |
|
Datasheet |
2970 | Tube | Active | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 21.7 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 2.5 VDC | -40°C ~ 125°C | 0.4 VDC | 2 ms | 1 ms | - |
|
1320-0185RELAY REED |
2,887 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2342-12-000RELAY REED DPDT 250MA 12V |
703 |
|
Datasheet |
2300 | Tray | Active | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 12 mA | DPDT (2 Form C) | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | -20°C ~ 85°C | 1 VDC | 2 ms | 1.5 ms | - |
|
2372-05-000RELAY REED DPDT 250MA 5V |
249 |
|
Datasheet |
2370 | Tube | Active | Through Hole | 5VDC | 250 mA | 100VAC, 100VDC - Max | 55.6 mA | DPDT (2 Form C) | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | -40°C ~ 125°C | 0.4 VDC | 2 ms | 1.5 ms | - |
|
SAR92403RELAY REED SPST 500MA 24V |
298 |
|
Datasheet |
S | Tray | Active | Through Hole | 24VDC | 500 mA | 20VAC, 20VDC - Max | 24 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 20 VDC | -20°C ~ 70°C | 2 VDC | 0.5 ms | 1 ms | Rhodium (Rh) |
|
DAR71205-HRRELAY REED 5KV 12V SPST-NO |
1,591 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 80 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 2 ms | 3 ms | Rhodium (Rh) |
|
|
SAR91205RELAY REED SPST 500MA 12V |
2,195 |
|
Datasheet |
S | Tray | Active | Through Hole | 12VDC | 500 mA | 20VAC, 20VDC - Max | 20 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 0.5 ms | 1 ms | Rhodium (Rh) |
|
DBR71205-HRRELAY REED 5KV 12V SPST-NC |
578 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 50 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 3 ms | 2 ms | Rhodium (Rh) |
|

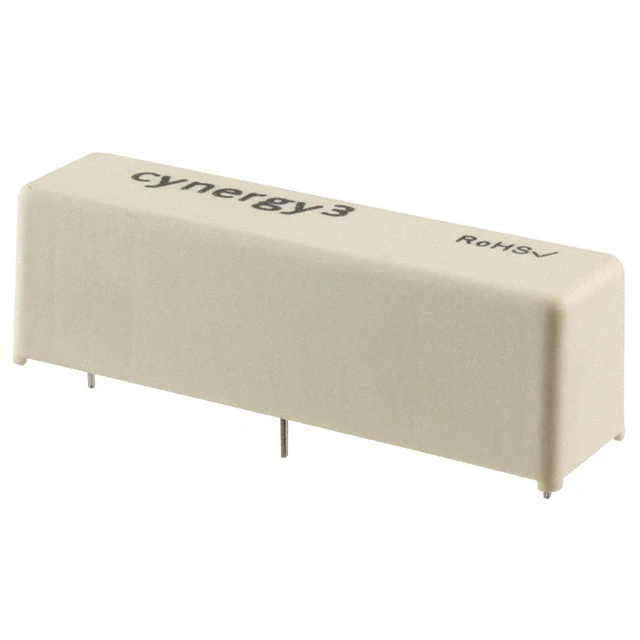

DAR72410RELAY REED SPST-NO 3A 24V |
1,484 |
|
Datasheet |
DA | Tray | Active | Through Hole | 24VDC | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 2 ms | 3 ms | Rhodium (Rh) |
|

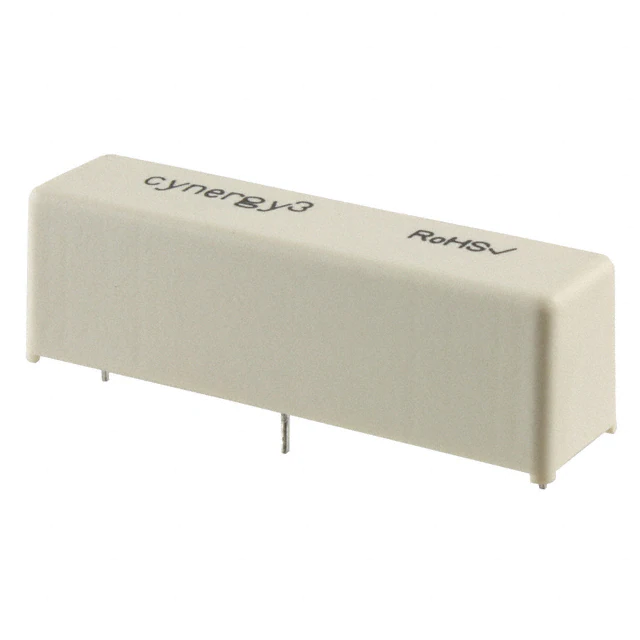

DAR71210RELAY REED SPST-NO 3A 12V |
849 |
|
Datasheet |
DA | Tray | Active | Through Hole | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 80 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 2 ms | 3 ms | Rhodium (Rh) |
|
3351-1275-126RELAY REED HV SPST 50W 3A 12V |
585 |
|
Datasheet |
3350 | Bulk | Active | Through Hole | 12VDC | 3 A | 7500VAC, 7500VDC - Max | 68.6 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 3 ms | 3 ms | - |
|
|
3351-1275-246RELAY REED HV SPST 50W 3A 24V |
265 |
|
Datasheet |
3350 | Bulk | Active | Through Hole | 24VDC | 3 A | 7500VAC, 7500VDC - Max | 41.7 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 3 ms | 3 ms | - |
|
DAT71210RELAY REED SPST-NO 2A 12V |
702 |
|
Datasheet |
DA | Tray | Active | Through Hole | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 80 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 2 ms | 3 ms | Tungsten (W) |
|
|
DAT72410RELAY REED SPST-NO 2A 24V |
386 |
|
Datasheet |
DA | Tray | Active | Through Hole | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 2 ms | 3 ms | Tungsten (W) |
|
|
DAT70510RELAY REED SPST-NO 2A 5V |
271 |
|
Datasheet |
DA | Tray | Active | Through Hole | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 179 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.7 VDC | -20°C ~ 70°C | 0.5 VDC | 2 ms | 3 ms | Tungsten (W) |
|
|
3350-1275-126RELAY REED HV SPST 200W 3A 12V |
324 |
|
Datasheet |
3350 | Bulk | Active | Through Hole | 12VDC | 3 A | 3500VAC, 3500VDC - Max | 68.6 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 3 ms | 3 ms | - |
|

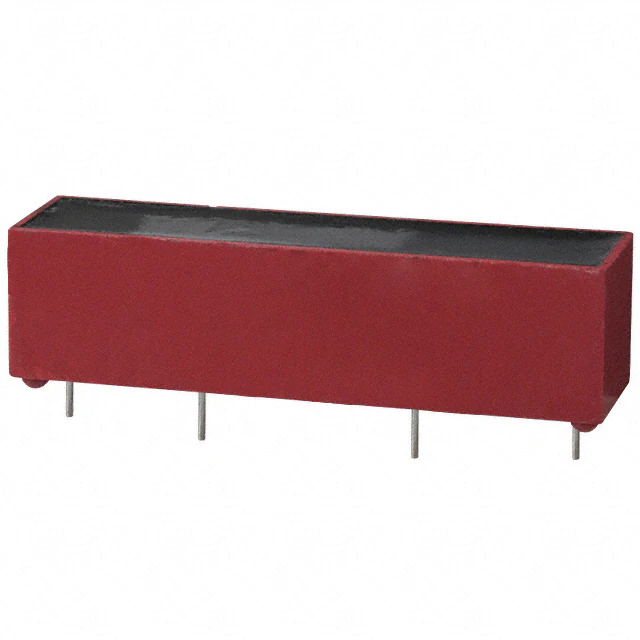

5501-24-1RELAY REED SPST 3A 24V |
2,046 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | 24VDC | 3 A | 7500VAC, 7500VDC - Max | 41.7 mA | SPST-NO (1 Form A) | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 3 ms | 3 ms | - |
|

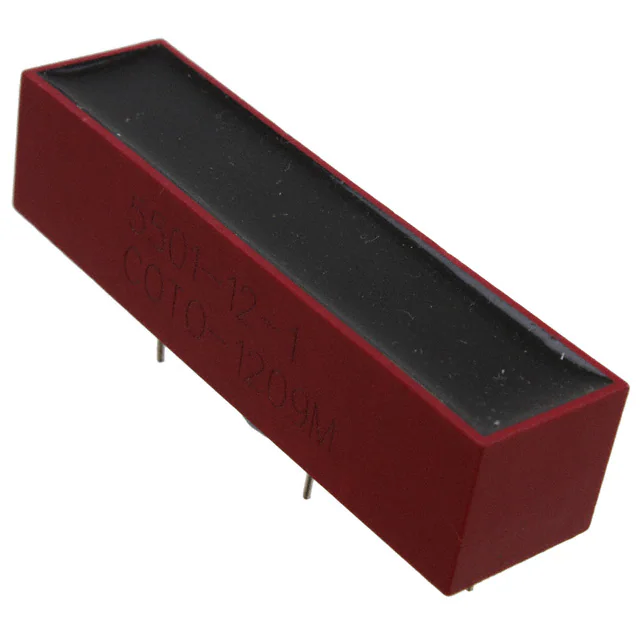

5501-12-1RELAY REED SPST 3A 12V |
2,044 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | 12VDC | 3 A | 7500VAC, 7500VDC - Max | 68.6 mA | SPST-NO (1 Form A) | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 3 ms | 3 ms | - |
|
|
5501-05-1RELAY REED SPST 3A 5V |
619 |
|
Datasheet |
5500 | Tube | Active | Through Hole | 5VDC | 3 A | 7500VAC, 7500VDC - Max | 125 mA | SPST-NO (1 Form A) | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.5 VDC | 3 ms | 3 ms | - |
