Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007-12-40RELAY REED SPST 500MA 12V |
508 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 6 mA | SPST-NO (1 Form A) | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.2 ms | 0.5 ms | - |
|
|
9007-05-40RELAY REED SPST 500MA 5V |
1,102 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 5 mA | SPST-NO (1 Form A) | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.2 ms | 0.5 ms | - |
|
HE722A0500RELAY REED DPST 500MA 5V |
9,366 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 25 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -40°C ~ 85°C | 0.5 VDC | 1 ms | 1 ms | - |
|
3570-1419-124RELAY REED SIP SPST 1A 12V W/EM |
362 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | 1 A | 200VDC - Max | 12 mA | SPST-NO (1 Form A) | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | -40°C ~ 85°C | 1 VDC | 0.1 ms | 0.35 ms | - |
|
HE3321C1200RELAY REED SPDT 250MA 12V |
5,568 |
|
Datasheet |
HE3300 | Bulk | Active | Through Hole | 12VDC | 250 mA | 175VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 9 VDC | -40°C ~ 85°C | 1 VDC | 3 ms | 3 ms | - |
|
SIL12-1A72-71DRELAY REED SPST 0.5A 12V |
1,171 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 8.4 VDC | -20°C ~ 70°C | 1.8 VDC | 0.1 ms | 0.7 ms | - |
|
|
HE3321C2400RELAY REED SPDT 250MA 24V |
5,140 |
|
Datasheet |
HE3300 | Tube | Active | Through Hole | 24VDC | 250 mA | 175VDC - Max | 12 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 18 VDC | -40°C ~ 85°C | 2 VDC | 3 ms | 3 ms | - |
|

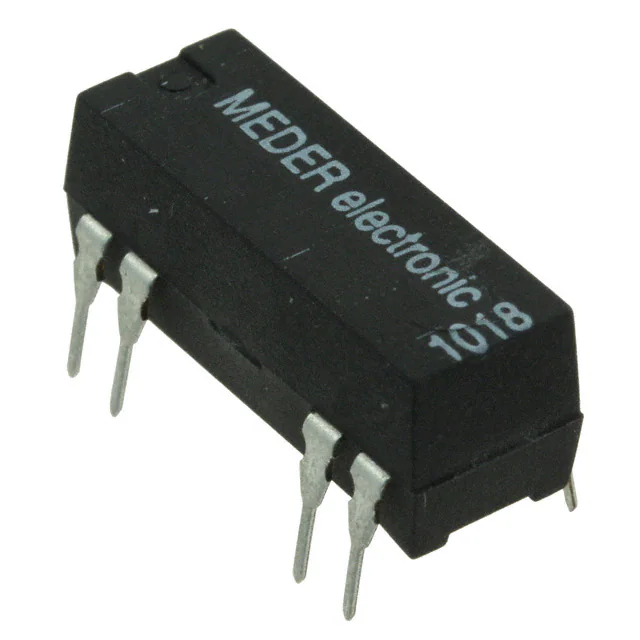

DIP05-1A72-12DRELAY REED SPST 1A 5V |
332 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | 1 A | 200VAC, 200VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 3.5 VDC | -20°C ~ 70°C | 0.75 VDC | 0.1 ms | 0.5 ms | - |
|
MS05-1A87-75LHRRELAY REED SPST 500MA 5V |
208 |
|
Datasheet |
MS | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 70°C | 0.75 VDC | 0.1 ms | 0.5 ms | - |
|
8L01-05-111RELAY REED SPST 500MA 5V |
4,681 |
|
Datasheet |
8L | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 0.5 ms | 0.5 ms | - |
|
|
HE721C2400RELAY REED SPDT 250MA 24V |
5,518 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | 250 mA | 175VDC - Max | 12 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 16 VDC | -40°C ~ 85°C | 2 VDC | 3 ms | 3 ms | - |
|
|
8L01-05-011RELAY REED SPST 500MA 5V |
21,048 |
|
Datasheet |
8L | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 0.5 ms | 0.5 ms | - |
|
|
8L02-05-00RELAY REED DPST 500MA 5V |
5,215 |
|
Datasheet |
8L | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 0.5 ms | 0.5 ms | - |
|

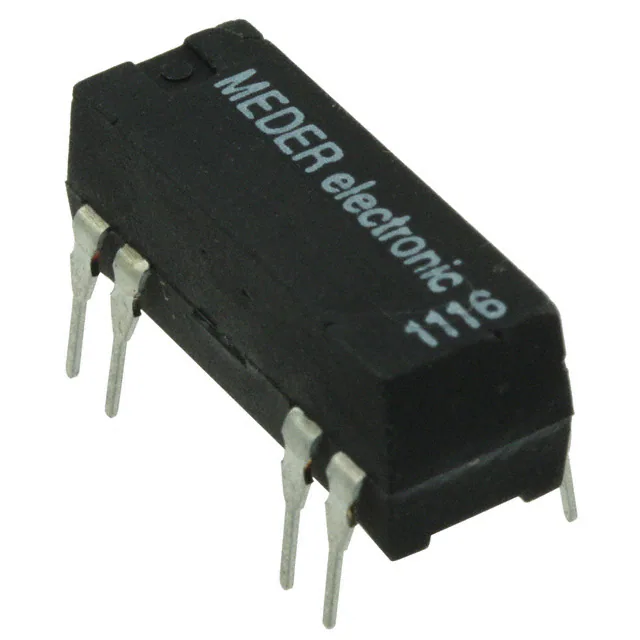

DIP12-1A72-12DRELAY REED SPST 1A 12V |
264 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 12VDC | 1 A | 200VAC, 200VDC - Max | 12 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 8.4 VDC | -20°C ~ 70°C | 1.8 VDC | 0.1 ms | 0.5 ms | - |
|
KT12-1A-40L-THTREED RELAY 1 FORM A 12V TH |
4,643 |
|
Datasheet |
KT | Tube | Active | Through Hole | 12VDC | 1 A | 1000VAC, 1000VDC - Max | 25 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | Sealed - Fully | 9 VDC | -40°C ~ 100°C | 1 VDC | - | - | - |
|

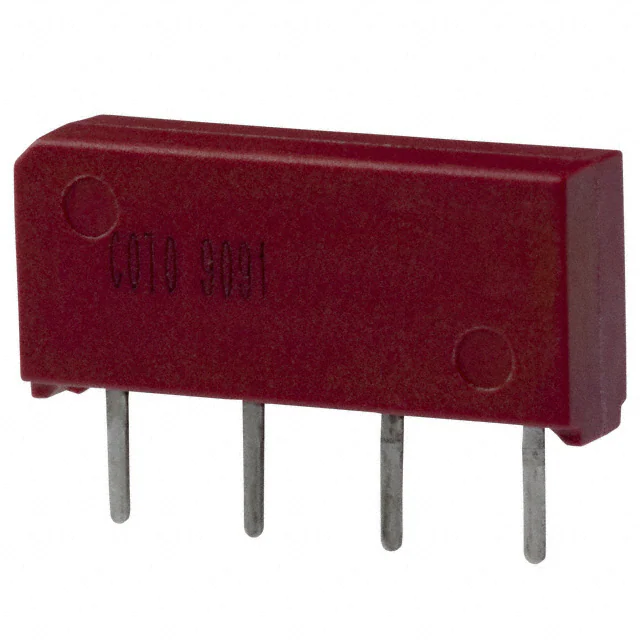

9091-12-01RELAY REED SPST 500MA 12V |
5,289 |
|
Datasheet |
9091 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.3 ms | 0.5 ms | - |
|
3563-1231-241RELAY REED DIP SPDT .4A 24V |
1,324 |
|
Datasheet |
3563 | Tube | Active | Through Hole | 24VDC | 400 mA | 100VDC - Max | 11 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 1.5 ms | 1 ms | - |
|
|
HE721C0530RELAY REED SPDT 250MA 5V |
4,917 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | 250 mA | 175VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | -40°C ~ 85°C | 0.5 VDC | 3 ms | 3 ms | - |
|
D31A7100REED RELAY 1A/24V |
118 |
|
Datasheet |
- | Tube | Active | Through Hole | 24VDC | 500 mA | 100VDC - Max | 11.2 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 18 VDC | -40°C ~ 70°C | 2 VDC | 50 µs | 1 ms | Rhodium (Rh) |
|
|
8L02-12-01RELAY REED DPST 500MA 12V |
793 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 24 mA | DPST-NO (2 Form A) | Non Latching | Diode | PC Pin | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 0.5 ms | 0.5 ms | - |
