Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT200-05RELAY REED SPST-NO 3A 5V |
3,130 |
|
Datasheet |
D200 | Bulk | Active | Through Hole | 5VDC | 3 A | 2500VAC, 2500VDC - Max | 179 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 70°C | 0.5 VDC | 1 ms | 6 ms | Tungsten (W) |
|
DAT71210-HRRELAY REED SPST-NO 2A 12V |
3,831 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 80 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 2 ms | 3 ms | Tungsten (W) |
|
DBR71210RELAY REED SPST-NC 3A 12V |
130 |
|
Datasheet |
DB | Tray | Active | Through Hole | 12VDC | 3 A | 1000VAC, 1000VDC - Max | 50 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 3 ms | 2 ms | Rhodium (Rh) |
|

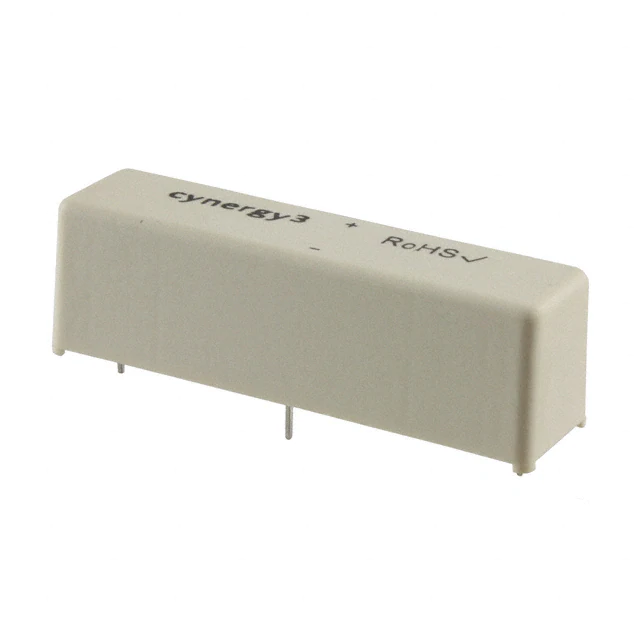

DBR72410RELAY REED SPST-NC 3A 24V |
4,468 |
|
Datasheet |
DB | Tray | Active | Through Hole | 24VDC | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 3 ms | 2 ms | Rhodium (Rh) |
|
3350-4275-126RELAY REED HV SPST-NC 200W 3A 12 |
4,029 |
|
Datasheet |
3350 | Bulk | Active | Through Hole | 12VDC | 3 A | 3500VAC, 3500VDC - Max | 68.6 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 3 ms | 3 ms | - |
|
DAR72410SRELAY REED SPST-NO 3A 24V |
3,765 |
|
Datasheet |
DA | Tray | Active | Chassis Mount | 24VDC | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | SPST-NO (1 Form A) | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 2 ms | 3 ms | Rhodium (Rh) |
|
DBT72475PURELAY REED SPST-NC 7.5KV 24V |
3,436 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 24VDC | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | SPST-NC (1 Form B) | Non Latching | - | Solder Turret | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 3 ms | 2 ms | Tungsten (W) |
|
DBT72410PRELAY REED SPST-NC 2A 24V |
472 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | SPST-NC (1 Form B) | Non Latching | - | Solder Turret | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 3 ms | 2 ms | Tungsten (W) |
|
|
DAT72415-HRRELAY REED SPST-NO 2A 24V |
1,618 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 24VDC | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 20 VDC | -20°C ~ 70°C | 4 VDC | 2 ms | 3 ms | Tungsten (W) |
|
H24-1A83RELAY REED SPST 3A 24V |
1,211 |
|
Datasheet |
H | Bulk | Active | Chassis Mount | 24VDC | 3 A | 7500VAC, 7500VDC - Max | 34.3 mA | SPST-NO (1 Form A) | Non Latching | - | Wire Leads | - | 18 VDC | -20°C ~ 70°C | 2 VDC | 1.5 ms | 3.2 ms | - |
|
3570-1210-121RELAY REED DIP SPST .5A 12V |
2,457 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | 500 mA | 150VDC - Max | 12 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.5 ms | 0.5 ms | - |
|
8L01-12-001RELAY REED SPST 500MA 12V |
9,924 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 24 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 0.5 ms | 0.5 ms | - |
|
HE751A0500RELAY REED SPST 500MA 5V |
5,927 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | 500 mA | 300VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.5 VDC | 1 ms | 1 ms | - |
|

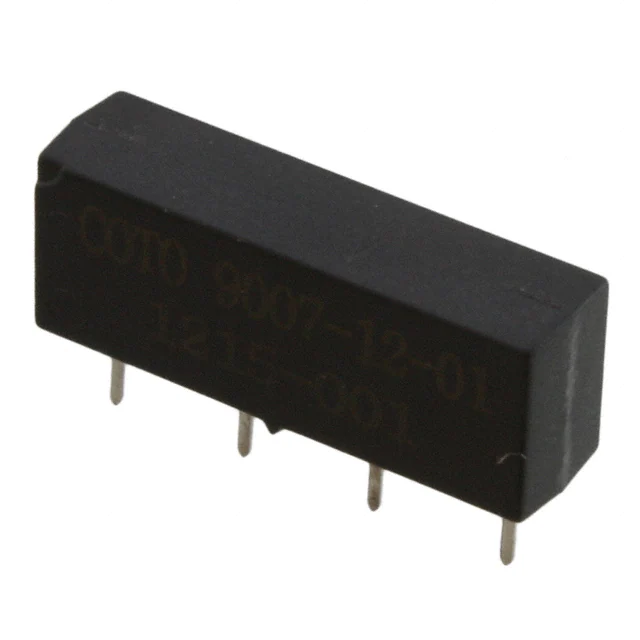

9007-12-01RELAY REED SPST 500MA 12V |
3,362 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.2 ms | 0.5 ms | - |
|
|
HE751A2400RELAY REED SPST 500MA 24V |
3,266 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | 500 mA | 300VDC - Max | 11.1 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 16 VDC | -20°C ~ 85°C | 2 VDC | 1 ms | 1 ms | - |
|
9007-24-01RELAY REED SPST 500MA 24V |
1,281 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 0.2 ms | 0.5 ms | - |
|
3570-1333-053RELAY REED SIP SPST .5A 5V W/DIO |
878 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 3.75 VDC | -40°C ~ 85°C | 0.8 VDC | 0.1 ms | 0.35 ms | - |
|
HE3621A1250RELAY REED SPST 500MA 12V |
7,551 |
|
Datasheet |
HE3600 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VDC - Max | 12 mA | SPST-NO (1 Form A) | Non Latching | Diode, EMI Shielded | PC Pin | - | 8 VDC | -40°C ~ 85°C | 1 VDC | 1 ms | 1 ms | - |
|
3572-1220-121RELAY REED DIP DPST .5A 12V |
1,040 |
|
Datasheet |
3572 | Tube | Active | Through Hole | 12VDC | 500 mA | 150VDC - Max | 24 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.5 ms | 0.5 ms | - |
|
|
3572-1220-054RELAY REED DIP DPST .5A 5V W/DIO |
414 |
|
Datasheet |
3572 | Tube | Active | Through Hole | 5VDC | 500 mA | 150VDC - Max | 35.7 mA | DPST-NO (2 Form A) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.6 VDC | 0.5 ms | 0.5 ms | - |
