Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2204-12-301RELAY REED SPST 500MA 12V |
272 |
|
Datasheet |
2200 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 8 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 0.5 ms | - |
|
JWS-117-6RELAY REED SPST 500MA 5V |
3,495 |
|
Datasheet |
JWS | Tube | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 3.8 VDC | -35°C ~ 85°C | 0.5 VDC | 0.5 ms | 1.5 ms | Ruthenium (Ru) |
|
S8-2405RELAY REED SPST 1A 24V |
143 |
|
Datasheet |
S8 | Bulk | Active | Through Hole | 24VDC | 1 A | 300VAC, 350VDC - Max | 15.5 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 19 VDC | -40°C ~ 85°C | 4 VDC | 0.5 ms | 1 ms | Rhodium (Rh) |
|
BFH-1C-12CREED RELAY SPDT .5A 12V |
174 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 12VDC | 500 mA | 200VDC - Max | 12 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.5 ms | 0.5 ms | Ruthenium (Ru) |
|
MS05-2A87-78DRELAY REED DPST 500MA 5V |
141 |
|
Datasheet |
MS | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 13.4 mA | DPST-NO (2 Form A) | Non Latching | Diode | PC Pin | - | 3.75 VDC | -20°C ~ 70°C | 0.5 VDC | 0.35 ms | 0.5 ms | - |
|

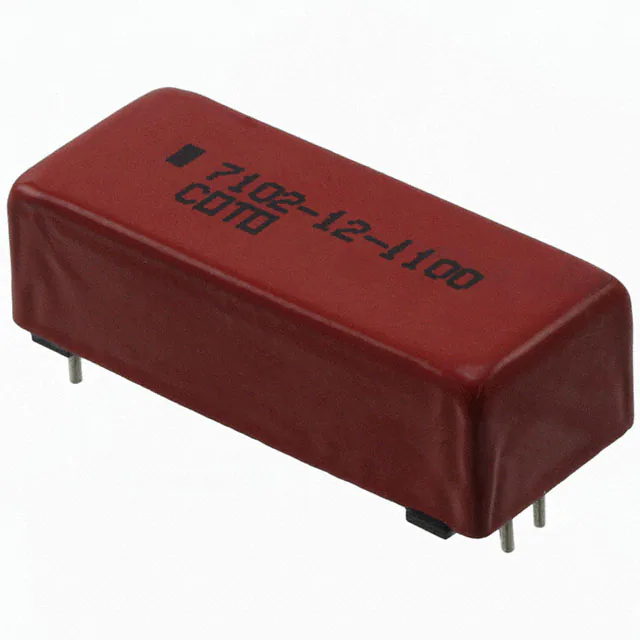

7102-12-1100RELAY REED DPST 500MA 12V |
883 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
2373-05-000RELAY REED 3PST 500MA 5V |
4,403 |
|
Datasheet |
2370 | Tray | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 55.6 mA | 3PST-NO (3 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | -40°C ~ 125°C | 0.4 VDC | 0.15 ms | 0.5 ms | - |
|
2911-05-301RELAY REED SPDT 250MA 5V |
410 |
|
Datasheet |
2900 | Tube | Active | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 21.7 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.4 VDC | 2 ms | 1 ms | - |
|
|
S8-1204VURELAY REED SPST 1A 12V UL |
130 |
|
Datasheet |
S8 | Bulk | Active | Through Hole | 12VDC | 1 A | 1000VAC, 1000VDC - Max | 16 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9.6 VDC | -40°C ~ 85°C | 2 VDC | 0.5 ms | 1 ms | Rhodium (Rh) |
|
7101-12-1011RELAY REED SPST 500MA 12V |
245 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | SPST-NO (1 Form A) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
JWD-171-17RELAY REED SPST 500MA 5V |
964 |
|
Datasheet |
JWD | Tube | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | SPST-NC (1 Form B) | Non Latching | Diode | PC Pin | - | 3.8 VDC | -35°C ~ 85°C | 0.5 VDC | 0.5 ms | 1.5 ms | Ruthenium (Ru) |
|
|
JWD-171-28RELAY REED DPST 500MA 24V |
3,481 |
|
Datasheet |
JWD | Tube | Active | Through Hole | 24VDC | 500 mA | 100VDC - Max | 10.9 mA | DPST-NO (2 Form A) | Non Latching | Diode | PC Pin | - | 19.2 VDC | -35°C ~ 85°C | 2 VDC | 0.5 ms | 1.5 ms | Ruthenium (Ru) |
|
2271-05-001RELAY REED SPDT 250MA 5V |
1,392 |
|
Datasheet |
2270 | Tube | Active | Through Hole | 5VDC | 250 mA | 100VAC, 100VDC - Max | 50 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | -20°C ~ 125°C | 0.4 VDC | 2 ms | 1 ms | - |
|
7302-05-1000RELAY REED DPST 500MA 5V |
494 |
|
Datasheet |
7000 | Tube | Not For New Designs | Through Hole | 5VDC | 500 mA | 500VAC, 500VDC - Max | 50 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.1 ms | 1 ms | - |
|

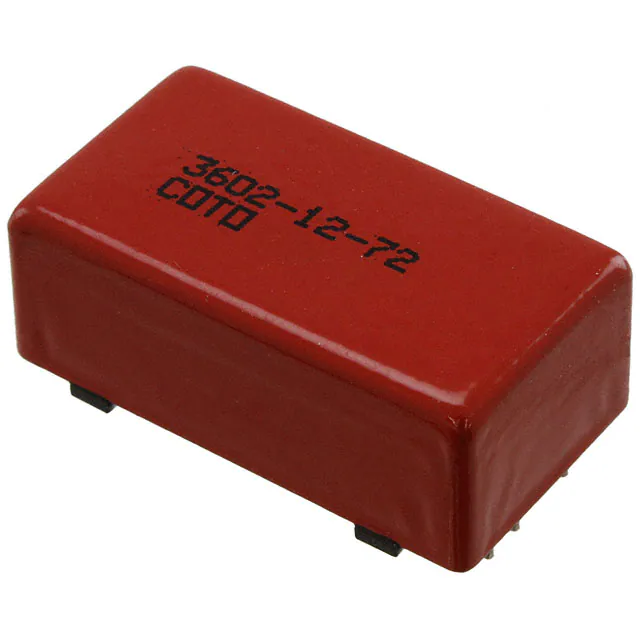

3602-12-72RELAY REED DPST 250MA 12V |
699 |
|
Datasheet |
3600 | Tube | Active | Through Hole | 12VDC | 250 mA | 150VAC, 150VDC - Max | 6 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 0.75 ms | - |
|
|
2372-12-000RELAY REED DPDT 250MA 12V |
4,287 |
|
Datasheet |
2370 | Tube | Active | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | DPDT (2 Form C) | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | -40°C ~ 125°C | 1 VDC | 2 ms | 1.5 ms | - |
|
5000-0408RELAY REED CONMED REV K |
510 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DAT71210URELAY REED SPST-NO 2A 12V |
4,479 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 80 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 2 ms | 3 ms | Tungsten (W) |
|
5502-24-1RELAY REED SPST 3A 24V |
4,994 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | 24VDC | 3 A | 7500VAC, 7500VDC - Max | 41.7 mA | SPST-NC (1 Form B) | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 3 ms | 3 ms | - |
|
|
DBT70510URELAY REED SPST-NC 2A 5V |
1,518 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 5VDC | 2 A | 7000VAC, 7000VDC - Max | 132 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 3.7 VDC | -20°C ~ 70°C | 0.5 VDC | 3 ms | 2 ms | Tungsten (W) |
