Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DIP12-2A72-21DRELAY REED DPST 1A 12V |
580 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 12VDC | 1 A | 200VAC, 200VDC - Max | 24 mA | DPST-NO (2 Form A) | Non Latching | Diode | PC Pin | - | 8.4 VDC | -20°C ~ 70°C | 1.8 VDC | 0.1 ms | 0.5 ms | - |
|
CGSM-031A-JTRRELAY RF SPST-NO 500MA 3.3V |
669 |
|
Datasheet |
CGSM | Tape & Reel (TR) | Active | Surface Mount | 3.3VDC | 500 mA | 120VAC, 170VDC - Max | 47.1 mA | SPST-NO (1 Form A) | Non Latching | - | J Lead | - | 2.5 VDC | -40°C ~ 85°C | 0.4 VDC | 0.05 ms | 0.25 ms | Ruthenium (Ru) |
|
9094-05-01RELAY REED SPST 500MA 5V |
3,067 |
|
Datasheet |
9094 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 40 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.3 ms | 0.5 ms | - |
|

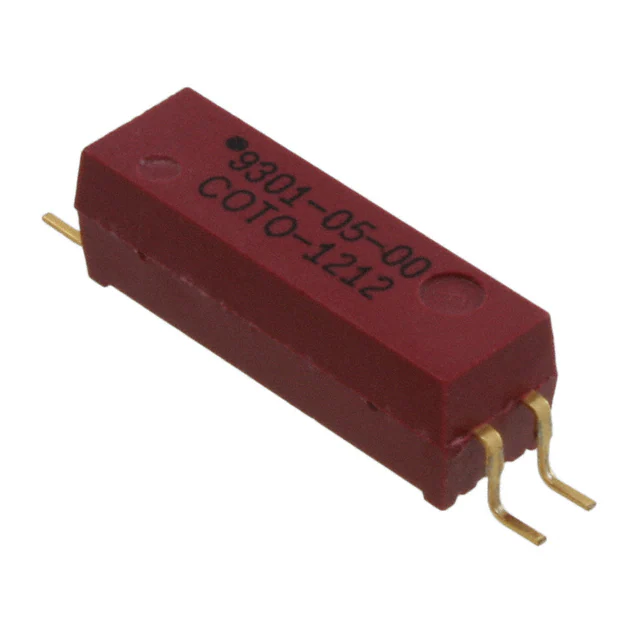

9301-05-00RELAY REED SPST 500MA 5V |
806 |
|
Datasheet |
9300 | Bulk | Active | Surface Mount | 5VDC | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | SPST-NO (1 Form A) | Non Latching | - | Gull Wing | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.1 ms | 0.4 ms | - |
|

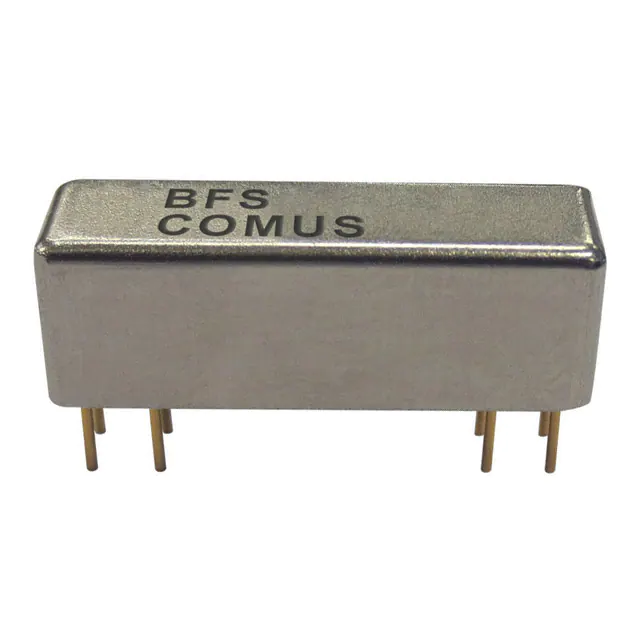

BFS-1A-05ERELAY REED SPST .5A 5V |
115 |
|
Datasheet |
BFS | Tube | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 13.5 mA | SPST-NO (1 Form A) | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | -25°C ~ 85°C | 0.4 VDC | 0.1 ms | 0.5 ms | Ruthenium (Ru) |
|
BF-1C-05RELAY REED SPDT .25A 5V |
368 |
|
Datasheet |
BF | Tube | Active | Through Hole | 5VDC | 250 mA | 150VDC - Max | 21.7 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 3.8 VDC | -25°C ~ 85°C | 0.4 VDC | 2 ms | 1 ms | Ruthenium (Ru) |
|
9011-12-10RELAY REED SPST 250MA 12V |
594 |
|
Datasheet |
9011 | Bulk | Active | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 16 mA | SPST-NO (1 Form A) | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 0.35 ms | - |
|
DIP05-2A72-21DRELAY REED DPST 1A 5V |
144 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | 1 A | 200VAC, 200VDC - Max | 25 mA | DPST-NO (2 Form A) | Non Latching | Diode | PC Pin | - | 3.5 VDC | -20°C ~ 70°C | 0.75 VDC | 0.1 ms | 0.5 ms | - |
|
8L61-05-101RELAY REED SPDT 250MA 5V |
954 |
|
Datasheet |
8L | Bulk | Active | Surface Mount | 5VDC | 250 mA | 100VAC, 100VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | Electrostatic Shield | J Lead | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 1 ms | 1 ms | - |
|
|
BFS-1A-12CRELAY REED SPST .5A 12V |
229 |
|
Datasheet |
BFS | Tube | Active | Through Hole | 12VDC | 500 mA | 200VDC - Max | 8 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -25°C ~ 85°C | 1 VDC | 0.1 ms | 0.5 ms | Ruthenium (Ru) |
|
|
DIP05-1C90-51LRELAY REED SPDT 250MA 5V |
107 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | 250 mA | 175VAC, 175VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 3.5 VDC | -20°C ~ 70°C | 0.75 VDC | 1.5 ms | 0.7 ms | - |
|

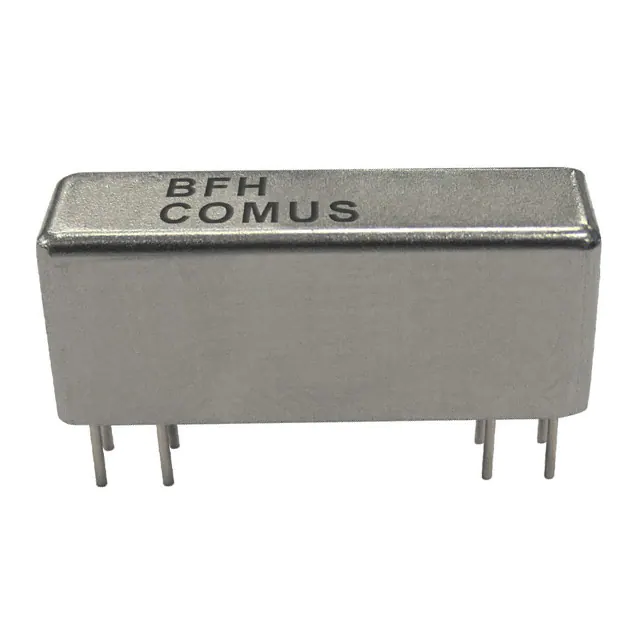

BFH-3A-12RELAY REED 3PST .5A 12V |
249 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 12VDC | 500 mA | 200VDC - Max | 12 mA | 3PST-NO (3 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.15 ms | 0.5 ms | Ruthenium (Ru) |
|
|
DIP12-1C90-51LRELAY REED SPDT 500MA 12V |
257 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 12VDC | 500 mA | 175VAC, 175VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 8.4 VDC | -20°C ~ 70°C | 1.8 VDC | 1.5 ms | 0.7 ms | - |
|
8L41-12-011RELAY REED SPDT 250MA 12V |
3,249 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | Diode | PC Pin | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 1 ms | - |
|
|
DIP05-1C90-51DRELAY REED SPDT 250MA 5V |
202 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 5VDC | 250 mA | 175VAC, 175VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | Diode | PC Pin | - | 3.5 VDC | -20°C ~ 70°C | 0.75 VDC | 1.5 ms | 0.7 ms | - |
|
|
8L41-24-111RELAY REED SPDT 250MA 24V |
113 |
|
Datasheet |
8L | Tube | Active | Through Hole | 24VDC | 250 mA | 100VAC, 100VDC - Max | 12 mA | SPDT (1 Form C) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 19.2 VDC | -20°C ~ 85°C | 2 VDC | 1 ms | 1 ms | - |
|
|
8L61-05-011RELAY REED SPDT 250MA 5V |
1,145 |
|
Datasheet |
8L | Bulk | Active | Surface Mount | 5VDC | 250 mA | 100VAC, 100VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | Diode | J Lead | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 1 ms | 1 ms | - |
|
JWD-171-10RELAY REED SPST 500MA 24V |
1,468 |
|
Datasheet |
JWD | Tube | Active | Through Hole | 24VDC | 500 mA | 100VDC - Max | 11.2 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 19.2 VDC | -35°C ~ 85°C | 2 VDC | 0.5 ms | 1.5 ms | Ruthenium (Ru) |
|
2974-12-00RELAY REED SPST 500MA 12V |
405 |
|
Datasheet |
2970 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 8 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 6.7 VDC | -40°C ~ 125°C | 1 VDC | 0.1 ms | 0.5 ms | - |
|
JWS-117-1RELAY REED SPST 500MA 5V |
3,968 |
|
Datasheet |
JWS | Tube | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.8 VDC | -35°C ~ 85°C | 0.5 VDC | 0.5 ms | 1.5 ms | Ruthenium (Ru) |
