Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8L61-12-111RELAY REED SPDT 250MA 12V |
320 |
|
Datasheet |
8L | Bulk | Active | Surface Mount | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | Diode, Electrostatic Shield | J Lead | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 1 ms | - |
|
9092-12-11RELAY REED DPST 500MA 12V |
2,199 |
|
Datasheet |
9092 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 16 mA | DPST-NO (2 Form A) | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.5 ms | 0.75 ms | - |
|
JWD-107-5RELAY REED SPST 500MA 5V |
5,588 |
|
Datasheet |
JWD | Tray | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 3.8 VDC | -35°C ~ 85°C | 0.5 VDC | 0.5 ms | 1.5 ms | Ruthenium (Ru) |
|
7101-12-1100RELAY REED SPST 500MA 12V |
4,081 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
2204-12-311RELAY REED SPST 500MA 12V |
208 |
|
Datasheet |
2200 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 8 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 0.5 ms | - |
|
|
2200-2301RELAY REED SPST 500MA 5V |
1,580 |
|
Datasheet |
2200 | Tube | Active | Through Hole | 5VDC | 500 mA | 150VAC, 150VDC - Max | 33.3 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 3.6 VDC | -20°C ~ 85°C | 0.5 VDC | 0.1 ms | 0.55 ms | - |
|
2332-05-010RELAY REED DPST 500MA 5V |
824 |
|
Datasheet |
2300 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 28.6 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | -20°C ~ 85°C | 0.4 VDC | 0.15 ms | 0.5 ms | - |
|

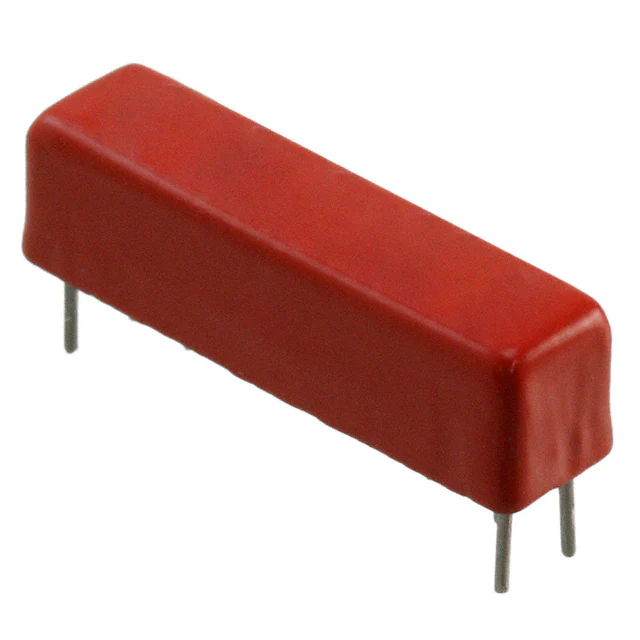

2271-12-001RELAY REED SPDT 250MA 12V |
117 |
|
Datasheet |
2270 | Tube | Active | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 21.8 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | -20°C ~ 125°C | 1 VDC | 2 ms | 1 ms | - |
|
2333-12-000RELAY REED 3PST 500MA 12V |
1,186 |
|
Datasheet |
2300 | Tray | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | 3PST-NO (3 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.15 ms | 0.5 ms | - |
|
2911-05-311RELAY REED SPDT 250MA 5V |
618 |
|
Datasheet |
2900 | Tube | Active | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 21.7 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.4 VDC | 2 ms | 1 ms | - |
|
|
JWD-172-8RELAY REED SPDT 500MA 24V |
3,928 |
|
Datasheet |
JWD | Tray | Active | Through Hole | 24VDC | 500 mA | 28VDC - Max | 10.9 mA | SPDT (1 Form C) | Non Latching | Diode | PC Pin | - | 19.2 VDC | -35°C ~ 85°C | 2 VDC | 3 ms | 1.5 ms | Ruthenium (Ru) |
|
4031-12-3001RELAY COTO STANDARD CD REV.00 BO |
646 |
|
Datasheet |
- | Tube | Active | Through Hole | 12VDC | 500 mA | 500VAC, 500VDC - Max | 6.7 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 80°C | 1 VDC | 0.5 ms | 1 ms | - |
|
3502-12-710RELAY REED DPST 500MA 12V |
270 |
|
Datasheet |
3500 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 6 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 0.75 ms | - |
|
V23100V4305C011RELAY REED SPDT 250MA 5V |
181 |
|
Datasheet |
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | 250 mA | 175VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.5 VDC | -40°C ~ 85°C | 0.75 VDC | 1.6 ms | 1.1 ms | Ruthenium (Ru) |
|
2971-12-00RELAY REED SPDT 250MA 12V |
547 |
|
Datasheet |
2970 | Tube | Active | Through Hole | 12VDC | 250 mA | 150VAC, 150VDC - Max | 8 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 6.7 VDC | -40°C ~ 125°C | 1 VDC | 2 ms | 1 ms | - |
|

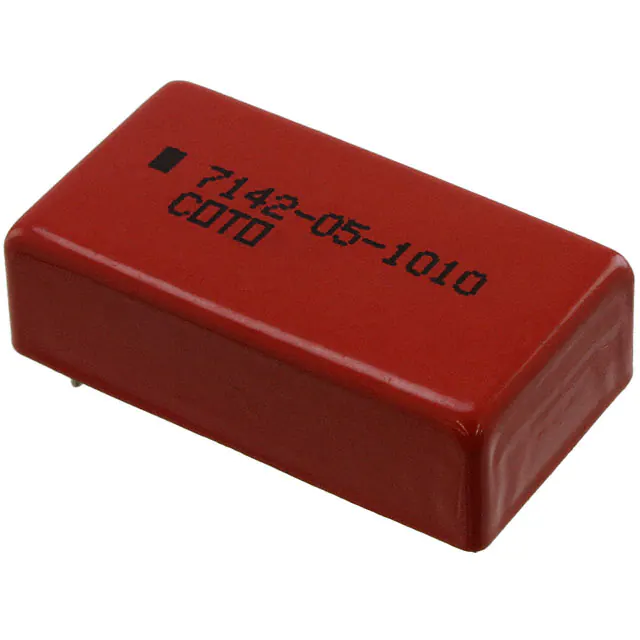

7142-05-1010RELAY REED DPDT 250MA 5V |
188 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 77 mA | DPDT (2 Form C) | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 2.5 ms | 2 ms | - |
|
|
3541-05-811RELAY REED DPST 500MA 5V |
407 |
|
Datasheet |
3500 | Tube | Active | Through Hole | 5VDC | 500 mA | 500VAC, 500VDC - Max | 25 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | -20°C ~ 85°C | 0.4 VDC | 0.2 ms | 1 ms | - |
|
SAR91203RELAY REED SPST 500MA 12V |
247 |
|
Datasheet |
S | Tray | Active | Through Hole | 12VDC | 500 mA | 20VAC, 20VDC - Max | 20 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1.25 VDC | 0.5 ms | 1 ms | Rhodium (Rh) |
|
3351-1275-056RELAY REED HV SPST 50W 3A 5V |
224 |
|
Datasheet |
3350 | Bulk | Active | Through Hole | 5VDC | 3 A | 7500VAC, 7500VDC - Max | 125 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.5 VDC | 3 ms | 3 ms | - |
|
|
3351-4275-056RELAY REED HV SPST-NC 50W 3A 5V |
1,385 |
|
Datasheet |
3350 | Bulk | Active | Through Hole | 5VDC | 3 A | 7500VAC, 7500VDC - Max | 125 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.5 VDC | 3 ms | 3 ms | - |
