Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DIP12-1C90-51DRELAY REED SPDT 500MA 12V |
439 |
|
Datasheet |
DIP | Tube | Active | Through Hole | 12VDC | 500 mA | 175VAC, 175VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | Diode | PC Pin | - | 8.4 VDC | -20°C ~ 70°C | 1.8 VDC | 1.5 ms | 0.7 ms | - |
|
8L41-12-101RELAY REED SPDT 250MA 12V |
199 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 1 ms | - |
|
BFH-1C-05REED RELAY SPDT .5A 5V |
147 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 21.7 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.4 VDC | 0.5 ms | 0.5 ms | Ruthenium (Ru) |
|
2377-12-020RELAY REED DPST 500MA 12V |
4,814 |
|
Datasheet |
2370 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 24 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | -40°C ~ 125°C | 1 VDC | 0.15 ms | 0.5 ms | - |
|
2341-12-010RELAY REED SPDT 500MA 12V |
1,994 |
|
Datasheet |
2300 | Tray | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.5 ms | 0.5 ms | - |
|
JWD-172-4RELAY REED SPDT 500MA 24V |
2,984 |
|
Datasheet |
JWD | Tube | Active | Through Hole | 24VDC | 500 mA | 28VDC - Max | 10.9 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 19.2 VDC | -35°C ~ 85°C | 2 VDC | 3 ms | 1.5 ms | Ruthenium (Ru) |
|
7101-12-1010RELAY REED SPST 500MA 12V |
201 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | SPST-NO (1 Form A) | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
|
BFH-1C-05CREED RELAY SPDT .5A 5V |
134 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 21.7 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.4 VDC | 0.5 ms | 0.5 ms | Ruthenium (Ru) |
|
2274-12-021RELAY REED SPST 500MA 12V |
454 |
|
Datasheet |
2270 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | -20°C ~ 125°C | 1 VDC | 0.1 ms | 0.5 ms | - |
|
|
V23100V4305B010RELAY REED DPST 500MA 5V |
265 |
|
Datasheet |
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | DPST-NO (2 Form A) | Non Latching | Diode | PC Pin | - | 3.5 VDC | -40°C ~ 85°C | 0.75 VDC | 0.15 ms | 0.75 ms | Ruthenium (Ru) |
|

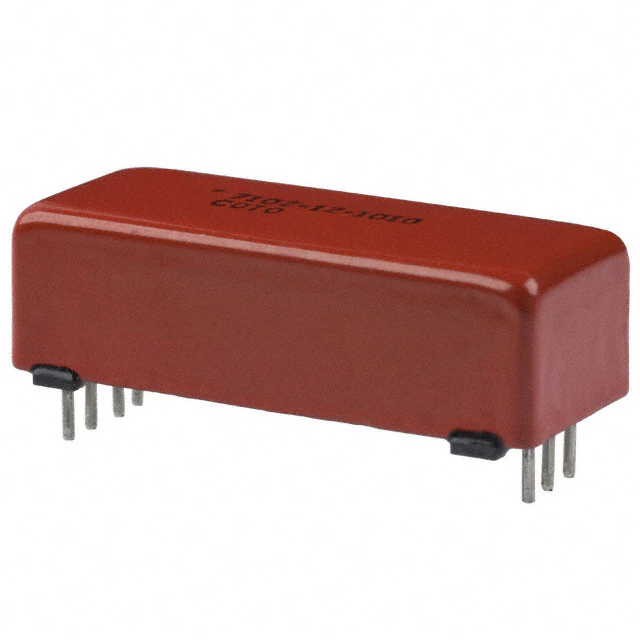

7102-12-1010RELAY REED DPST 500MA 12V |
176 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | DPST-NO (2 Form A) | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
3650-05-92RELAY REED 3PST 250MA 5V |
269 |
|
Datasheet |
3600 | Tube | Active | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | 3PST-NO (3 Form A) | Non Latching | - | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.4 VDC | 0.1 ms | 0.75 ms | - |
|
|
2373-12-000RELAY REED 3PST 500MA 12V |
379 |
|
Datasheet |
2370 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 24 mA | 3PST-NO (3 Form A) | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | -40°C ~ 125°C | 1 VDC | 0.15 ms | 0.5 ms | - |
|
7103-05-1011RELAY REED 3PST 500MA 5V |
143 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 50 mA | 3PST-NO (3 Form A) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.1 ms | 1 ms | - |
|
|
V23100V4324C000RELAY REED SPDT 250MA 24V |
223 |
|
Datasheet |
V23100-V4, AXICOM | Tube | Active | Through Hole | 24VDC | 250 mA | 175VDC - Max | 12 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 16.8 VDC | -40°C ~ 85°C | 3.6 VDC | 1.6 ms | 1.1 ms | Ruthenium (Ru) |
|
7142-12-1011RELAY REED DPDT 250MA 12V |
196 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 12VDC | 250 mA | 150VAC, 150VDC - Max | 24.5 mA | DPDT (2 Form C) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 2.5 ms | 2 ms | - |
|
|
SIL05-1A72-71MGENERAL PURPOSE REED RELAY, FORM |
500 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.5 VDC | -20°C ~ 70°C | 0.75 VDC | 100 µs | 0.5 ms | - |
|
|
MS05-1A87-75DGENERAL PURPOSE REED RELAY, FORM |
160 |
|
Datasheet |
MS | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 17.9 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 70°C | 0.5 VDC | 100 µs | 0.5 ms | - |
|
MS12-1A87-75LRELAY REED SPST 500MA 12V |
305 |
|
Datasheet |
MS | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 17.1 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 8.4 VDC | -20°C ~ 70°C | 1.8 VDC | 0.1 ms | 0.5 ms | - |
|
|
8L01-12-111RELAY REED SPST 500MA 12V |
487 |
|
Datasheet |
8L | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 24 mA | SPST-NO (1 Form A) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 0.5 ms | 0.5 ms | - |
