| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7102-12-1001RELAY REED DPST 500MA 12V |
2,079 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | DPST-NO (2 Form A) | Non Latching | Diode | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
|
7102-24-1100RELAY REED DPST 500MA 24V |
1,866 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 0.1 ms | 1 ms | - |
|
|
7103-05-1000RELAY REED 3PST 500MA 5V |
2,094 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 50 mA | 3PST-NO (3 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.1 ms | 1 ms | - |
|
|
7103-12-1000RELAY REED 3PST 500MA 12V |
3,872 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 15 mA | 3PST-NO (3 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
|
7103-24-1010RELAY REED 3PST 500MA 24V |
4,080 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | 3PST-NO (3 Form A) | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 0.1 ms | 1 ms | - |
|
|
7104-05-1001RELAY REED 4PST 500MA 5V |
3,784 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | 4PST-NO (4 Form A) | Non Latching | Diode | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.1 ms | 1 ms | - |
|
|
7104-05-1100RELAY REED 4PST 500MA 5V |
1,681 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | 4PST-NO (4 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.1 ms | 1 ms | - |
|
|
7104-12-1001RELAY REED 4PST 500MA 12V |
4,055 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | 4PST-NO (4 Form A) | Non Latching | Diode | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|

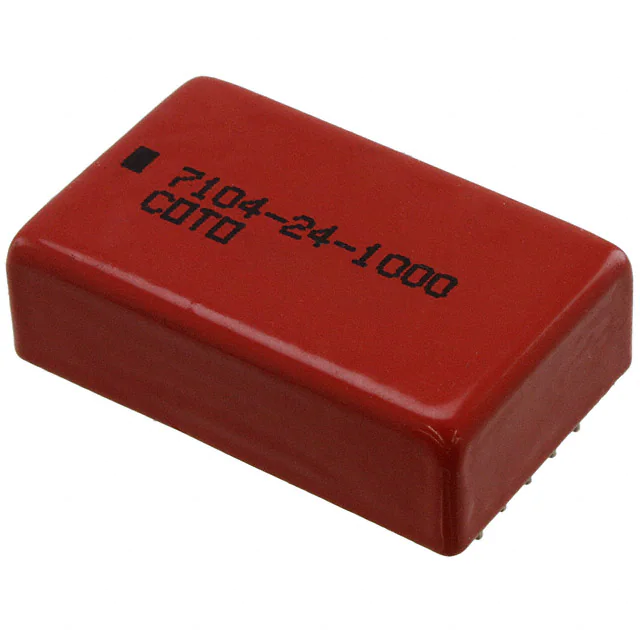

7104-24-1000RELAY REED 4PST 500MA 24V |
2,230 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | 4PST-NO (4 Form A) | Non Latching | - | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 0.1 ms | 1 ms | - |
|
|
7121-05-1000RELAY REED SPST 500MA 5V |
1,985 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.1 ms | 1 ms | - |
|
|
7121-12-1000RELAY REED SPST 500MA 12V |
2,238 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
|
7121-12-1010RELAY REED SPST 500MA 12V |
4,232 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | SPST-NC (1 Form B) | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
|
7122-05-1011RELAY REED DPST 500MA 5V |
1,449 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 50 mA | DPST-NC (2 Form B) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.1 ms | 1 ms | - |
|
|
7141-05-1001RELAY REED SPDT 250MA 5V |
1,551 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 28.6 mA | SPDT (1 Form C) | Non Latching | Diode | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 2.5 ms | 2 ms | - |
|
|
7141-05-1010RELAY REED SPDT 250MA 5V |
2,406 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 28.6 mA | SPDT (1 Form C) | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 2.5 ms | 2 ms | - |
|
|
7141-05-1100RELAY REED SPDT 250MA 5V |
2,379 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 28.6 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 2.5 ms | 2 ms | - |
|
|
7141-12-1100RELAY REED SPDT 250MA 12V |
3,679 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 250 mA | 150VAC, 150VDC - Max | 10.9 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 2.5 ms | 2 ms | - |
|
|
7141-24-1001RELAY REED SPDT 250MA 24V |
2,256 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 250 mA | 150VAC, 150VDC - Max | 5.7 mA | SPDT (1 Form C) | Non Latching | Diode | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 2.5 ms | 2 ms | - |
|
|
7142-05-1000RELAY REED DPDT 250MA 5V |
3,244 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 77 mA | DPDT (2 Form C) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 2.5 ms | 2 ms | - |
|
|
7142-05-1001RELAY REED DPDT 250MA 5V |
4,453 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 77 mA | DPDT (2 Form C) | Non Latching | Diode | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 2.5 ms | 2 ms | - |
