| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8041-05-111RELAY REED SPDT 250MA 5V |
1,686 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 5VDC | 250 mA | 100VAC, 100VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 1.5 ms | 1 ms | - |
|
|
8041-12-001RELAY REED SPDT 250MA 12V |
2,380 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 1 ms | - |
|
|
8041-12-011RELAY REED SPDT 250MA 12V |
1,841 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | Diode | PC Pin | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 1.5 ms | 1 ms | - |
|
|
8041-12-101RELAY REED SPDT 250MA 12V |
1,069 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 1 ms | - |
|

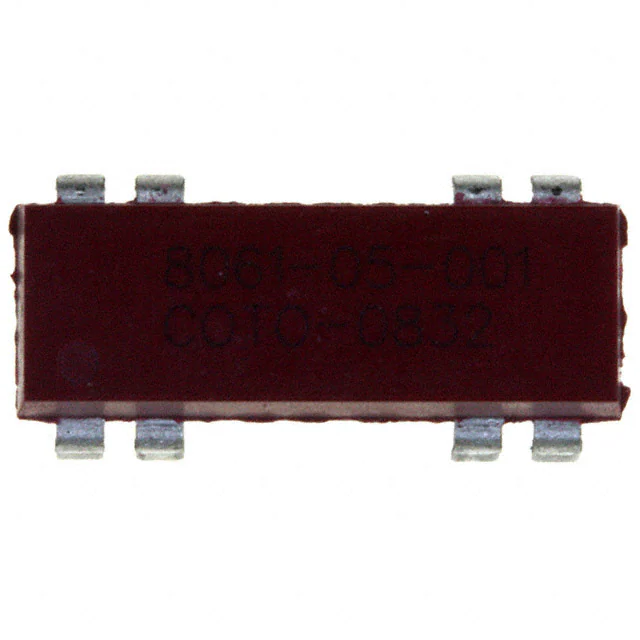

8061-05-001RELAY REED SPDT 250MA 5V |
2,823 |
|
Datasheet |
8000 | Tube | Obsolete | Surface Mount | 5VDC | 250 mA | 100VAC, 100VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | - | J Lead | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 1 ms | 1 ms | - |
|
|
8061-05-011RELAY REED SPDT 250MA 5V |
1,906 |
|
Datasheet |
8000 | Tube | Obsolete | Surface Mount | 5VDC | 250 mA | 100VAC, 100VDC - Max | 25 mA | SPDT (1 Form C) | Non Latching | Diode | J Lead | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 1.5 ms | 1 ms | - |
|

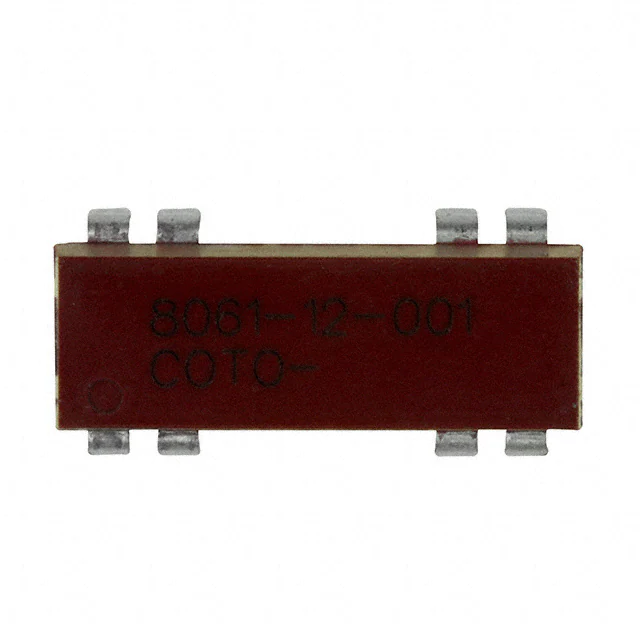

8061-12-001RELAY REED SPDT 250MA 12V |
4,061 |
|
Datasheet |
8000 | Tube | Obsolete | Surface Mount | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | - | J Lead | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 1 ms | - |
|
8061-12-011RELAY REED SPDT 250MA 12V |
1,587 |
|
Datasheet |
8000 | Tube | Obsolete | Surface Mount | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | Diode | J Lead | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 1.5 ms | 1 ms | - |
|
|
8061-12-111RELAY REED SPDT 250MA 12V |
2,754 |
|
Datasheet |
8000 | Tube | Obsolete | Surface Mount | 12VDC | 250 mA | 100VAC, 100VDC - Max | 24 mA | SPDT (1 Form C) | Non Latching | Diode, Electrostatic Shield | J Lead | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 1.5 ms | 1 ms | - |
|
8L21-05-00RELAY REED SPST 500MA 5V |
4,010 |
|
Datasheet |
8L | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 0.5 ms | 0.5 ms | - |
|
|
8L21-05-01RELAY REED SPST 500MA 5V |
2,786 |
|
Datasheet |
8L | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | SPST-NC (1 Form B) | Non Latching | Diode | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 1 ms | 0.5 ms | - |
|
|
8L21-05-11RELAY REED SPST 500MA 5V |
4,903 |
|
Datasheet |
8L | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | SPST-NC (1 Form B) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | -20°C ~ 85°C | 0.5 VDC | 1 ms | 0.5 ms | - |
|
|
8L21-12-00RELAY REED SPST 500MA 12V |
3,157 |
|
Datasheet |
8L | Tube | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 24 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 9.6 VDC | -20°C ~ 85°C | 1 VDC | 0.5 ms | 0.5 ms | - |
|
|
8L21-24-00RELAY REED SPST 500MA 24V |
4,078 |
|
Datasheet |
8L | Tube | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 19.2 VDC | -20°C ~ 85°C | 2 VDC | 0.5 ms | 0.5 ms | - |
|
9007-12-50RELAY REED SPST 500MA 12V |
1,920 |
|
Datasheet |
9007, Spartan | Tube | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 6 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.2 ms | 0.5 ms | - |
|
|
9007-24-11RELAY REED SPST 500MA 24V |
4,365 |
|
Datasheet |
9007, Spartan | Tube | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | SPST-NO (1 Form A) | Non Latching | Diode, EMI Shielded | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 0.2 ms | 0.5 ms | - |
|
9081-05-40RELAY REED SPST 500MA 5V |
3,065 |
|
Datasheet |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 5 mA | SPST-NO (1 Form A) | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 0.2 ms | 0.5 ms | - |
|
|
9081C1-05-00RELAY REED SPDT 400MA 5V |
1,232 |
|
Datasheet |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | 400 mA | 175VAC, 175VDC - Max | 40 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 1.5 ms | 1 ms | - |
|
|
9081C1-05-10RELAY REED SPDT 400MA 5V |
3,966 |
|
Datasheet |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | 400 mA | 175VAC, 175VDC - Max | 40 mA | SPDT (1 Form C) | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 1.5 ms | 1 ms | - |
|
|
9081C1-24-00RELAY REED SPDT 400MA 24V |
3,134 |
|
Datasheet |
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | 400 mA | 175VAC, 175VDC - Max | 12 mA | SPDT (1 Form C) | Non Latching | - | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 1.5 ms | 1 ms | - |
