| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Form | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Operating Temperature | Must Release Voltage | Release Time | Operate Time | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7302-12-1100RELAY REED DPST 500MA 12V |
2,306 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 500VAC, 500VDC - Max | 18.8 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
|
7142-24-1100RELAY REED DPDT 250MA 24V |
1,857 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 250 mA | 150VAC, 150VDC - Max | 15.5 mA | DPDT (2 Form C) | Non Latching | - | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 2.5 ms | 2 ms | - |
|
|
7302-24-1000RELAY REED DPST 500MA 24V |
1,366 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 500 mA | 500VAC, 500VDC - Max | 9.8 mA | DPST-NO (2 Form A) | Non Latching | - | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 0.1 ms | 1 ms | - |
|
|
7104-12-1111RELAY REED 4PST 500MA 12V |
4,259 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | 4PST-NO (4 Form A) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 0.1 ms | 1 ms | - |
|
|
7142-24-1011RELAY REED DPDT 250MA 24V |
4,198 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 250 mA | 150VAC, 150VDC - Max | 15.5 mA | DPDT (2 Form C) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 2.5 ms | 2 ms | - |
|
|
7201-05-1000RELAY REED SPST 1A 5V |
3,214 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 1 A | 500VAC, 500VDC - Max | 71.4 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 1 ms | 2 ms | - |
|
|
7201-12-1100RELAY REED SPST 1A 12V |
2,475 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 26.7 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 2 ms | - |
|
|
7201-12-1010RELAY REED SPST 1A 12V |
1,736 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 26.7 mA | SPST-NO (1 Form A) | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 2 ms | - |
|
|
7203-12-1000RELAY REED 3PST 1A 12V |
4,253 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 40 mA | 3PST-NO (3 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 2 ms | - |
|
|
7204-12-1000RELAY REED 4PST 1A 12V |
3,057 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 48 mA | 4PST-NO (4 Form A) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 1 ms | 2 ms | - |
|
|
7241-24-1001RELAY REED SPDT 1A 24V |
1,529 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 1 A | 500VAC, 500VDC - Max | 20 mA | SPDT (1 Form C) | Non Latching | Diode | PC Pin | - | 18 VDC | -20°C ~ 85°C | 2 VDC | 1.5 ms | 2 ms | - |
|
|
7241-05-1010RELAY REED SPDT 1A 5V |
1,475 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 1 A | 500VAC, 500VDC - Max | 100 mA | SPDT (1 Form C) | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | -20°C ~ 85°C | 0.4 VDC | 1.5 ms | 2 ms | - |
|
|
7241-12-1011RELAY REED SPDT 1A 12V |
1,787 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 1 A | 500VAC, 500VDC - Max | 40 mA | SPDT (1 Form C) | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | -20°C ~ 85°C | 1 VDC | 1.5 ms | 2 ms | - |
|

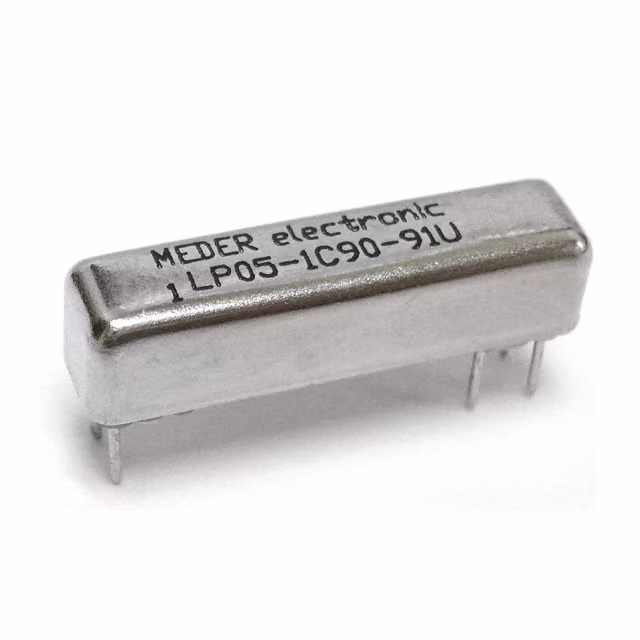

LP05-1A66-80VRELAY REED SPST 500MA 5V |
3,512 |
|
Datasheet |
LP | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 21.7 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3.5 VDC | -20°C ~ 70°C | 0.75 VDC | 1.5 ms | 0.7 ms | - |
|
SIL05-BV50179RELAY REED |
3,201 |
|
Datasheet |
SIL | Tube | Active | Through Hole | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SIL05-1A85-76L3KRELAY REED SPST 1A 5V |
4,467 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 5VDC | 1 A | 1000VAC, 1000VDC - Max | 22.8 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 3 VDC | -20°C ~ 70°C | 0.5 VDC | 0.1 ms | 1.1 ms | - |
|
|
SIL05-1A85-76L2KRELAY REED SPST 1A 5V |
3,731 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 5VDC | 1 A | 1000VAC, 1000VDC - Max | 22.8 mA | SPST-NO (1 Form A) | Non Latching | - | PC Pin | - | 2 VDC | -20°C ~ 70°C | 0.4 VDC | 0.1 ms | 1.1 ms | - |
|
|
SIL05-1A85-76D2KRELAY REED SPST 1A 5V |
4,256 |
|
Datasheet |
SIL HV | Tube | Obsolete | Through Hole | 5VDC | 1 A | 1000VAC, 1000VDC - Max | 22.8 mA | SPST-NO (1 Form A) | Non Latching | Diode | PC Pin | - | 2 VDC | -20°C ~ 70°C | 0.4 VDC | 0.1 ms | 1.1 ms | - |
|
|
HM12-1B83-03RELAY REED SPST 3A 12V |
1,088 |
|
Datasheet |
HM | Bulk | Active | Through Hole | 12VDC | 3 A | 7500VAC, 7500VDC - Max | 48 mA | SPST-NC (1 Form B) | Non Latching | - | PC Pin | - | 9 VDC | -20°C ~ 70°C | 1 VDC | 1.5 ms | 3 ms | - |
|
|
2362-12-000RELAY REED DPDT 250MA 12V |
3,672 |
|
Datasheet |
2362 | Tube | Obsolete | Surface Mount | 12VDC | 250 mA | 100VAC, 100VDC - Max | 12 mA | DPDT (2 Form C) | Non Latching | - | Gull Wing | Sealed - Hermetically | 9 VDC | -20°C ~ 85°C | 1 VDC | 2 ms | 1.5 ms | - |
