| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KC34A01NPS42SHSWITCH ROTARY 4POS 350MA 125V |
4,009 |
|
Datasheet |
KC | Bulk | Obsolete | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | 1 | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 41.50mm | Panel Mount, Through Hole | 30° | Silver | Copper Alloy | PC Pin | - | 14.20mm |
|

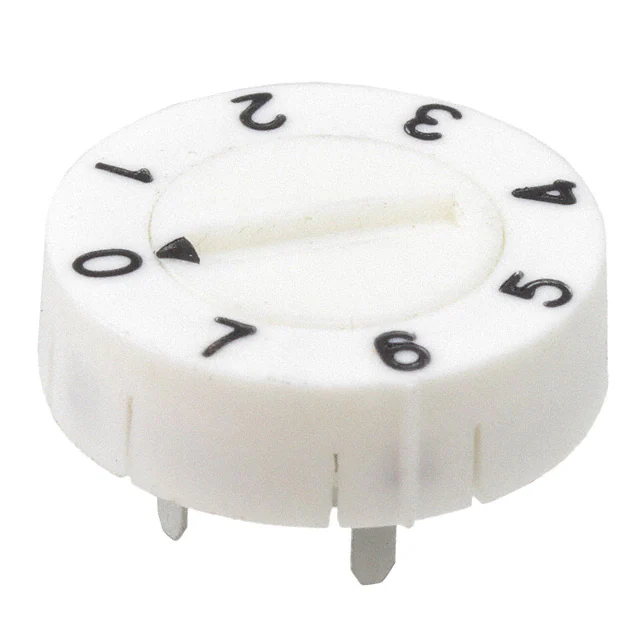

435174-1SWITCH ROTARY 8POS 125MA 115V |
4,044 |
|
Datasheet |
6000 | Bulk | Active | 8 | Continuous | - | Octal | Non-Shorting (BBM) | 1 | 125mA (AC) | 115 V | - | Screwdriver Slot | Flush | Through Hole | 45° | Gold | Phosphor Bronze | PC Pin | - | - |
|
|
57M22-05-1-16S-CSWITCH ROTARY 16POS 250MA 115V |
3,193 |
|
Datasheet |
57 | Bulk | Active | 16 | Fixed | 1 | SP16T | Shorting (MBB) | 5 | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 22.5° | Gold | Silver Alloy | Solder Lug | - | 57.10mm |
|
1-435167-1SWITCH ROTARY 16POS |
2,836 |
|
Datasheet |
6000 | Tray | Active | 16 | Continuous | - | Hexadecimal | Non-Shorting (BBM) | 1 | - | - | - | Knob | 3.81mm | Through Hole | 15° | Gold | Phosphor Bronze | PC Pin | - | - |
|
|
44MGS45-01-1-08N-FSWITCH ROTARY 8POS 5A 115V |
3,602 |
|
Datasheet |
44 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | 1 | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 45° | - | Silver Alloy | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
54D30-02-1-AJNSWITCH ROTARY 2-12POS 1A 115V |
4,502 |
|
Datasheet |
54 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | 2 | 1A (AC/DC) | 115 V | 28 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | Panel Mount | 30° | - | Silver Alloy | Solder Lug | - | 33.53mm |
|
|
R10207RR03QSWITCH ROTARY 2POS 5A 125V |
2,706 |
|
Datasheet |
R | Tube | Obsolete | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 1 | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | Panel Mount | 36° | Silver | Copper | Solder Lug | - | 14.61mm |
|
D2C0111NSWITCH ROTARY 2-11POS 250MA 115V |
3,021 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 1 | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (3.17mm Dia) | 25.40mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 12.19mm |
|
RTAP30112SSD25SSWITCH ROTARY 12POS 150MA 60V |
1,990 |
|
Datasheet |
RTA | Bulk | Obsolete | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | Through Hole | 30° | Silver | Brass | PC Pin | - | 12.60mm |
|
RTAC30112B12AD25SSWITCH ROTARY 12POS 150MA 60V |
3,888 |
|
Datasheet |
RTA | Bulk | Obsolete | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 18.70mm |
|
RTAC30206B06AD25SSWITCH ROTARY 6POS 150MA 60V |
4,472 |
|
Datasheet |
RTA | Bulk | Obsolete | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 18.70mm |
|
|
RTAC30206B06AD50SSWITCH ROTARY 6POS 150MA 60V |
1,694 |
|
Datasheet |
RTA | Bulk | Obsolete | 6 | Fixed | 2 | DP6T | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 50.00mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 18.70mm |
|
RTAC30112B12AD50SSWITCH ROTARY 12POS 150MA 60V |
2,053 |
|
Datasheet |
RTA | Bulk | Obsolete | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 50.00mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 18.70mm |
|

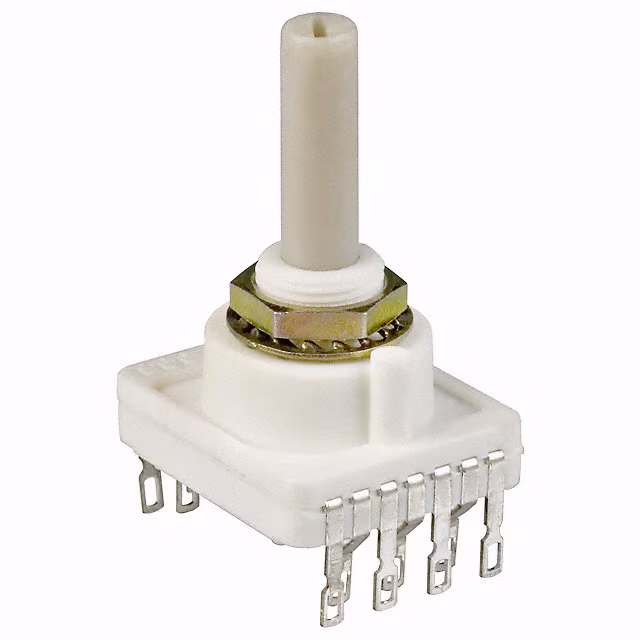

RTAC30112SAD25SSWITCH ROTARY 12POS 150MA 60V |
4,186 |
|
Datasheet |
RTA | Bulk | Obsolete | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | Panel Mount | 30° | Silver | Brass | Solder Lug | - | 18.70mm |
|
RTAP36205B05SD25SSWITCH ROTARY 5POS 150MA 60V |
1,769 |
|
Datasheet |
RTA | Bulk | Obsolete | 5 | Fixed | 2 | DP5T | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | Through Hole | 36° | Silver | Brass | PC Pin | - | 12.60mm |
|
RTAP225BSSD25SSWITCH ROTARY 150MA 60V |
3,290 |
|
Datasheet |
RTA | Bulk | Obsolete | - | Continuous | - | BCD | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | Through Hole | 22.5° | Silver | Brass | PC Pin | - | 12.60mm |
|
|
RTAP30BCSSD25SSWITCH ROTARY 150MA 60V |
2,141 |
|
Datasheet |
RTA | Bulk | Obsolete | - | Continuous | - | BCD with Complement | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | Through Hole | 30° | Silver | Brass | PC Pin | - | 12.60mm |
|

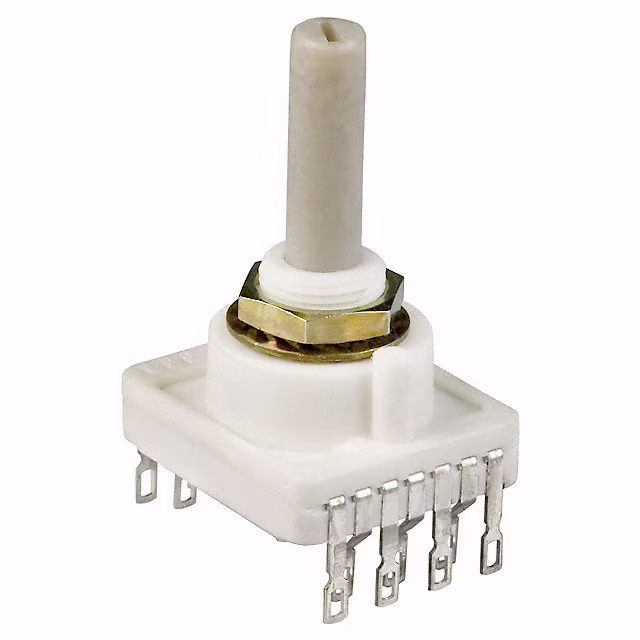

RTAC225BSAD25SSWITCH ROTARY 150MA 60V |
3,837 |
|
Datasheet |
RTA | Bulk | Obsolete | - | Continuous | - | BCD | Non-Shorting (BBM) | 1 | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | Panel Mount | 22.5° | Silver | Brass | Solder Lug | - | 18.70mm |
|
MIL1106B06NSD25SWITCH ROTARY 6POS 20MA 50V |
3,762 |
|
Datasheet |
MIL | - | Obsolete | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | 1 | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | Through Hole, Right Angle | 30° | Gold | Brass | PC Pin | Sealed - Fully | 17.78mm |
|
|
MIL1112B12NSD25SWITCH ROTARY 12POS 20MA 50V |
2,300 |
|
Datasheet |
MIL | - | Obsolete | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 1 | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | Through Hole, Right Angle | 30° | Gold | Brass | PC Pin | Sealed - Fully | 17.78mm |
