| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Number of Decks | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Mounting Style | Angle of Throw | Contact Finish | Contact Material | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIL1110B10NSD25SWITCH ROTARY 10POS 20MA 50V |
3,213 |
|
Datasheet |
MIL | - | Obsolete | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | 1 | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | Through Hole, Right Angle | 30° | Gold | Brass | PC Pin | Sealed - Fully | 17.78mm |
|

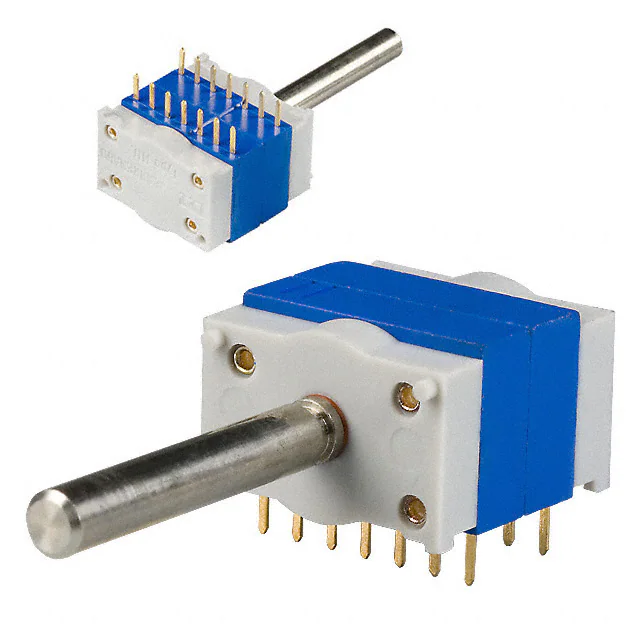

MIL1112SNSD25SWITCH ROTARY 12POS 20MA 50V |
4,168 |
|
Datasheet |
MIL | - | Obsolete | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | 1 | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | Through Hole, Right Angle | 30° | Gold | Brass | PC Pin | Sealed - Fully | 17.78mm |
|
|
MIL1303B03NSD25SWITCH ROTARY 3POS 20MA 50V |
2,201 |
|
Datasheet |
MIL | - | Obsolete | 3 | Fixed | 3 | 3P3T | Non-Shorting (BBM) | 1 | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | Through Hole, Right Angle | 30° | Gold | Brass | PC Pin | Sealed - Fully | 17.78mm |
|

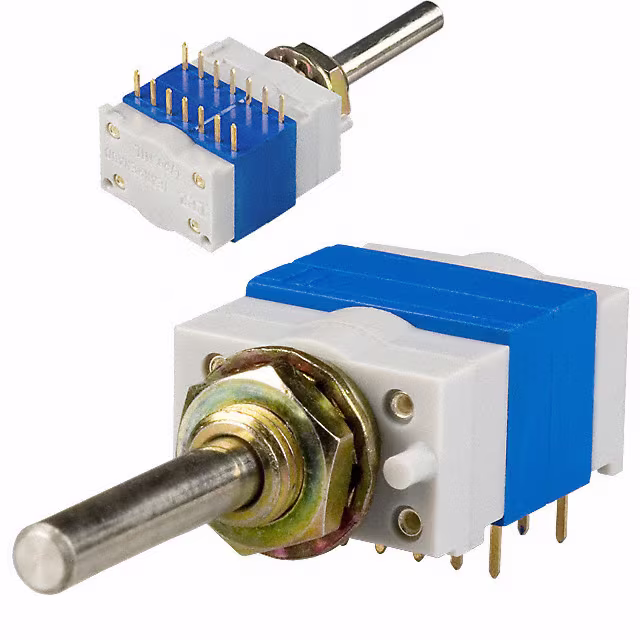

MIL1303B03NAD25SWITCH ROTARY 3POS 20MA 50V |
1,500 |
|
Datasheet |
MIL | - | Obsolete | 3 | Fixed | 3 | 3P3T | Non-Shorting (BBM) | 1 | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | Panel Mount, Through Hole, Right Angle | 30° | Gold | Brass | PC Pin | Sealed - Fully | 17.78mm |
|
MIL2112B12NSD25SWITCH ROTARY 12POS 20MA 50V |
3,896 |
|
Datasheet |
MIL | - | Obsolete | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | 2 | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | Through Hole, Right Angle | 30° | Gold | Brass | PC Pin | Sealed - Fully | 35.56mm |
|
|
42H36-09-1-10NSWITCH ROTARY 10POS 1A 115V |
1,983 |
|
Datasheet |
42 | Bulk | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | 9 | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | Panel Mount | 36° | - | Silver Alloy | Solder Lug | - | 102.69mm |
|
|
KC43A10.001SPSSWITCH ROTARY 3POS 350MA 125V |
1,228 |
|
Datasheet |
KC | Bulk | Active | 3 | Fixed | 4 | 4P3T | Shorting (MBB) | 1 | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 10.00mm | Panel Mount, Through Hole | 30° | Silver | Copper Alloy | PC Pin | - | 14.20mm |
|
HS13ZSWITCH ROTARY 4POS 6A 125V |
3,190 |
|
Datasheet |
HS | Tray | Obsolete | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | 1 | 6A (AC), 5A (DC) | 125 V | 30 V | Round (6mm Dia) | 10.00mm | Panel Mount | 45° | - | Phosphor Bronze | Solder Lug | - | 20.00mm |
|

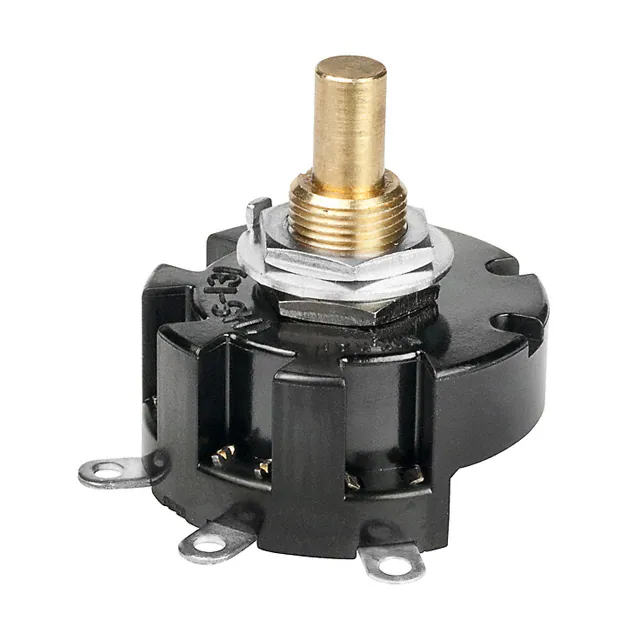

HS13XSWITCH ROTARY 2POS 6A 125V |
3,266 |
|
Datasheet |
HS | Box | Obsolete | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | 1 | 6A (AC), 5A (DC) | 125 V | 30 V | Round (6mm Dia) | 10.00mm | Panel Mount | 45° | - | Phosphor Bronze | Solder Lug | - | 20.00mm |
|
HS13YSWITCH ROTARY 3POS 6A 125V |
1,760 |
|
Datasheet |
HS | Box | Obsolete | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | 1 | 6A (AC), 5A (DC) | 125 V | 30 V | Round (6mm Dia) | 10.00mm | Panel Mount | 45° | - | Phosphor Bronze | Solder Lug | - | 20.00mm |
|

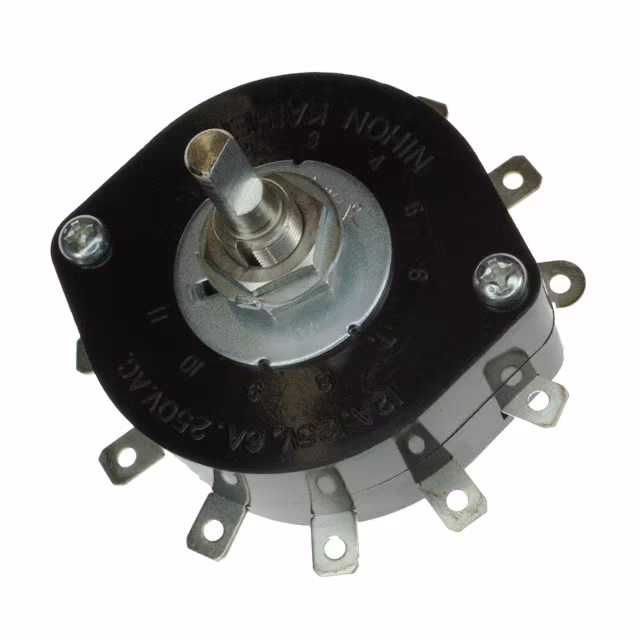

HS16-1SNSWITCH ROTARY 2-11POS 12A 125V |
2,002 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Shorting (MBB) | 1 | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 31.50mm |
|

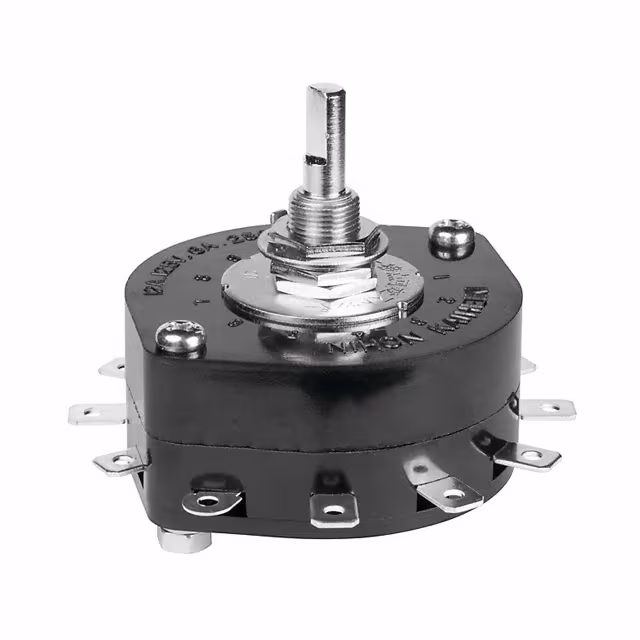

HS16-1NSWITCH ROTARY 2-11POS 12A 125V |
3,731 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 1 | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 31.50mm |
|
HS16-2NSWITCH ROTARY 2-11POS 12A 125V |
3,648 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 2 | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 41.50mm |
|
TS3NSWITCH ROTARY 2-11POS 6A 125V |
2,050 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 3 | 6A (AC) | 125 V | - | Flatted (6mm Dia) | 15.60mm | Panel Mount | 30° | - | Phosphor Bronze | Screw Terminal | - | 46.00mm |
|

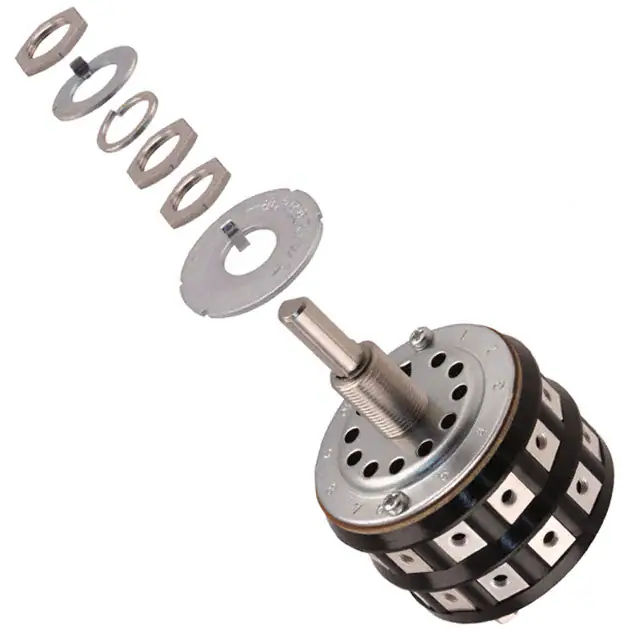

TS2NSWITCH ROTARY 2-11POS 6A 125V |
2,307 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 2 | 6A (AC) | 125 V | - | Flatted (6mm Dia) | 15.60mm | Panel Mount | 30° | - | Phosphor Bronze | Screw Terminal | - | 34.00mm |
|

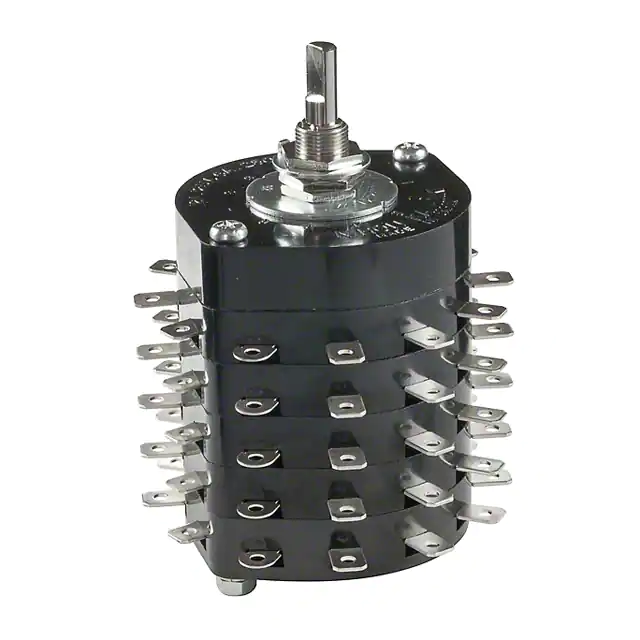

HS16-5NSWITCH ROTARY 2-11POS 12A 125V |
4,386 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 5 | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 71.50mm |
|

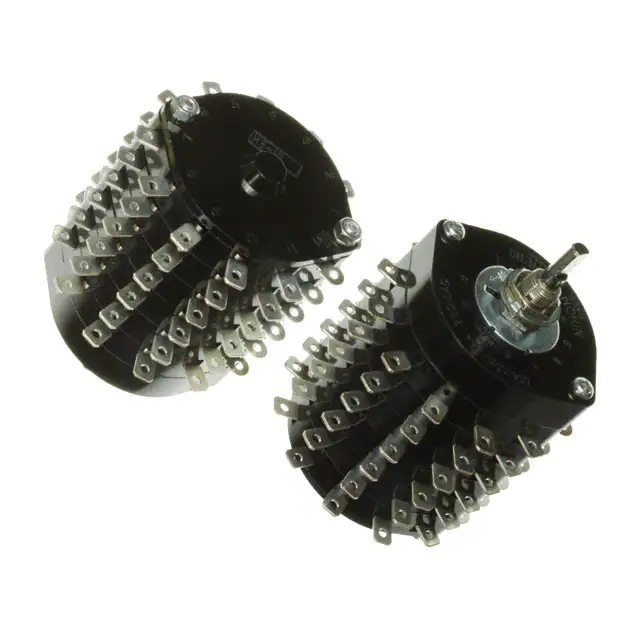

HS16-6NSWITCH ROTARY 2-11POS 12A 125V |
2,009 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 6 | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 81.50mm |
|

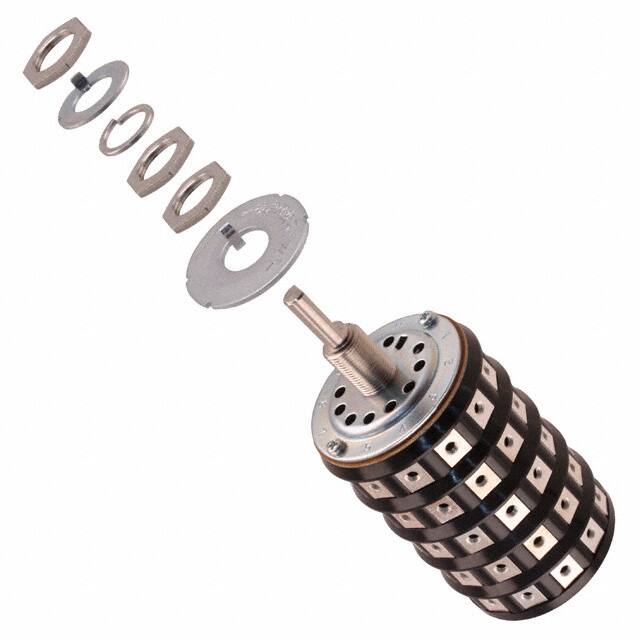

TS5NSWITCH ROTARY 2-11POS 6A 125V |
3,885 |
|
Datasheet |
TS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 5 | 6A (AC) | 125 V | - | Flatted (6mm Dia) | 15.60mm | Panel Mount | 30° | - | Phosphor Bronze | Screw Terminal | - | 70.00mm |
|

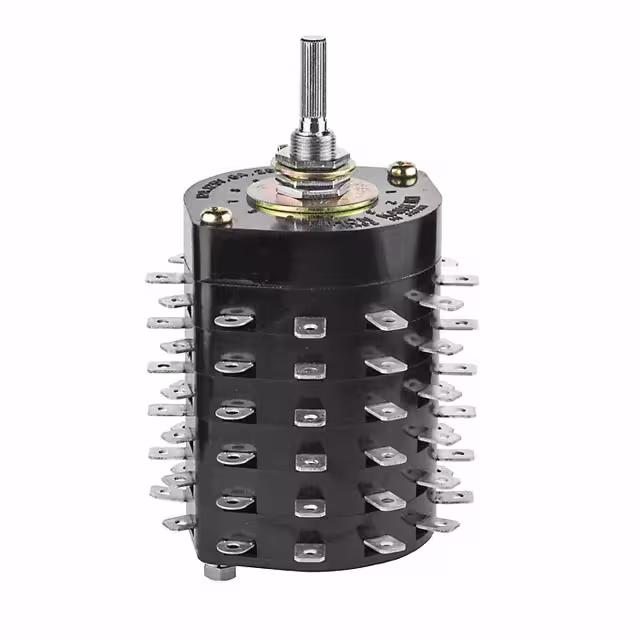

HS16-6SWITCH ROTARY 2-11POS 12A 125V |
4,400 |
|
Datasheet |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 6 | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Phosphor Bronze | Solder Lug | - | 81.50mm |
|

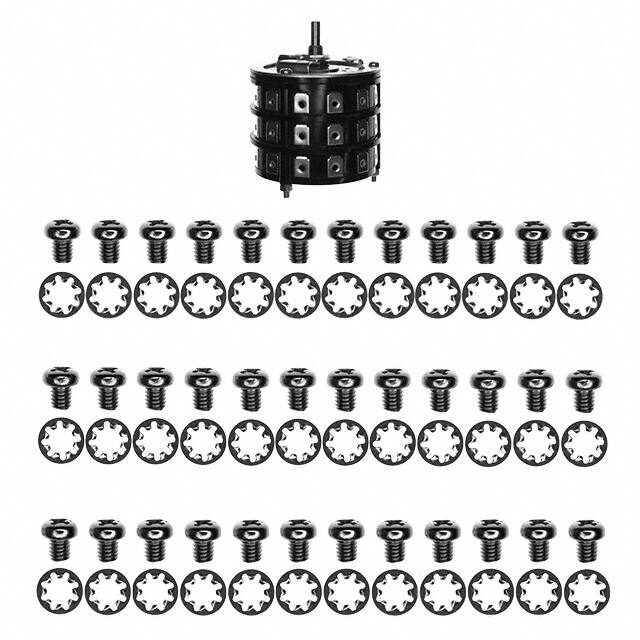

PS3NSWITCH ROTARY 2-11POS 30A 125V |
1,347 |
|
Datasheet |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 1 | SP11T | Non-Shorting (BBM) | 3 | 30A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | Panel Mount | 30° | - | Silver Alloy | Screw Terminal | - | 81.50mm |
