| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

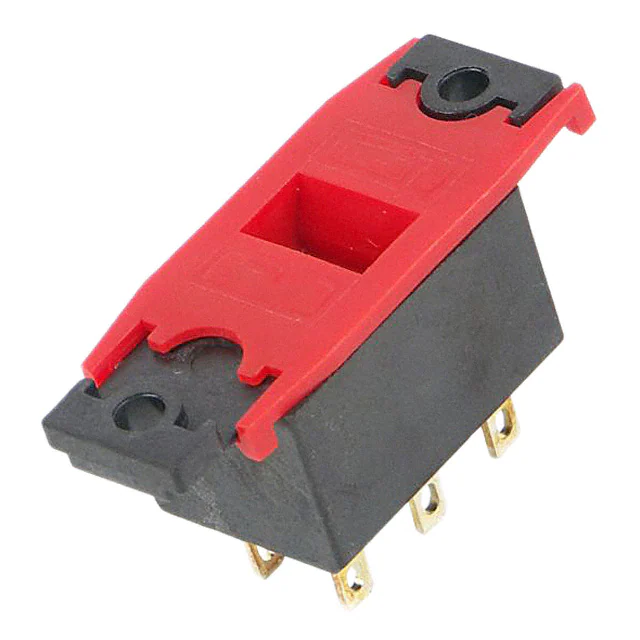

EPS3SL1SWITCH SLIDE DPDT 10A 125V |
159 |
|
Datasheet |
EPS3 | Bulk | Active | DPDT | Not Specified | 10A (AC) | 125 V | - | On-On (Line Voltage Selector) | Screwdriver Slot | Flush | Copper Alloy | - | Panel Mount | Solder Lug | 115V-230V Marking |
|

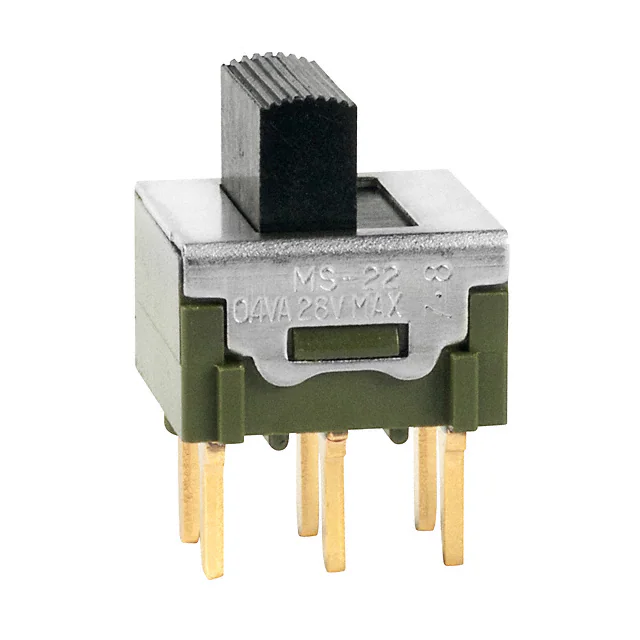

MS22BNG03SWITCH SLIDE DPDT 0.4VA 28V |
4,698 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MS22ANG03SWITCH SLIDE DPDT 0.4VA 28V |
3,028 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

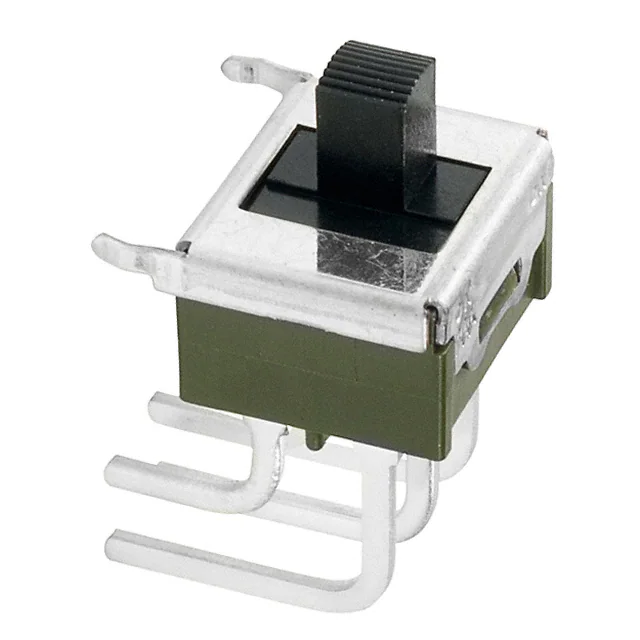

MS22ASW30SWITCH SLIDE DPDT 6A 125V |
4,046 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
AS22AWSWITCH SLIDE DPDT 0.4VA 28V |
2,146 |
|
Datasheet |
AS | Tube | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
MS12ANA03SWITCH SLIDE SPDT 6A 125V |
1,356 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Standard | 5.10mm | Silver Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MS13ASG40SWITCH SLIDE SPDT 0.4VA 28V |
190 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

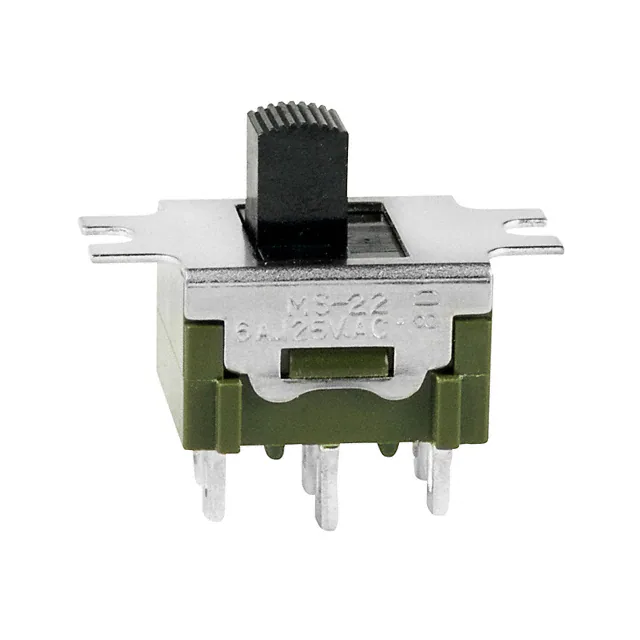

MS22AFW01SWITCH SLIDE DPDT 6A 125V |
1,593 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
AS23AWSWITCH SLIDE DPDT 0.4VA 28V |
4,529 |
|
Datasheet |
AS | Tube | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
TSS21NGPCSWITCH SLIDE DPDT 0.4VA 20V |
4,866 |
|
Datasheet |
TSS | Bulk | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | - |
|

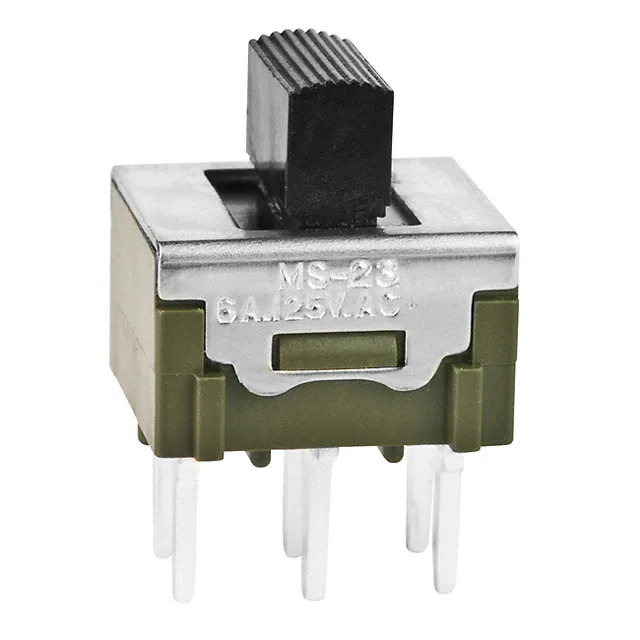

MS23BNW03SWITCH SLIDE DPDT 6A 125V |
376 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-Off-On | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
ASE42SWITCH SLIDE 4PDT 300MA 115V |
1,741 |
|
Datasheet |
ASE | Bulk | Active | 4PDT | Shorting (MBB) | 300mA (AC) | 115 V | - | On-On | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
1-1437581-4SWITCH SLIDE 4PDT 0.3A 115V |
643 |
|
Datasheet |
ASE | Box | Active | 4PDT | Shorting (MBB) | 300mA (AC) | 115 V | - | On-On | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
25346NLDSWITCH SLIDE DPDT 100MA 30V |
1,110 |
|
Datasheet |
25000N | Bulk | Active | DPDT | Not Specified | 100mA (DC) | - | 30 V | On-On | Standard | 2.30mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
MS12ASG40SWITCH SLIDE SPDT 0.4VA 28V |
873 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
AS23AVSWITCH SLIDE DPDT 0.4VA 28V |
3,326 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
MS22ANG03/USWITCH SLIDE DPDT 0.4VA 28V |
4,842 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1-1825010-2SWITCH SLIDE DPDT 300MA 115V |
4,303 |
|
Datasheet |
ASE | Bulk | Active | DPDT | Shorting (MBB) | 300mA (AC) | 115 V | - | On-On | Standard | 2.67mm | Copper Alloy | Silver | Surface Mount, Right Angle | J Lead | - |
|

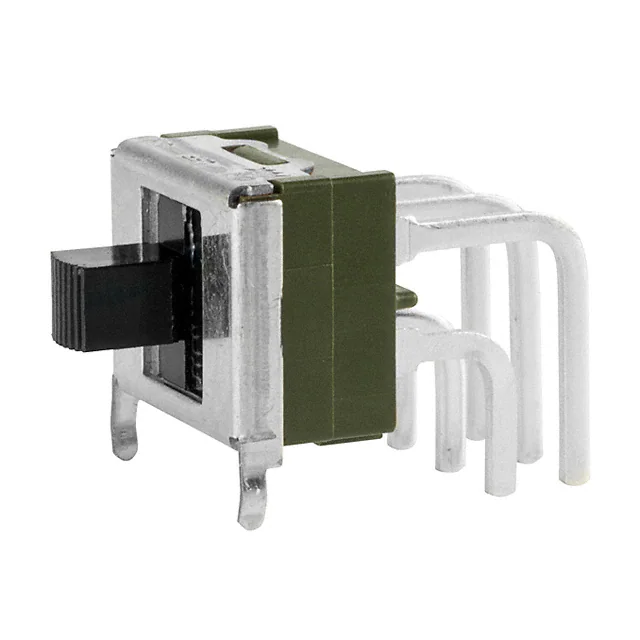

MS23ASW30SWITCH SLIDE DPDT 6A 125V |
112 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-Off-On | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
AS24AWSWITCH SLIDE SP3T 0.4VA 28V |
2,535 |
|
Datasheet |
AS | Bulk | Active | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Jumper needed to achieve triple throw |
