| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

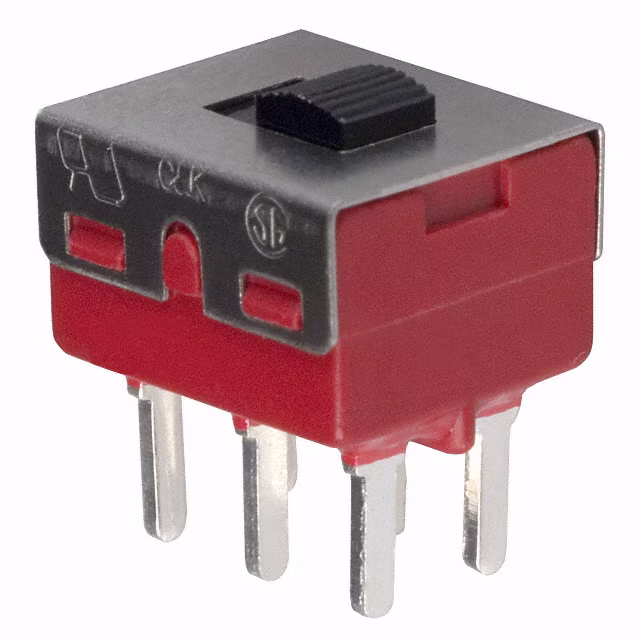

1201M2S1CQE2SWITCH SLIDE DPDT 6A 120V |
2,325 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-On | Standard | 1.02mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
SLW-121586-5A-DSWITCH SLIDE SPDT 0.5A 50V |
782 |
|
Datasheet |
SLW | Box | Active | SPDT | Not Specified | 500mA (DC) | - | 50 V | On-On | Standard | 5.00mm | Brass | Silver | Through Hole | PC Pin | - |
|
|
SLW-826947-5A-RA-DSWITCH SLIDE DPDT 0.3A 50V |
2,772 |
|
Datasheet |
SLW | Box | Active | DPDT | Not Specified | 300mA (DC) | - | 50 V | On-On | Standard | 5.00mm | Brass | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
SLW-913535-2A-SMTSWITCH SLIDE DPDT 0.1A 12V |
1,640 |
|
Datasheet |
SLW | Tape & Reel (TR) | Active | DPDT | Not Specified | 100mA (DC) | - | 12 V | On-On | Standard | 2.00mm | Phosphor Copper | Silver | Surface Mount | Gull Wing | - |
|
|
MS1202L4SWITCH SLIDE SPDT 0.2A 30V |
375 |
|
Datasheet |
MS1202 | Bag | Active | SPDT | Not Specified | 200mA (DC) | - | 30 V | On-On | Standard | 4.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
SK-14D01-G 6SWITCH SLIDE SP4T 300MA 30V |
918 |
|
Datasheet |
SK, COMAX | Bulk | Active | SP4T | Not Specified | 300mA (DC) | - | 30 V | On-On-On-On | Standard | 6.00mm | - | Silver | Through Hole, Right Angle | PC Pin | - |
|
450405020524SWITCH SLIDE SPDT 0.3A 5V |
803 |
|
Datasheet |
WS-SLSU | Tape & Reel (TR) | Active | SPDT | Non-Shorting (BBM) | 300mA (DC) | - | 5 V | On-On | Standard | 2.00mm | Copper Alloy | Silver | Surface Mount | SMD (SMT) Tab | - |
|
JS203011AQNSWITCH SLIDE DP3T 300MA 6V |
939 |
|
Datasheet |
JS | Tube | Active | DP3T | Not Specified | 300mA (DC) | - | 6 V | On-On-On | Standard | 2.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|

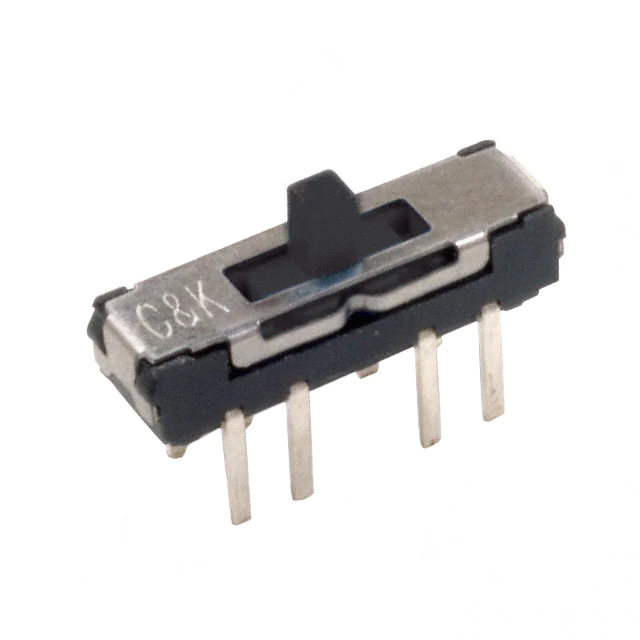

JS203011CQNSWITCH SLIDE DP3T 300MA 6V |
872 |
|
Datasheet |
JS | Bulk | Active | DP3T | Not Specified | 300mA (DC) | - | 6 V | On-On-On | Standard | 2.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
EG1249SWITCH SLIDE SPDT 100MA 12V |
910 |
|
Datasheet |
EG | Bulk | Active | SPDT | Non-Shorting (BBM) | 100mA (DC) | - | 12 V | On-On | Standard | 6.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

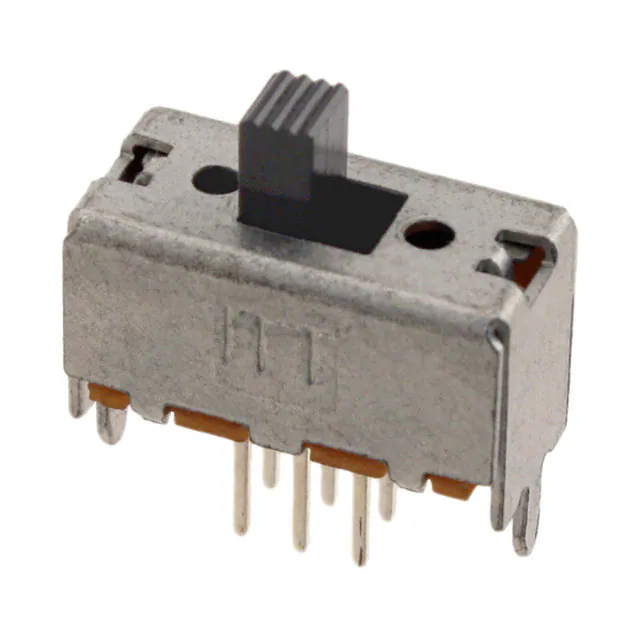

OS202011MV4QN1SWITCH SLIDE DPDT 100MA 30V |
897 |
|
Datasheet |
OS | Bulk | Active | DPDT | Non-Shorting (BBM) | 100mA (DC) | - | 30 V | On-On | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MSS-102559-14A-DSWITCH SLIDE SPDT 0.3A 24V |
632 |
|
Datasheet |
- | Bag | Active | SPDT | Not Specified | 300mA (DC) | - | 24 V | On-On | Standard | - | Nickel | Gold | Through Hole | PC Pin | - |
|
|
MMP 1010 D-1AMICROMINIATURE SLIDE SWITCH, ON- |
127 |
|
Datasheet |
MMP | Bag | Active | SPDT | Not Specified | 300mA (AC/DC) | 24 V | 24 V | On-On | Standard | 1.40mm | Nickel | Gold | Through Hole | PC Pin | - |
|
GF-126-0317SWITCH SLIDE DPDT 3A 125V |
4,036 |
|
Datasheet |
GF | Bulk | Active | DPDT | Not Specified | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On | Standard | 3.18mm | Copper | Silver | Through Hole | PC Pin | - |
|
G-1328S-0000SWITCH SLIDE DP3T 13A 125V |
2,112 |
|
Datasheet |
G | Bulk | Active | DP3T | Not Specified | 13A (AC), 500mA (DC) | 125 V | 125 V | On-On-On | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

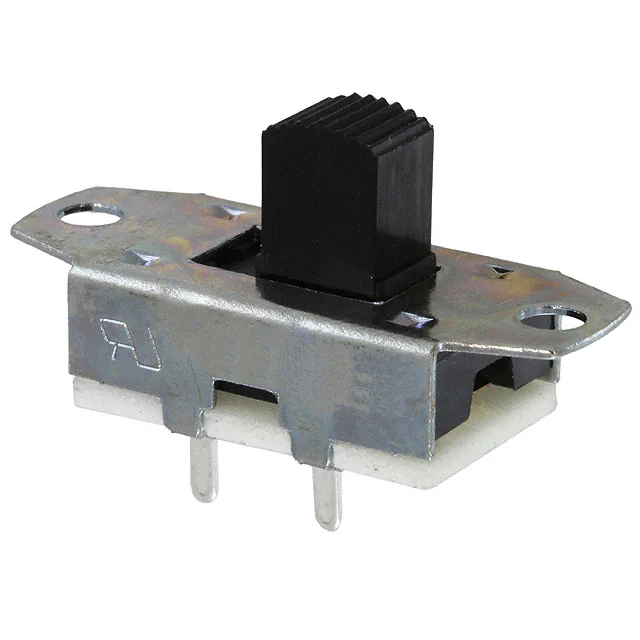

GF-1123-1110SWITCH SLIDE SPST 11A 125V |
4,879 |
|
Datasheet |
GF | Bulk | Active | SPST | Not Specified | 11A (AC), 500mA (DC) | 125 V | 125 V | On-Off | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|
SK-23H11-G 9 SSWITCH SLIDE DP3T 300MA 30V |
4,176 |
|
Datasheet |
SK, COMAX | Bulk | Active | DP3T | Shorting (MBB) | 300mA (DC) | - | 30 V | On-On-On | Standard | 9.00mm | - | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
1201A2CQEASWITCH SLIDE DPDT 5A 120V |
1,681 |
|
Datasheet |
1000 | Bag | Active | DPDT | Not Specified | 5A (AC/DC) | 120 V | 28 V | On-On | Standard | 7.24mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
S101031SS07QSWITCH SLIDE SPST 6A 125V |
4,873 |
|
Datasheet |
S | Bulk | Active | SPST | Not Specified | 6A (AC), 1A (DC) | 125 V | 125 V | On-Off | Standard | 8.51mm | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | - |
|
AS11CBSWITCH SLIDE SPST 0.4VA 28V |
1,492 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
