| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-1-ZSWITCH SLIDE DPDT 8A 125V |
1,091 |
|
Datasheet |
S | Bulk | Active | DPDT | Non-Shorting (BBM) | 8A (AC) | 125 V | - | On-On | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
|
|
S-3-ZSWITCH SLIDE DPDT 8A 125V |
4,622 |
|
Datasheet |
S | Bulk | Active | DPDT | Non-Shorting (BBM) | 8A (AC) | 125 V | - | On-On | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
|
48ASSP3S1M2RBTSWITCH SLIDE SPDT 0.4VA 20V |
3,656 |
|
Datasheet |
48A | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 5.08mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
S602031TS03QSWITCH SLIDE DPDT 12A 125V |
3,825 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | 12A (AC), 1A (DC) | 125 V | 125 V | On-On | Standard | 8.51mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

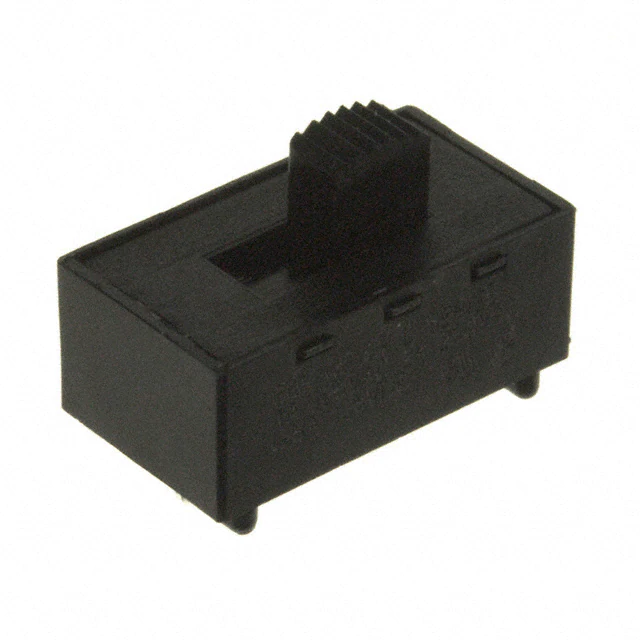

L112012MS02QSWITCH SLIDE SPDT 4A 125V |
2,411 |
|
Datasheet |
L | Bulk | Active | SPDT | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-Mom | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
25139NABSWITCH SLIDE SPDT 4A 125V |
100 |
|
Datasheet |
25000N | Bulk | Active | SPDT | Not Specified | 4A (AC), 1A (DC) | 125 V | 30 V | On-Off-On | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
48ASSP1S3M1QATSWITCH SLIDE SPDT 5A 125V |
3,704 |
|
Datasheet |
48A | Bulk | Active | SPDT | Not Specified | 5A (AC/DC) | 125 V | 28 V | On-On | Standard | 9.40mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|

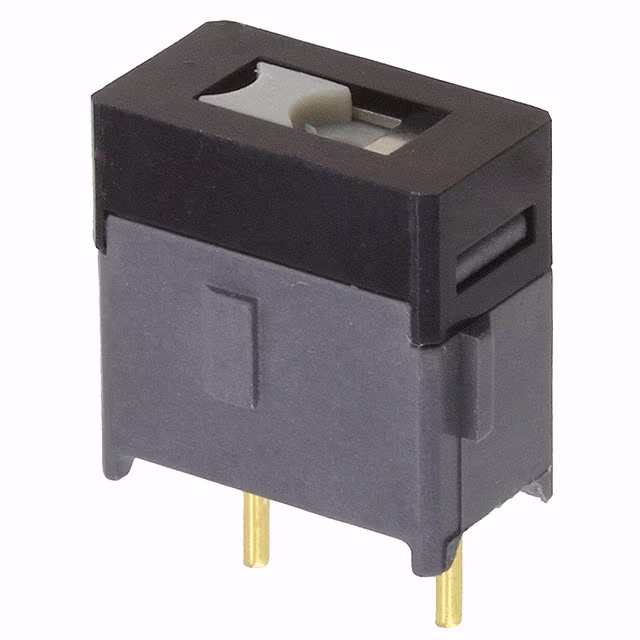

AS11BPSWITCH SLIDE SPST 0.4VA 28V |
1,393 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

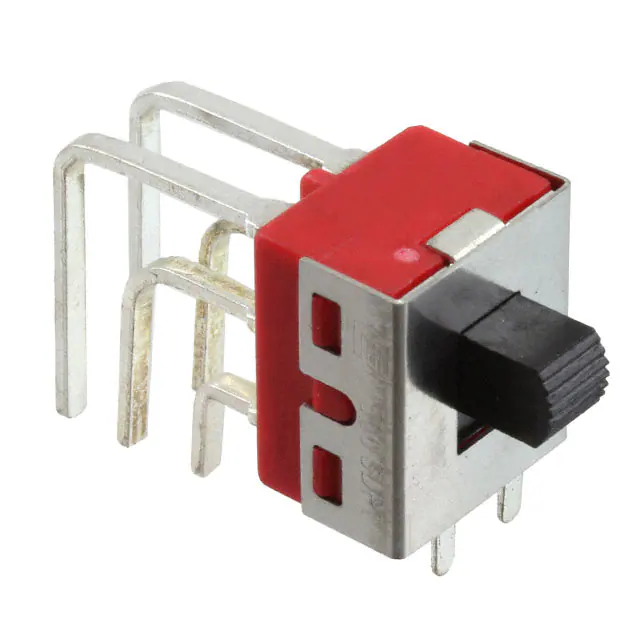

500SDP1S1M7QEASWITCH SLIDE DPDT 5A 120V |
1,239 |
|
Datasheet |
500 | Bulk | Active | DPDT | Not Specified | 5A (AC/DC) | 120 V | 28 V | On-On | Standard | 4.72mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
S202131SS03QSWITCH SLIDE DPDT 6A 125V |
1,874 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | 6A (AC), 1A (DC) | 125 V | 125 V | On-On (Line Voltage Selector) | Screwdriver Slot | 1.27mm | Copper | Silver | Panel Mount | Solder Lug | No Marking |
|
L123012MS02QSWITCH SLIDE SP3T 4A 125V |
2,569 |
|
Datasheet |
L | Bulk | Active | SP3T | Not Specified | 4A (AC/DC) | 125 V | 28 V | Mom-On-Mom | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
AS11BHSWITCH SLIDE SPST 0.4VA 28V |
1,451 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
V70213S205QSWITCH SLIDE SPDT 10A 125V |
3,632 |
|
Datasheet |
V | Tray | Active | SPDT | Not Specified | 10A (AC), 4A (DC) | 125 V | 30 V | On-On (Line Voltage Selector) | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | No Marking |
|

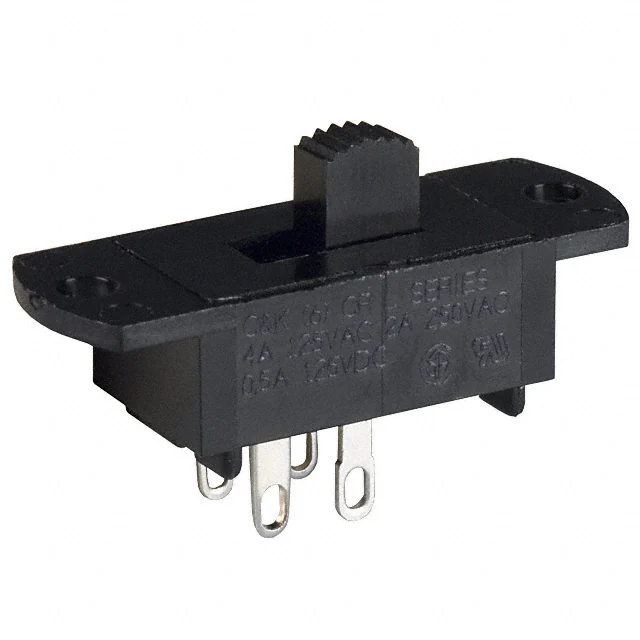

L201011SS03QSWITCH SLIDE DPST 4A 125V |
4,131 |
|
Datasheet |
L | Bulk | Active | DPST | Not Specified | 4A (AC/DC) | 125 V | 28 V | On-Off | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
8SS1021-ZSWITCH SLIDE SPDT 6A 125V |
3,091 |
|
Datasheet |
8SS | Bulk | Active | SPDT | Non-Shorting (BBM) | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard | 5.00mm | - | Silver | Panel Mount | Solder Lug | - |
|

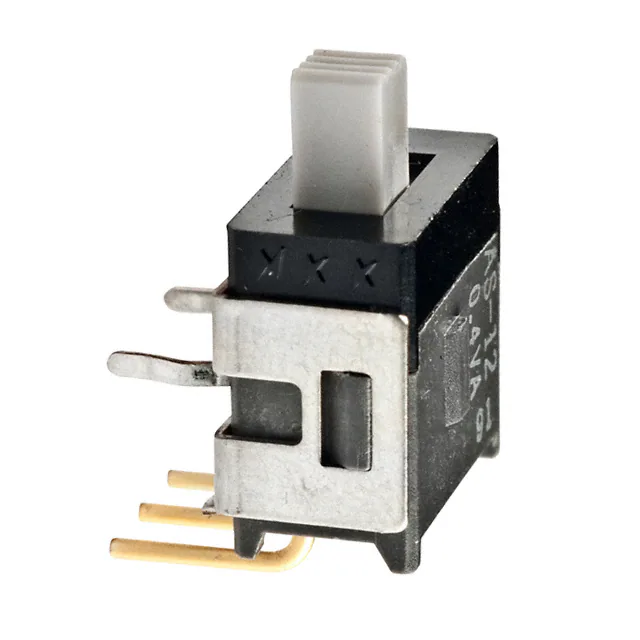

AS12CHSWITCH SLIDE SPDT 0.4VA 28V |
2,731 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
AS12CV/ASWITCH SLIDE SPDT 0.4VA 28V |
3,890 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
1101M2S2CQE2SWITCH SLIDE SPDT 6A 120V |
3,414 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-On | Standard | 3.56mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
SMVA001SWITCH SLIDE SPDT 0.5A 12V |
2,542 |
|
Datasheet |
SM | Bulk | Active | SPDT | Non-Shorting (BBM) | 500mA (DC) | - | 12 V | On-On | Standard | 1.40mm | Brass | Gold | Through Hole | PC Pin | On-Off Marking on Housing |
|
1101M2S2CBE2SWITCH SLIDE SPDT 0.4VA 20V |
3,465 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 3.56mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
