| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S202031MS02GSWITCH SLIDE DPDT 6A 125V |
4,005 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | 6A (AC), 1A (DC) | 125 V | 125 V | On-On | Standard | 8.51mm | Copper | Gold | Through Hole | PC Pin | - |
|
1103M2S6CBE2SWITCH SLIDE SPDT 0.4VA 20V |
2,598 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 12.32mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
GH39WW00001SWITCH SLIDE SPDT 0.4VA 20V |
3,865 |
|
Datasheet |
G | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
1201M1T3ZQE2SWITCH SLIDE DPDT 6A 120V |
3,951 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-On | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
S802C31S2WCQSWITCH SLIDE DPDT 15A 125V |
2,961 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | 15A (AC) | 125 V | - | On-On | Snap on Cap | 5.08mm | Copper | Silver | Panel Mount, Snap-In | Wire Leads | Red Actuator |
|
1201M2S3V4QE2SWITCH SLIDE DPDT 6A 120V |
3,015 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-On | Standard | 4.72mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
ES21MABESWITCH SLIDE DPDT 0.4VA 20V |
2,344 |
|
Datasheet |
ES | Tray | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 3.07mm | Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
|
1201M2S4ABE2SWITCH SLIDE DPDT 0.4VA 20V |
4,617 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 6.88mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
1203M2S3V3BE2SWITCH SLIDE DPDT 0.4VA 20V |
2,102 |
|
Datasheet |
1000 | Tray | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 4.72mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

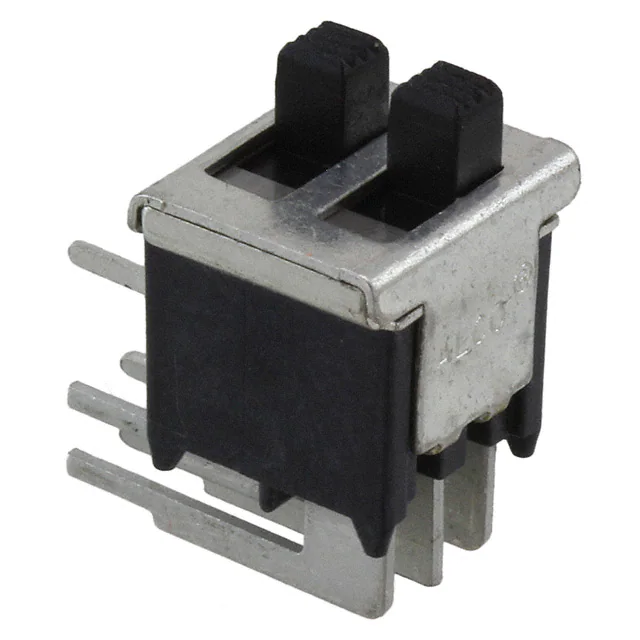

1825014-2SWITCH SLIDE SPDTX2 0.4VA 20V |
2,833 |
|
Datasheet |
TSS | Bulk | Active | SPDT x 2 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 2.79mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
SQR31103LASWITCH SLIDE SPST 2.5A 120V |
4,539 |
|
Datasheet |
Square D, X | Box | Active | SPST | Not Specified | 2.5A (AC) | 120 V | - | - | Flush | - | - | - | Panel Mount | Screw Terminal | - |
|
|
SQR31103GYSWITCH SLIDE SPST 2.5A 120V |
2,662 |
|
Datasheet |
Square D, X | Box | Active | SPST | Not Specified | 2.5A (AC) | 120 V | - | - | Flush | - | - | - | Panel Mount | Screw Terminal | - |
|
|
MFP 201 N-RASWITCH SLIDE ON - ON |
790 |
|
Datasheet |
MFP | Bag | Active | DPDT | Non-Shorting (BBM) | 200mA (DC) | - | 30 V | On-On | Standard | 7.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
MFP 201 NSWITCH SLIDE ON - ON |
470 |
|
Datasheet |
MFP | Bag | Active | DPDT | Non-Shorting (BBM) | 350mA (DC) | - | 30 V | On-On | Standard | 7.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 113 DSWITCH SLIDE ON - ON |
500 |
|
Datasheet |
MFP | Bag | Active | SPDT | Non-Shorting (BBM) | 100mA (DC) | - | 12 V | On-On | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 211 NSWITCH SLIDE ON - ON |
734 |
|
Datasheet |
MFP | Box | Active | DPDT | Non-Shorting (BBM) | 350mA (DC) | - | 30 V | On-On | Standard | 7.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 223 PSWITCH SLIDE ON ON ON |
648 |
|
Datasheet |
MFP | Box | Active | DP3T | Shorting (MBB) | 350mA (DC) | - | 30 V | On-On-On | Standard | 7.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 213 NSWITCH SLIDE ON - ON |
4,591 |
|
Datasheet |
MFP | Bag | Active | DPDT | Non-Shorting (BBM) | 100mA (DC) | - | 12 V | On-On | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MMP 1010 D-RASWITCH SLIDE ON - ON |
1,650 |
|
Datasheet |
MMP | Tube | Active | SPDT | Not Specified | 500mA (DC) | - | 12 V | On-On | Standard | - | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
MMP 1010 DSWITCH SLIDE ON - ON |
3,458 |
|
Datasheet |
MMP | Tube | Active | SPDT | Not Specified | 500mA (DC) | - | 12 V | On-On | Standard | - | Phosphor Bronze | Gold | Through Hole | PC Pin | - |
