| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Coil Type | Current Rating (Amps) | Steps per Revolution | Step Angle | Voltage - Rated | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Operating Temperature | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM2561C20B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
4,247 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 24VDC | - | 106.2 / 750 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | - | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 1.1 Ohms | - |
|
|
SM2563C40B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
4,011 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 4 A | 200.0 | 1.8° | 24VDC | - | 333 / 2350 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | - | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 0.52 Ohms | - |
|
103H7822-1760STEP, F2, SQ.60, 1.8, NEMA, , BI |
2,868 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 4 A | 200.0 | 1.8° | 24VDC | - | 194 / 1370 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 0.43 Ohms | - |
|
QSH6018-45-28-110STEP MOTOR HYBRID BIPOLAR 2.1V |
2,312 |
|
Datasheet |
QMot QSH6018 | Box | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 2.1VDC | ±5% | 155.77 / 1100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.856" (47.14mm) | 0.7 Ohms | Flatted Shaft |
|
103H7128-5840STEP, F2, SQ.56, 1.8, , , BIPOLA |
2,316 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 3 A | 200.0 | 1.8° | 24VDC | - | 283.2 / 2000 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 1.03 Ohms | - |
|
PD42-1-1070STEPPER MOTOR HYBRID BIPOLAR 24V |
2,529 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | ±5% | 31.2 / 220 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | -20°C ~ 50°C | - | Connector | 1.220" (30.99mm) | 1 Ohms | Integrated Controller, Round Shaft |
|
SP2566-5200STEP, F2, SQ.56, 1.8, IP65, , BI |
4,711 |
|
Datasheet |
SP | Box | Active | Hybrid | Bipolar | 3 A | 200.0 | 1.8° | 100VAC | - | 240.7 / 1700 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 1 Ohms | - |
|
PD42-1-1270-CANOPENPANDRIVE NEMA17, 24V, 38 OZ IN/ |
1,975 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | ±5% | 31.2 / 220 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | -20°C ~ 50°C | - | Connector | 1.220" (31.00mm) | 1 Ohms | Integrated Controller, Round Shaft |
|
PD42-2-1270-TMCLPANDRIVE NEMA17, 24V, 50 OZ IN/ |
1,931 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | ±5% | 51 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | -20°C ~ 50°C | - | Connector | 1.220" (31.00mm) | 1.2 Ohms | Integrated Controller, Round Shaft |
|
PD42-2-1270-CANOPENPANDRIVE NEMA17, 24V, 50 OZ IN/ |
2,729 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | ±5% | 51 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | -20°C ~ 50°C | - | Connector | 1.220" (31.00mm) | 1.2 Ohms | Integrated Controller, Round Shaft |
|
PBM284FXE20PB, PB, SQ.28, FOR PB3D, , , |
2,851 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 48VDC | - | 21.95 / 155 | - | - | 0.197" (5.00mm) | -10°C ~ 40°C | 0.787" (20.00mm) | Wire Leads with Connector | 0.906" (23.00mm) | - | - |
|
|
SM2863-5122STEP, F2, SQ.86, 1.8, HALF INCH |
1,069 |
|
Datasheet |
- | Box | Active | Hybrid, Dual Shaft | Bipolar | 4 A | 200.0 | 1.8° | 100VAC | - | 1275 / 9000 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | 0.500" (12.70mm) | -10°C ~ 50°C | 1.181" (30.00mm) | Wire Leads | 2.740" (69.60mm) | 1 Ohms | - |
|
|
PD57-2-1276-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 24V |
3,795 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 2.3VDC | ±5% | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 0.8 Ohms | Integrated Controller, Flatted Shaft |
|

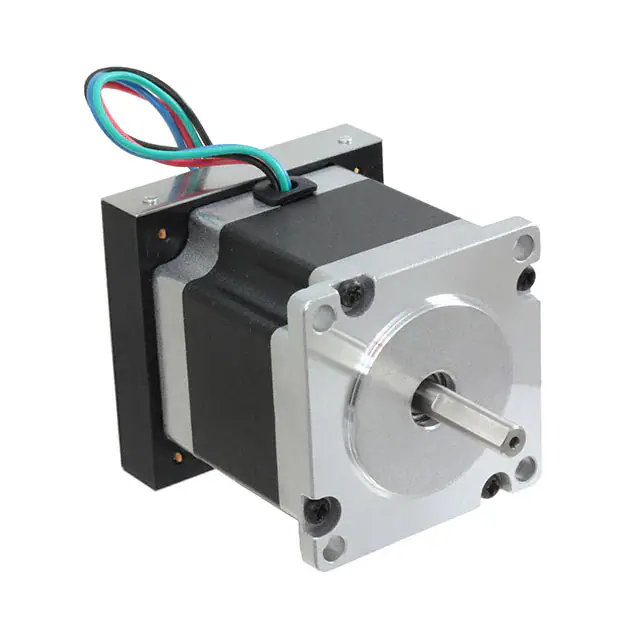

PD57-2-1276-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,965 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 2.3VDC | ±5% | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 0.8 Ohms | Integrated Controller, Flatted Shaft |
.jpg)
|
QSH6018-86-90-300-10KSTEP MOTOR HYBRID NEMA24 + ENC |
2,766 |
|
Datasheet |
QMot QSH6018 | Box | Active | Hybrid | Bipolar | 9 A | 200.0 | 1.8° | 2.1VDC | ±5% | 424.93 / 3000 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | - | 0.945" (24.00mm) | Wire Leads | 1.856" (47.14mm) | 0.15 Ohms | Flatted Shaft |
|
PD42-3-1370-TMCLPANDRIVE NEMA17, 24V, 0.44NM |
1,446 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 2.4VDC | ±5% | 62.31 / 440 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Connector | 1.220" (31.00mm) | 1.4 Ohms | Integrated Controller, Flatted Shaft |
|
PD42-4-1240-CANOPENPANDRIVE NEMA17, 24V, 0.7NM |
1,933 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 4.4VDC | ±5% | 99.1 / 700 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads with Connector | 1.220" (31.00mm) | 2.3 Ohms | Integrated Controller, Flatted Shaft |
|
SP2863-5260STEP, F2, SQ.86, 1.8, IP65, , BI |
4,328 |
|
Datasheet |
SP | Box | Active | Hybrid | Bipolar | 6 A | 200.0 | 1.8° | 100VAC | - | 1275 / 9000 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | - | 0.551" (14.00mm) | -10°C ~ 50°C | 1.181" (30.00mm) | Wire Leads | 2.740" (69.60mm) | 0.53 Ohms | - |
|
PD60-4-1276-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,843 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 4.17VDC | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 1.5 Ohms | Integrated Controller, Flatted Shaft |
|

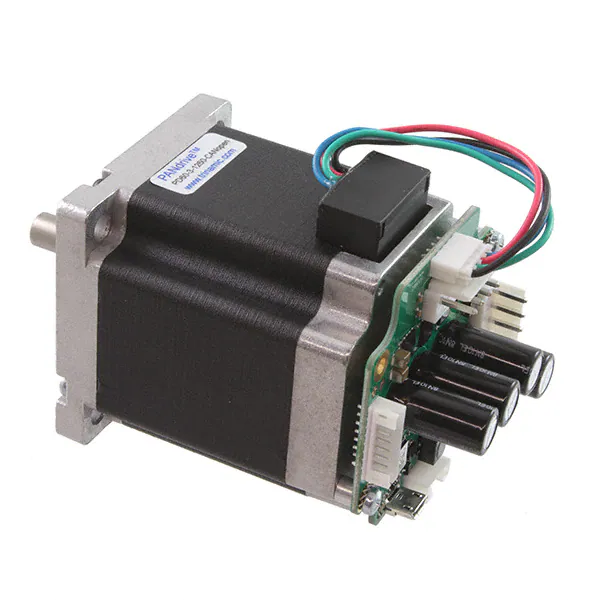

PD60-3-1260-CANOPENPANDRIVE NEMA24, 48V, 2.10NM |
3,695 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 4.6VDC | - | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads with Connector | 1.856" (47.14mm) | - | Integrated Controller, Flatted Shaft |
