Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Coil Type | Current Rating (Amps) | Steps per Revolution | Step Angle | Voltage - Rated | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Operating Temperature | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NEMA23-17-01PD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
4,929 |
|
Datasheet |
NEMA23-AMT112S | Box | Active | - | Bipolar | 2.8 A | 200.0 | 1.8° | 24 ~ 80VDC | ±0.2% | 85 / 600.23 | Square - 2.252" x 2.252" (57.20mm x 57.20mm) | 23 | 0.250" (6.35mm) | -20°C ~ 50°C | 0.811" (20.60mm) | Connector | 1.819" (46.20mm) | 0.7 Ohms | Integrated Encoder, Flatted Shaft |
|
|
NEMA23-17-15SD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
1,914 |
|
Datasheet |
NEMA23-AMT112S | Box | Active | - | Bipolar | 2.1 A | 200.0 | 1.8° | 24 ~ 80VDC | ±0.2% | 85 / 600.23 | Square - 2.252" x 2.252" (57.20mm x 57.20mm) | 23 | 0.250" (6.35mm) | -20°C ~ 50°C | 0.811" (20.60mm) | Connector | 1.819" (46.20mm) | 1.2 Ohms | Integrated Encoder, Flatted Shaft |
|
34KM-K023-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
1,801 |
|
Datasheet |
34KM | Bulk | Active | Hybrid | Unipolar | 1.9 A | 200.0 | 1.8° | 24VDC | ±5% | 354.07 / 2500 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | -10°C ~ 50°C | 1.457" (37.00mm) | Wire Leads | 2.740" (69.60mm) | 2.8 Ohms | Double Flatted Shaft |
|
|
NEMA23-17-15PD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
1,785 |
|
Datasheet |
NEMA23-AMT112S | Box | Active | - | Bipolar | 4.2 A | 200.0 | 1.8° | 24 ~ 80VDC | ±0.2% | 85 / 600.23 | Square - 2.252" x 2.252" (57.20mm x 57.20mm) | 23 | 0.250" (6.35mm) | -20°C ~ 50°C | 0.811" (20.60mm) | Connector | 1.819" (46.20mm) | 0.3 Ohms | Integrated Encoder, Flatted Shaft |
|
PD42-3-1270-CANOPENPANDRIVE NEMA17, 24V, 69 OZ IN/ |
2,181 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | ±5% | 62.3 / 440 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | -20°C ~ 50°C | - | Connector | 1.220" (31.00mm) | 1.4 Ohms | Integrated Controller, Round Shaft |
|
|
34KM-K206-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
4,549 |
|
Datasheet |
34KM | Bulk | Active | Hybrid | Unipolar | 4.7 A | 200.0 | 1.8° | 24VDC | ±5% | 948.92 / 6700 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | -10°C ~ 50°C | 1.457" (37.00mm) | Wire Leads | 2.740" (69.60mm) | 0.85 Ohms | Double Flatted Shaft |
|
|
34KM-K221-99WSTEP MOTOR HYBRID DUAL SHAFT 24V |
3,206 |
|
Datasheet |
34KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 2 A | 200.0 | 1.8° | 24VDC | ±5% | 948.92 / 6700 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | -10°C ~ 50°C | 1.457" (37.00mm) | Wire Leads | 2.740" (69.60mm) | 4.9 Ohms | Double Flatted Shaft |
|
PBM861FXK30-MPB, PB, SQ.86, FOR PB4A, , , CE/ |
2,949 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 200VAC | - | 439 / 3100 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | - | 0.551" (14.00mm) | -10°C ~ 40°C | 1.181" (30.00mm) | Wire Leads with Connector | 2.740" (69.60mm) | - | - |
|
SP2862-5260STEP, F2, SQ.86, 1.8, IP65, , BI |
1,382 |
|
Datasheet |
SP | Box | Active | Hybrid | Bipolar | 6 A | 200.0 | 1.8° | 100VAC | - | 906.3 / 6400 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | - | 0.551" (14.00mm) | -10°C ~ 50°C | 1.181" (30.00mm) | Wire Leads | 2.740" (69.60mm) | 0.41 Ohms | - |
|
PD60-3-1276-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 24V |
4,292 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 3.36VDC | ±5% | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 1.2 Ohms | Integrated Controller, Flatted Shaft |
|
PBM862FXK30-MPB, PB, SQ.86, FOR PB4A, , , CE/ |
4,316 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 200VAC | - | 863.8 / 6100 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | - | 0.551" (14.00mm) | -10°C ~ 40°C | 1.181" (30.00mm) | Wire Leads with Connector | 2.740" (69.60mm) | - | - |
|

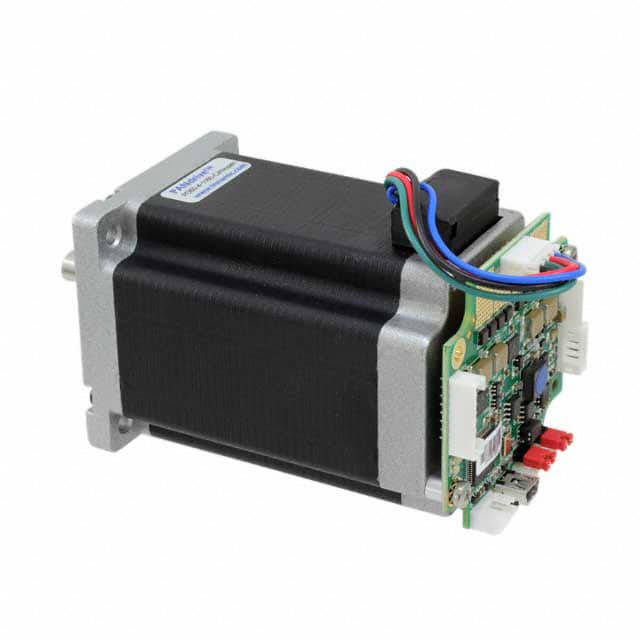

PD60-4-1160-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 48V |
3,705 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 48VDC | - | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | - | 0.945" (24.00mm) | Wire Leads with Connector | 1.856" (47.14mm) | - | Integrated Controller, Flatted Shaft |
|

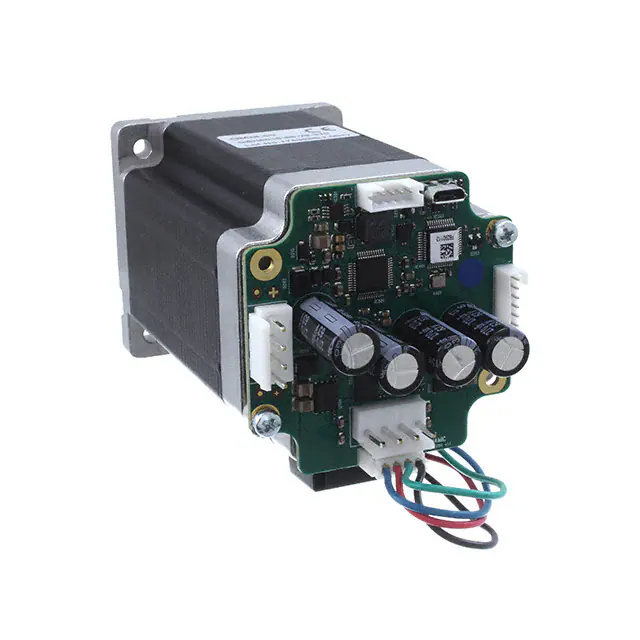

PD60-4-1260-CANOPENPANDRIVE NEMA24, 48V, 3.1NM |
4,575 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 6.8VDC | - | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads with Connector | 1.856" (47.14mm) | - | Integrated Controller, Flatted Shaft |
|
PD57-2-1378-CANOPENPANDRIVE NEMA23, 48V, 1.01NM |
2,760 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 2.3VDC | ±5% | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 0.8 Ohms | Integrated Controller, Flatted Shaft |
|
PD86-3-1278-TMCLPANDRIVE NEMA34, 48V, 7NM |
3,075 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 5.5 A | 200.0 | 1.8° | 2.56VDC | ±5% | 991.28 / 7000 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD86-3-1378-TMCLPANDRIVE NEMA34, 48V, 7NM |
2,095 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 5.5 A | 200.0 | 1.8° | 2.56VDC | ±5% | 991.28 / 7000 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
ERMO-12-ST-EROTARY DRIVE |
4,345 |
|
Datasheet |
- | Bulk | Active | Hybrid | - | 800 mA | 200.0 | 1.8° | 24VDC | - | 46.74 / 330 | Square - 2.323" x 2.323" (59.00mm x 59.00mm) | - | - | 0°C ~ 50°C | 0.394" (10.00mm) | Wire Leads with Connector | 1.890" (48.00mm) | - | Round Shaft |
|
ERMO-32-ST-EROTARY DRIVE |
3,876 |
|
Datasheet |
- | Bulk | Active | Hybrid | - | 4.2 A | 200.0 | 1.8° | 24VDC | - | 991.28 / 7000 | Square - 4.134" x 4.134" (105.00mm x 105.00mm) | - | - | 0°C ~ 50°C | 0.472" (12.00mm) | Wire Leads with Connector | 3.346" (85.00mm) | - | Round Shaft |
|
|
SM-5VDCSTEP MOTOR HYBRID GEARED BIPOLAR |
2,187 |
|
Datasheet |
- | Bulk | Active | Hybrid Gear Motor | Bipolar | - | 64.0 | 5.625° | 5VDC | - | 4.166 / 29.42 | Round - 1.100" Dia (28.00mm) | - | 0.118" (3.00mm) | - | 0.394" (10.00mm) | Wire Leads with Connector | 1.378" (35.00mm) | 50 Ohms | Flatted Shaft |
|
|
SM-5VDC-DRVSTEP MOTOR HYBRID GEARED BIPOLAR |
4,333 |
|
Datasheet |
- | Bulk | Active | Hybrid Gear Motor | Bipolar | - | - | - | 5VDC | - | - | Round - 1.100" Dia (28.00mm) | - | - | - | - | Wire Leads with Connector | 1.378" (35.00mm) | - | Flatted Shaft |
