Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Coil Type | Current Rating (Amps) | Steps per Revolution | Step Angle | Voltage - Rated | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Operating Temperature | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
82940015MOTOR 829300 - 7 5 48STEP/T - 4 |
3,600 |
|
Datasheet |
82940 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

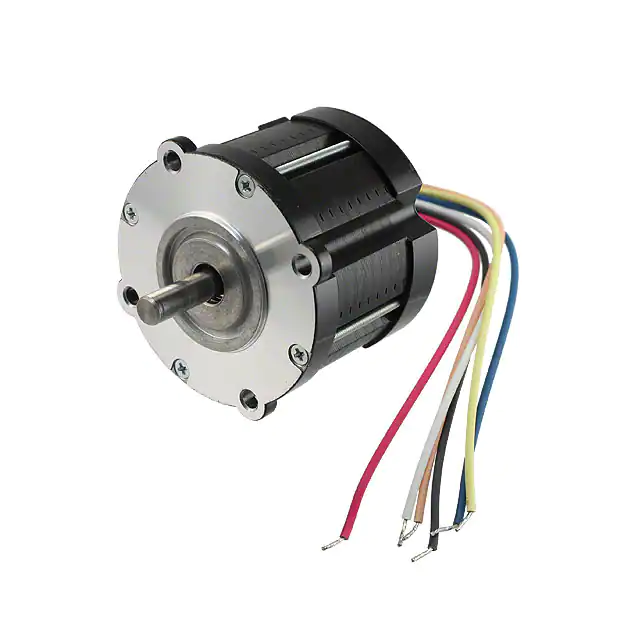

29SM-K035-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
4,086 |
|
Datasheet |
29SM | Bulk | Active | Hybrid | Unipolar | 2.2 A | 200.0 | 1.8° | 24VDC | ±5% | 127.47 / 900 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads | 1.856" (47.14mm) | 1.55 Ohms | Round Shaft |
|

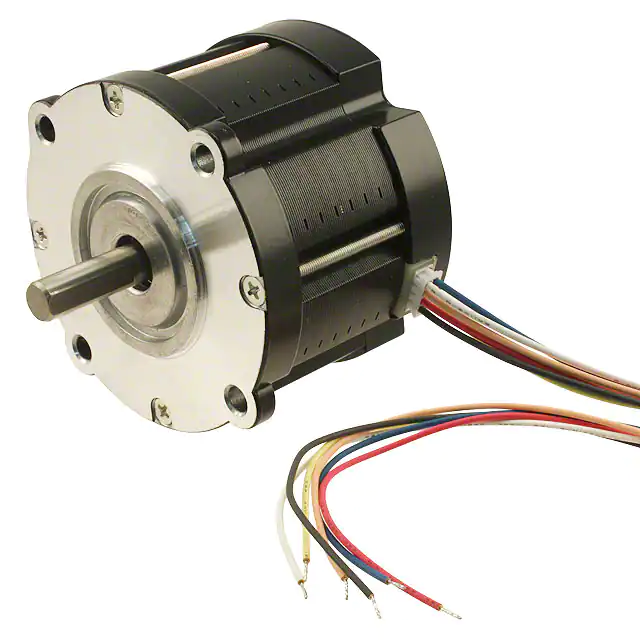

29SM-K379-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
4,633 |
|
Datasheet |
29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 1.9 A | 200.0 | 1.8° | 24VDC | ±5% | 116.14 / 820 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads | 1.856" (47.14mm) | 1.75 Ohms | Round Shaft |
|
|
82920007MOTOR 829200 - 7 5 48STEP/T - 2 |
1,904 |
|
Datasheet |
82920 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
29SM-K250-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
1,484 |
|
Datasheet |
29SM | Bulk | Active | Hybrid | Unipolar | 1.6 A | 200.0 | 1.8° | 24VDC | ±5% | 82.15 / 580 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads | 1.856" (47.14mm) | 2 Ohms | Round Shaft |
|

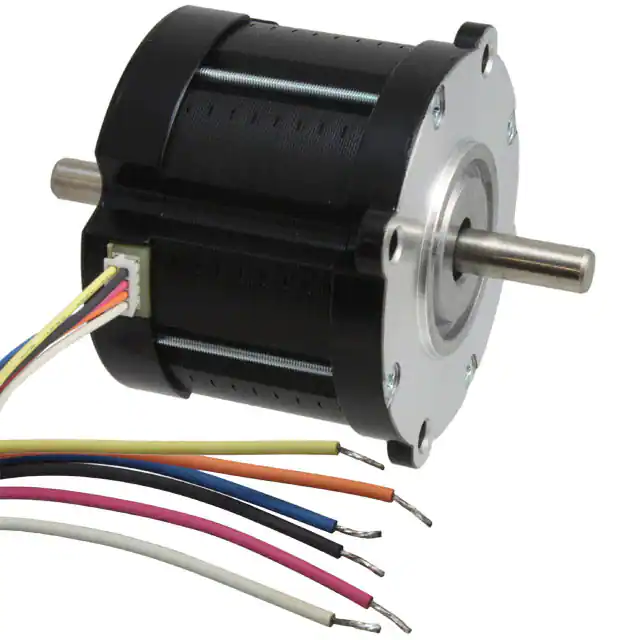

29SM-K035-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,621 |
|
Datasheet |
29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 2.2 A | 200.0 | 1.8° | 24VDC | ±5% | 127.47 / 900 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads | 1.856" (47.14mm) | 1.55 Ohms | Round Shaft |
|
29SM-K138-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
2,396 |
|
Datasheet |
29SM | Bulk | Active | Hybrid | Unipolar | 2.6 A | 200.0 | 1.8° | 24VDC | ±5% | 169.96 / 1200 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads | 1.856" (47.14mm) | 1.25 Ohms | Round Shaft |
|

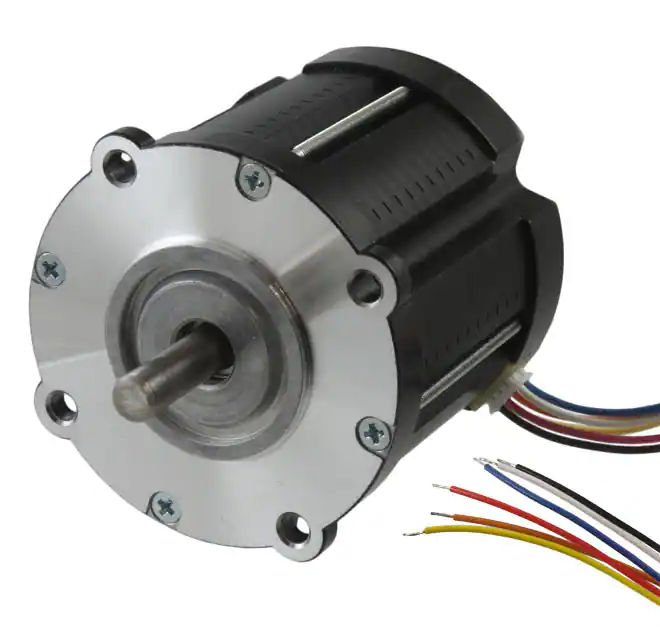

29SM-K138-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
3,118 |
|
Datasheet |
29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 2.6 A | 200.0 | 1.8° | 24VDC | ±5% | 169.96 / 1200 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads | 1.856" (47.14mm) | 1.25 Ohms | Round Shaft |
|
|
82940003MOTOR 829300 - 7 5 48STEP/T - 4 |
3,402 |
|
Datasheet |
82940 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
82940031MOTOR 829400 - 7 5 48STEP/T - 2 |
2,658 |
|
Datasheet |
82940 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

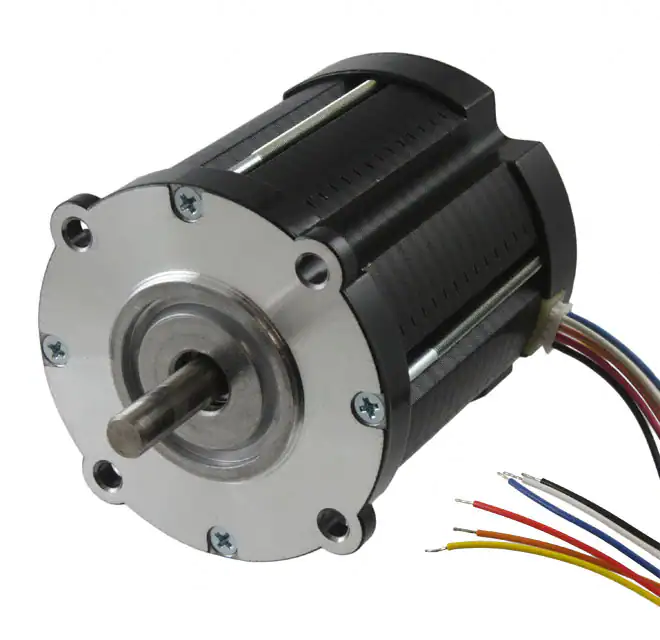

29SM-K711-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,083 |
|
Datasheet |
29SM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 3 A | 200.0 | 1.8° | 24VDC | ±5% | 205.36 / 1450 | Round - 2.795" Dia (71.00mm) | - | 0.315" (8.00mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads | 1.856" (47.14mm) | 1 Ohms | Round Shaft |
|
NEMA11-20-02D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
1,442 |
|
Datasheet |
NEMA11-AMT112S | Box | Active | - | Bipolar | 1.3 A | 200.0 | 1.8° | 24 ~ 48VDC | ±0.2% | 16.6 / 117.22 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.791" (20.10mm) | Connector | 0.909" (23.10mm) | 1.9 Ohms | Integrated Encoder |
|
|
82924020STEPPER MOTOR PM GEARED BI 6.3V |
3,962 |
|
Datasheet |
82924 | Bulk | Active | Permanent Magnet Gear Motor | Bipolar | 590 mA | 48.0 | 7.5° | 6.3VDC | ±5% | 9.91 / 70 | Round - 2.020" Dia (51.30mm) | 21 | 0.157" (4.00mm) | -30°C ~ 70°C | 0.520" (13.20mm) | Wire Leads | 1.874" (47.60mm) | 10.7 Ohms | Flatted Shaft |
|
|
82924022STEPPER MOTOR PM GEARED BI 6.3V |
2,482 |
|
Datasheet |
82924 | Bulk | Active | Permanent Magnet Gear Motor | Bipolar | 590 mA | 48.0 | 7.5° | 6.3VDC | ±5% | 9.91 / 70 | Round - 2.020" Dia (51.30mm) | 21 | 0.157" (4.00mm) | -30°C ~ 70°C | 0.520" (13.20mm) | Wire Leads | 1.874" (47.60mm) | 10.7 Ohms | Flatted Shaft |
|
|
82924030STEPPER MOTOR PM GEARED UNI 6.3V |
3,526 |
|
Datasheet |
82924 | Bulk | Active | Permanent Magnet Gear Motor | Unipolar | 590 mA | 48.0 | 7.5° | 6.3VDC | ±5% | 9.91 / 70 | Round - 2.020" Dia (51.30mm) | 21 | 0.157" (4.00mm) | -30°C ~ 70°C | 0.520" (13.20mm) | Wire Leads | 1.874" (47.60mm) | 10.7 Ohms | Flatted Shaft |
|
|
82924048STEPPER MOTOR PM GEARED UNI 6.3V |
1,185 |
|
Datasheet |
82924 | Bulk | Active | Permanent Magnet Gear Motor | Unipolar | 280 mA | 48.0 | 7.5° | 6.3VDC | ±5% | 9.91 / 70 | Round - 2.020" Dia (51.30mm) | 21 | 0.157" (4.00mm) | -30°C ~ 70°C | 0.520" (13.20mm) | Wire Leads | 1.874" (47.60mm) | 46 Ohms | Flatted Shaft |
|
|
82924049STEPPER MOTOR PM GEARED UNI 6.3V |
2,349 |
|
Datasheet |
82924 | Bulk | Active | Permanent Magnet Gear Motor | Unipolar | 280 mA | 48.0 | 7.5° | 6.3VDC | ±5% | 9.91 / 70 | Round - 2.020" Dia (51.30mm) | 21 | 0.157" (4.00mm) | -30°C ~ 70°C | 0.520" (13.20mm) | Wire Leads | 1.874" (47.60mm) | 46 Ohms | Flatted Shaft |
|
|
82924055STEPPER MOTOR PM GEARED UNI 6.3V |
3,188 |
|
Datasheet |
82924 | Bulk | Active | Permanent Magnet Gear Motor | Unipolar | 590 mA | 48.0 | 7.5° | 6.3VDC | ±5% | 9.91 / 70 | Round - 2.020" Dia (51.30mm) | 21 | 0.157" (4.00mm) | -30°C ~ 70°C | 0.520" (13.20mm) | Wire Leads | 1.874" (47.60mm) | 10.7 Ohms | Flatted Shaft |
|
34KM-K012-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
3,895 |
|
Datasheet |
34KM | Bulk | Active | Hybrid | Unipolar | 3 A | 200.0 | 1.8° | 24VDC | ±5% | 354.07 / 2500 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | -10°C ~ 50°C | 1.457" (37.00mm) | Wire Leads | 2.740" (69.60mm) | 1.1 Ohms | Double Flatted Shaft |
|
|
34KM-K006-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
4,912 |
|
Datasheet |
34KM | Bulk | Active | Hybrid | Unipolar | 4.8 A | 200.0 | 1.8° | 24VDC | ±5% | 354.07 / 2500 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | -10°C ~ 50°C | 1.457" (37.00mm) | Wire Leads | 2.740" (69.60mm) | 0.45 Ohms | Double Flatted Shaft |
