| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Coil Type | Current Rating (Amps) | Steps per Revolution | Step Angle | Voltage - Rated | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Operating Temperature | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM25L-024-HHC5STEPPER MOTOR PM BIPOLAR 24V |
3,964 |
|
Datasheet |
PM | Bulk | Active | Permanent Magnet | Bipolar | 600 mA | 24.0 | 15° | 24VDC | - | 3.7 / 26 | Round - 0.984" Dia (25.00mm) | - | 0.079" (2.00mm) | - | 0.394" (10.00mm) | Wire Leads | 1.260" (32.00mm) | 8 Ohms | Round Shaft |
|
20M020D1USTEPPER MOTOR PM UNIPOLAR 5V |
2,949 |
|
Datasheet |
20M | Bulk | Active | Permanent Magnet | Unipolar | 100 mA | 20.0 | 18° | 5VDC | ±12% | 1.1 / 7.77 | Round - 0.807" Dia (20.50mm) | - | 0.059" (1.50mm) | -20°C ~ 70°C | 0.335" (8.50mm) | Wire Leads | 0.984" (25.00mm) | 115.2 Ohms | Round Shaft |
|
26M024D1USTEPPER MOTOR PM UNIPOLAR 5V |
2,448 |
|
Datasheet |
26M | Bulk | Active | Permanent Magnet | Unipolar | 260 mA | 24.0 | 15° | 5VDC | ±15% | 1.35 / 9.5 | Round - 1.030" Dia (26.16mm) | - | 0.079" (2.00mm) | -20°C ~ 70°C | 0.445" (11.30mm) | Wire Leads | 1.370" (34.90mm) | 19.6 Ohms | Round Shaft |
|
SF2424-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA |
3,753 |
|
Datasheet |
SF | Box | Active | Hybrid | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | - | 113.30 / 800 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | -10°C ~ 50°C | 0.945" (24.00mm) | Connector | 1.220" (31.00mm) | 6.5 Ohms | - |
|
|
SF2424-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA |
4,762 |
|
Datasheet |
SF | Box | Active | Hybrid, Dual Shaft | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | - | 113.30 / 800 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | -10°C ~ 50°C | 0.945" (24.00mm) | Connector | 1.220" (31.00mm) | 6.5 Ohms | - |
|

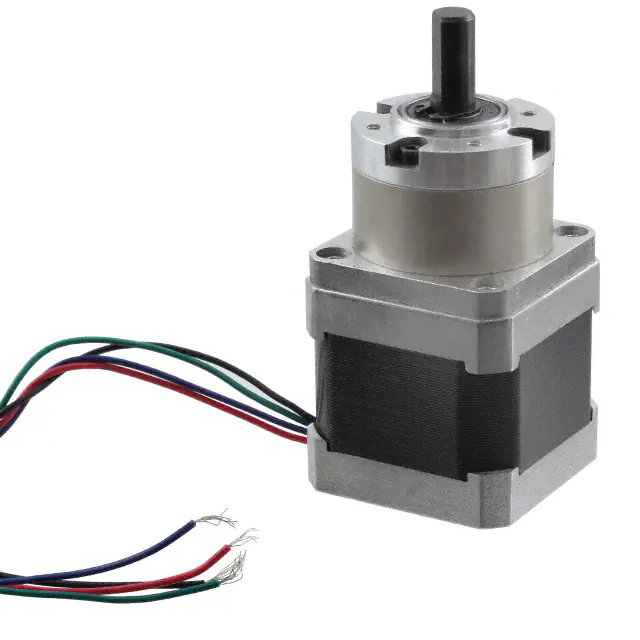

FIT0349BIPOLAR STEPPER MOTOR WITH PLANE |
2,792 |
|
Datasheet |
- | Bulk | Active | Hybrid Gear Motor | Bipolar | - | - | 1.8° | 2.7VDC | ±5% | 48.6 / 343.19 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.315" (8.00mm) | -20°C ~ 50°C | 0.787" (20.00mm) | Wire Leads | 1.100" (28.00mm) | 1.5 Ohms | Flatted Shaft |
|
42M100B1BSTEPPER MOTOR PM BIPOLAR 5V |
4,036 |
|
Datasheet |
42M | Bulk | Active | Permanent Magnet | Bipolar | 400 mA | 100.0 | 3.6° | 5VDC | ±11% | 7 / 49.4 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | -20°C ~ 70°C | 0.450" (11.43mm) | Wire Leads | 1.950" (49.48mm) | 12.5 Ohms | Round Shaft |
|
35M048B2USTEPPER MOTOR PM UNIPOLAR 12V |
1,923 |
|
Datasheet |
35M | Bulk | Active | Permanent Magnet | Unipolar | 170 mA | 48.0 | 7.5° | 12VDC | ±15% | 2.6 / 18.35 | Round - 1.420" Dia (35.94mm) | - | 0.079" (2.00mm) | -20°C ~ 70°C | 0.445" (11.30mm) | Wire Leads | 1.650" (42.00mm) | 72 Ohms | Round Shaft |
|
42M048C1BSTEPPER MOTOR PM BIPOLAR 5V |
3,394 |
|
Datasheet |
42M | Bulk | Active | Permanent Magnet | Bipolar | 550 mA | 48.0 | 7.5° | 5VDC | ±15% | 11.9 / 84 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | -20°C ~ 70°C | 0.450" (11.43mm) | Wire Leads | 1.950" (49.48mm) | 9.1 Ohms | Round Shaft |
|

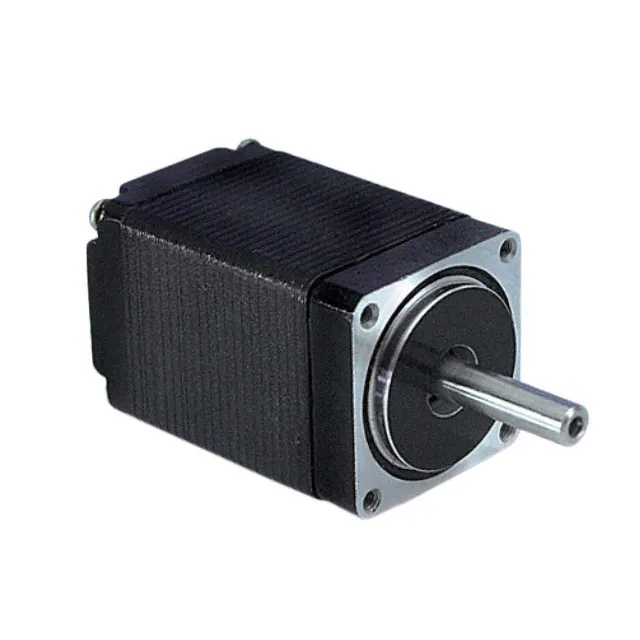

WO-211-20-02-ROSTEPPER MOTOR |
3,046 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 1.3 A | 200.0 | 1.8° | 24VDC | - | 16.6 / 117.22 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.787" (20.00mm) | Wire Leads | 0.906" (23.00mm) | 1.9 Ohms | Round Shaft |
|
WO-4209S-01PSTEPPER MOTOR |
2,709 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 1.33 A | 400.0 | 0.9° | 24VDC | - | 31 / 219 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.220" (31.00mm) | 2.4 Ohms | Round Shaft |
|
PM35S-048-HHC6STEPPER MOTOR PM BIPOLAR 24V |
3,163 |
|
Datasheet |
PM | Bulk | Active | Permanent Magnet | Bipolar | 600 mA | 48.0 | 7.5° | 24VDC | - | 6.94 / 49 | Round - 1.378" Dia (35.00mm) | - | 0.118" (3.00mm) | - | 0.394" (10.00mm) | Wire Leads | 1.650" (42.00mm) | 5.5 Ohms | Round Shaft |
|
PM42S-048-HHC8STEPPER MOTOR PM BIPOLAR 24V |
4,464 |
|
Datasheet |
PM | Bulk | Active | Permanent Magnet | Bipolar | 600 mA | 48.0 | 7.5° | 24VDC | - | 9.3 / 66 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | - | 0.472" (12.00mm) | Wire Leads | 1.950" (49.48mm) | 8 Ohms | Round Shaft |
|
WO-4109V-51STEPPER MOTOR |
3,180 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 1.2 A | 400.0 | 0.9° | 24VDC | - | 15 / 105.9 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | 1.220" (31.00mm) | 3 Ohms | Round Shaft |
|
WO-3709V-18STEPPER MOTOR |
3,404 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 600 mA | 400.0 | 0.9° | 24VDC | - | 16 / 113 | Square - 1.440" L x 1.440" W (36.58mm x 36.58mm) | 14 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.787" (20.00mm) | Wire Leads | 1.220" (31.00mm) | 10 Ohms | Round Shaft |
|
SMS6-F20-HHE2STEPPER MOTOR PM BIPOLAR 3V |
3,938 |
|
Datasheet |
- | Bulk | Active | Permanent Magnet | Bipolar | - | 20.0 | 18° | 3VDC | - | - | Round - 0.236" Dia (6.00mm) | - | 0.031" (0.80mm) | -10°C ~ 50°C | - | PC Pin | - | 20 Ohms | Round Shaft |
|
|
WO-3709V-03STEPPER MOTOR |
3,409 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 1.2 A | 400.0 | 0.9° | 24VDC | - | 16 / 113 | Square - 1.440" L x 1.440" W (36.58mm x 36.58mm) | 14 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.787" (20.00mm) | Wire Leads | 1.220" (31.00mm) | 3 Ohms | Round Shaft |
|
WO-4418F-01STEPPER MOTOR |
1,991 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 670 mA | 200.0 | 1.8° | 24VDC | - | 27 / 190.7 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.220" (31.00mm) | 7.6 Ohms | Round Shaft |
|
WO-4118M-06SSTEPPER MOTOR |
2,283 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 700 mA | 200.0 | 1.8° | 24VDC | - | 63 / 444.88 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.220" (31.00mm) | 10.8 Ohms | Flatted Shaft |
|
WO-5718M-02S-ROSTEPPER MOTOR |
2,951 |
|
Datasheet |
- | Bulk | Active | - | Bipolar | 2.1 A | 200.0 | 1.8° | 24VDC | - | 173 / 1222 | Square - 2.252" x 2.252" (57.20mm x 57.20mm) | 23 | 0.236" (6.00mm) | -20°C ~ 50°C | 0.827" (21.00mm) | Wire Leads | 1.850" (47.00mm) | 1.8 Ohms | Flatted Shaft |
