Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Coil Type | Current Rating (Amps) | Steps per Revolution | Step Angle | Voltage - Rated | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Operating Temperature | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM2561C60B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2,688 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 6 A | 200.0 | 1.8° | 24VDC | - | 106.2 / 750 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | - | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 0.14 Ohms | - |
|
|
SM2561C40B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
1,193 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 4 A | 200.0 | 1.8° | 24VDC | - | 106.2 / 750 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | - | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 0.28 Ohms | - |
|
WO-211-18-01-ROSTEPPER MOTOR |
3,235 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 670 mA | 200.0 | 1.8° | 24VDC | - | 13.7 / 96.74 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.787" (20.00mm) | Wire Leads | 0.906" (23.00mm) | 7.1 Ohms | Round Shaft |
|
WO-4109R-08STEPPER MOTOR |
1,919 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 600 mA | 400.0 | 0.9° | 24VDC | - | 22 / 155.4 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | 1.220" (31.00mm) | 11.6 Ohms | Round Shaft |
|
|
SM2562C60B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3,992 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 6 A | 200.0 | 1.8° | 24VDC | - | 198.3 / 1400 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | - | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 0.18 Ohms | - |
|
|
SM2562C20B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2,545 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 24VDC | - | 198.3 / 1400 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | - | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 1.5 Ohms | - |
|
|
WO-4109R-05STEPPER MOTOR |
4,359 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 800 mA | 400.0 | 0.9° | 24VDC | - | 22 / 155.4 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | 1.220" (31.00mm) | 6.5 Ohms | Round Shaft |
|
SH1422-5241STEP, F2, SQ.42, 0.9, , , BIPOLA |
2,983 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 2 A | 400.0 | 0.9° | 24VDC | - | 48.15 / 340 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | -10°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.220" (31.00mm) | 1.05 Ohms | - |
|
SH1424-5241STEP, F2, SQ.42, 0.9, , , BIPOLA |
2,014 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 2 A | 400.0 | 0.9° | 24VDC | - | 67.97 / 480 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | -10°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.220" (31.00mm) | 1.25 Ohms | - |
|
103H7821-1760STEP, F2, SQ.60, 1.8, NEMA, , BI |
4,318 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 4 A | 200.0 | 1.8° | 24VDC | - | 124.6 / 880 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 0.35 Ohms | - |
|
103H7121-5840STEP, F2, SQ.56, 1.8, , , BIPOLA |
1,036 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 3 A | 200.0 | 1.8° | 24VDC | - | 77.89 / 550 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 0.54 Ohms | - |
|
|
103H7821-1730STEP, F2, SQ.60, 1.8, NEMA, , BI |
4,847 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 4 A | 200.0 | 1.8° | 24VDC | - | 124.6 / 880 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 0.35 Ohms | - |
|
SH1601-5240STEP, F2, SQ.60, 0.9, , , BIPOLA |
2,737 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 2 A | 400.0 | 0.9° | 24VDC | - | 97.71 / 690 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | - | 0.250" (6.35mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 1.2 Ohms | - |
|
17PY-Z053-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,512 |
|
Datasheet |
17PY | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 850 mA | 400.0 | 0.9° | 24VDC | ±5% | 22.7 / 160 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -10°C ~ 50°C | 0.787" (20.00mm) | Wire Leads with Connector | 1.220" (31.00mm) | 4.2 Ohms | Flatted Shaft |
|
|
SH1602-5240STEP, F2, SQ.60, 0.9, , , BIPOLA |
2,144 |
|
Datasheet |
SH | Tray | Active | Hybrid | Bipolar | 2 A | 400.0 | 0.9° | 24VDC | - | 181.3 / 1280 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | - | 0.250" (6.35mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 1.65 Ohms | - |
|
SH2281-5771STEP, F2, SQ.28, 1.8, , , BIPOLA |
4,165 |
|
Datasheet |
SH | Tray | Active | Hybrid | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | - | 9.91 / 70 | - | - | 0.197" (5.00mm) | -10°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | 0.906" (23.00mm) | 2.6 Ohms | - |
|
|
SH2281-5731STEP, F2, SQ.28, 1.8, , , BIPOLA |
1,578 |
|
Datasheet |
SH | Box | Active | Hybrid, Dual Shaft | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | - | 9.91 / 70 | - | - | 0.197" (5.00mm) | -10°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | 0.906" (23.00mm) | 2.6 Ohms | - |
|

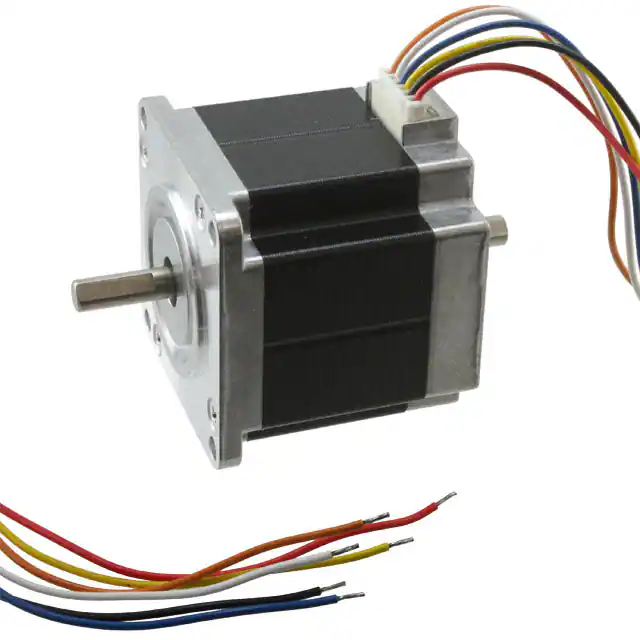

23KM-K049-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,681 |
|
Datasheet |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 2 A | 200.0 | 1.8° | 24VDC | ±5% | 127.47 / 900 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads with Connector | 1.856" (47.14mm) | 1.7 Ohms | Flatted Shaft |
|
|
SM2563C20B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
4,657 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 24VDC | - | 333 / 2350 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | - | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 2.1 Ohms | - |
|
WO-4118L-07PSTEPPER MOTOR |
4,391 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 2.1 A | 200.0 | 1.8° | 24VDC | - | 83 / 586.11 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.220" (31.00mm) | 1.3 Ohms | Flatted Shaft |
