| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Coil Type | Current Rating (Amps) | Steps per Revolution | Step Angle | Voltage - Rated | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Operating Temperature | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
103H7822-1730STEP, F2, SQ.60, 1.8, NEMA, , BI |
4,295 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 4 A | 200.0 | 1.8° | 24VDC | - | 194 / 1370 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 0.43 Ohms | - |
|

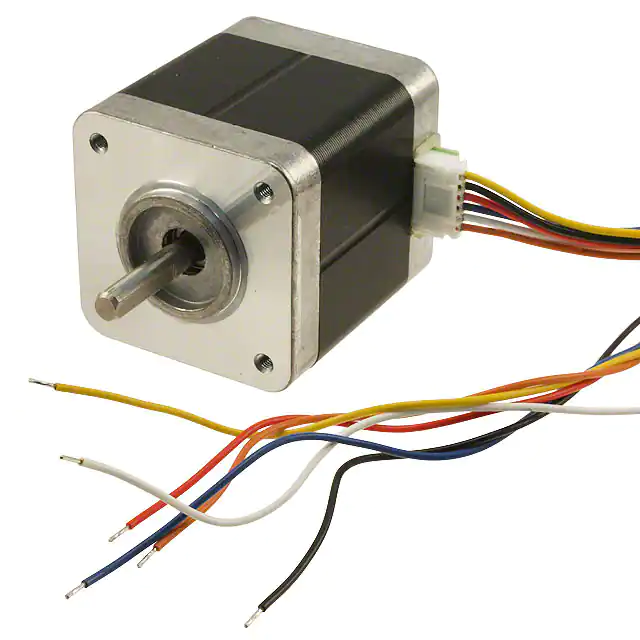

17PM-K455-00VSSTEP MOTOR HYBRID UNIPOLAR 24V |
2,799 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Unipolar | 800 mA | 200.0 | 1.8° | 24VDC | ±5% | 48.15 / 340 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads | 1.220" (31.00mm) | 7.3 Ohms | Flatted Shaft |
|
103H7123-5840STEP, F2, SQ.56, 1.8, , , BIPOLA |
3,668 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 3 A | 200.0 | 1.8° | 24VDC | - | 141.6 / 1000 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 0.7 Ohms | - |
|
|
103H7823-1730STEP, F2, SQ.60, 1.8, NEMA, , BI |
1,193 |
|
Datasheet |
H | Box | Active | Hybrid, Dual Shaft | Bipolar | 4 A | 200.0 | 1.8° | 24VDC | - | 382.4 / 2700 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.315" (8.00mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 0.65 Ohms | - |
|
SM2564C20B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE |
1,449 |
|
Datasheet |
SM | Bulk | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 24VDC | - | 354 / 2500 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | - | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 2.1 Ohms | - |
|
SH2285-5771STEP, F2, SQ.28, 1.8, , , BIPOLA |
3,766 |
|
Datasheet |
SH | Box | Active | Hybrid | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | - | 20.53 / 145 | - | - | 0.197" (5.00mm) | -10°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | 0.906" (23.00mm) | 3.75 Ohms | - |
|
|
SH2285-5731STEP, F2, SQ.28, 1.8, , , BIPOLA |
1,300 |
|
Datasheet |
SH | Box | Active | Hybrid, Dual Shaft | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | - | 20.53 / 145 | - | - | 0.197" (5.00mm) | -10°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | 0.906" (23.00mm) | 3.75 Ohms | - |
|
WO-5718M-02P-ROSTEPPER MOTOR |
3,249 |
|
Datasheet |
- | Bulk | Active | - | Bipolar | 4.2 A | 200.0 | 1.8° | 24VDC | - | 173 / 1222 | Square - 2.252" x 2.252" (57.20mm x 57.20mm) | 23 | 0.236" (6.00mm) | -20°C ~ 50°C | 0.827" (21.00mm) | Wire Leads | 1.850" (47.00mm) | 0.5 Ohms | Flatted Shaft |
|
|
11PM-K142-BPVSSTEP MOTOR HYBRID BIPOLAR 24V |
1,791 |
|
Datasheet |
11PM-K | Bulk | Active | Hybrid | Bipolar | 1.5 A | 200.0 | 1.8° | 24VDC | - | 20.53 / 145 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | - | 0.787" (20.00mm) | Connector | 0.910" (23.11mm) | 1.5 Ohms | - |
|
SH1603-5240STEP, F2, SQ.60, 0.9, , , BIPOLA |
2,496 |
|
Datasheet |
SH | Tray | Active | Hybrid | Bipolar | 2 A | 400.0 | 0.9° | 24VDC | - | 304.5 / 2150 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | - | 0.315" (8.00mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 2.3 Ohms | - |
|
|
11PM-K241-BPVSSTEP MOTOR HYBRID BIPOLAR 24V |
1,208 |
|
Datasheet |
11PM-K | Bulk | Active | Hybrid | Bipolar | 1.5 A | 200.0 | 1.8° | 24VDC | - | 28.33 / 200 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | - | 0.787" (20.00mm) | Connector | 0.910" (23.11mm) | 1.7 Ohms | - |
|

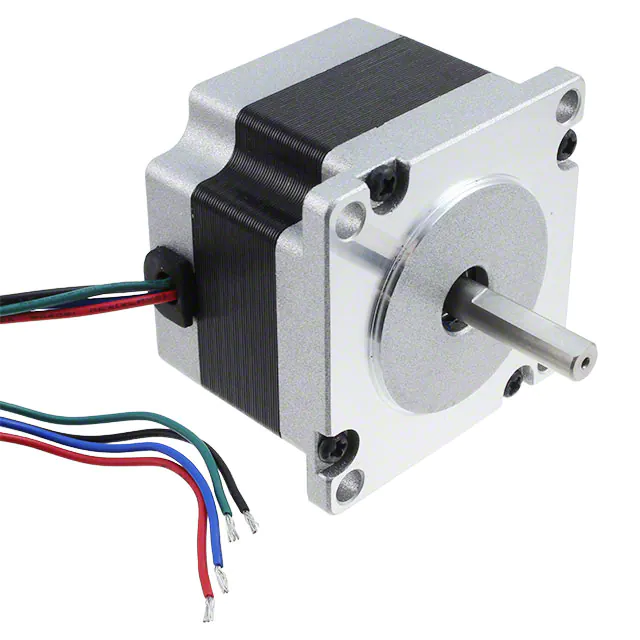

QSH5718-41-28-055STEPPER MOTOR HYBRID BIPOLAR 2V |
2,427 |
|
Datasheet |
QMot QSH5718 | Box | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 2VDC | ±5% | 77.89 / 550 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.856" (47.14mm) | 0.7 Ohms | Flatted Shaft |
|

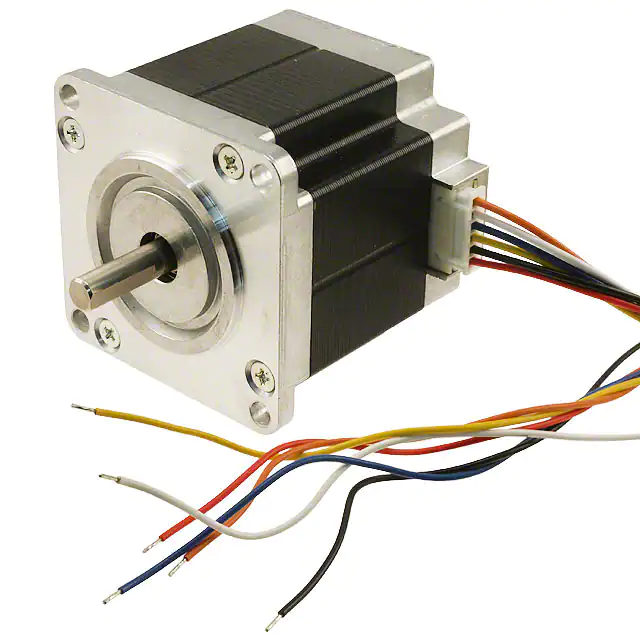

23KM-K044-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
3,838 |
|
Datasheet |
23KM | Bulk | Active | Hybrid | Unipolar | 3 A | 200.0 | 1.8° | 24VDC | ±5% | 127.47 / 900 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads with Connector | 1.856" (47.14mm) | 0.85 Ohms | Flatted Shaft |
|
|
103H5210-5214STEP, F2 MOTOR, SQ.42, 2 PHASE S |
3,556 |
|
Datasheet |
- | Box | Active | Hybrid, Dual Shaft | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | - | 72.22 / 510 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -10°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.220" (31.00mm) | 4.8 Ohms | - |
|
|
103H7126-5840STEP, F2, SQ.56, 1.8, , , BIPOLA |
1,498 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 3 A | 200.0 | 1.8° | 24VDC | - | 226.6 / 1600 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.250" (6.35mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 0.94 Ohms | - |
|

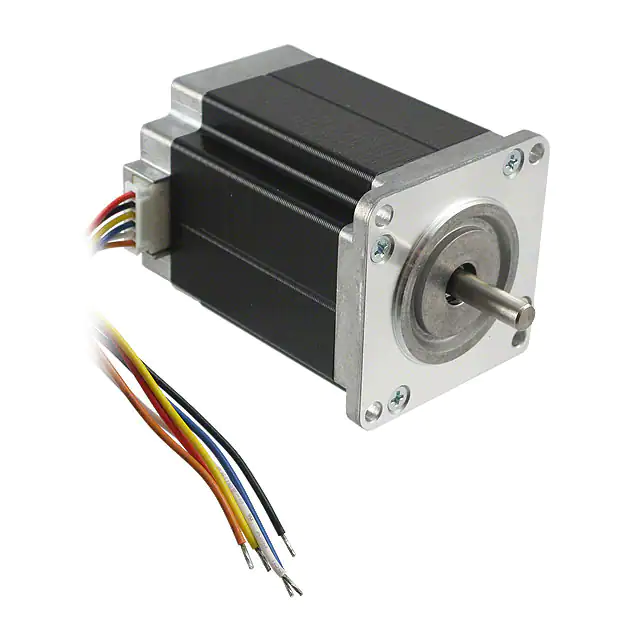

23KM-K743-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
1,363 |
|
Datasheet |
23KM | Bulk | Active | Hybrid | Unipolar | 3 A | 200.0 | 1.8° | 24VDC | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | -10°C ~ 50°C | 0.984" (25.00mm) | Wire Leads with Connector | 1.856" (47.14mm) | 1.1 Ohms | Flatted Shaft |
|
|
103H7822-2511STEP, F2 MOTOR, SQ.60, 2 PHASE S |
3,579 |
|
Datasheet |
- | Box | Active | Hybrid, Dual Shaft | Unipolar | 4.4 A | 200.0 | 1.8° | 24VDC | - | 155.8 / 1100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.250" (6.35mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.856" (47.14mm) | 0.4 Ohms | - |
|
NEMA11-13-01D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
4,849 |
|
Datasheet |
NEMA11-AMT112S | Box | Active | - | Bipolar | 670 mA | 200.0 | 1.8° | 24 ~ 48VDC | ±0.2% | 9.2 / 64.97 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.791" (20.10mm) | Connector | 0.909" (23.10mm) | 5.7 Ohms | Integrated Encoder |
|
PD42-2-1070STEPPER MOTOR HYBRID BIPOLAR 24V |
3,825 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 1 A | 200.0 | 1.8° | 24VDC | ±5% | 51 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | - | -20°C ~ 50°C | - | Connector | 1.220" (30.99mm) | 1.2 Ohms | Integrated Controller, Round Shaft |
|

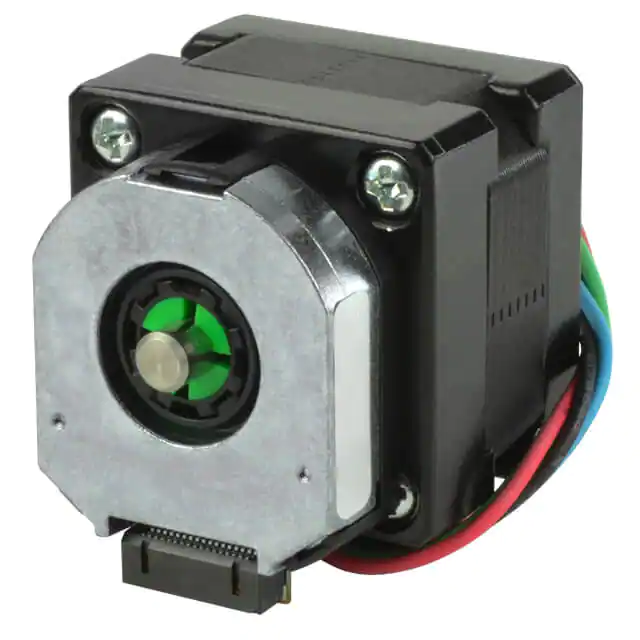

NEMA14-10-04D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
3,623 |
|
Datasheet |
NEMA14-AMT112S | Box | Active | - | Bipolar | 450 mA | 200.0 | 1.8° | 24 ~ 48VDC | ±0.2% | 7.5 / 52.96 | Square - 1.390" x 1.390" (35.30mm x 35.30mm) | 14 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.602" (15.30mm) | Connector | 1.023" (26.00mm) | 3.8 Ohms | Integrated Encoder |
