Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Coil Type | Current Rating (Amps) | Steps per Revolution | Step Angle | Voltage - Rated | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Operating Temperature | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD60-3-1160-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V |
3,363 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 48VDC | - | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | - | 0.945" (24.00mm) | Wire Leads with Connector | 1.856" (47.14mm) | - | Integrated Controller, Flatted Shaft |
|
103H89223-5241STEP, F2, 106, 1.8, , , BIPOLAR/ |
2,221 |
|
Datasheet |
H | Box | Active | Hybrid | Bipolar | 6 A | 200.0 | 1.8° | 100VAC | - | 2691 / 19000 | Square - 4.173" x 4.173" (106.00mm x 106.00mm) | - | 0.630" (16.00mm) | -10°C ~ 50°C | 1.378" (35.00mm) | Wire Leads | 3.500" (88.90mm) | 0.63 Ohms | - |
|
PD60-4H-1278-TMCLPANDRIVE NEMA24, 48V, 3NM |
4,919 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 9 A | 200.0 | 1.8° | 2.1VDC | ±5% | 424.93 / 3000 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 0.15 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD60-4H-1278-CANOPENPANDRIVE NEMA24, 48V, 3NM |
1,474 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 9 A | 200.0 | 1.8° | 2.1VDC | ±5% | 424.93 / 3000 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 15 Ohms | Integrated Controller, Flatted Shaft |
|
EMMS-ST-57-S-SE-G2STEPPER MOTOR |
3,780 |
|
Datasheet |
- | Bulk | Last Time Buy | Hybrid | Bipolar | 5 A | 200.0 | 1.8° | 48VDC | ±5% | 113.3 / 800 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | - | 0.250" (6.35mm) | -10°C ~ 50°C | 0.811" (20.60mm) | Connector | 1.856" (47.14mm) | 0.15 Ohms | Round Shaft |
|
SH2862-52XB12STEP, F2 MOTOR, SQ.86, 2 PHASE S |
2,409 |
|
Datasheet |
- | Box | Active | Hybrid, Dual Shaft | Bipolar | 6 A | 200.0 | 1.8° | 24VDC | - | 906.3 / 6400 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | 0.500" (12.70mm) | -10°C ~ 50°C | 1.181" (30.00mm) | Wire Leads | 2.740" (69.60mm) | 0.36 Ohms | - |
.jpg)
|

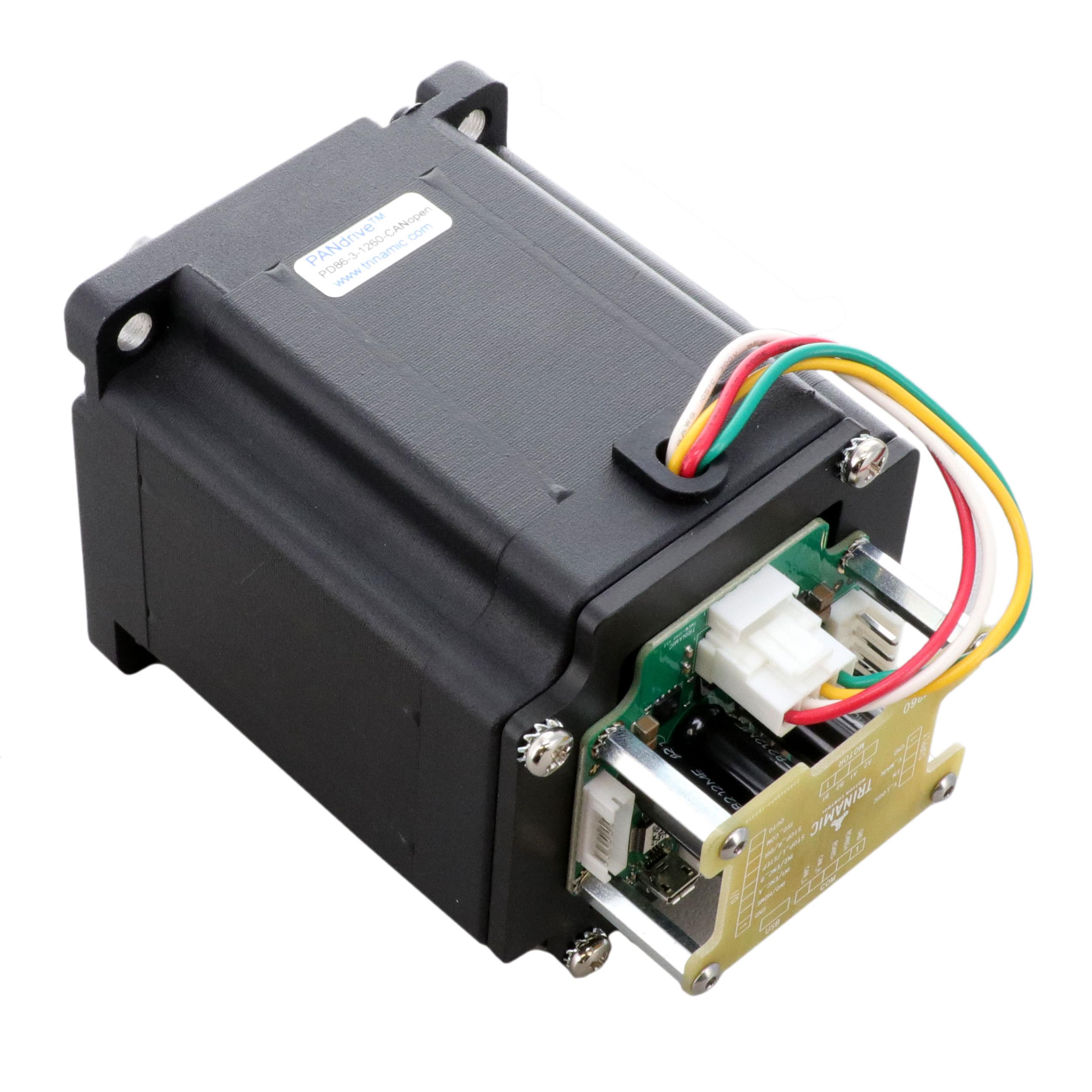

PD86-3-1260-CANOPENPANDRIVE NEMA34, 48V, 7.0NM |
4,279 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 5.5 A | 200.0 | 1.8° | 48VDC | - | 991.28 / 7000 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | 34 | 0.500" (12.70mm) | - | 1.310" (33.27mm) | Wire Leads with Connector | 2.740" (69.60mm) | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD60-3-1378-TMCLPANDRIVE NEMA24, 48V, 2.1NM |
3,976 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 3.36VDC | ±5% | 297.4 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 1.2 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD86-3-1278-CANOPENPANDRIVE NEMA34, 48V, 7NM |
2,411 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 5.5 A | 200.0 | 1.8° | 2.56VDC | ±5% | 991.28 / 7000 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
PD60-4-1378-TMCLPANDRIVE NEMA24, 48V, 3.1NM |
3,931 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 4.17VDC | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 1.5 Ohms | Integrated Controller, Flatted Shaft |
|
EMMS-ST-28-L-SESTEPPER MOTOR |
3,146 |
|
Datasheet |
- | Bulk | Active | Hybrid | Bipolar | 1.4 A | 200.0 | 1.8° | 48VDC | ±5% | 12.74 / 90 | Square - 1.102" x 1.102" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | -10°C ~ 50°C | 0.787" (20.00mm) | Wire Leads | 0.906" (23.00mm) | 2.3 Ohms | Round Shaft |
|
|
PD60-4H-1378-TMCLPANDRIVE NEMA24, 48V, 3.1NM |
3,389 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 9 A | 200.0 | 1.8° | 2.1VDC | ±5% | 424.93 / 3000 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 0.15 Ohms | Integrated Controller, Flatted Shaft |
|
PD86-3-1180-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 48V |
4,381 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 5.5 A | 200.0 | 1.8° | 48VDC | - | 991.28 / 7000 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | 34 | 0.500" (12.70mm) | - | 1.310" (33.27mm) | Wire Leads with Connector | 2.740" (69.60mm) | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD86-3-1378-CANOPENPANDRIVE NEMA34, 48V, 7NM |
3,423 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 5.5 A | 200.0 | 1.8° | 2.56VDC | ±5% | 991.28 / 7000 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
EMMS-ST-87-S-SE-G2STEPPER MOTOR |
1,680 |
|
Datasheet |
- | Bulk | Last Time Buy | Hybrid | Bipolar | 9.5 A | 200.0 | 1.8° | 48VDC | ±5% | 354.07 / 2500 | Square - 3.380" x 3.380" (85.85mm x 85.85mm) | - | 0.433" (11.00mm) | -10°C ~ 50°C | 1.063" (27.00mm) | Connector | 2.736" (69.50mm) | 0.1 Ohms | Round Shaft |
|
ERMS-32-90-ST-M-H1-PLK-AAROTARY DRIVE UNIT |
2,508 |
|
Datasheet |
- | Bulk | Active | Hybrid | - | 5.3 A | 200.0 | 90° | 24VDC | ±0.1% | 793.20 / 5600 | Rectangular - 5.425" x 4.134" (137.80mm x 105.00mm) | - | - | 0°C ~ 50°C | 0.472" (12.00mm) | Wire Leads with Connector | 3.346" (85.00mm) | - | Round Shaft |
|
ERMO-16-ST-EROTARY DRIVE |
1,371 |
|
Datasheet |
- | Bulk | Active | Hybrid | - | 1.4 A | 200.0 | 1.8° | 24VDC | - | 114.71 / 810 | Square - 2.756" x 2.756" (70.00mm x 70.00mm) | - | - | 0°C ~ 50°C | 0.394" (10.00mm) | Wire Leads with Connector | 2.244" (57.00mm) | - | Round Shaft |
|
35M048B1USTEPPER MOTOR PM UNIPOLAR 5V |
2,287 |
|
Datasheet |

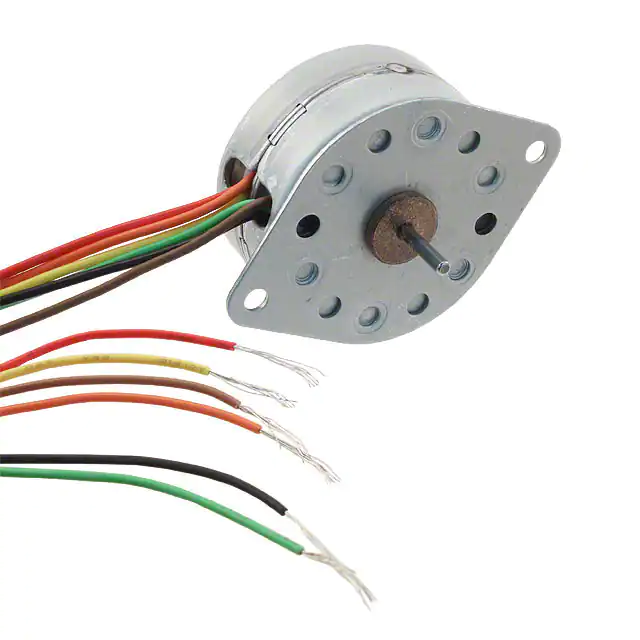

35M | Bulk | Active | Permanent Magnet | Unipolar | 400 mA | 48.0 | 7.5° | 5VDC | ±15% | 2.6 / 18.35 | Round - 1.420" Dia (35.94mm) | - | 0.079" (2.00mm) | -20°C ~ 70°C | 0.445" (11.30mm) | Wire Leads | 1.650" (42.00mm) | 12.5 Ohms | Round Shaft |
|
26M024B2USTEPPER MOTOR PM UNIPOLAR 12V |
3,053 |
|
Datasheet |

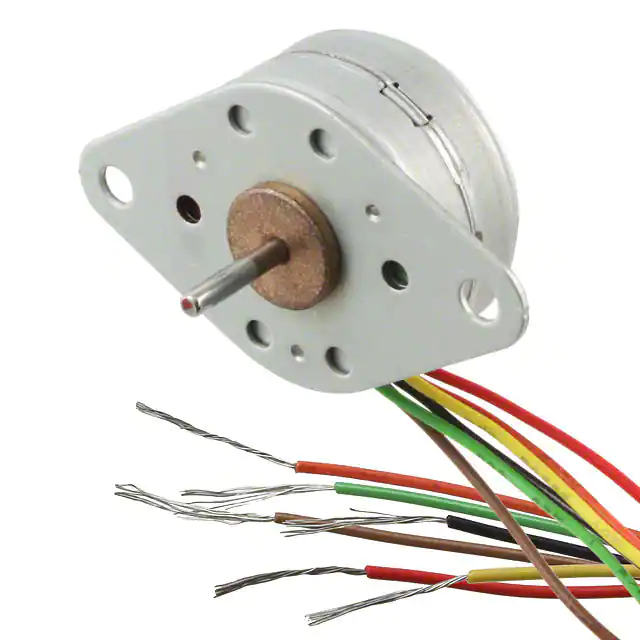

26M | Bulk | Active | Permanent Magnet | Unipolar | 110 mA | 24.0 | 15° | 12VDC | ±15% | 0.9 / 6.3 | Round - 1.030" Dia (26.16mm) | - | 0.079" (2.00mm) | -20°C ~ 70°C | 0.445" (11.30mm) | Wire Leads | 1.370" (34.90mm) | 110 Ohms | Round Shaft |
|
PM42S-075-015PERMANENT MAGNET STEPPER MOTOR |
2,064 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 0.15 A | 48.0 | 7.5° | 24VDC | - | 8.89 / 62.77 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | -20°C ~ 50°C | 0.394" (10.00mm) | Wire Leads with Connector | 1.949" (49.50mm) | 80 Ohms | - |
