Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Coil Type | Current Rating (Amps) | Steps per Revolution | Step Angle | Voltage - Rated | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Operating Temperature | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM35L-075-063PERMANENT MAGNET STEPPER MOTOR |
4,005 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 0.63 A | 48.0 | 7.5° | 24VDC | - | 8.64 / 61 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | -20°C ~ 50°C | 0.394" (10.00mm) | Wire Leads with Connector | 1.650" (42.00mm) | 5.3 Ohms | - |
|
|
PM35L-075-016PERMANENT MAGNET STEPPER MOTOR |
2,538 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 0.16 A | 48.0 | 7.5° | 24VDC | - | 8.64 / 61 | Round - 1.378" Dia (35.00mm) | - | 0.118" (3.00mm) | -20°C ~ 50°C | 0.394" (10.00mm) | Wire Leads with Connector | 1.650" (42.00mm) | 75 Ohms | - |
|
1200STPR MTR UNI/BIPLR 4V 1.2A/PHSE |
3,551 |
|
Datasheet |
- | - | Active | Hybrid | Unipolar | 1.2 A | 200.0 | 1.8° | 4VDC | - | 43.9 / 310 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.220" (31.00mm) | - | Flatted Shaft |
|
PF35T-48W4Tin-can step motor 48 steps 5V |
3,688 |
|
Datasheet |
- | Box | Active | Permanent Magnet | - | - | 48.0 | 7.5° | 5VDC | - | - | 1.378" Dia (35.00mm) | - | 0.079" (2.00mm) | -10°C ~ 50°C | 0.512" (13.00mm) | Wire Leads | 1.654" (42.00mm) | - | Round Shaft |
|
|
PM42L-075-055PERMANENT MAGNET STEPPER MOTOR |
3,861 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 0.55 A | 48.0 | 7.5° | 24VDC | - | 13.2 / 93.21 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | -20°C ~ 50°C | 0.394" (10.00mm) | Wire Leads with Connector | 1.949" (49.50mm) | 7 Ohms | - |
|
|
PM42L-075-020PERMANENT MAGNET STEPPER MOTOR |
4,004 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 0.15 A | 48.0 | 7.5° | 24VDC | - | 6.3 / 44.5 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | -20°C ~ 50°C | 0.394" (10.00mm) | Wire Leads with Connector | 1.650" (42.00mm) | 80 Ohms | - |
|
|
PM42L-075-085PERMANENT MAGNET STEPPER MOTOR |
3,277 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 0.85 A | 48.0 | 7.5° | 24VDC | - | 13.2 / 93.21 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | -20°C ~ 50°C | 0.394" (10.00mm) | Wire Leads with Connector | 1.949" (49.50mm) | 3.2 Ohms | - |
|
PF42T-96Q4Tin Can Step Motor 96 steps 5VDC |
4,748 |
|
Datasheet |
PF | Box | Active | Permanent Magnet | Bipolar | - | 96.0 | 3.75° | 5VDC | - | 6.94 / 49 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | -10°C ~ 50°C | 0.626" (15.90mm) | Wire Leads | - | 12 Ohms | - |
|
SY20STH42-0804ASTPR MTR BIPOLAR 4.3V 0.8A/PHASE |
1,542 |
|
Datasheet |
SY | Bulk | Active | Hybrid | Bipolar | 800 mA | 200.0 | 1.8° | 4.32VDC | - | 4.2 / 29.42 | Square - 0.795" x 0.795" (20.20mm x 20.20mm) | - | 0.157" (4.00mm) | -20°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | 0.630" (16.00mm) | 5.4 Ohms | Flatted Shaft |
|
1476STPR MTR UNI/BIPLR 5.7V 1A/PHSE |
2,595 |
|
Datasheet |
- | - | Active | Hybrid | Unipolar | 1 A | 200.0 | 1.8° | 5.7VDC | - | 55 / 388.39 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | -20°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.854" (47.10mm) | 5.7 Ohms | Flatted Shaft |
|
|
MOT-8HS-42-080-4NEMA 8 Hybrid Stepper Motor |
2,188 |
|
Datasheet |
MOT-8HS | Bag | Active | Hybrid | Bipolar | 800 mA | 200.0 | 1.8° | 4.32VDC | - | 4.17 / 29.42 | Square - 0.787" x 0.787" (20.00mm x 20.00mm) | 8 | 0.157" (4.00mm) | -20°C ~ 50°C | 0.394" (10.00mm) | Wire Leads | 0.630" (16.00mm) | 5.4 Ohms | Round Shaft |
|
WO-3809Y-51STEPPER MOTOR |
2,585 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 600 mA | 400.0 | 0.9° | 24VDC | - | 6 / 42.37 | Round - 1.429" Dia (36.30mm) | 14 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | - | 4 Ohms | Round Shaft |
|
|
17PM-K049BSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,114 |
|
Datasheet |
17PM | Bulk | Active | Hybrid | Bipolar | 700 mA | 200.0 | 1.8° | 24VDC | - | 38.24 / 270 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | - | 0.945" (24.00mm) | Connector | 1.220" (31.00mm) | 6.4 Ohms | Round Shaft |
|
|
WO-3809Z-14STEPPER MOTOR |
4,272 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 250 mA | 400.0 | 0.9° | 24VDC | - | - | Round - 1.429" Dia (36.30mm) | 14 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | - | 15.4 Ohms | Round Shaft |
|

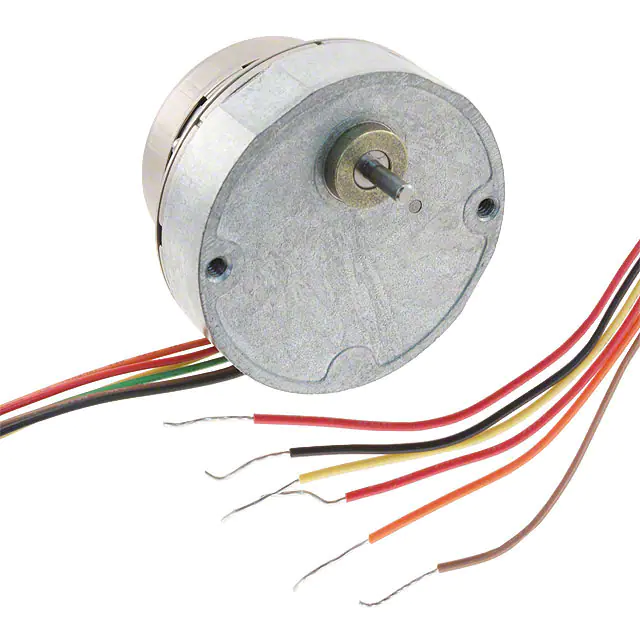

42M048C2U-R21STEPPER MOTOR PM GEARED UNI 12V |
2,629 |
|
Datasheet |
42M-R | Bulk | Active | Permanent Magnet Gear Motor | Unipolar | 230 mA | 480.0 | 0.75° | 12VDC | - | 9.4 / 66.2 | Round - 1.650" Dia (42.00mm) | - | 0.093" (2.36mm) | -20°C ~ 70°C | 0.469" (11.92mm) | Wire Leads | 1.880" (47.63mm) | 52.4 Ohms | Round Shaft |
|
1472STPR MTR UNI/BIPLR 7.4V 1A/PHSE |
2,037 |
|
Datasheet |
- | - | Active | Hybrid | Unipolar | 1 A | 200.0 | 1.8° | 7.4VDC | - | 125 / 882.7 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | -20°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.854" (47.10mm) | 7.4 Ohms | Flatted Shaft |
|
|
1473STPR MTR UNI/BIPLR 3.6V 2A/PHSE |
2,745 |
|
Datasheet |
- | - | Active | Hybrid | Unipolar | 2 A | 200.0 | 1.8° | 3.6VDC | - | 125 / 882.7 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | -20°C ~ 50°C | 0.811" (20.60mm) | Wire Leads | 1.854" (47.10mm) | 1.8 Ohms | Flatted Shaft |
|
1474STPR MTR BIPOLAR 2.5V 2.8A/PHASE |
3,275 |
|
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 2.5VDC | - | 180 / 1271 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | -20°C ~ 50°C | 0.827" (21.00mm) | Wire Leads | 1.854" (47.10mm) | 0.9 Ohms | Flatted Shaft |
|
WO-417-13-06STEPPER MOTOR |
1,458 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 800 mA | 400.0 | 0.9° | 24VDC | - | 20.4 / 144.1 | Square - 1.650" L x 1.650" W (41.90mm x 41.90mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.787" (20.00mm) | Wire Leads | 1.220" (31.00mm) | 6.6 Ohms | Round Shaft |
|
WO-4109X-51STEPPER MOTOR |
2,343 |
|
Datasheet |
- | Tray | Active | - | Bipolar | 600 mA | 400.0 | 0.9° | 24VDC | - | 7 / 49.4 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.591" (15.00mm) | Wire Leads | 1.220" (31.00mm) | 5 Ohms | Round Shaft |
