Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Coil Type | Current Rating (Amps) | Steps per Revolution | Step Angle | Voltage - Rated | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Operating Temperature | Length - Shaft and Bearing | Termination Style | Mounting Hole Spacing | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBM423FXK30-MPB, PB, SQ.42, FOR PB4A, , , |
4,447 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 200VAC | - | 49.56 / 350 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.236" (6.00mm) | -10°C ~ 40°C | 0.811" (20.60mm) | Wire Leads with Connector | 1.220" (31.00mm) | - | - |
|
PBM285DXE50PB, PB, SQ.28, FOR PB4D003P340, |
2,700 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 48VDC | - | 21.95 / 155 | - | - | 0.197" (5.00mm) | -10°C ~ 40°C | 0.591" (15.00mm) | Wire Leads with Connector | 0.906" (23.00mm) | - | - |
|
PBM604FXK30-MPB, PB, SQ.60, FOR PB4A, , , |
4,459 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 200VAC | - | 269.1 / 1900 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | - | 0.394" (10.00mm) | -10°C ~ 40°C | 0.811" (20.60mm) | Wire Leads with Connector | 1.969" (50.00mm) | - | - |
|
|
PBM281DXE50PB, PB, SQ.28, FOR PB4D003P340, |
2,314 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 48VDC | - | 7.79 / 55 | - | - | 0.197" (5.00mm) | -10°C ~ 40°C | 0.591" (15.00mm) | Wire Leads with Connector | 0.906" (23.00mm) | - | - |
|
PBM603FXK30-MPB, PB, SQ.60, FOR PB4A, , , |
4,936 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 200VAC | - | 184.1 / 1300 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | - | 0.394" (10.00mm) | -10°C ~ 40°C | 0.811" (20.60mm) | Wire Leads with Connector | 1.969" (50.00mm) | - | - |
|

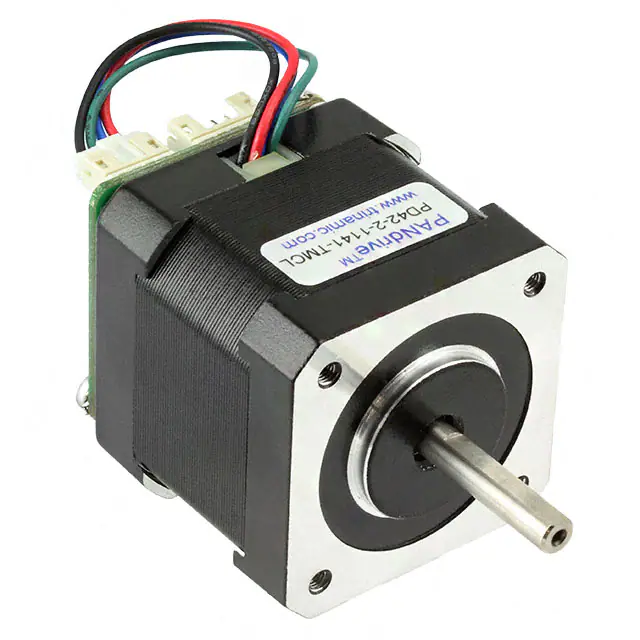

PD42-2-1141STEPPER MOTOR HYBRID BIPOLAR 24V |
1,466 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 24VDC | ±5% | 49.56 / 350 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | - | 0.945" (24.00mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|
PBM603DXK50PB, PB, SQ.60, FOR PB4D003P340, |
2,302 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 48VDC | - | 148.7 / 1050 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | - | 0.394" (10.00mm) | -10°C ~ 40°C | 0.811" (20.60mm) | Wire Leads with Connector | 1.969" (50.00mm) | - | - |
|
SM2863-5152STEP, F2, SQ.86, 1.8, HALF INCH |
3,300 |
|
Datasheet |
- | Box | Active | Hybrid | Bipolar | 4 A | 200.0 | 1.8° | 100VAC | - | 1275 / 9000 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | 0.500" (12.70mm) | -10°C ~ 50°C | 1.181" (30.00mm) | Wire Leads | 2.740" (69.60mm) | 1 Ohms | - |
|
|
PBM604DXK50PB, PB, SQ.60, FOR PB4D003P340, |
1,233 |
|
Datasheet |
PBM | Box | Active | Hybrid | Bipolar | - | - | - | 48VDC | - | 262 / 1850 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | - | 0.394" (10.00mm) | -10°C ~ 40°C | 0.811" (20.60mm) | Wire Leads with Connector | 1.969" (50.00mm) | - | - |
|
QSH6018-65-28-210-10KSTEP MOTOR HYBRID NEMA24 ENC 100 |
2,252 |
|
Datasheet |
QMot QSH6018 | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 3.36VDC | ±5% | 297.4 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.856" (47.14mm) | 1.2 Ohms | Flatted Shaft |
|

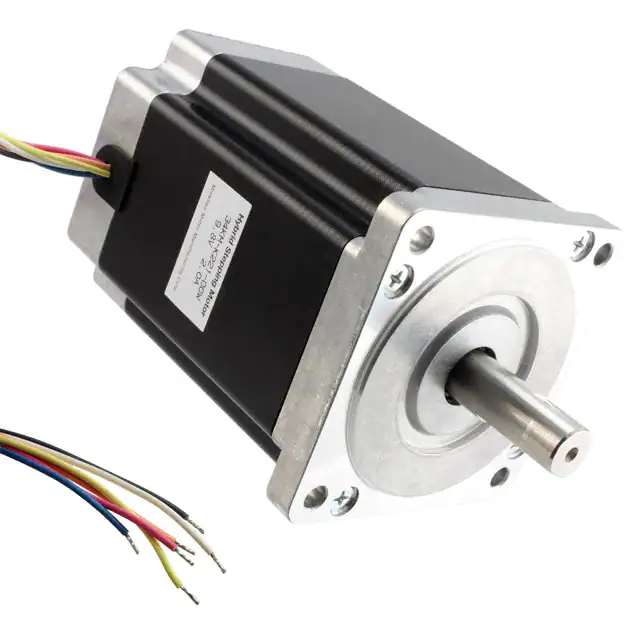

34KM-K221-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
3,403 |
|
Datasheet |
34KM | Bulk | Active | Hybrid | Unipolar | 2 A | 200.0 | 1.8° | 24VDC | ±5% | 948.92 / 6700 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | -10°C ~ 50°C | 1.457" (37.00mm) | Wire Leads | 2.740" (69.60mm) | 4.9 Ohms | Double Flatted Shaft |
|

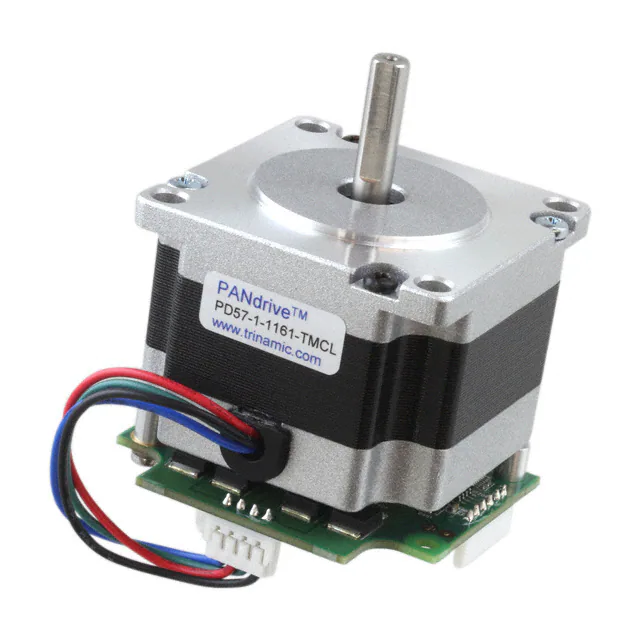

PD57-1-1161STEPPER MOTOR HYBRID BIPOLAR 24V |
2,141 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 24VDC | - | 77.89 / 550 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.250" (6.35mm) | - | 0.945" (24.00mm) | Wire Leads with Connector | 1.856" (47.14mm) | - | Integrated Controller, Flatted Shaft |
|

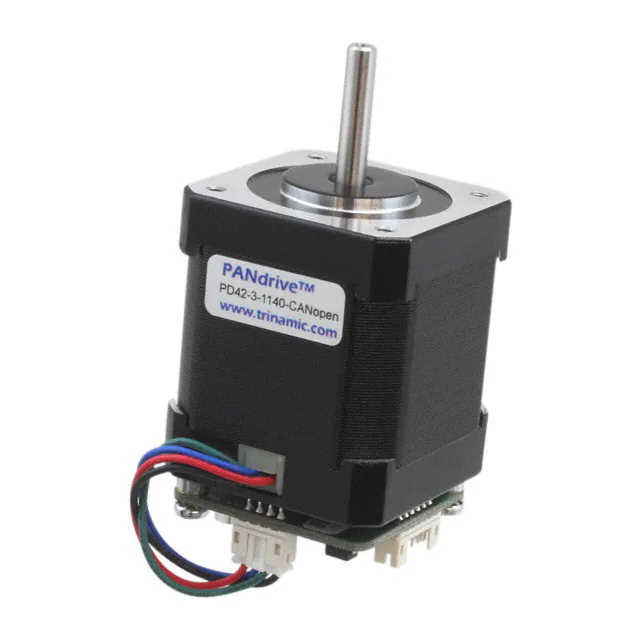

PD42-3-1140-CANOPENSTEPPER MOTOR HYBRID BIPOLAR 24V |
2,114 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 24VDC | ±5% | 62.3 / 440 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | - | 0.945" (24.00mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|
PD42-1-1240-CANOPENPANDRIVE NEMA17, 24V, 0.22NM |
2,566 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 2VDC | ±5% | 31.15 / 220 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads with Connector | 1.220" (31.00mm) | 1 Ohms | Integrated Controller, Flatted Shaft |
|
PD60-4-1076STEPPER MOTOR HYBRID BIPOLAR 24V |
3,702 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 4.17VDC | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | -20°C ~ 50°C | - | Wire Leads with Connector | - | 1.5 Ohms | Integrated Controller, Flatted Shaft |
|

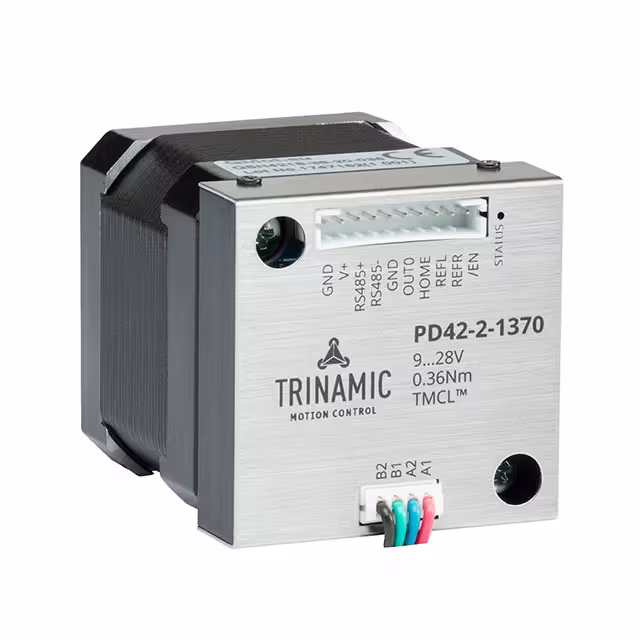

PD42-2-1370-TMCLPANDRIVE NEMA17, 24V, 0.36NM |
2,605 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 2.4VDC | ±5% | 50.98 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Connector | 1.220" (31.00mm) | 1.2 Ohms | Integrated Controller, Flatted Shaft |
|
PD42-4-1241-CANOPENPANDRIVE NEMA17, 24V, 0.8NM |
2,166 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 3 A | 200.0 | 1.8° | 3.3VDC | ±5% | 113.30 / 800 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads with Connector | 1.220" (31.00mm) | 1.1 Ohms | Integrated Controller, Flatted Shaft |
|
QSH6018-86-28-310-10KSTEP MOTOR HYBRID NEMA24 ENC 100 |
2,962 |
|
Datasheet |
QMot QSH6018 | Bulk | Active | Hybrid | Bipolar | 2.8 A | 200.0 | 1.8° | 4.17VDC | ±5% | 439 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Wire Leads | 1.856" (47.14mm) | 1.5 Ohms | Flatted Shaft |
|

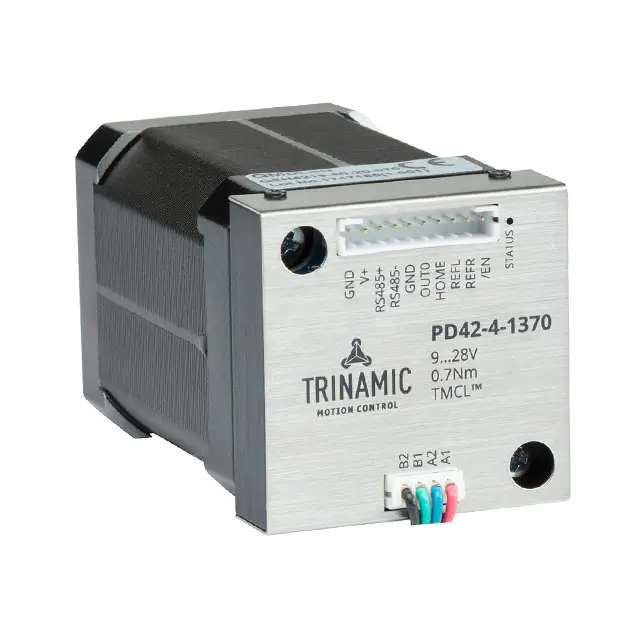

PD42-4-1370-TMCLPANDRIVE NEMA17, 24V, 0.7NM |
2,242 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2 A | 200.0 | 1.8° | 4.4VDC | ±5% | 99.1 / 700 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | -20°C ~ 50°C | 0.945" (24.00mm) | Connector | 1.220" (31.00mm) | 2.3 Ohms | Integrated Controller, Flatted Shaft |
|
QSH8618-96-55-700STEP MOTOR HYBRID BIPOLAR 2.56V |
1,985 |
|
Datasheet |
QMot QSH8618 | Box | Active | Hybrid | Bipolar | 5.5 A | 200.0 | 1.8° | 2.56VDC | ±5% | 991.28 / 7000 | Square - 3.380" x 3.380" (85.85mm x 85.85mm) | 34 | 0.500" (12.70mm) | -20°C ~ 50°C | 1.310" (33.27mm) | Wire Leads | 2.740" (69.60mm) | 0.45 Ohms | Flatted Shaft |
