| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL12-SWS5ET-B1NNSWITCH TACTILE SPST-NO 0.05A 12V |
747 |
|
Datasheet |
TL12 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Blue | 250gf | - | - | -20°C ~ 70°C |
|
|
TL12-SWS5T-Y1NNSWITCH TACTILE SPST-NO 0.05A 12V |
735 |
|
Datasheet |
TL12 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 250gf | - | - | -20°C ~ 70°C |
|
|
TL12-SWS4AT-W1NNSWITCH TACTILE SPST-NO 0.05A 12V |
666 |
|
Datasheet |
TL12 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, White | 250gf | - | - | -20°C ~ 70°C |
|

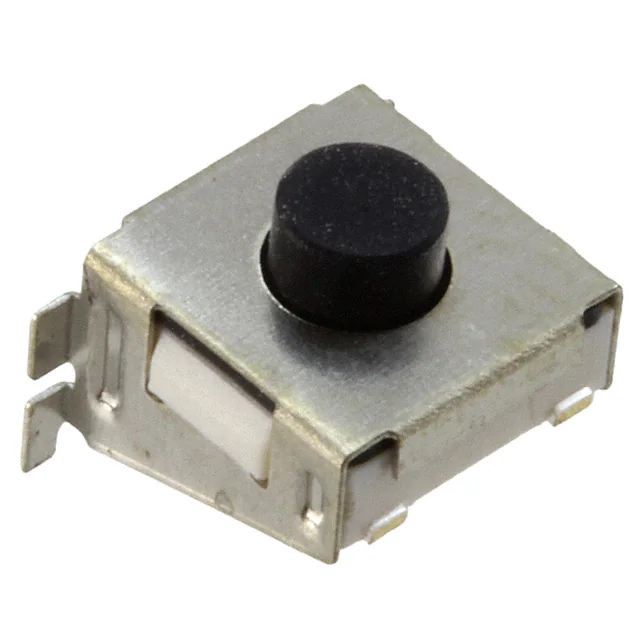

1571407-2SWITCH TACTILE SPST-NO 0.05A 24V |
4,802 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 0.05A @ 24VDC | - | Side Actuated | SMD (SMT) Tab | 7.64mm x 4.40mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 260gf | - | Sealed - Fully | -35°C ~ 85°C |
|
|
TL12-RWR4T-R1G1SWITCH TACTILE SPST-NO 0.05A 12V |
2,649 |
|
Datasheet |
TL12 | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 250gf | - | - | -20°C ~ 70°C |
|
|
TL12-SWS6T-R1G1SWITCH TACTILE SPST-NO 0.05A 12V |
1,449 |
|
Datasheet |
TL12 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 250gf | - | - | -20°C ~ 70°C |
|
|
TL12-SWS6AT-R1G1SWITCH TACTILE SPST-NO 0.05A 12V |
1,103 |
|
Datasheet |
TL12 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 250gf | - | - | -20°C ~ 70°C |
|
ED G AC 0SWITCH TACT SPST-NO 0.05A 100V |
175 |
|
Datasheet |
ED | Bag | Obsolete | SPST-NO | Off-Mom | Snap Dome | Through Hole | 1.20mm | 0.05A @ 100VAC/DC | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | 240gf | - | - | -55°C ~ 85°C |
|
|
95CW06C3GWTSWITCH TACTILE SPST-NO 0.05A 12V |
150 |
|
Datasheet |
95C | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Washable | -25°C ~ 70°C |
|

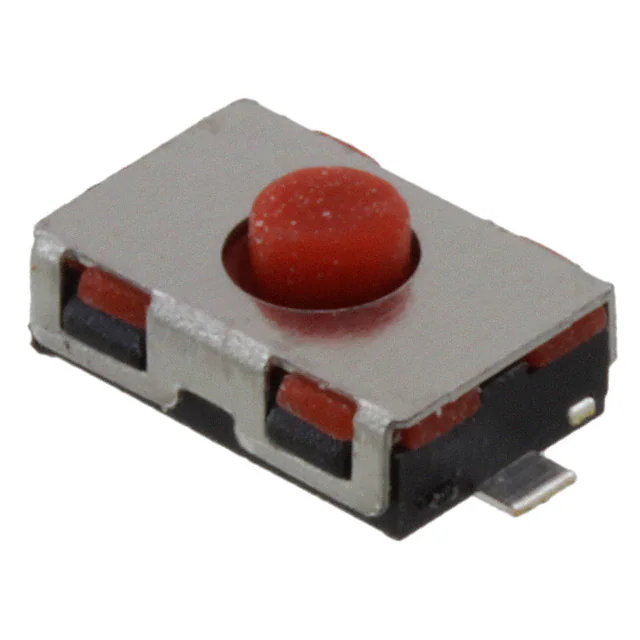

1825086-2SWITCH TACTILE SPST-NO 0.05A 32V |
3,515 |
|
Datasheet |
FSMJM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.00mm x 4.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
95CW06E5JTSWITCH TACTILE SPST-NO 0.05A 12V |
1,961 |
|
Datasheet |
95C | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.20mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 360gf | - | Washable | -25°C ~ 70°C |
|
|
TL3360AF185KRSWITCH TACTILE SPST-NO 0.05A 12V |
4,370 |
|
Datasheet |
TL3360 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 0.05A @ 12VDC | 6.67mm | Side Actuated | Gull Wing | 7.77mm x 6.40mm | Non-Illuminated | - | - | 185gf | - | - | -25°C ~ 70°C |
|

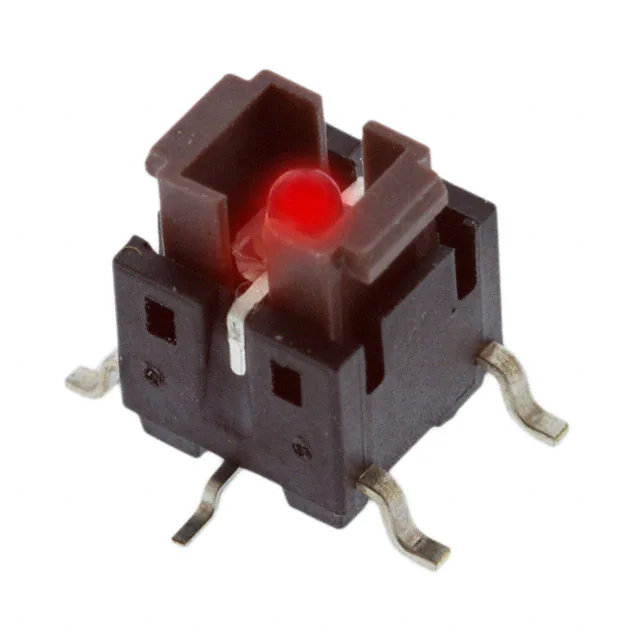

TL3240F100RSWITCH TACTILE SPST-NO 0.05A 12V |
413 |
|
Datasheet |
TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.80mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | - | LED, Red | 100gf | 1.8 VDC | Board Guide | -25°C ~ 70°C |
|
|
TL3240F260RSWITCH TACTILE SPST-NO 0.05A 12V |
668 |
|
Datasheet |
TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.80mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | - | LED, Red | 260gf | 1.8 VDC | Board Guide | -25°C ~ 70°C |
|
|
TL3240F160RSWITCH TACTILE SPST-NO 0.05A 12V |
1,106 |
|
Datasheet |
TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.80mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | - | LED, Red | 160gf | 1.8 VDC | Board Guide | -25°C ~ 70°C |
|
228AMVARFAMSCRSWITCH TACTILE SPST-NO 0.05A 12V |
319 |
|
Datasheet |
228A | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Oval Button | Surface Mount | 14.40mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | - | LED, Red | 160gf | - | - | -25°C ~ 70°C |
|
FSMIJ61BB04SWITCH TACTILE SPST-NO 0.05A 12V |
1,892 |
|
Datasheet |
FSMIJ | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Blue | 100gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
KT11P2SA2M34LFSTACT |
11,400 |
|
Datasheet |
KT | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | - | -40°C ~ 90°C |
|
|
TL3-N1W1NN-AAWSWITCH TACTILE |
954 |
|
Datasheet |
TL3 | Tray | Active | - | - | - | Through Hole | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1.14.002.011/0000SWITCH TACTILE SPST-NO 0.1A 35V |
2,100 |
|
Datasheet |
MICON 5 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.85mm | 0.1A @ 35VAC/DC | - | Top Actuated | J Lead | 6.40mm x 5.10mm | Non-Illuminated | - | - | 850gf | - | Tactile Feedback | -40°C ~ 85°C |
