| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSMIJM61BW04SWITCH TACTILE SPST-NO 0.05A 12V |
4,113 |
|
Datasheet |
FSMIJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | - | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Illuminated | - | LED, White | 100gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
|
JB15LPC-JFSWITCH TACTILE SPST-NO 0.05A 24V |
4,506 |
|
Datasheet |
JB | Bulk | Discontinued | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 176gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPC-JESWITCH TACTILE SPST-NO 0.05A 24V |
1,194 |
|
Datasheet |
JB | Bulk | Discontinued | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 176gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
B3W-9002-G2GSWITCH TACTILE SPST-NO 0.05A 24V |
3,060 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 230gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9012-Y2YSWITCH TACTILE SPST-NO 0.05A 24V |
299 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Yellow | 230gf | 2.4 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
JB15KH-6BSWITCH TACTILE SPST-NO 0.05A 24V |
3,449 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole, Right Angle | - | 0.05A @ 24VDC | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-1ASWITCH TACT SPST-NO 0.125A 24V |
4,665 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HKP-1ASWITCH TACT SPST-NO 0.125A 24V |
3,980 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-1CSWITCH TACT SPST-NO 0.125A 24V |
4,903 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HKP-1GSWITCH TACT SPST-NO 0.125A 24V |
3,575 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HKP-2HSWITCH TACT SPST-NO 0.125A 24V |
2,166 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|

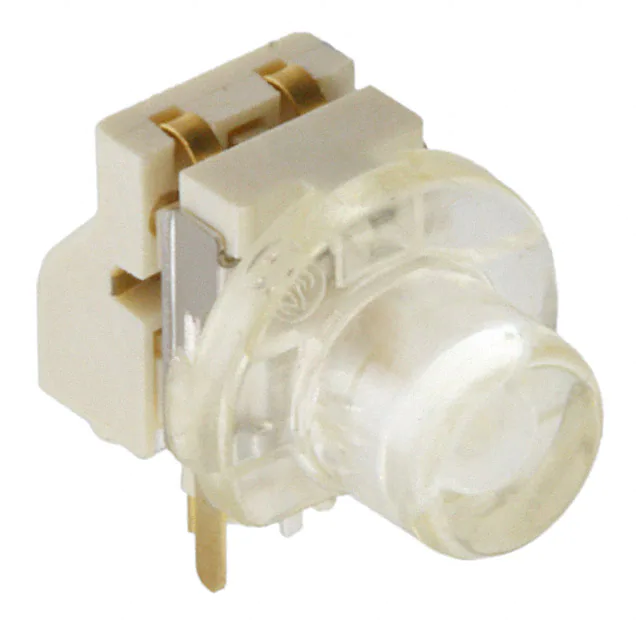

TL1270F160REQATSWITCH TACTILE SPST-NO 0.05A 12V |
1,165 |
|
Datasheet |
TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 5.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | - | LED, Red | 160gf | 3.6 VDC | - | -40°C ~ 85°C |
|
|
JB15HAP-4GHSWITCH TACT SPST-NO 0.125A 24V |
3,107 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-4HHSWITCH TACT SPST-NO 0.125A 24V |
4,038 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
K5V1WS43TSWITCH TACTILE SPDT 0.1A 32V |
1,149 |
|
Datasheet |
K5V | Tray | Active | SPDT | On-Mom | Translucent | Through Hole, Right Angle | - | 0.1A @ 32VDC | 12.40mm | Side Actuated | PC Pin | 8.00mm x 10.10mm | Illuminated | IP40 | LED, White | 400gf | - | Tactile Feedback | -40°C ~ 85°C |
|
B3W-9012-HG1NSWITCH TACTILE SPST-NO 0.05A 24V |
300 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green | 230gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9012-B1NSWITCH TACTILE SPST-NO 0.05A 24V |
290 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Blue | 230gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
JB15HKH-6CSWITCH TACT SPST-NO 0.125A 24V |
1,868 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole, Right Angle | - | 0.125A @ 24VDC | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPC-BHSWITCH TACTILE SPST-NO 0.05A 24V |
4,228 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 176gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
JB15LPF-BHSWITCH TACTILE SPST-NO 0.05A 24V |
2,534 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 176gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
