| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3FS1130DTACTILE SWITCH |
8,607 |
|
Datasheet |
B3FS | - | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
|
1-1977120-0SWITCH TACTILE SPST-NO 0.05A 24V |
6,000 |
|
Datasheet |
FSMJ | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.00mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
FSM6JHXTactile Switches FSM6JHX=6MM TAC |
6,000 |
|
Datasheet |
FSMJ | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.00mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
KSC441J70SHLFSTACT |
6,000 |
|
Datasheet |
KSC | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.20mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 400gf | - | - | -40°C ~ 85°C |
|
|
B3F 3150MKEYSWITCH |
2,754 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole, Right Angle | - | 0.05A @ 24VDC | 6.15mm | Side Actuated | PC Pin | 7.30mm x 6.25mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
KMR241GLFSTACT |
14,000 |
|
Datasheet |
KMR2 | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.90mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 400gf | - | - | -40°C ~ 85°C |
|
PTS530GG065SMTRLFSTACT |
21,000 |
|
Datasheet |
PTS530 | Bulk | Active | SPST-NO | Off-Mom | Flush | Surface Mount | 0.65mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 400gf | - | - | -40°C ~ 85°C |
|
KSC321JLFSTACT |
16,000 |
|
Datasheet |
KSC | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | - | -40°C ~ 85°C |
|
|
KSC222JLFSSWITCH TACTILE N.O. SPST ROUND B |
2,000 |
|
Datasheet |
KSC | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | - | -40°C ~ 85°C |
|
|
PTS810SJS250SMTRLFSTACT |
31,900 |
|
Datasheet |
PTS810 | Bulk | Active | SPST-NO | Off-Mom | Oval Button | Surface Mount | 2.50mm | 0.05A @ 16VDC | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 600gf | - | - | -40°C ~ 85°C |
|
|
PTS840GKSMTRLFSTACT |
17,500 |
|
Datasheet |
PTS840 | Bulk | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -40°C ~ 85°C |
|
|
KSC741JLFSTACT |
10,000 |
|
Datasheet |
KSC | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 390gf | - | - | -40°C ~ 85°C |
|
|
B3F 5050EKEYSWITCH |
2,167 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | - | -25°C ~ 70°C |
|

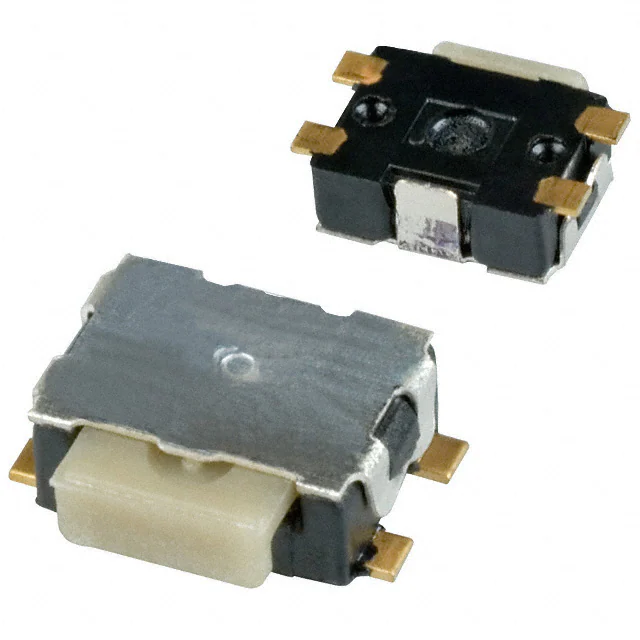

KMS233GPLFGTACT |
15,000 |
|
Datasheet |
KMS | Bulk | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.01A @ 50VDC | - | Side Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | IP40 | - | 300gf | - | - | -40°C ~ 125°C |
|
|
B3SZ0005RSMT KEYSWITCH (MIN. ORDER 1K) |
11,000 |
|
Datasheet |
B3S | - | Active | SPST-NO | Off-Mom | - | Surface Mount | - | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.60mm x 6.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | - | - | - | -25°C ~ 70°C |
|
|
B3F 5000RKEYSWITCH |
1,613 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | - | -25°C ~ 70°C |
|
|
KMT211GHFLFSTACT |
160,000 |
|
Datasheet |
KMT | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 0.65mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 3.00mm x 2.60mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
GX11800SWITCH TACTILE SPST-NO 0.1A 50V |
25,000 |
|
Datasheet |
GX | Bulk | Active | SPST-NO | Off-Mom | Snap Dome | Surface Mount | 0.64mm | 0.1A @ 50VDC | - | Top Actuated | SMD (SMT) Tab | 11.00mm x 11.00mm | Non-Illuminated | - | - | 800gf | - | Tactile/Audible Feedback | -45°C ~ 100°C |
|
|
B3FS1127DTACTILE SWITCH |
1,400 |
|
Datasheet |
B3FS | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
KSC323JLFGTACT |
4,000 |
|
Datasheet |
KSC | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.01A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | - | -40°C ~ 125°C |
