| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

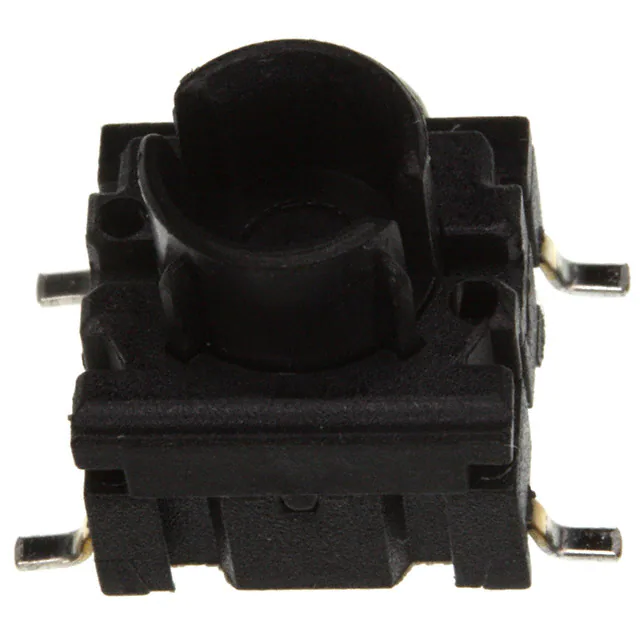

3FSH9SWITCH TACTILE SPST-NO 0.05A 24V |
96,856 |
|
Datasheet |
Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|
3.14.001.001/0000SWITCH TACTILE SPST-NO 0.1A 42V |
236 |
|
Datasheet |
RF19 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.1A @ 42VAC/DC | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Non-Illuminated | - | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
3.14.100.001/0000SWITCH TACTILE SPST-NO 0.1A 35V |
2,528 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.1A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|

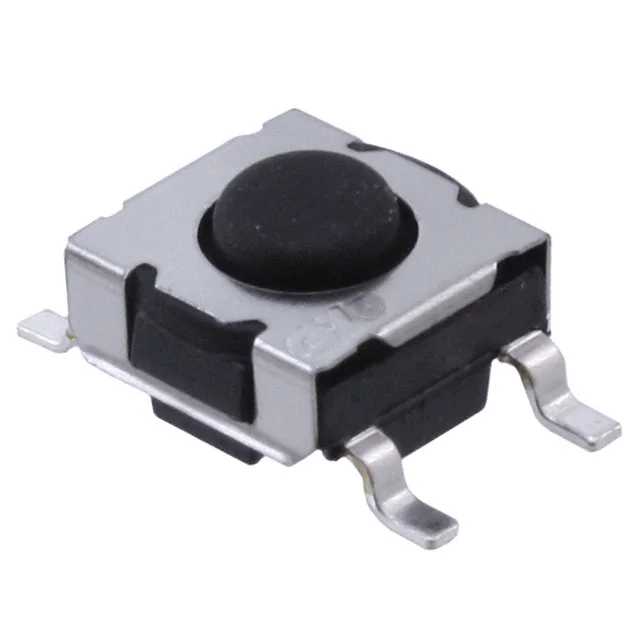

KT11B1SM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
1,420 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.64mm | 1VA @ 32VAC/DC | - | Top Actuated | Gull Wing | 6.38mm x 6.22mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|

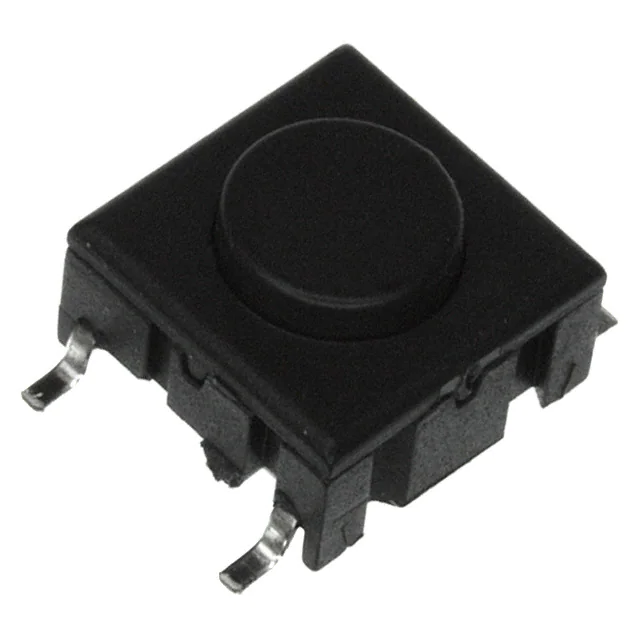

3CSH9RSWITCH TACTILE SPST-NO 0.05A 24V |
50,416 |
|
Datasheet |
Multimec® 3 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|
KT11B0SAM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
2,648 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Flush | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.57mm x 4.38mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
KT11P4SA1M34LFSSWITCH TACTILE SPST-NO 1VA 32V |
83,249 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 4.38mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
KT11P4SM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
1,493 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 6.96mm | 1VA @ 32VAC/DC | - | Top Actuated | Gull Wing | 6.38mm x 6.22mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
KT11P3SM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
5,579 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.12mm | 1VA @ 32VAC/DC | - | Top Actuated | Gull Wing | 6.38mm x 6.22mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
KT11P2SM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
4,410 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.36mm | 1VA @ 32VAC/DC | - | Top Actuated | Gull Wing | 6.38mm x 6.22mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
3FTH9RASSWITCH TACTILE SPST-NO 0.05A 24V |
71,971 |
|
Datasheet |
Multimec® 3 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole, Right Angle | - | 0.05A @ 24VDC | - | Side Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|

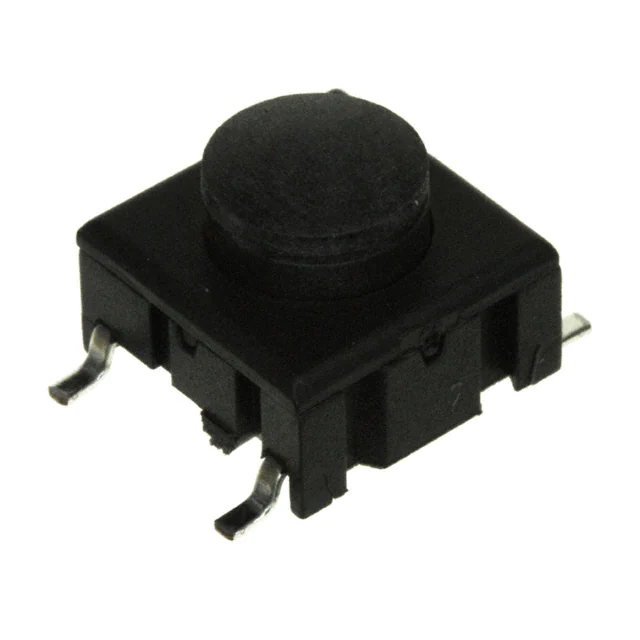

3ESH9-08.0SWITCH TACTILE SPST-NO 0.05A 24V |
22,129 |
|
Datasheet |
Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 8.00mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|

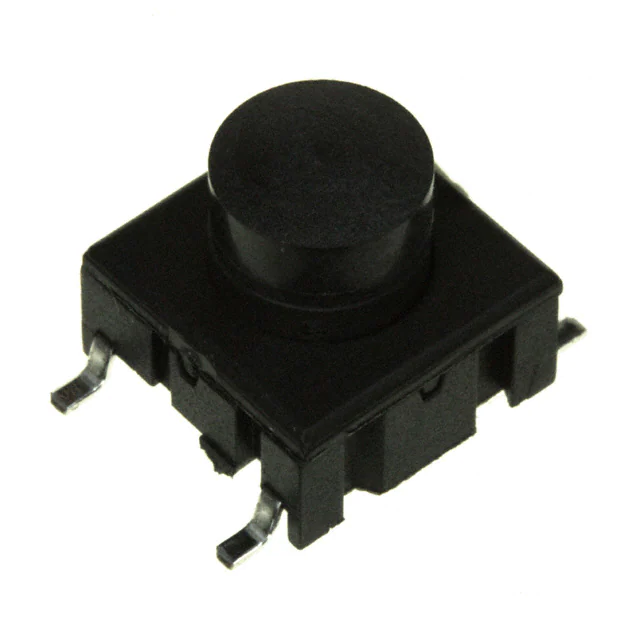

3ESH9-09.5SWITCH TACTILE SPST-NO 0.05A 24V |
9,326 |
|
Datasheet |
Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 9.50mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|

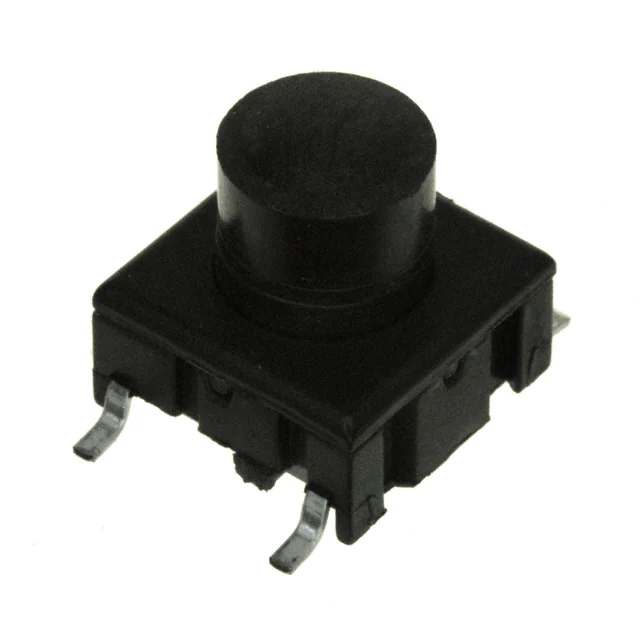

3ESH9-10.4SWITCH TACTILE SPST-NO 0.05A 24V |
5,791 |
|
Datasheet |
Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|

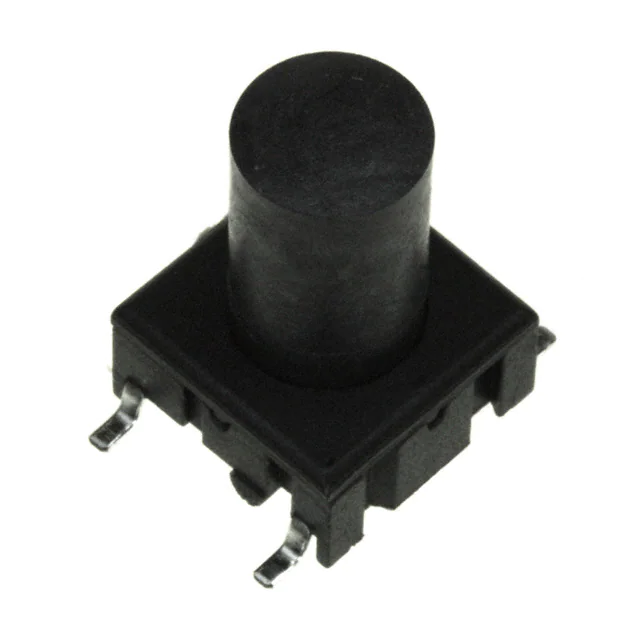

3ESH9-15.0SWITCH TACTILE SPST-NO 0.05A 24V |
4,431 |
|
Datasheet |
Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 15.00mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|
3ETH9-10.4SWITCH TACTILE SPST-NO 0.05A 24V |
25,801 |
|
Datasheet |
Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|
3ETH9-12.0SWITCH TACTILE SPST-NO 0.05A 24V |
11,921 |
|
Datasheet |
Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 12.00mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|

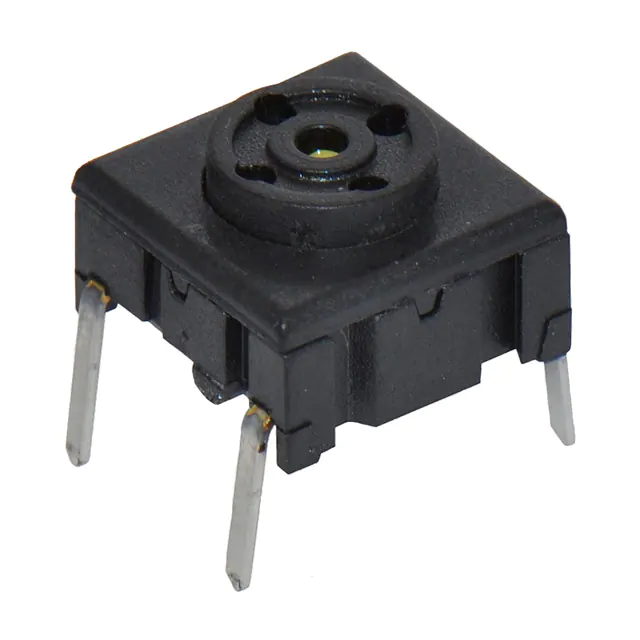

3ETH9-15.0SWITCH TACTILE SPST-NO 0.05A 24V |
7,848 |
|
Datasheet |
Multimec® 3 | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 15.00mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
|
KT11P4SA2M34LFSSWITCH TACTILE SPST-NO 1VA 32V |
15,823 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 32VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
|
3FSH9RSWITCH TACTILE SPST-NO 0.05A 24V |
87,063 |
|
Datasheet |
Multimec® 3 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | Sealed - Flux Protection | -40°C ~ 160°C |
