| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15LPF-JBSWITCH TACTILE SPST-NO 0.05A 24V |
6,082 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 176gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
5GSH9358222SWITCH TACTILE SPST-NO 0.05A 24V |
424 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green/Red | 350gf | 2.0, 2.2 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|
5GTH93522SWITCH TACTILE SPST-NO 0.05A 24V |
16,971 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 350gf | 2.2 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|

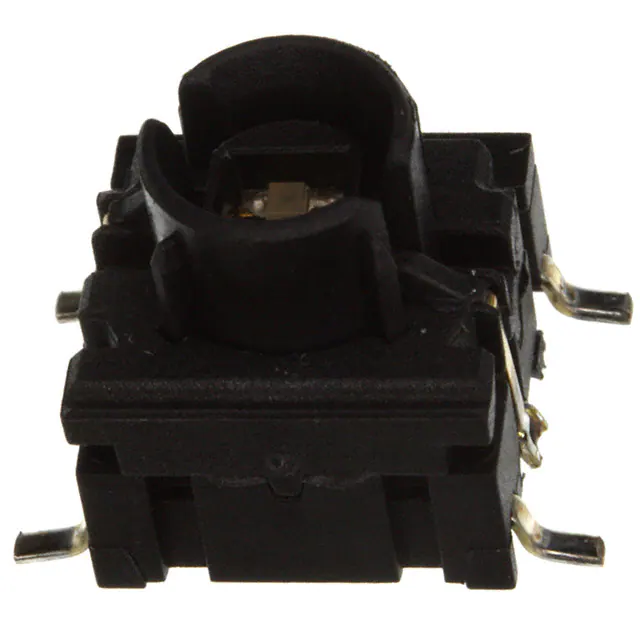

4FSH982SWITCH TACTILE SPST-NO 0.05A 24V |
3,239 |
|
Datasheet |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 300gf | 2 VDC | Sealed - Flux Protection | -30°C ~ 85°C |
|

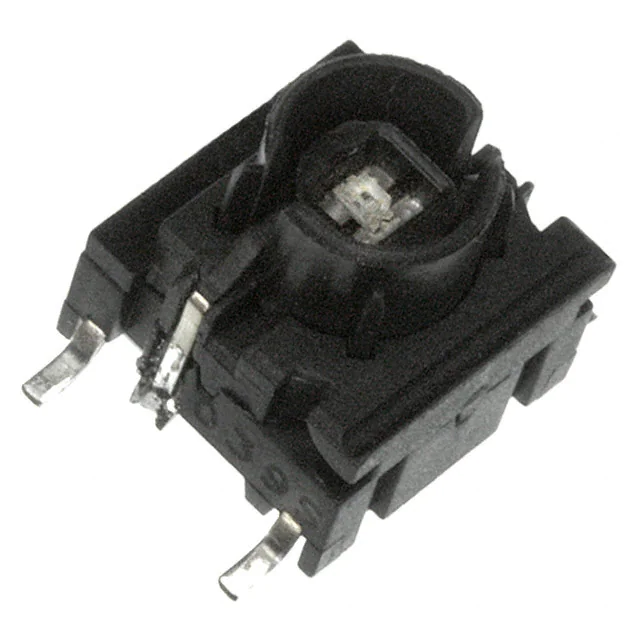

4FSH922SWITCH TACTILE SPST-NO 0.05A 24V |
1,178 |
|
Datasheet |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 300gf | 2.2 VDC | Sealed - Flux Protection | -30°C ~ 85°C |
|
EDM650AUAC0 LFSSWITCH TACT SPST-NO 0.05A 100V |
9,108 |
|
Datasheet |
EDM | Tray | Active | SPST-NO | Off-Mom | Snap Dome | Through Hole | 1.20mm | 0.05A @ 100VAC/DC | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | 650gf | - | Tactile Feedback | -55°C ~ 85°C |
|
3FTH980SWITCH TACTILE SPST-NO 0.05A 24V |
1,241 |
|
Datasheet |
Multimec® 3 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 300gf | 2 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|
TL6275BA2PQSWSWITCH TACTILE SPST-NO 0.05A 12V |
529 |
|
Datasheet |
TL6275 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.15mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Illuminated | - | LED, White | 350gf | - | - | -25°C ~ 70°C |
|
EDM 450 S AC LFSSWITCH TACT SPST-NO 0.05A 100V |
1,048 |
|
Datasheet |
EDM | Tray | Active | SPST-NO | Off-Mom | Snap Dome | Through Hole | 1.20mm | 0.05A @ 100VAC/DC | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | 450gf | - | Tactile Feedback | -25°C ~ 70°C |
|
4FTH98222SWITCH TACTILE SPST-NO 0.05A 24V |
2,830 |
|
Datasheet |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green/Red | 300gf | 2.0, 2.2 VDC | Sealed - Flux Protection | -30°C ~ 85°C |
|
5GTH9358222SWITCH TACTILE SPST-NO 0.05A 24V |
2,733 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green/Red | 350gf | 2.0, 2.2 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|
JB15HBPC-JBSWITCH TACT SPST-NO 0.125A 24V |
4,714 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 265gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|

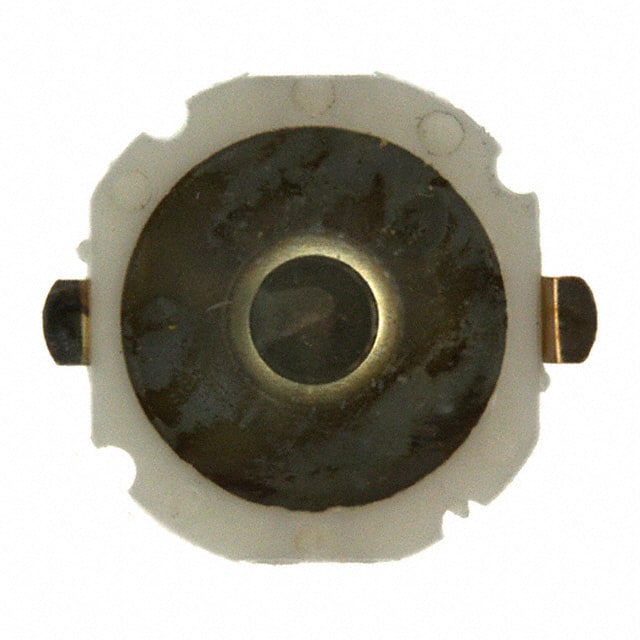

EDM650AGSC0 LFSSWITCH TACT SPST-NO 0.05A 100V |
1,857 |
|
Datasheet |
EDM | Tray | Active | SPST-NO | Off-Mom | Snap Dome | Surface Mount | 1.20mm | 0.05A @ 100VAC/DC | - | Top Actuated | SMD (SMT) Tab | - | Non-Illuminated | - | - | 650gf | - | Tactile Feedback | -25°C ~ 70°C |
|
5GTH93561SWITCH TACTILE SPST-NO 0.05A 24V |
10,471 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, White | 350gf | 3.05 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|

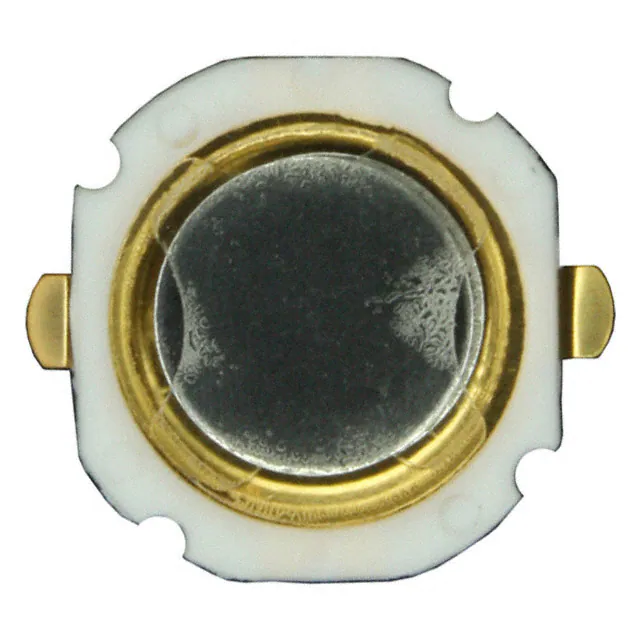

EDM650AUSC0 LFGSWITCH TACT SPST-NO 0.05A 100V |
2,387 |
|
Datasheet |
EDM | Tray | Active | SPST-NO | Off-Mom | Snap Dome | Surface Mount | 1.20mm | 0.05A @ 100VAC/DC | - | Top Actuated | SMD (SMT) Tab | - | Non-Illuminated | - | - | 650gf | - | Tactile Feedback | -55°C ~ 85°C |
|
5GSH93561SWITCH TACTILE SPST-NO 0.05A 24V |
1,321 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, White | 350gf | 3.05 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|
K5V 1 GN 4 3 TSWITCH TACTILE SPDT 0.1A 32V |
1,228 |
|
Datasheet |
K5V | Tray | Active | SPDT | On-Mom | Translucent | Through Hole, Right Angle | - | 0.1A @ 32VDC | 12.40mm | Side Actuated | PC Pin | 8.00mm x 10.10mm | Illuminated | IP40 | LED, Green | 400gf | - | Tactile Feedback | -40°C ~ 85°C |
|

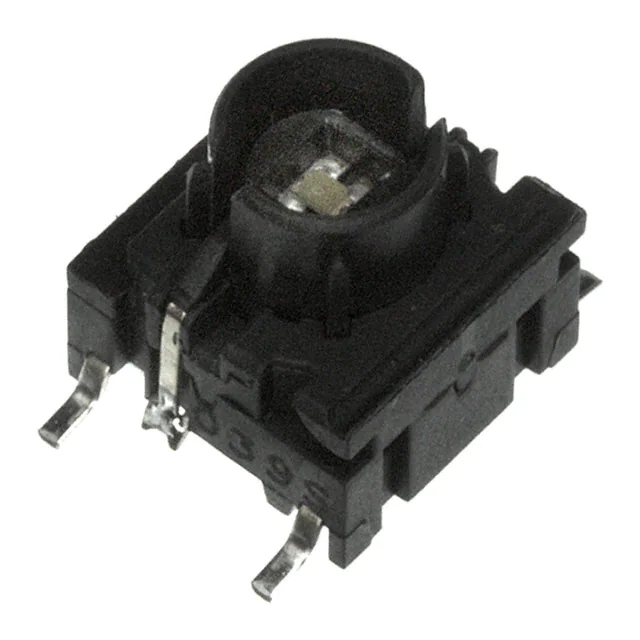

4FSH961SWITCH TACTILE SPST-NO 0.05A 24V |
6,047 |
|
Datasheet |
Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 10.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, White | 300gf | 3.05 VDC | Sealed - Flux Protection | -30°C ~ 85°C |
|
5GTH93501SWITCH TACTILE SPST-NO 0.05A 24V |
3,284 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Blue | 350gf | 3.35 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|
5GSH93501SWITCH TACTILE SPST-NO 0.05A 24V |
908 |
|
Datasheet |
Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Blue | 350gf | 3.35 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
