| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3W-9000-B1CSWITCH TACTILE SPST-NO 0.05A 24V |
1,791 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Blue | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|

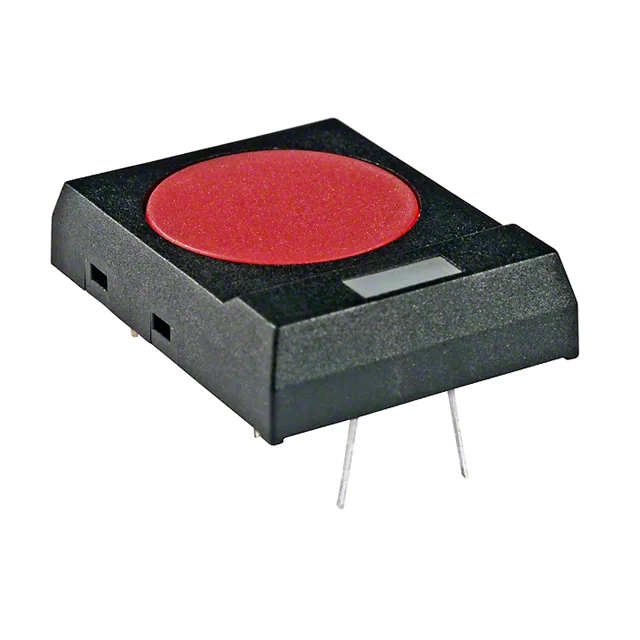

JF15RP2CCSWITCH TACTILE SPST-NO 0.05A 24V |
2,975 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Red | 300gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|

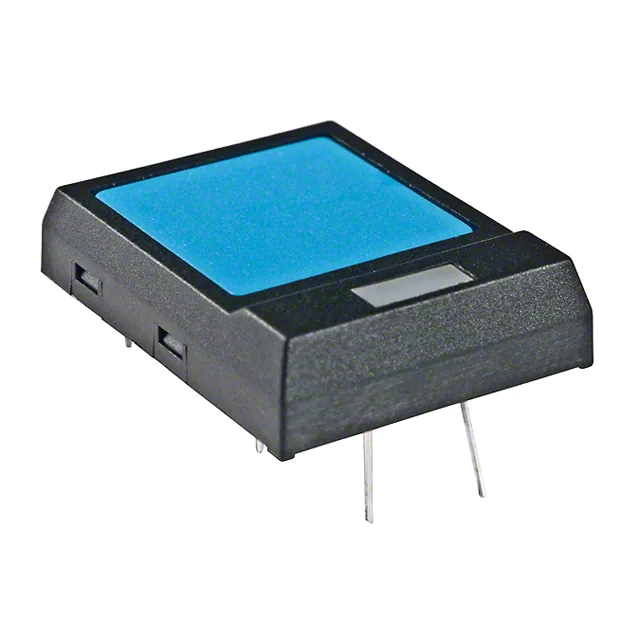

JF15RP1GCSWITCH TACTILE SPST-NO 0.05A 24V |
1,879 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Red | 300gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|

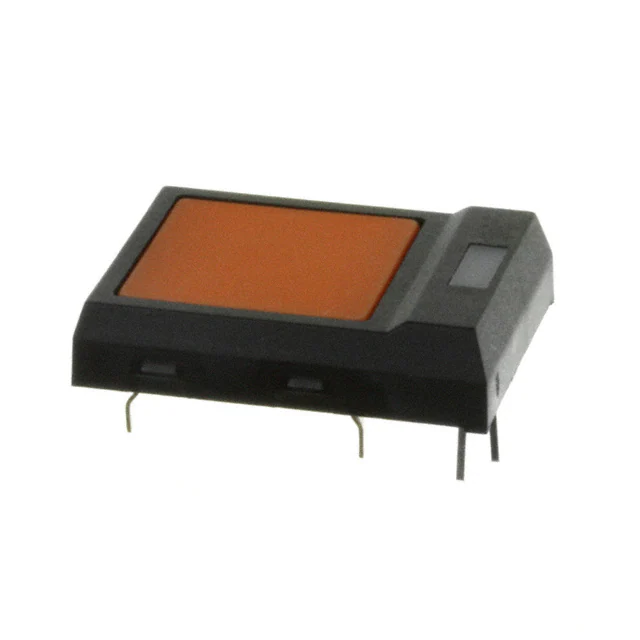

JF15RP1DCSWITCH TACTILE SPST-NO 0.05A 24V |
4,602 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Red | 300gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|

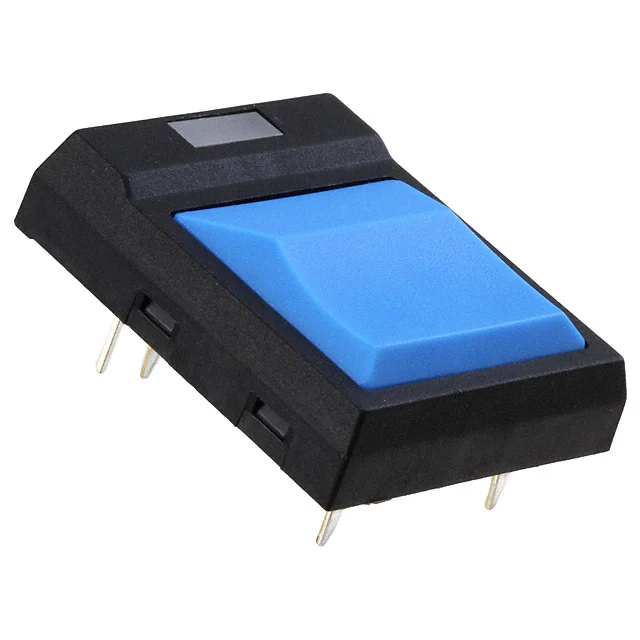

JF15RP3GESWITCH TACTILE SPST-NO 0.05A 24V |
1,085 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.78mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Yellow | 200gf | 1.9 VDC | Process Sealed | -25°C ~ 70°C |
|

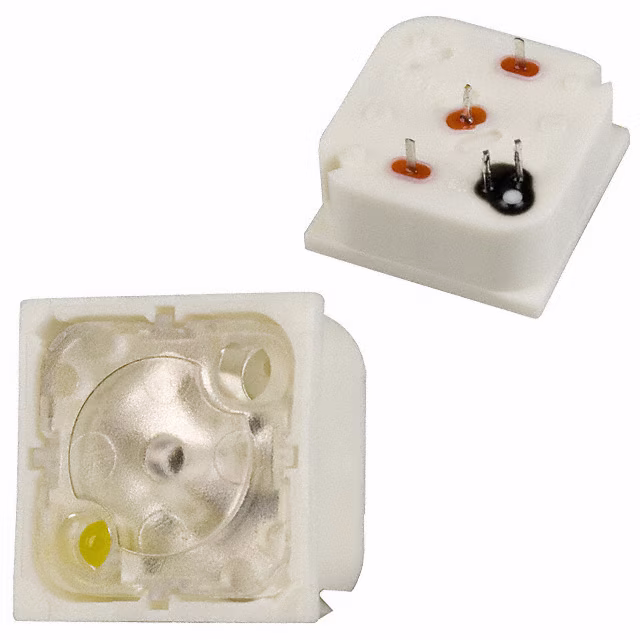

3.14.001.033/0000SWITCH TACTILE SPST-NO 0.1A 42V |
4,792 |
|
Datasheet |
RF19 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.1A @ 42VAC/DC | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | - | LED, Yellow | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|

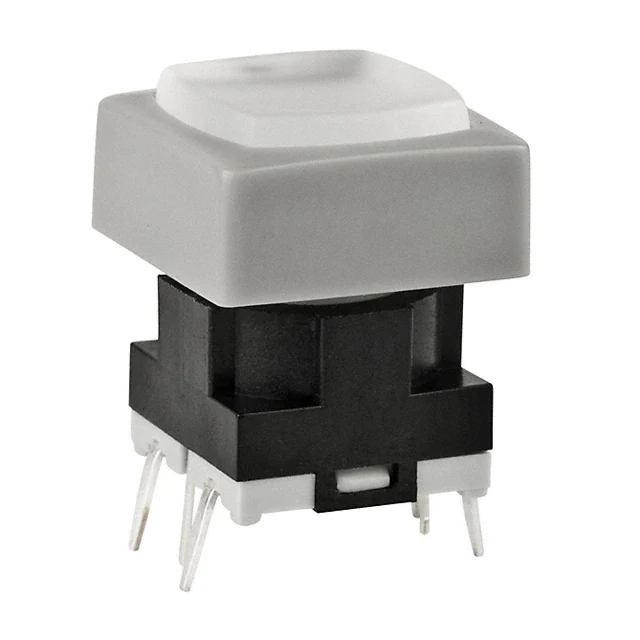

JB15HBPF-BHSWITCH TACT SPST-NO 0.125A 24V |
4,688 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 265gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
3.14.002.026/0000SWITCH TACTILE SPST-NO 0.25A 35V |
3,594 |
|
Datasheet |
RF19 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.25A @ 35VAC/DC | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | - | LED, Green | 296gf | - | - | -25°C ~ 70°C |
|
3.14.002.684/0000SWITCH TACTILE SPST-NO 0.1A 35V |
3,596 |
|
Datasheet |
RF19H | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 12.50mm | 0.1A @ 35VAC/DC | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | - | LED, White | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
CS11028.5F160SWITCH TACTILE SPST-NO 0.05A 50V |
2,200 |
|
Datasheet |
CS1102 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 8.50mm | 0.05A @ 50VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
MJTP1141ASWITCH TACTILE SPST-NO 0.05A 12V |
3,211 |
|
Datasheet |
MJTP | Cut Tape (CT) | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.10mm x 6.10mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TS15-1212-50-BK-260-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
4,458 |
|
Datasheet |
TS15 | Bag | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|

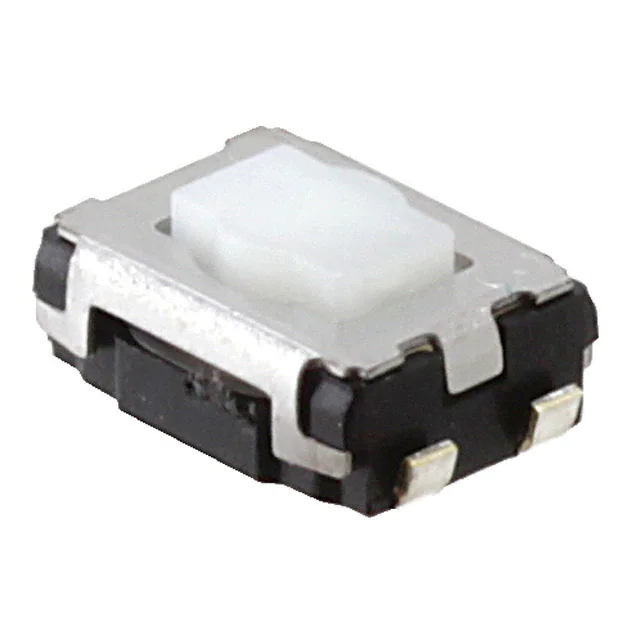

EVQ-P9H02MSWITCH TACTILE SPST-NO 0.02A 15V |
3,655 |
|
Datasheet |
EVQP9 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 2.10mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 500gf | - | Grounding Pin | -40°C ~ 85°C |
|
TL6105DF160QPSWITCH TACTILE SPST-NO 0.05A 50V |
3,903 |
|
Datasheet |
TL6105 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 10.00mm | 0.05A @ 50VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin, Sealed - Fully | -40°C ~ 85°C |
|

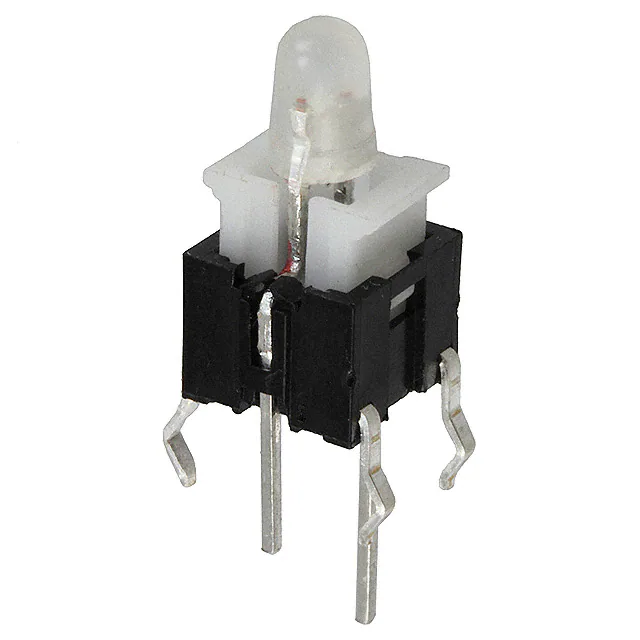

TL1240BICOLORGREENYELLOWSWITCH TACTILE SPST-NO 0.05A 12V |
1,801 |
|
Datasheet |
TL1240 | Bulk | Active | SPST-NO | Off-Mom | - | Through Hole | 7.20mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Green/Yellow | 160gf | 2.2, 2.1 VDC | - | -20°C ~ 70°C |
|
TL1260GQNOCAPSWITCH TACTILE SPST-NO 0.05A 12V |
2,055 |
|
Datasheet |
TL1260 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | - | LED, Green | 160gf | 2.3 VDC | - | -20°C ~ 70°C |
|
ADTSMW65NVTRSWITCH TACTILE SPST-NO 0.05A 12V |
3,550 |
|
Datasheet |
ADTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 180gf | - | Washable | -25°C ~ 70°C |
|
TL6215VF200GNNSWITCH TACTILE SPST-NO 0.05A 12V |
3,661 |
|
Datasheet |
TL6215 | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 5.35mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 200gf | 2.1 VDC | - | -20°C ~ 70°C |
|
TL1105KF250RSWITCH TACTILE SPST-NO 0.05A 50V |
4,348 |
|
Datasheet |
TL1105 | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 13.50mm | 0.05A @ 50VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
B3W-9002-G1GSWITCH TACTILE SPST-NO 0.05A 24V |
1,040 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 230gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
