| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDGAC0 LFSSWITCH TACT SPST-NO 0.05A 100V |
1,551 |
|
Datasheet |
ED | Tube | Active | SPST-NO | Off-Mom | Snap Dome | Through Hole | 1.20mm | 0.05A @ 100VAC/DC | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | 240gf | - | - | -55°C ~ 85°C |
|
B3W-9002-G2NSWITCH TACTILE SPST-NO 0.05A 24V |
3,340 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 230gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-Y2CSWITCH TACTILE SPST-NO 0.05A 24V |
3,425 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Yellow | 230gf | 2.4 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9010-Y1NSWITCH TACTILE SPST-NO 0.05A 24V |
3,635 |
|
Datasheet |
B3W-9 | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Yellow | 160gf | 2.4 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-G2CSWITCH TACTILE SPST-NO 0.05A 24V |
4,525 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 230gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-R2RSWITCH TACTILE SPST-NO 0.05A 24V |
2,720 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Red | 160gf | 1.8 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
B3W-9010-Y2NSWITCH TACTILE SPST-NO 0.05A 24V |
3,025 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Yellow | 160gf | 2.4 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
B3W-9010-Y2YSWITCH TACTILE SPST-NO 0.05A 24V |
1,965 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Yellow | 160gf | 2.4 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-HG1GSWITCH TACTILE SPST-NO 0.05A 24V |
2,105 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 230gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9010-R2RSWITCH TACTILE SPST-NO 0.05A 24V |
3,639 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Red | 160gf | 1.8 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
B3W-9000-HG1CSWITCH TACTILE SPST-NO 0.05A 24V |
3,750 |
|
Datasheet |
B3W-9 | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 160gf | 3.7 VDC | Sealed - Fully | -25°C ~ 70°C |
|

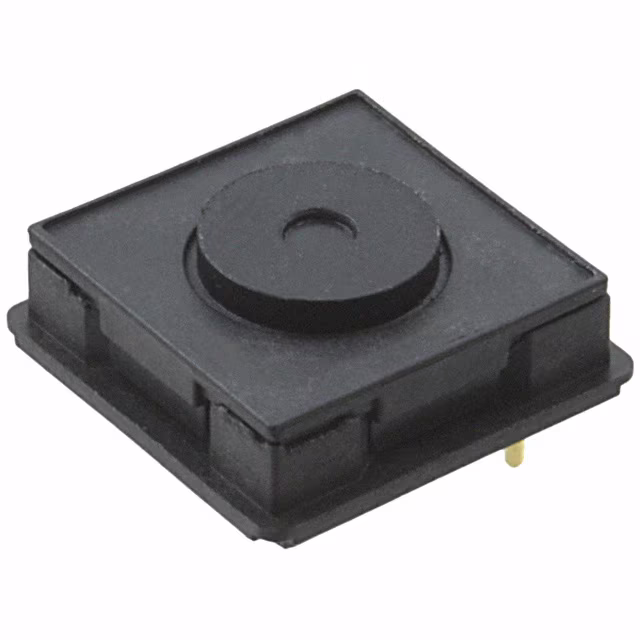

1241.1002SWITCH TACTILE SPST-NO 0.05A 24V |
3,854 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.40mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
TL3265GQNNSWITCH TACTILE SPST-NO 0.05A 12V |
1,504 |
|
Datasheet |
TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.20mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | - | LED, Green | 160gf | - | - | -40°C ~ 85°C |
|
1241.1082.1SWITCH TACT SPST-NO 0.125A 48V |
3,022 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 8.50mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
|
TL3265GQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
2,550 |
|
Datasheet |
TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Round Button | Surface Mount | 12.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | - | LED, Green | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3265RQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
2,683 |
|
Datasheet |
TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Round Button | Surface Mount | 12.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | - | LED, Red | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3265RQNNSWITCH TACTILE SPST-NO 0.05A 12V |
2,485 |
|
Datasheet |
TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.20mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | - | LED, Red | 160gf | - | - | -40°C ~ 85°C |
|
1241.1082.21SWITCH TACT SPST-NO 0.125A 48V |
4,766 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 15.25mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
1241.1625.4SWITCH TACTILE SPST-NO 0.05A 42V |
2,780 |
|
Datasheet |
PMS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 10.60mm | 0.05A @ 42VDC | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 220gf | - | Tactile Feedback | -40°C ~ 85°C |
|
|
1241.1625.5SWITCH TACTILE SPST-NO 0.05A 42V |
2,605 |
|
Datasheet |
PMS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 11.35mm | 0.05A @ 42VDC | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 220gf | - | Tactile Feedback | -40°C ~ 85°C |
