| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSS 644 YSWITCH TACT 7.3MM YELLOW |
4,533 |
|
Datasheet |
TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.30mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 520gf | - | - | -25°C ~ 70°C |
|
|
SKHHLUA010SWITCH TACTILE SPST-NO 0.05A 12V |
2,548 |
|
Datasheet |
SKHH | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 5.85mm | Side Actuated | PC Pin | 7.50mm x 6.55mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 90°C |
|
|
SKHHDTA010SWITCH TACTILE SPST-NO 0.05A 12V |
2,141 |
|
Datasheet |
SKHH | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 13.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 90°C |
|
|
SKQJAAA010SWITCH TACTILE SPST-NO 0.05A 12V |
2,062 |
|
Datasheet |
SKQJ | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.60mm x 6.60mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|

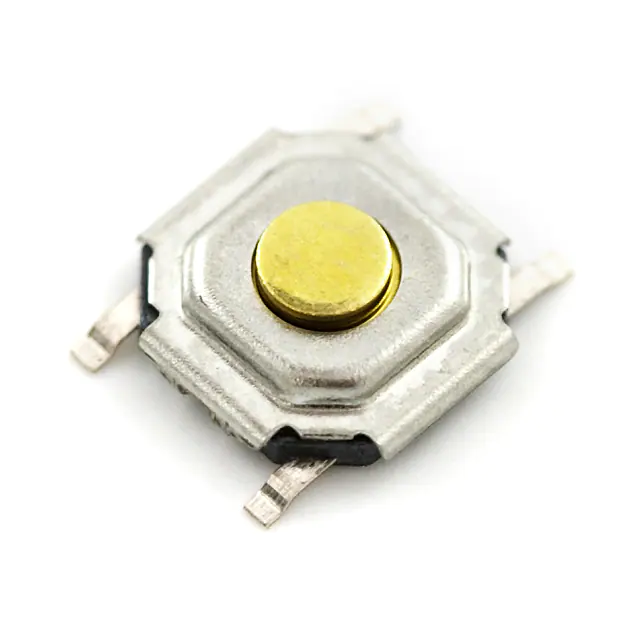

COM-08720SWITCH TACTILE SPST-NO 0.05A 12V |
2,887 |
|
Datasheet |
- | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.60mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 160/250gf | - | - | - |
|
|
TSS 313 T-RASWITCH TACT 0.05A 12V |
3,250 |
|
Datasheet |
TSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | 7.40mm | Side Actuated | SMD (SMT) Tab | 6.10mm x 4.00mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
|
TMP 1SWITCH TACT OFF - MOM |
2,588 |
|
Datasheet |
TMP | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.85mm | 0.02A @ 24VDC | - | Top Actuated | PC Pin | 7.60mm x 7.60mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 459gf | - | - | -40°C ~ 85°C |
|
|
B3FS-4092P-BTACTILE SWITCH WITH INTEGRATED K |
2,193 |
|
Datasheet |
B3FS-4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Square Button | Surface Mount | 7.00mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | - | - | Non-Illuminated | 150gf | - | - | -25°C ~ 70°C |
|
|
B3AL-1004SWITCH TACTILE SPST-NO 0.05A 16V |
3,866 |
|
Datasheet |
B3AL | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | - | 0.05A @ 16VDC | - | Top Actuated | SMD (SMT) Tab | - | Non-Illuminated | - | - | 510gf | - | - | -40°C ~ 90°C |
|
1241.1032.5SWITCH TACTILE SPST-NO 0.05A 24V |
3,166 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 11.50mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|

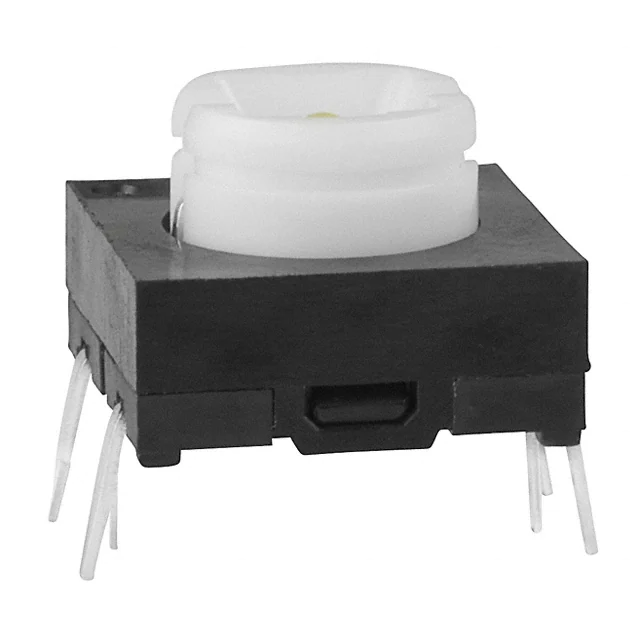

JB15LPESWITCH TACTILE SPST-NO 0.05A 24V |
1,654 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 176gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|

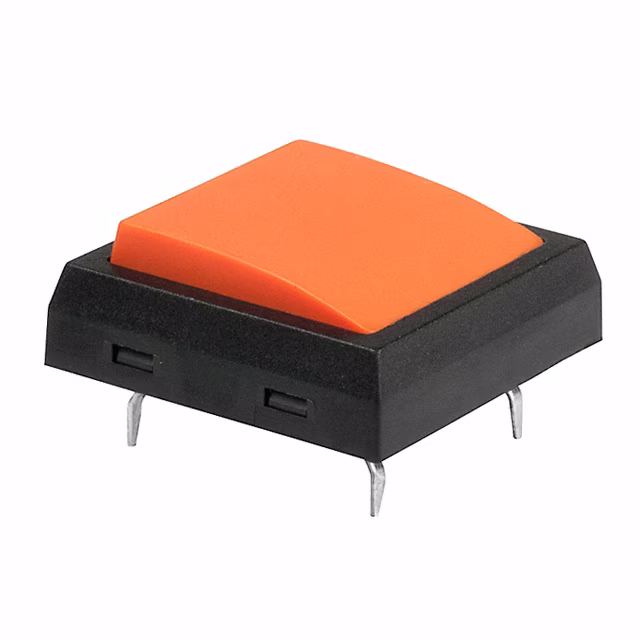

JF15SP4DSWITCH TACTILE SPST-NO 0.05A 24V |
3,197 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.98mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 200gf | - | Process Sealed | -25°C ~ 85°C |
|

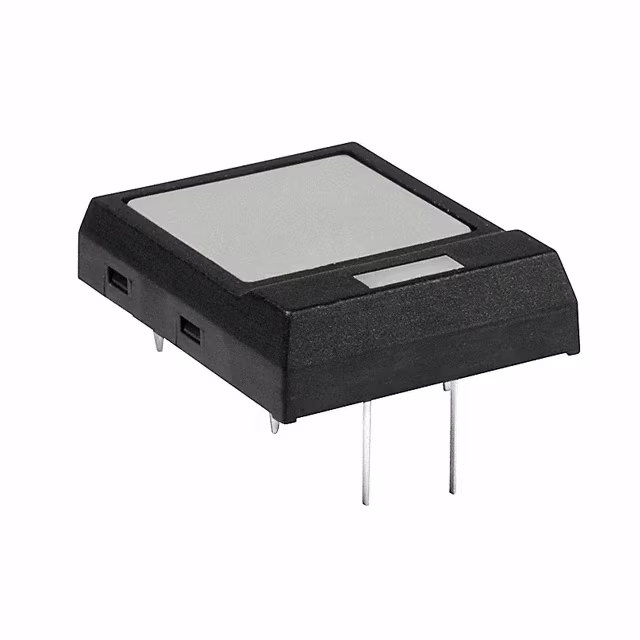

JF15RP1HCSWITCH TACTILE SPST-NO 0.05A 24V |
2,765 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Red | 300gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
JF15RP3DCSWITCH TACTILE SPST-NO 0.05A 24V |
3,474 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.78mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Red | 200gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
JF15RP3FFSWITCH TACTILE SPST-NO 0.05A 24V |
3,815 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.78mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Green | 200gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|

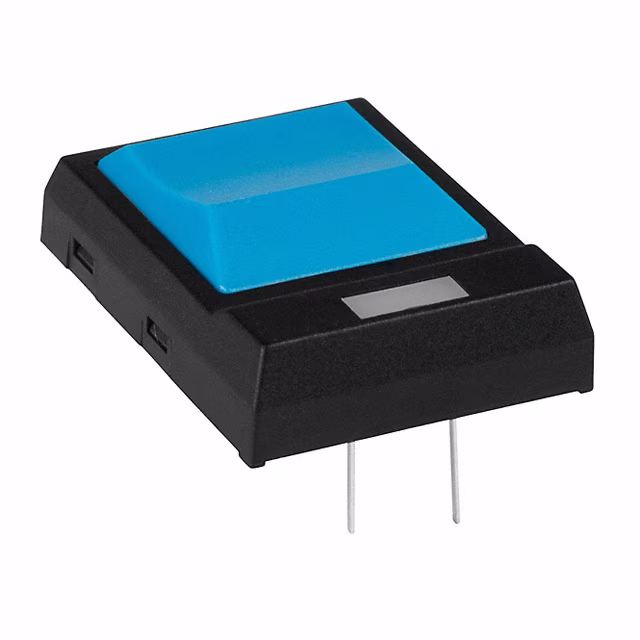

JF15RP3GCSWITCH TACTILE SPST-NO 0.05A 24V |
3,655 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.78mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Red | 200gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|

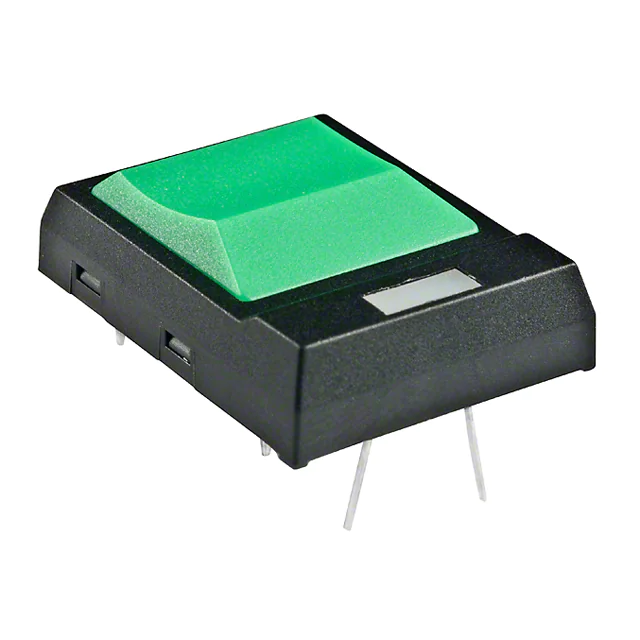

JF15RP3FCSWITCH TACTILE SPST-NO 0.05A 24V |
3,694 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.78mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Red | 200gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
|
1571185-1SWITCH TACTILE SPST-NO 0.05A 12V |
2,201 |
|
Datasheet |
FSMCD | Bulk | Obsolete | SPST-NO | Off-Mom | Standard | Through Hole | 7.50mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
FSM4JARTSWITCH TACTILE SPST-NO 0.05A 24V |
3,425 |
|
Datasheet |
FSMJRT | Box | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.00mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -35°C ~ 105°C |
|
|
TL59EF100QSWITCH TACTILE SPST-NO 0.05A 12V |
1,522 |
|
Datasheet |
TL59 | Tape & Box (TB) | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
