| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3301CF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,397 |
|
Datasheet |
TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 8.00mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

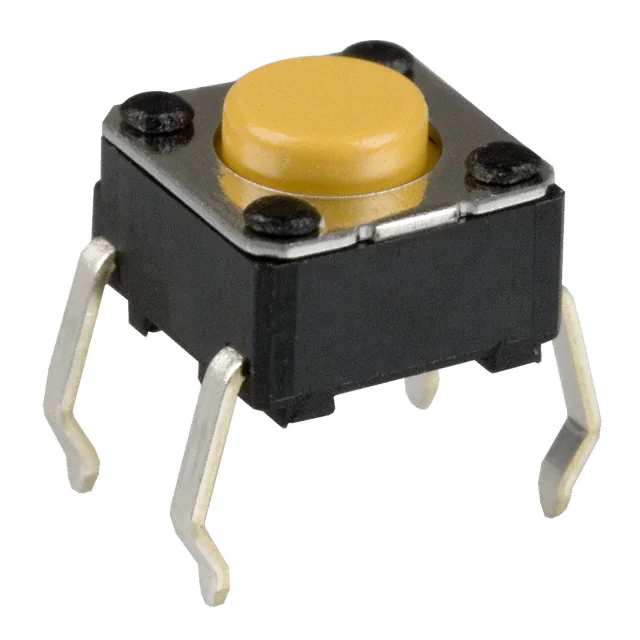

B3F-1002SWITCH TACTILE SPST-NO 0.05A 24V |
111,474 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
TL1105SPF160QSWITCH TACTILE SPST-NO 0.05A 12V |
27,614 |
|
Datasheet |
TL1105 | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.50mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL3365AF180QGSWITCH TACTILE SPST-NO 0.05A 12V |
14,012 |
|
Datasheet |
TL3365 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Oval Button | Surface Mount | 2.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 4.20mm x 3.20mm | Non-Illuminated | - | - | 180gf | - | - | -20°C ~ 70°C |
|
1-1825027-1SWITCH TACTILE SPST-NO 0.05A 24V |
50,151 |
|
Datasheet |
FSMRAJ | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 24VDC | 8.35mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 105°C |
|
EVQ-P7C01PSWITCH TACTILE SPST-NO 0.05A 12V |
42,288 |
|
Datasheet |
EVQP7 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | Board Guide | -20°C ~ 70°C |
|
|
EVQ-P7L01PSWITCH TACTILE SPST-NO 0.05A 12V |
14,961 |
|
Datasheet |
EVQP7 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | Board Guide | -20°C ~ 70°C |
|
EVP-AWCD4ASWITCH TACTILE SPST-NO 0.02A 15V |
5,521 |
|
Datasheet |
EVPAW | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 0.60mm | 0.02A @ 15VDC | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 240gf | - | - | -40°C ~ 85°C |
|

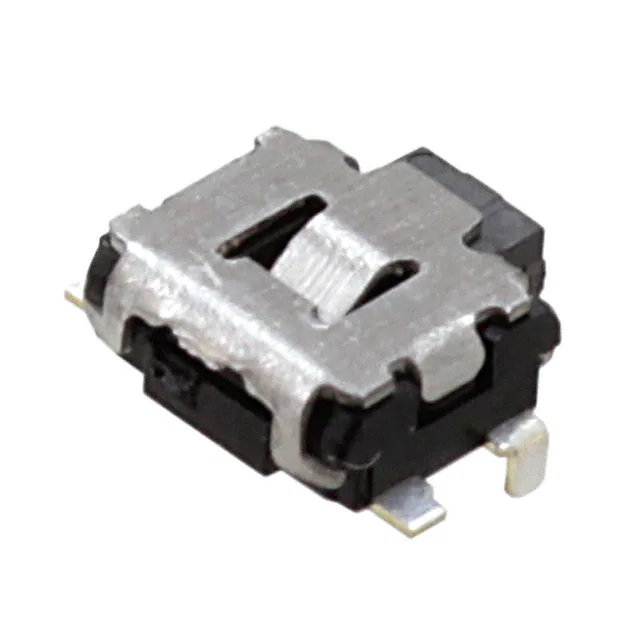

EVQ-P3401PSWITCH TACTILE SPST-NO 0.05A 12V |
4,946 |
|
Datasheet |
EVQP3 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -20°C ~ 70°C |
|
FSM2JSMAATRSWITCH TACTILE SPST-NO 0.05A 24V |
154,376 |
|
Datasheet |
FSMJSMA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TL3330AF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
89,788 |
|
Datasheet |
TL3330 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | 3.50mm | Side Actuated | Gull Wing | 7.80mm x 2.50mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 70°C |
|
SKRBAAE010SWITCH TACTILE SPST-NO 0.05A 12V |
33,486 |
|
Datasheet |
SKRB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 0.55mm | 0.05A @ 12VDC | - | Top Actuated | SMD (SMT) Tab | 4.80mm x 4.80mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
SKRBACE010SWITCH TACTILE SPST-NO 0.05A 12V |
30,301 |
|
Datasheet |
SKRB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 0.55mm | 0.05A @ 12VDC | - | Top Actuated | SMD (SMT) Tab | 4.80mm x 4.80mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

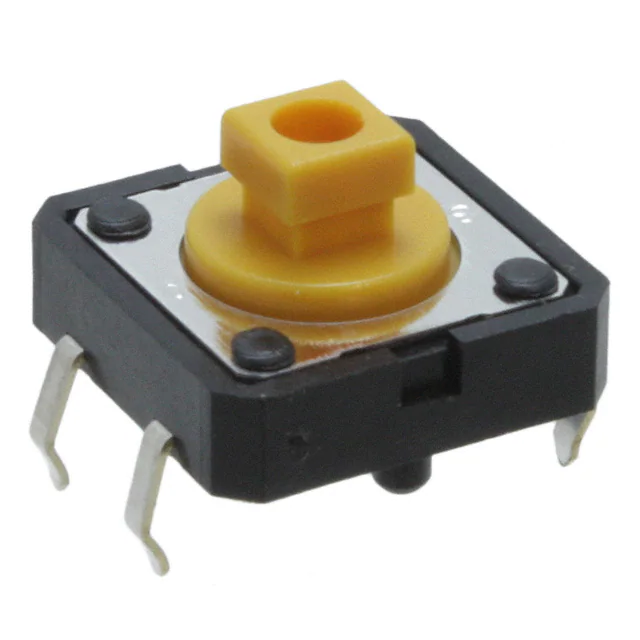

B3F-4055SWITCH TACTILE SPST-NO 0.05A 24V |
453,805 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
PTS645SK43SMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
150,438 |
|
Datasheet |
PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
FSMSMSWITCH TACTILE SPST-NO 0.05A 24V |
68,113 |
|
Datasheet |
FSMSM | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.57mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | - | -35°C ~ 85°C |
|
PTS645SK50SMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
44,694 |
|
Datasheet |
PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
EVQ-PUC02KSWITCH TACTILE SPST-NO 0.05A 12V |
44,899 |
|
Datasheet |
EVQPU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | Board Guide | -20°C ~ 70°C |
|
EVQ-PLMA15SWITCH TACTILE SPST-NO 0.02A 15V |
20,720 |
|
Datasheet |
EVQPL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.50mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 4.90mm x 4.90mm | Non-Illuminated | - | - | 265gf | - | Push Plate | -20°C ~ 70°C |
|
1301.9314.24SWITCH TACTILE SPST-NO 0.05A 12V |
12,489 |
|
Datasheet |
LSH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | IP40 | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
