| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTS845VM20PSMTR4 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
51,262 |
|
Datasheet |
PTS845 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 0.05A @ 12VDC | 3.40mm | Side Actuated | Gull Wing | 4.50mm x 2.55mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
|

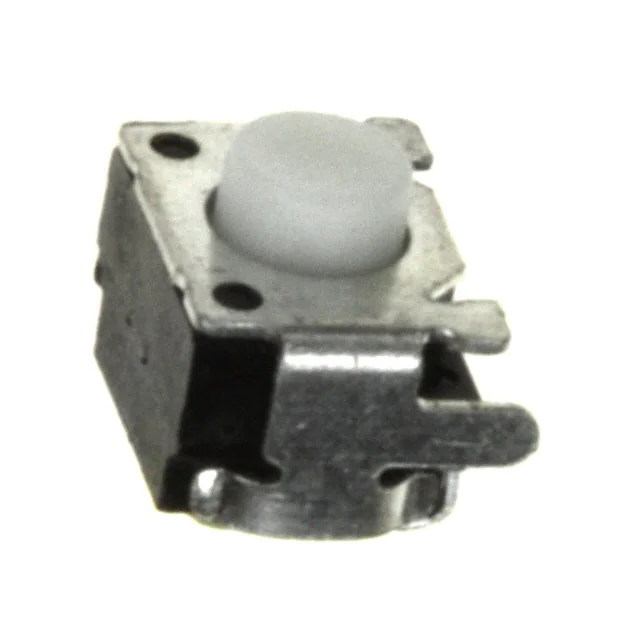

TL3340AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
44,282 |
|
Datasheet |
TL3340 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 0.05A @ 12VDC | 3.40mm | Side Actuated | Gull Wing | 4.00mm x 3.30mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
434153017835SWITCH TACTILE SPST-NO 0.05A 12V |
19,164 |
|
Datasheet |
WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 1.70mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 350gf | - | Blue Actuator | -40°C ~ 85°C |
|
TL1100FF160QSWITCH TACTILE SPST-NO 0.05A 12V |
7,885 |
|
Datasheet |
TL1100 | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 12.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3301AF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
45,792 |
|
Datasheet |
TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
KSC721G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
37,572 |
|
Datasheet |
KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 225gf | - | - | -40°C ~ 85°C |
|
KMR231NG ULC LFSSWITCH TACTILE SPST-NO 0.05A 32V |
27,593 |
|
Datasheet |
KMR2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.90mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
KSC321G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
26,179 |
|
Datasheet |
KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | - | -40°C ~ 85°C |
|

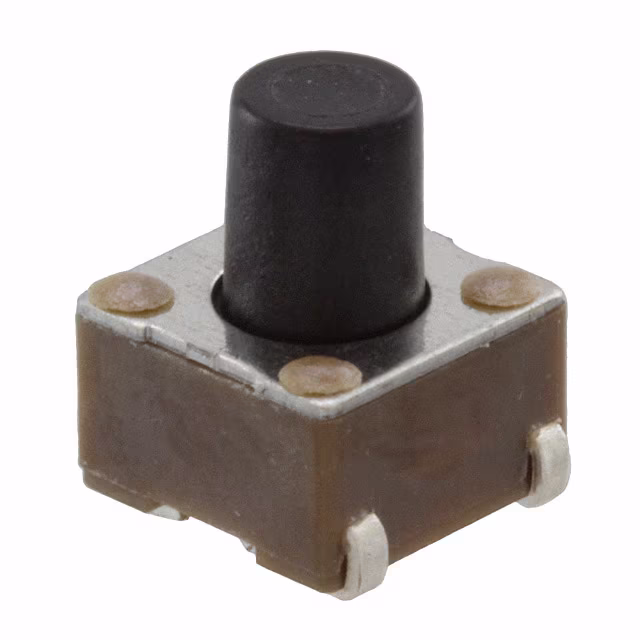

TL3301EF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
19,136 |
|
Datasheet |
TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 7.30mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
KSC341J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
15,927 |
|
Datasheet |
KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | - | -40°C ~ 85°C |
|
TL3301CF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
15,702 |
|
Datasheet |
TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 8.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

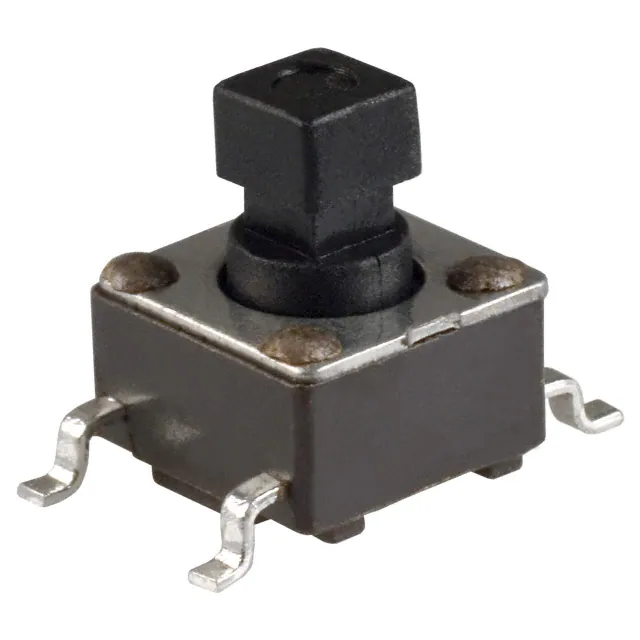

TL3301SPF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
11,337 |
|
Datasheet |
TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
EVQ-PT9A15SWITCH TACTILE SPST-NO 0.02A 15V |
5,087 |
|
Datasheet |
EVQPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.50mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 4.90mm x 4.90mm | Non-Illuminated | - | - | 163gf | - | Push Plate | -20°C ~ 70°C |
|
|
PTS810SJM250SMTR LFSSWITCH TACTILE SPST-NO 0.05A 16V |
113,691 |
|
Datasheet |
PTS810 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Oval Button | Surface Mount | 2.50mm | 0.05A @ 16VDC | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
EVQ-PLHA15SWITCH TACTILE SPST-NO 0.02A 15V |
6,215 |
|
Datasheet |
EVQPL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.50mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 4.90mm x 4.90mm | Non-Illuminated | - | - | 163gf | - | Push Plate | -20°C ~ 70°C |
|
|
PTS810SJK250SMTR LFSSWITCH TACTILE SPST-NO 0.05A 16V |
100,764 |
|
Datasheet |
PTS810 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Oval Button | Surface Mount | 2.50mm | 0.05A @ 16VDC | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

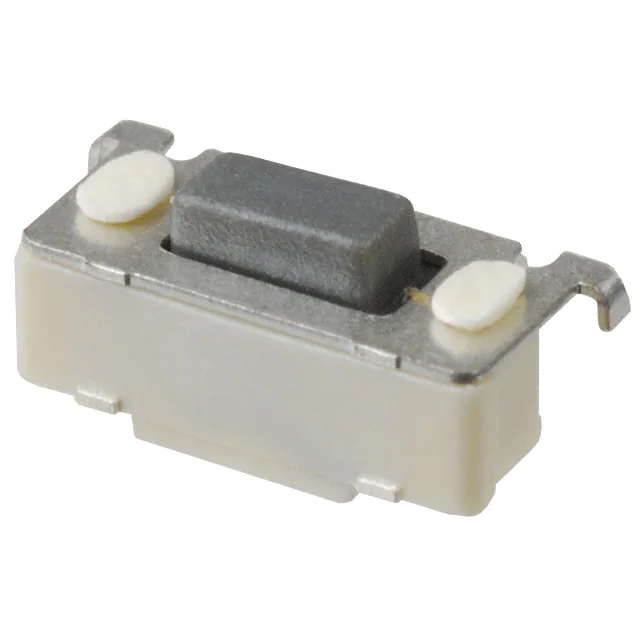

TL3330AF130QGSWITCH TACTILE SPST-NO 0.05A 12V |
23,405 |
|
Datasheet |
TL3330 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | 3.50mm | Side Actuated | Gull Wing | 7.80mm x 2.50mm | Non-Illuminated | - | - | 130gf | - | - | -30°C ~ 70°C |
|
|
KSC221J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
18,412 |
|
Datasheet |
KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.50mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | - | -40°C ~ 85°C |
|
KSC422J 70SH LFSSWITCH TACTILE SPST-NO 0.05A 32V |
8,722 |
|
Datasheet |
KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.20mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 170gf | - | - | -40°C ~ 85°C |
|
FSMSMTRSWITCH TACTILE SPST-NO 0.05A 24V |
5,964 |
|
Datasheet |
FSMSM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.57mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | - | -35°C ~ 85°C |
