| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSMCTTRSWITCH TACTILE SPST-NO 0.02A 15V |
16,851 |
|
Datasheet |
FSMCT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.50mm | 0.02A @ 15VDC | - | Top Actuated | Gull Wing | 5.00mm x 5.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
KSR231G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
11,794 |
|
Datasheet |
KSR | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | IP50 - Dust Protected | - | 300gf | - | - | -40°C ~ 85°C |
|
KSA1M211 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
10,548 |
|
Datasheet |
KSA | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.70mm | 0.05A @ 32VDC | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | IP60 - Dust Tight | - | 130gf | - | Grounding Pin | -40°C ~ 90°C |
|
ATS2D1G NC LFSSWITCH TACTILE SPST-NC 0.05A 32V |
7,588 |
|
Datasheet |
ATS | Tape & Reel (TR) | Active | SPST-NC | On-Mom | Standard | Surface Mount | 3.20mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | IP54 - Dust Protected, Water Resistant | - | 204gf | - | - | -40°C ~ 85°C |
|
|
SKQMBBE010SWITCH TACTILE SPST-NO 0.05A 12V |
1,957 |
|
Datasheet |
SKQM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
|
B3U-1100PMSWITCH TACTILE SPST-NO 0.05A 12V |
11,782 |
|
Datasheet |
B3U | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.60mm | 0.05A @ 12VDC | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.50mm | Non-Illuminated | Dust Proof | - | 153gf | - | Grounding Pin | -25°C ~ 70°C |
|
FSM1LPTRSWITCH TACTILE SPST-NO 0.05A 24V |
9,870 |
|
Datasheet |
FSM1LP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
SKQYAAE010SWITCH TACTILE SPST-NO 0.05A 12V |
9,370 |
|
Datasheet |
SKQY | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 2.50mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.10mm x 3.70mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 90°C |
|
B3SN-3012SWITCH TACTILE SPST-NO 0.05A 24V |
3,569 |
|
Datasheet |
B3SN | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.05A @ 24VDC | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
434133025826SWITCH TACTILE SPST-NO 0.02A 15V |
1,452 |
|
Datasheet |
WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
LL3301NF065QGSWITCH TACTILE SPST-NO 0.05A 12V |
5,317 |
|
Datasheet |
LL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 65gf | - | - | -30°C ~ 85°C |
|
B3SL-1022PSWITCH TACTILE SPST-NO 0.05A 12V |
4,261 |
|
Datasheet |
B3SL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.10mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | Sealed - Fully | -25°C ~ 90°C |
|
|
KSS221G LFSSWITCH TACTILE SPST-NO 0.05A 50V |
24,218 |
|
Datasheet |
KSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 50VDC | - | Side Actuated | Gull Wing | 7.60mm x 3.70mm | Non-Illuminated | IP40 | - | 200gf | - | Tactile Feedback | -40°C ~ 85°C |
|
USLPT2819DT2TRSWITCH TACTILE SPST-NO 0.02A 15V |
17,953 |
|
Datasheet |
LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 0.60mm | 0.02A @ 15VDC | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

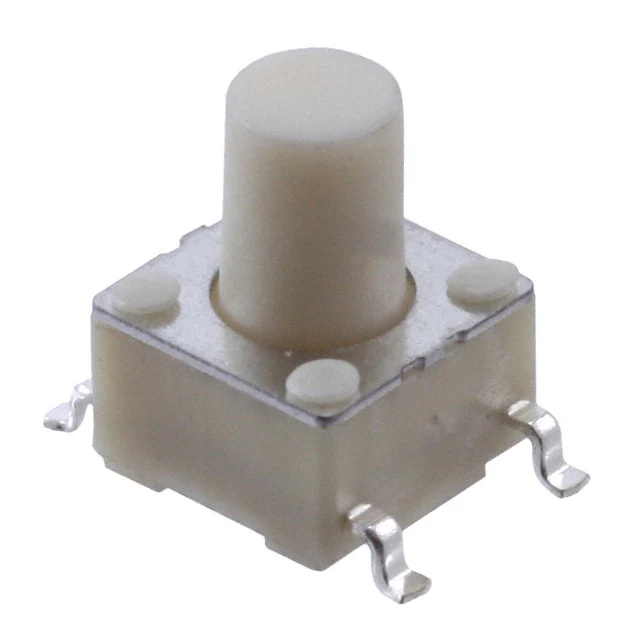

MJTP1138CTRSWITCH TACTILE SPST-NO 0.05A 12V |
16,717 |
|
Datasheet |
MJTP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 8.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
KSR222G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
15,325 |
|
Datasheet |
KSR | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | IP50 - Dust Protected | - | 200gf | - | - | -40°C ~ 85°C |
|
TL1100F160Q6JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
7,907 |
|
Datasheet |
TL1100 | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.60mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3342F450QGSWITCH TACTILE SPST-NO 0.05A 12V |
2,575 |
|
Datasheet |
TL3342 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.54mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 4.90mm x 4.90mm | Non-Illuminated | - | - | 450gf | - | - | -20°C ~ 70°C |
|

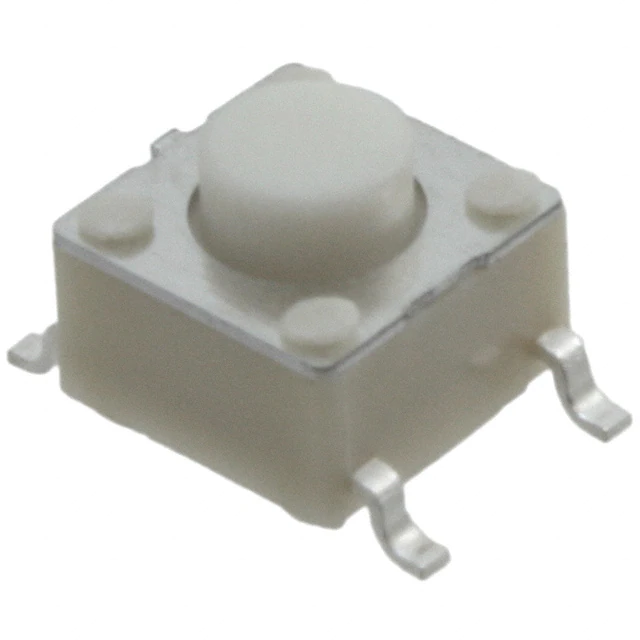

MJTP1138ALTRSWITCH TACTILE SPST-NO 0.05A 12V |
2,156 |
|
Datasheet |
MJTP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
KMT221NG HF LFSSWITCH TACTILE SPST-NO 0.05A 32V |
49,502 |
|
Datasheet |
KMT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 0.65mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 3.00mm x 2.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
