| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSM1JSSMTRSWITCH TACTILE SPST-NO 0.05A 24V |
13,790 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.30mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 7.60mm x 7.30mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | Sealed - Fully | -35°C ~ 85°C |
|
EVQ-P1F05MSWITCH TACTILE SPST-NO 0.05A 12V |
1,328 |
|
Datasheet |
EVQP1 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.10mm x 6.00mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|

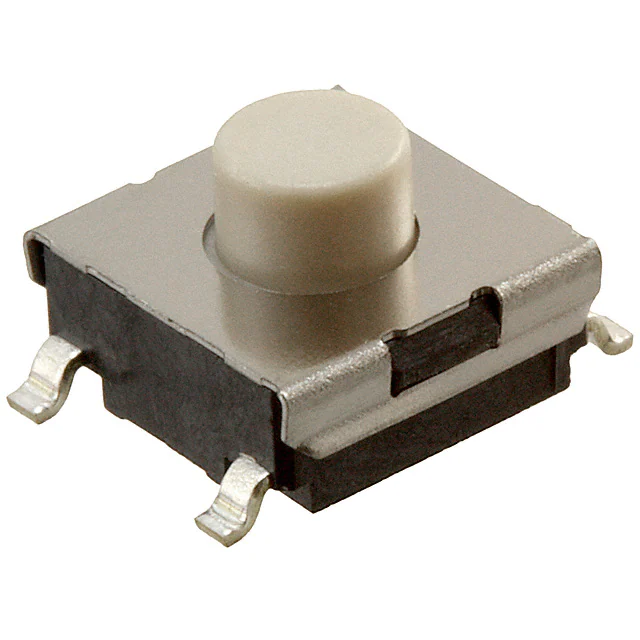

B3FS-1012SWITCH TACTILE SPST-NO 0.05A 24V |
84,226 |
|
Datasheet |
B3FS | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
EVQ-P2T02WSWITCH TACTILE SPST-NO 0.02A 15V |
8,273 |
|
Datasheet |
EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 2.50mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 240gf | - | Grounding Pin | -40°C ~ 85°C |
|
EVP-AT2L1B000SWITCH TACTILE SPST-NO 0.02A 15V |
29,167 |
|
Datasheet |
EVPAT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Edge Mount, Right Angle | - | 0.02A @ 15VDC | 0.56mm | Side Actuated | SMD (SMT) Tab | 4.20mm x 1.73mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | - | -40°C ~ 85°C |
|
|
EVQ-P2V02WSWITCH TACTILE SPST-NO 0.02A 15V |
5,638 |
|
Datasheet |
EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 2.50mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 350gf | - | Grounding Pin | -40°C ~ 85°C |
|
KST221J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
4,093 |
|
Datasheet |
KST | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP40 | - | 200gf | - | - | -40°C ~ 85°C |
|
|
EVP-BDCC1A000SWITCH TACTILE SPST-NO 0.02A 15V |
1,871 |
|
Datasheet |
EVPBD | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.00mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 408gf | - | - | -40°C ~ 90°C |
|
|
EVP-0BDC1A000SWITCH TACTILE SPST-NO 0.02A 15V |
1,508 |
|
Datasheet |
EVP0B | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.00mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 714gf | - | - | -40°C ~ 90°C |
|
|
EVQ-P1905MSWITCH TACTILE SPST-NO 0.05A 12V |
42,715 |
|
Datasheet |
EVQP1 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.10mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
EVQ-P4MB3KSWITCH TACTILE SPST-NO 0.02A 15V |
5,446 |
|
Datasheet |
EVQP4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Edge Mount, Right Angle | - | 0.02A @ 15VDC | 2.50mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
|
EVP-ATAL1B000SWITCH TACTILE SPST-NO 0.02A 15V |
2,926 |
|
Datasheet |
EVPAT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Edge Mount, Right Angle | - | 0.02A @ 15VDC | 0.59mm | Side Actuated | SMD (SMT) Tab | 4.20mm x 1.73mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 245gf | - | - | -40°C ~ 85°C |
|
|
SKRPADE010SWITCH TACTILE SPST-NO 0.05A 16V |
15,849 |
|
Datasheet |
SKRP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Oval Button | Surface Mount | 2.50mm | 0.05A @ 16VDC | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 408gf | - | - | -40°C ~ 90°C |
|
|
KSS331G LFSSWITCH TACTILE SPST-NO 0.05A 50V |
13,397 |
|
Datasheet |
KSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 50VDC | - | Side Actuated | Gull Wing | 7.60mm x 3.70mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -40°C ~ 85°C |
|

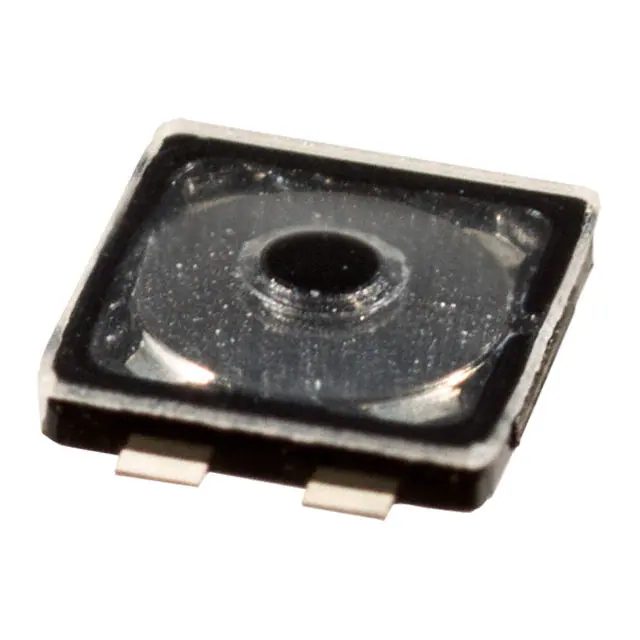

EVP-AXBA1ASWITCH TACT SPST-NO 0.02A 15V |
5,179 |
|
Datasheet |
EVPAX | Tape & Reel (TR) | Active | SPST-NO x 2 | Off-Mom-Mom | Standard | Surface Mount | 0.70mm | 0.02A @ 15VDC | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.60mm | Non-Illuminated | - | - | 70/200gf | - | - | -20°C ~ 70°C |
|
B3SN-3112SWITCH TACTILE SPST-NO 0.05A 24V |
4,677 |
|
Datasheet |
B3SN | Bag | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.05A @ 24VDC | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | Grounding Pin, Sealed - Fully | -25°C ~ 70°C |
|
EVQ-P2F02KSWITCH TACTILE SPST-NO 0.02A 15V |
3,683 |
|
Datasheet |
EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 500gf | - | Grounding Pin | -40°C ~ 85°C |
|
|
2425578-1SWITCH TACTILE SPST-NO 0.05A 12V |
3,614 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Edge Mount, Right Angle | - | 0.05A @ 12VDC | 2.20mm | Side Actuated | SMD (SMT) Tab | 4.50mm x 2.10mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | - | -40°C ~ 85°C |
|
|
KSL0M412 LFTSWITCH TACTILE SPST-NO 0.05A 32V |
14,174 |
|
Datasheet |
KSL MKII | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 9.90mm | 0.05A @ 32VDC | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | IP65 - Dust Tight, Water Resistant | - | 300gf | - | - | -40°C ~ 90°C |
|
|
EVQ-P2P02WSWITCH TACTILE SPST-NO 0.02A 15V |
7,721 |
|
Datasheet |
EVQP2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 2.50mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 4.70mm x 3.50mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -40°C ~ 85°C |
