| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
228ADS1AAWFCRESWITCH TACTILE SPST-NO 0.05A 12V |
4,990 |
|
Datasheet |
228A | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 2.60mm | Side Actuated | PC Pin | 7.20mm x 5.40mm | Illuminated | - | LED, Amber/White | 160gf | - | - | -25°C ~ 70°C |
|
|
228ADS1AWFCWDSWITCH TACTILE SPST-NO 0.05A 12V |
3,619 |
|
Datasheet |
228A | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 2.60mm | Side Actuated | PC Pin | 7.20mm x 5.40mm | Illuminated | - | LED, White | 160gf | 3 VDC | - | -25°C ~ 70°C |
|
|
228ADS1AAWFCWASWITCH TACTILE SPST-NO 0.05A 12V |
2,125 |
|
Datasheet |
228A | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 2.60mm | Side Actuated | PC Pin | 7.20mm x 5.40mm | Illuminated | - | LED, Amber/White | 160gf | - | - | -25°C ~ 70°C |
|
|
228ADS1AWFCABSWITCH TACTILE SPST-NO 0.05A 12V |
2,769 |
|
Datasheet |
228A | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 2.60mm | Side Actuated | PC Pin | 7.20mm x 5.40mm | Illuminated | - | LED, White | 160gf | 3 VDC | - | -25°C ~ 70°C |
|
|
228ADS1AWFCRB228ADS1AWF+C style in red color |
2,470 |
|
Datasheet |
228A | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole, Right Angle | - | 0.05A @ 12VDC | 2.60mm | Side Actuated | PC Pin | 7.20mm x 5.40mm | Illuminated | - | LED, White | 160gf | 3 VDC | - | -20°C ~ 70°C |
|
|
95CW06E4JTSWITCH TACTILE SPST-NO 0.05A 12V |
3,044 |
|
Datasheet |
95C | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.20mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 520gf | - | Washable | -25°C ~ 70°C |
|
|
MJTP1137AETACT SWITCH PCB MOUNT |
2,809 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MJTP1137ATACT SWITCH PCB MOUNT |
3,915 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MJTP1138DPLATACT SWITCH PCB MOUNT |
2,149 |
|
Datasheet |
MJTP | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 13.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
ATII04VDIP SWITCH TRINARY STANDARD |
2,000 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

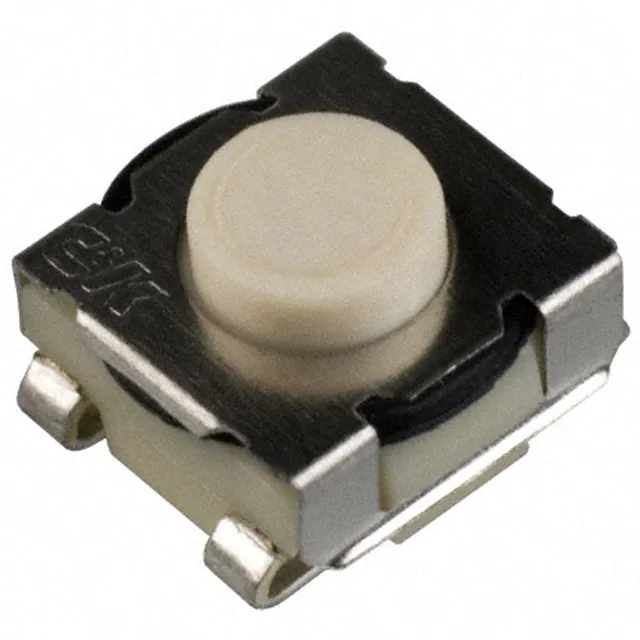

KT11P3JMSWITCH TACTILE SPST-NO 1VA 50V |
2,555 |
|
Datasheet |
KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Standard | Surface Mount | 4.12mm | 1VA @ 50VAC/DC | - | Top Actuated | J Lead | 6.38mm x 6.22mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | - | - | Sealed | -40°C ~ 90°C |
|

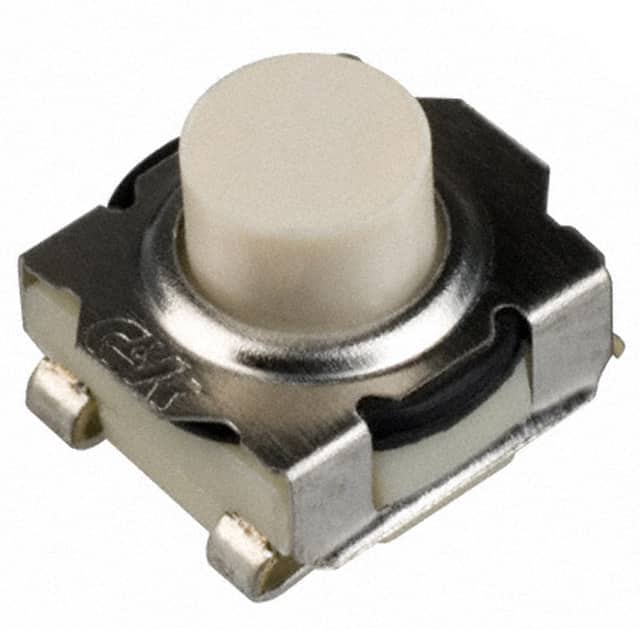

KT11P2JMSWITCH TACTILE SPST-NO 1VA 50V |
1,776 |
|
Datasheet |
KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Standard | Surface Mount | 5.36mm | 1VA @ 50VAC/DC | - | Top Actuated | J Lead | 6.38mm x 6.22mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | - | - | Sealed | -40°C ~ 90°C |
|
|
ADTSJW68SVTRSWITCH TACTILE SPST-NO 0.05A 12V |
4,216 |
|
Datasheet |
ADTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Flush | Surface Mount | 2.30mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Washable | -25°C ~ 70°C |
|
1.14.002.006/0000SWITCH TACTILE SPST-NO 0.1A 35V |
2,753 |
|
Datasheet |
MICON 5 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 3.80mm | 0.1A @ 35VAC/DC | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 450gf | - | Tactile Feedback | -40°C ~ 85°C |
|

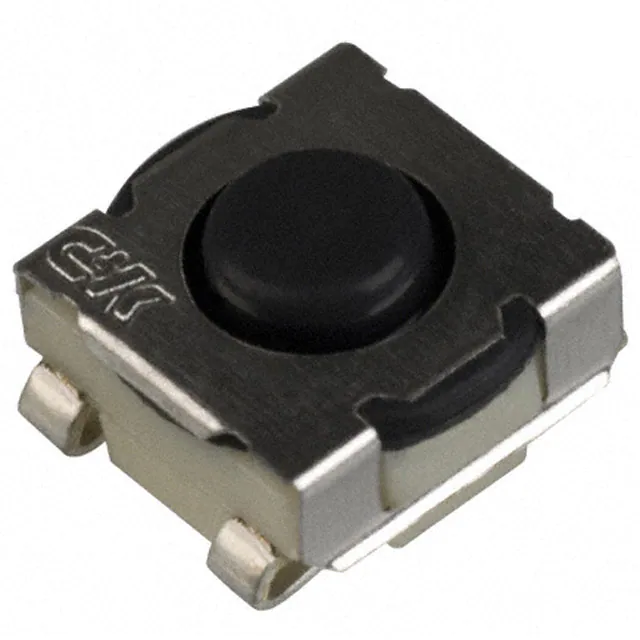

KT11B1JMSWITCH TACTILE SPST-NO 1VA 50V |
4,115 |
|
Datasheet |
KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Standard | Surface Mount | 3.64mm | 1VA @ 50VAC/DC | - | Top Actuated | J Lead | 6.38mm x 6.22mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | - | - | Sealed | -40°C ~ 90°C |
|
|
APTCFGP1VTRSWITCH TACTILE SPST-NO 0.05A 12V |
3,317 |
|
Datasheet |
APTC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.10mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 4.70mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -25°C ~ 70°C |
|
|
APTLGVTRSWITCH TACTILE SPST-NO 0.05A 12V |
3,241 |
|
Datasheet |
APTL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | Gull Wing | 4.70mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | Grounding Pin | -25°C ~ 70°C |
|
|
EITSGNK11WW1EITS SERIES TACTILE SWITCH |
1,255 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TL3240F160GYTSWITCH TACTILE SPST-NO 0.05A 12V |
3,553 |
|
Datasheet |
TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.80mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | - | LED, Green/Yellow | 160gf | 2 VDC | - | -25°C ~ 70°C |
|
|
ADTSMW68SVTRSWITCH TACTILE SPST-NO 0.05A 12V |
4,999 |
|
Datasheet |
ADTS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Flush | Surface Mount | 2.30mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Washable | -25°C ~ 70°C |
