| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

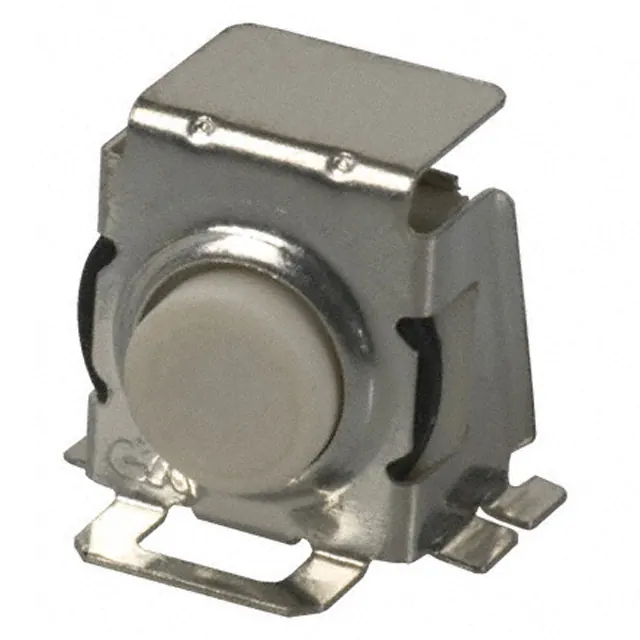

KT11P4SA2M33SWITCH TACTILE SPST-NO 1VA 50V |
1,497 |
|
Datasheet |
KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 50VAC/DC | - | Side Actuated | Gull Wing | 6.60mm x 6.60mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
KT11P4SA1M33SWITCH TACTILE SPST-NO 1VA 50V |
2,903 |
|
Datasheet |
KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 50VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 4.38mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
KT11P2SA3M33SWITCH TACTILE SPST-NO 1VA 50V |
1,025 |
|
Datasheet |
KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 1VA @ 50VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 4.61mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|

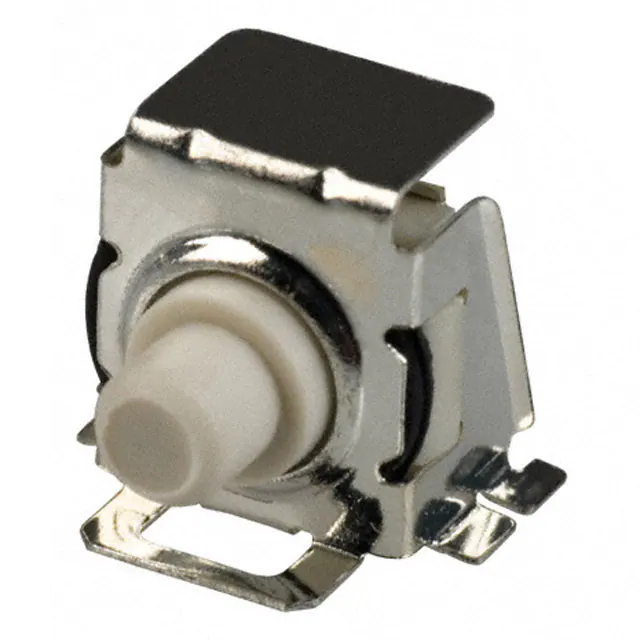

KT11S1SA2M33SWITCH TACTILE SPST-NO 1VA 50V |
3,416 |
|
Datasheet |
KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount, Right Angle | - | 1VA @ 50VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|

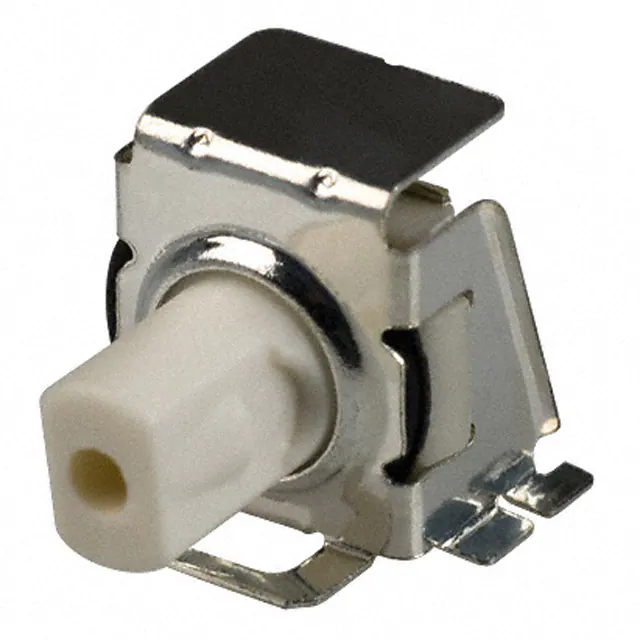

KT11S2SA2M33SWITCH TACTILE SPST-NO 1VA 50V |
1,006 |
|
Datasheet |
KT | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount, Right Angle | - | 1VA @ 50VAC/DC | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | IP57 - Dust Protected, Waterproof | - | 300gf | - | Sealed | -40°C ~ 90°C |
|
B3F-1062-GSWITCH TACTILE SPST-NO 0.05A 24V |
1,781 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | - | Through Hole | - | 0.05A @ 24VDC | - | - | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
|
320.05E11WHTSWITCH TACT SPST-NO 0.025A 50V |
4,889 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | Rectangular Button | Through Hole | 12.70mm | 0.025A @ 50VDC | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | White Cap | -20°C ~ 70°C |
|
|
228FMVAWBRSWITCH TACTILE SPST-NO 0.05A 12V |
2,103 |
|
Datasheet |
228F | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.70mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.50mm x 7.50mm | Illuminated | - | LED, White | 160gf | 2.8 VDC | - | -20°C ~ 70°C |
|
|
228FMVALBRSWITCH TACTILE SPST-NO 0.05A 12V |
2,849 |
|
Datasheet |
228F | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.70mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.50mm x 7.50mm | Illuminated | - | LED, Green | 160gf | 2 VDC | - | -20°C ~ 70°C |
|
|
228FMVARBRSWITCH TACTILE SPST-NO 0.05A 12V |
2,934 |
|
Datasheet |
228F | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.70mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.50mm x 7.50mm | Illuminated | - | LED, Blue/Red | 160gf | 2.1, 3.2 VDC | - | -20°C ~ 70°C |
|
|
228FMVAYBRSWITCH TACTILE SPST-NO 0.05A 12V |
1,124 |
|
Datasheet |
228F | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.70mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.50mm x 7.50mm | Illuminated | - | LED, Yellow | 160gf | 2.1 VDC | - | -20°C ~ 70°C |
|
|
228FMVAABRSWITCH TACTILE SPST-NO 0.05A 12V |
3,821 |
|
Datasheet |
228F | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.70mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.50mm x 7.50mm | Illuminated | - | LED, Amber | 160gf | 2 VDC | - | -20°C ~ 70°C |
|
|
EITSBUK11WW1EITS SERIES TACTILE SWITCH |
2,732 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EITSYGK11WW1EITS SERIES TACTILE SWITCH |
1,198 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EITSWHK11WW1EITS SERIES TACTILE SWITCH |
4,793 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EITSRGM11WW1EITS SERIES TACTILE SWITCH |
3,370 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTCFP1VTRSWITCH TACTILE SPST-NO 0.05A 12V |
1,475 |
|
Datasheet |
APTC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.10mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 4.70mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
|
APTCFP2VTRSWITCH TACTILE SPST-NO 0.05A 12V |
4,264 |
|
Datasheet |
APTC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 4.70mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
|
APTFP1VTRSWITCH TACTILE SPST-NO 0.05A 12V |
3,895 |
|
Datasheet |
APTF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.10mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 4.70mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
|
ATAS600VTRSWITCH TACTILE |
1,684 |
|
Datasheet |
ATAS | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
