| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTS830GG140SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
45,859 |
|
Datasheet |
PTS830 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.40mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 3.50mm x 2.60mm | Non-Illuminated | - | - | 450gf | - | - | -40°C ~ 85°C |
|
KMR213G LFGSWITCH TACTILE SPST-NO 0.01A 32V |
13,992 |
|
Datasheet |
KMR2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.90mm | 0.01A @ 32VDC | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 120gf | - | Grounding Pin | -40°C ~ 125°C |
|
TL4100AF240QGSWITCH TACTILE SPST-NO 0.05A 12V |
9,263 |
|
Datasheet |
TL4100 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Edge Mount, Right Angle | - | 0.05A @ 12VDC | 2.00mm | Side Actuated | Gull Wing | 6.20mm x 2.50mm | Non-Illuminated | - | - | 240gf | - | - | -40°C ~ 85°C |
|

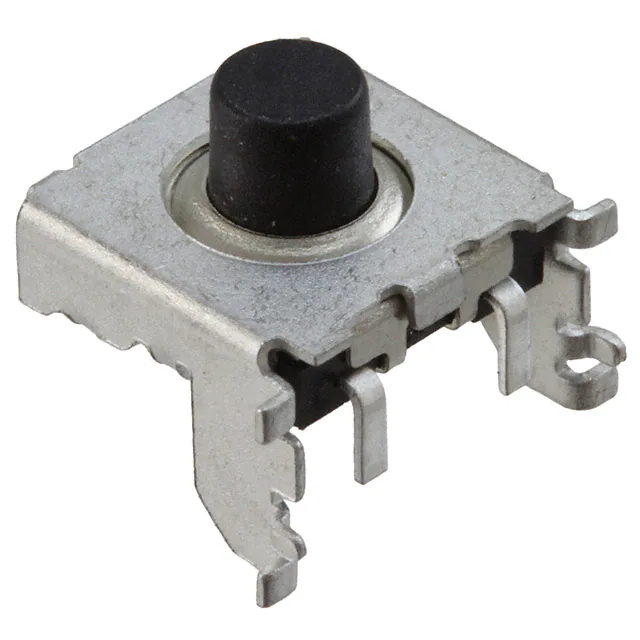

1571300-2SWITCH TACTILE SPST-NO 0.05A 24V |
4,225 |
|
Datasheet |
- | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 0.05A @ 24VDC | - | Side Actuated | SMD (SMT) Tab | 9.70mm x 5.50mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 130gf | - | Sealed - Fully | -35°C ~ 85°C |
|
TL4100AF120QGSWITCH TACTILE SPST-NO 0.05A 12V |
8,426 |
|
Datasheet |
TL4100 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Edge Mount, Right Angle | - | 0.05A @ 12VDC | 2.00mm | Side Actuated | Gull Wing | 6.20mm x 2.50mm | Non-Illuminated | - | - | 120gf | - | - | -40°C ~ 85°C |
|
|
EDSSC1 LFSSWITCH TACTILE SPST-NO 0.1A 100V |
617 |
|
Datasheet |
ED | Tray | Active | SPST-NO | Off-Mom | Snap Dome | Surface Mount | 1.20mm | 0.1A @ 100VAC/DC | - | Top Actuated | SMD (SMT) Tab | - | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 240gf | - | Sealed - Fully | -25°C ~ 70°C |
|

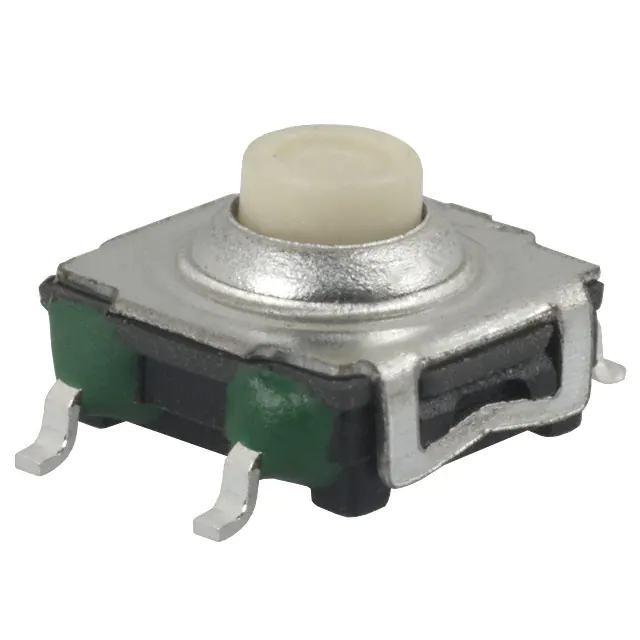

TL6120AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
7,791 |
|
Datasheet |
TL6120 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.70mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.40mm x 7.40mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
KSR211G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
13,852 |
|
Datasheet |
KSR | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | IP50 - Dust Protected | - | 180gf | - | - | -40°C ~ 85°C |
|
ILS TB250 10SWITCH TACTILE SPST-NO 0.1A 30V |
1,048 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 9.00mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Red | 250gf | 2.6 VDC | - | -40°C ~ 85°C |
|
|
PTS830GG140GSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
61,087 |
|
Datasheet |
PTS830 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.40mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 3.50mm x 2.60mm | Non-Illuminated | - | - | 450gf | - | Grounding Pin | -40°C ~ 85°C |
|
|
FSMMSHPSWITCH TACTILE SPST-NO 0.05A 12V |
8,270 |
|
Datasheet |
FSMMSH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 0.05A @ 12VDC | 3.40mm | Side Actuated | SMD (SMT) Tab | 4.50mm x 2.55mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
MJTPSMWBTRSWITCH TACTILE SPST-NO 0.05A 12V |
8,938 |
|
Datasheet |
MJTP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.70mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TLS A 100 T3J LFSSWITCH TACTILE SPST-NO 0.05A 16V |
8,202 |
|
Datasheet |
TLS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.95mm | 0.05A @ 16VDC | - | Top Actuated | J Lead | 8.40mm x 8.00mm | Non-Illuminated | IP54 - Dust Protected, Water Resistant | - | 1019gf | - | - | -40°C ~ 90°C |
|

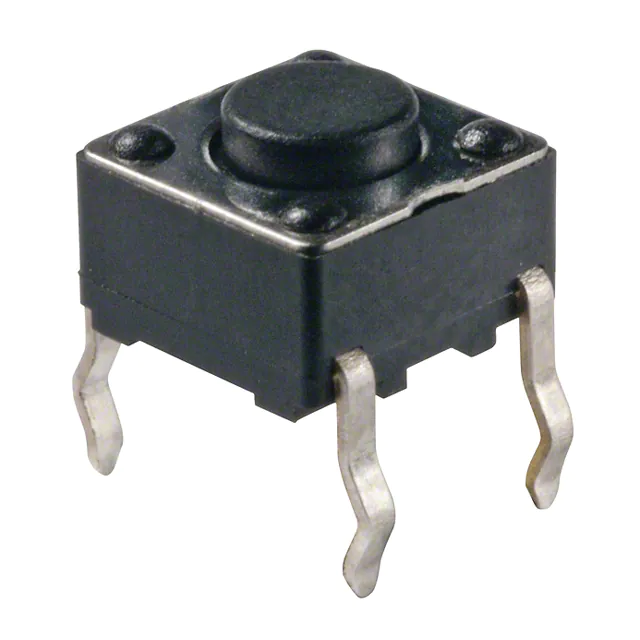

HP0215AFKP2SWITCH TACTILE SPST-NO 3VA 28V |
652 |
|
Datasheet |
HP02 | Box | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 3VA @ 28VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
HP0215AFKP2-SSWITCH TACTILE SPST-NO 3VA 28V |
271 |
|
Datasheet |
HP02 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 3VA @ 28VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
KSC403J 50SH LFGSWITCH TACTILE SPST-NO 0.01A 32V |
14,576 |
|
Datasheet |
KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.20mm | 0.01A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 120gf | - | - | -40°C ~ 125°C |
|
KSR221GNCLFSSWITCH TACTILE SPST-NC 0.05A 32V |
7,251 |
|
Datasheet |
KSR | Tape & Reel (TR) | Active | SPST-NC | On-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | IP50 - Dust Protected | - | 200gf | - | - | -40°C ~ 85°C |
|

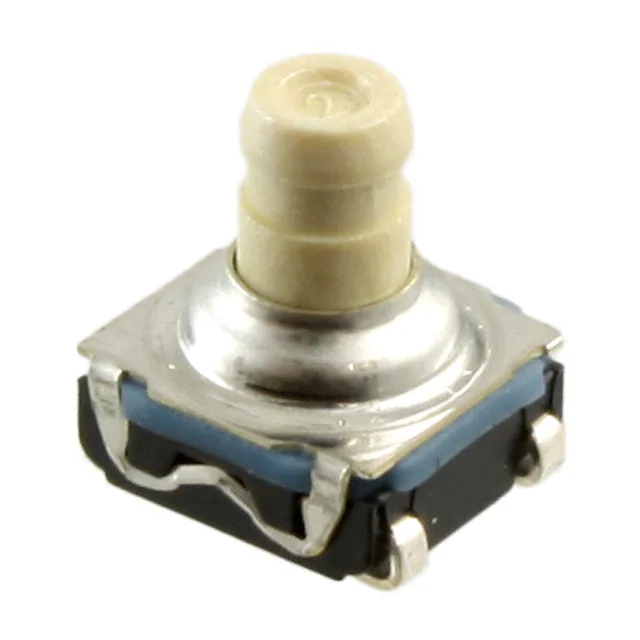

KSC931J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
28,761 |
|
Datasheet |
KSC9 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.70mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 255gf | - | - | -40°C ~ 85°C |
|
|
KSC941J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
1,572 |
|
Datasheet |
KSC9 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.70mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 340gf | - | - | -40°C ~ 85°C |
|
|
KSC921J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
1,937 |
|
Datasheet |
KSC9 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 7.70mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 170gf | - | - | -40°C ~ 85°C |
