Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Output Code | Read Out | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Number of Sections | Contact Material | Contact Finish | Mounting Style | Termination Style | End Caps | Operating Temperature | Section Width | Features | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A7BS-254-1SWITCH THUMB HEX 0.1A 50V |
3,394 |
|
Datasheet |
A7BS | Bulk | Active | Hexadecimal | 0 ~ 9, A ~ F | 0.126" (3.20mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | - | - |
|
A7PS-206-1SWITCH THUMB BCD 0.1A 50V |
2,896 |
|
Datasheet |
A7PS | Bulk | Active | BCD | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|

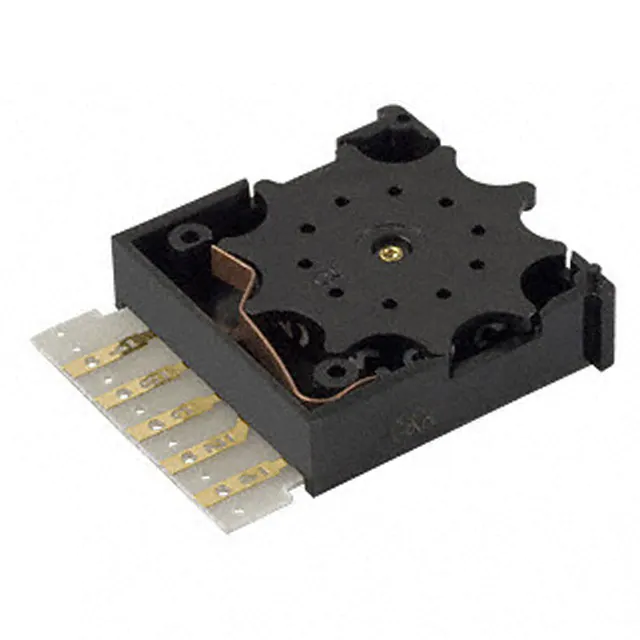

302309000SWITCH THUMB BCD COMP 0.1A 120V |
3,756 |
|
Datasheet |
3 | Tray | Active | BCD Complement | 0 ~ 9 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | 1 | Copper Alloy | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -40°C ~ 65°C | 0.315" (8.00mm) | - | - |
|
84212019SWITCH THUMB BCD 0.1A 250V |
3,105 |
|
Datasheet |
84212 | Bulk | Active | BCD | 0 ~ 9 | 0.240" (6.00mm) | Rocker | 0.1A @ 250VAC/50VDC | 1 | Copper | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -25°C ~ 70°C | 0.492" (12.50mm) | Colored Wheel, Red | - |
|
A7D-206SWITCH THUMB BCD 0.1A 30V |
4,228 |
|
Datasheet |
A7D | Tray | Active | BCD | 0 ~ 9 | - | Pushwheel | 0.1A @ 30VDC | 1 | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | -10°C ~ 70°C | 0.200" (5.08mm) | - | - |
|
|
A7BS-206-SSWITCH THUMB BCD 0.1A 50V |
100 |
|
Datasheet |
A7BS | Tray | Active | BCD | 0 ~ 9 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | External Stoppers | - |
|
|
A7BS-206SWITCH THUMB BCD 0.1A 50V |
2,695 |
|
Datasheet |
A7BS | Tray | Active | BCD | 0 ~ 9 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | - | - |
|
A7PS-206SWITCH THUMB BCD 0.1A 50V |
1,682 |
|
Datasheet |
A7PS | Tray | Active | BCD | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|
|
A7PS-206-PMSWITCH THUMB SPDT 0.1A 50V |
1,503 |
|
Datasheet |
A7PS | Tray | Active | SPDT | +/- | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|
DPS9301AK2SWITCH THUMB HEX 0.1A 40V |
3,996 |
|
Datasheet |
DPS9 | Tray | Active | Hexadecimal | 0 ~ 9, A ~ F | 0.169" (4.30mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | - |
|
|
A7PH-206-1SWITCH THUMB BCD 0.15A 125V |
4,711 |
|
Datasheet |
A7PH | Bulk | Active | BCD | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|

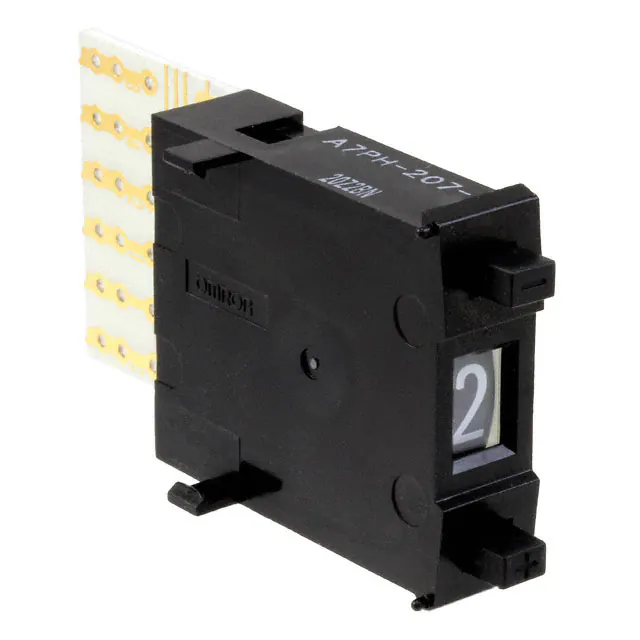

A7PH-207-1SWITCH THUMB BCD 0.15A 125V |
4,485 |
|
Datasheet |
A7PH | Bulk | Active | BCD | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|

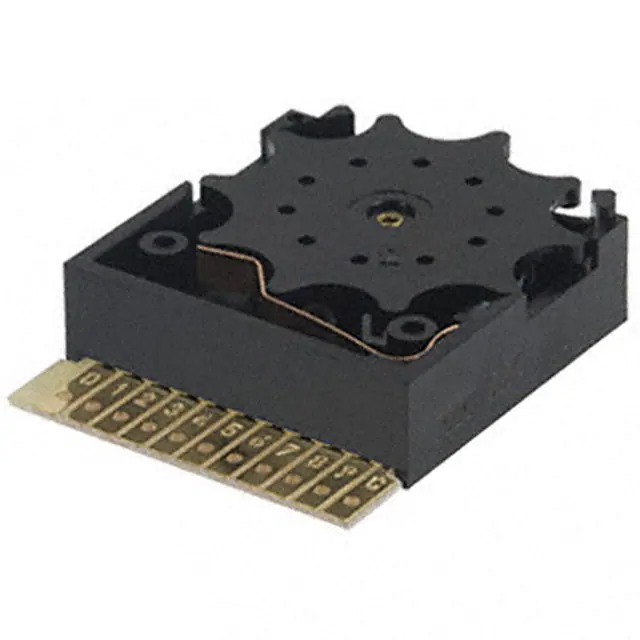

301119000SWITCH THUMB DECIMAL 0.1A 120V |
3,494 |
|
Datasheet |
3 | Tray | Active | Decimal | 0 ~ 9 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | 1 | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | -40°C ~ 65°C | 0.350" (8.89mm) | - | - |
|
A7DP-206-S07-1SWITCH THUMB BCD 0.1A 30V |
3,147 |
|
Datasheet |
A7DP | Bulk | Active | BCD | 0 ~ 7 | - | Pushwheel | 0.1A @ 30VDC | 1 | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | -10°C ~ 70°C | 0.200" (5.08mm) | Internal Stoppers, Pen-Push Actuator | - |
|
A7D-106SWITCH THUMB BCD 0.1A 30V |
1,573 |
|
Datasheet |
A7D | Tray | Active | BCD | 0 ~ 9 | - | Pushwheel | 0.1A @ 30VDC | 1 | - | - | Panel Mount, Screw | PC Pin | Sold Separately | -10°C ~ 70°C | 0.200" (5.08mm) | - | - |
|
A7BS-207SWITCH THUMB BCD 0.1A 50V |
2,023 |
|
Datasheet |
A7BS | Tray | Active | BCD | 0 ~ 9 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | - | - |
|
A7BS-206-PM-1SWITCH THUMB SPDT 0.1A 50V |
2,729 |
|
Datasheet |
A7BS | Tray | Active | SPDT | +/- | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | - | - |
|
A7BS-207-PM-1SWITCH THUMB SPDT 0.1A 50V |
1,925 |
|
Datasheet |
A7BS | Tray | Active | SPDT | +/- | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | - | - |
|
|
A7PS-207-1SWITCH THUMB BCD 0.1A 50V |
1,766 |
|
Datasheet |
A7PS | Tray | Active | BCD | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|
|
A7CN-L206-1SWITCH THUMB BCD 0.1A 28V |
4,102 |
|
Datasheet |
A7CN | Tube | Active | BCD | 0 ~ 9 | 0.134" (3.40mm) | Pushwheel | 0.1A @ 28VDC | 1 | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | -10°C ~ 65°C | 0.236" (6.00mm) | Locking Actuator | - |
