Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Output Code | Read Out | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Number of Sections | Contact Material | Contact Finish | Mounting Style | Termination Style | End Caps | Operating Temperature | Section Width | Features | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A7PH-207SWITCH THUMB BCD 0.15A 125V |
3,149 |
|
Datasheet |
A7PH | Tray | Active | BCD | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|
DPS9141AK2SWITCH THUMB BCD COMP 0.1A 40V |
1,128 |
|
Datasheet |
DPS9 | Tray | Active | BCD with Complement | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | - |
|
|
A7PS-255SWITCH THUMB HEX 0.1A 50V |
1,190 |
|
Datasheet |
A7PS | Tray | Active | Hexadecimal | 0 ~ 9, A ~ F | 0.157" (4.00mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|

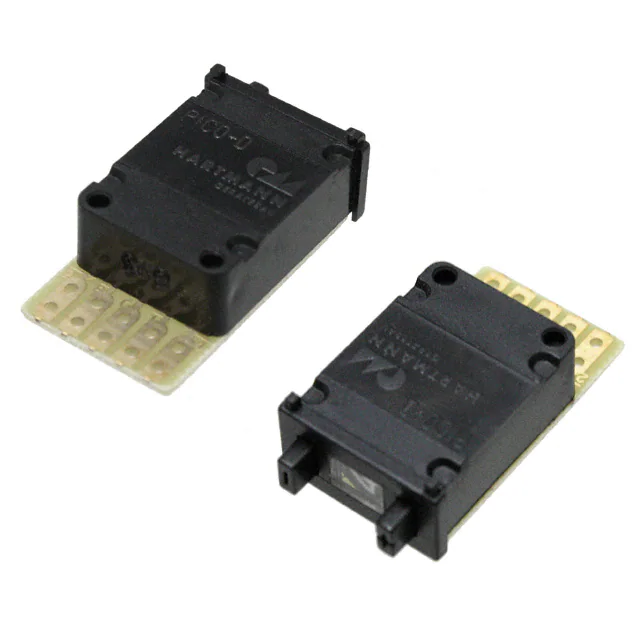

1-1437601-8SWITCH THUMB BCD COMP 0.4VA 20V |
1,979 |
|
Datasheet |
PICOD | Bulk | Active | BCD Complement | 0 ~ 9 | 0.122" (3.10mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 60°C | 0.300" (7.62mm) | - | - |
|

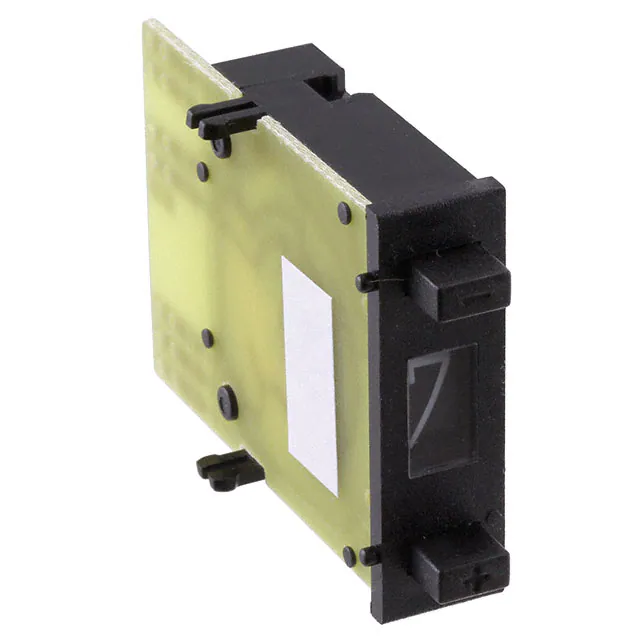

DPS10131AKSWITCH THUMB BCD 0.4VA 20V |
2,052 |
|
Datasheet |
DPS10 | Bulk | Active | BCD | 0 ~ 9 | 0.275" (7.00mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.394" (10.00mm) | - | - |
|
|
A7PH-207-D-1SWITCH THUMB BCD 0.15A 125V |
3,272 |
|
Datasheet |
A7PH | Tube | Active | BCD | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | Diode | - |
|

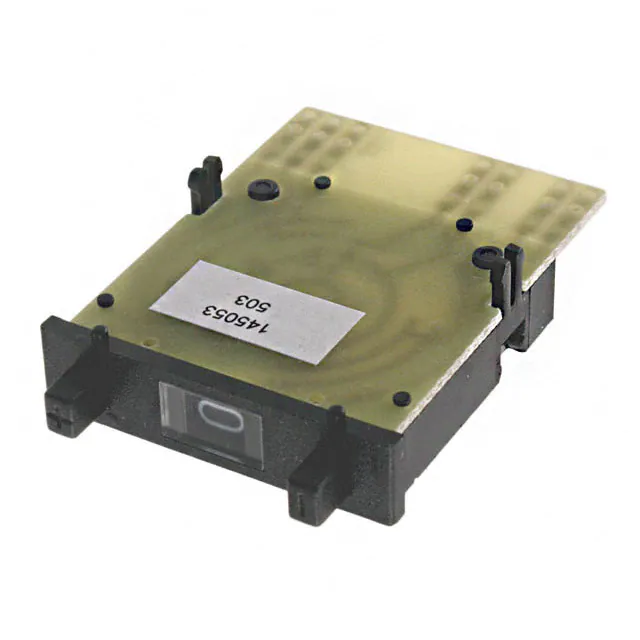

4-1437603-7SWITCH THUMB HEX 0.4VA 20V |
4,844 |
|
Datasheet |
DPS9 | Bulk | Active | Hexadecimal | 0 ~ 15 | 0.169" (4.30mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | - |
|
|
A7PH-206SWITCH THUMB BCD 0.15A 125V |
1,671 |
|
Datasheet |
A7PH | Tray | Active | BCD | 0 ~ 9 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|
|
A7DP-206-PM-1SWITCH THUMB SPDT 0.1A 30V |
2,402 |
|
Datasheet |
A7DP | Bulk | Active | SPDT | +/- | - | Pushwheel | 0.1A @ 30VDC | 1 | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | -10°C ~ 70°C | 0.200" (5.08mm) | Pen-Push Actuator | - |
|
|
A7CN-206-PM-1SWITCH THUMB SPDT 0.1A 28V |
1,358 |
|
Datasheet |
A7CN | Tube | Active | SPDT | +/- | 0.134" (3.40mm) | Pushwheel | 0.1A @ 28VDC | 1 | - | - | Panel Mount, Snap-In | PC Pin | Sold Separately | -10°C ~ 65°C | 0.236" (6.00mm) | - | - |
|
|
A7BS-207-PMSWITCH THUMB SPDT 0.1A 50V |
2,583 |
|
Datasheet |
A7BS | Tray | Active | SPDT | +/- | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | - | - |
|

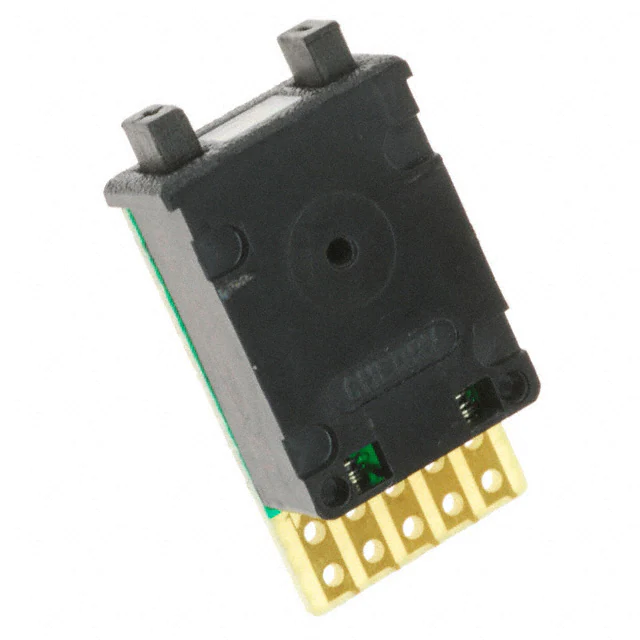

PACA-3000SWITCH THUMB BCD 0.1A 50V |
3,842 |
|
Datasheet |
PA | Bulk | Obsolete | BCD | 0 ~ 9 | 0.120" (3.00mm) | Pushwheel | 0.1A @ 50VAC/DC | 1 | - | Gold Alloy | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.300" (7.62mm) | - | - |
|
|
A7PS-206-PM-1SWITCH THUMB SPDT 0.1A 50V |
2,460 |
|
Datasheet |
A7PS | Tray | Active | SPDT | +/- | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.394" (10.00mm) | - | - |
|
|
A7BL-207-1SWITCH THUMB BCD 0.1A 50V |
3,777 |
|
Datasheet |
A7BL | Tray | Active | BCD | 0 ~ 9 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | Locking Actuator | - |
|
302129000SWITCH THUMB BCD 0.1A 120V |
2,506 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | 1 | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | -40°C ~ 65°C | 0.350" (8.89mm) | - | - |
|
302319000SWITCH THUMB BCD COMP 0.1A 120V |
4,196 |
|
Datasheet |
3 | Bulk | Obsolete | BCD Complement | 0 ~ 9 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | 1 | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | -40°C ~ 65°C | 0.350" (8.89mm) | - | - |
|
|
A7D-4106-67-1SWITCH THUMB |
4,465 |
|
Datasheet |
A7D | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
303119000SWITCH THUMB BCD 0.1A 120V |
4,738 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | 1 | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | -40°C ~ 65°C | 0.350" (8.89mm) | - | - |
|
|
302129100SWITCH THUMB BCD 0.1A 120V/28V |
4,808 |
|
Datasheet |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | 1 | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad with Component Mounting | Sold Separately | -40°C ~ 65°C | 0.350" (8.89mm) | - | - |
|
|
DPS10301AKSWITCH THUMB HEX 0.4VA 20V |
1,296 |
|
Datasheet |
DPS10 | Bulk | Obsolete | Hexadecimal | 0 ~ 9, A ~ F | 0.169" (4.30mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.394" (10.00mm) | - | - |
