Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Output Code | Read Out | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Number of Sections | Contact Material | Contact Finish | Mounting Style | Termination Style | End Caps | Operating Temperature | Section Width | Features | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A7BS-206-10-1SWITCH THUMB BCD 0.1A 50V |
4,822 |
|
Datasheet |
A7BS | Bulk | Active | BCD | 0 ~ 9 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | Red Characters | - |
|
|
DPS10X2PUSHWHEEL DPS10 |
2,314 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMCD111AL2SWITCH THUMB DECIMAL 0.1A 40V |
4,107 |
|
Datasheet |
SMCD | Tray | Active | Decimal | 0 ~ 9 | 0.193" (4.90mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -20°C ~ 80°C | 0.300" (7.62mm) | - | - |
|
|
SMCD131AL2SWITCH THUMB BCD 0.1A 40V |
4,595 |
|
Datasheet |
SMCD | Tray | Active | BCD | 0 ~ 9 | 0.193" (4.90mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -20°C ~ 80°C | 0.300" (7.62mm) | - | - |
|
|
A7BS-206-S04SWITCH THUMB BCD 0.1A 50V |
1,652 |
|
Datasheet |
A7BS | Bulk | Active | BCD | 0 ~ 9 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | 1 | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 65°C | 0.315" (8.00mm) | Internal Stoppers | - |
|

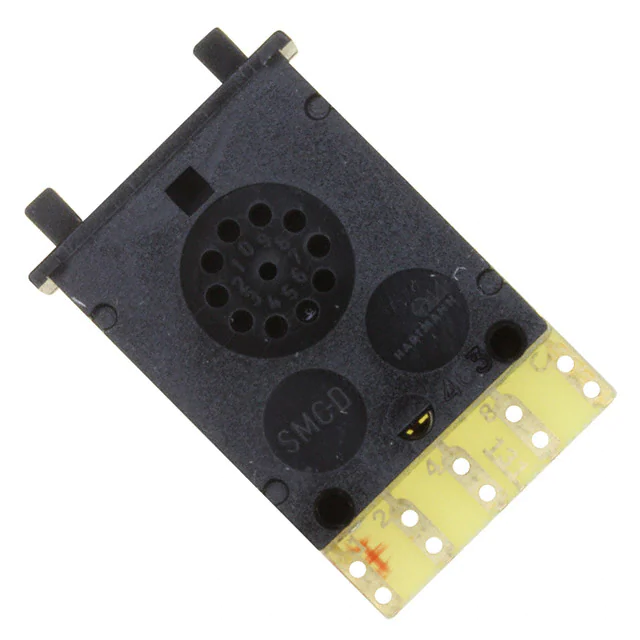

SMCD131AKSWITCH THUMB BCD 0.4VA 20V |
1,476 |
|
Datasheet |
SMCD | Bulk | Discontinued | BCD | 0 ~ 9 | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | - | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.300" (7.62mm) | - | - |
|
|
SMCD400AL2PUSHWHEEL SMCD |
1,426 |
|
Datasheet |
SMCD | Bulk | Active | SPDT | +/- | 0.193" (4.90mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | Rectangular - 22.50mm x 7.62mm |
|
|
PICO137AKSWITCH THUMB BCD COMP 0.4VA 20V |
1,702 |
|
Datasheet |
PICO | Bulk | Obsolete | BCD Complement | 0 ~ 9 | 0.122" (3.10mm) | Pushwheel | 0.4VA @ 20VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -10°C ~ 60°C | 0.300" (7.62mm) | - | - |
|
|
SH6400AK2PUSHWHEEL SH6 |
3,230 |
|
Datasheet |
SH6 | Bulk | Active | SPDT | +/- | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.236" (6.00mm) | - | Rectangular - 14.20mm x 6.00mm |
|
|
SMCD137AL2PUSHWHEEL SMCD |
2,046 |
|
Datasheet |
SMCD | Bulk | Active | BCD Complement | 0 ~ 9 | 0.193" (4.90mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | -20°C ~ 80°C | 0.315" (8.00mm) | - | Rectangular - 22.50mm x 7.62mm |
|
|
SH6G131AK2SWITCH THUMB BCD 0.1A 40V |
3,543 |
|
Datasheet |
SH6 | Tray | Active | BCD | 0 ~ 9 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount | Card Edge/Solder Pad | - | -20°C ~ 80°C | 0.236" (6.00mm) | - | Rectangular - 14.20mm x 6.00mm |
|
|
SH6131AK2SWITCH THUMB BCD 0.1A 40V |
2,574 |
|
Datasheet |
SH6 | Tray | Active | BCD | 0 ~ 9 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | - | -20°C ~ 80°C | 0.236" (6.00mm) | - | Rectangular - 14.20mm x 6.00mm |
|
|
SH6131AKK2SWITCH THUMB BCD 0.1A 40V |
1,242 |
|
Datasheet |
SH6 | Tray | Active | BCD | 0 ~ 9 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin | - | -20°C ~ 80°C | 0.236" (6.00mm) | - | Rectangular - 14.20mm x 6.00mm |
|
|
SH6G400AKK2PUSHWHEEL SH6 |
1,490 |
|
Datasheet |
SH6 | Bulk | Active | SPDT | +/- | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin | Sold Separately | -20°C ~ 80°C | 0.236" (6.00mm) | - | Rectangular - 14.20mm x 6.00mm |
|
|
SH6G400AK2PUSHWHEEL SH6 |
2,724 |
|
Datasheet |
SH6 | Bulk | Active | SPDT | +/- | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.236" (6.00mm) | - | Rectangular - 14.20mm x 6.00mm |
|
|
SH6400AKK2PUSHWHEEL SH6 |
4,149 |
|
Datasheet |
SH6 | Bulk | Active | SPDT | +/- | 0.122" (3.10mm) | Pushwheel | 100mA @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.236" (6.00mm) | - | Rectangular - 14.20mm x 6.00mm |
|
PICOD137AK2SWITCH THUMB BCD COMP 0.1A 40V |
3,574 |
|
Datasheet |
PICOD | Tray | Active | BCD Complement | 0 ~ 9 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 60°C | 0.300" (7.62mm) | - | - |
|
|
PICOD301AK2SWITCH THUMB HEX 0.1A 40V |
4,422 |
|
Datasheet |
PICOD | Tray | Active | Hexadecimal | 0 ~ 9, A ~ F | 0.094" (2.39mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 60°C | 0.300" (7.62mm) | - | - |
|
|
SMCD301AK2SWITCH THUMB HEX 0.1A 40V |
2,389 |
|
Datasheet |
SMCD | Tray | Active | Hexadecimal | 0 ~ 9, A ~ F | 0.134" (3.40mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Tin Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 80°C | 0.300" (7.62mm) | - | - |
|
|
PICOD111AL2SWITCH THUMB DECIMAL 0.1A 40V |
1,680 |
|
Datasheet |
PICOD | Tray | Active | Decimal | 0 ~ 9 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | 1 | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | -20°C ~ 60°C | 0.300" (7.62mm) | - | - |
