Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

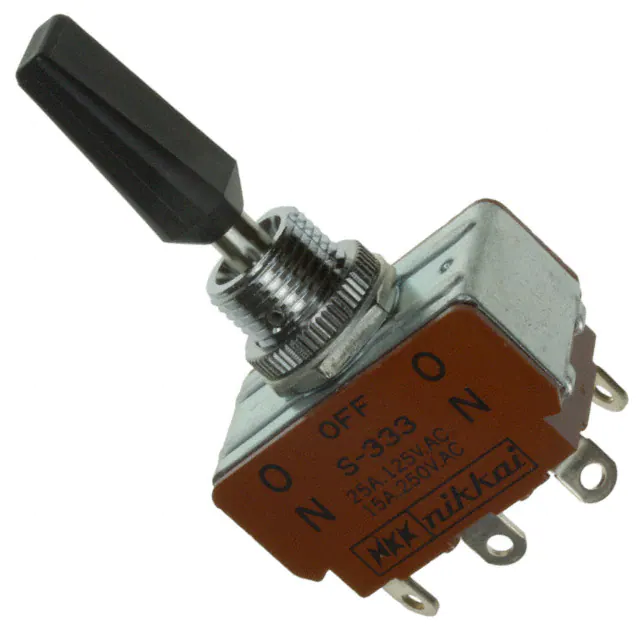

S333RSWITCH TOGGLE DPDT 20A 125V |
3,769 |
|
Datasheet |
S300R | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Flatted | 27.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Black Actuator | -10°C ~ 70°C |
|
7201K9AGESWITCH TOGGLE DPDT 5A 120V |
1,105 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203K2ZQESWITCH TOGGLE DPDT 5A 120V |
4,759 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S33SWITCH TOGGLE 3PDT 20A 125V |
1,819 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
S41SWITCH TOGGLE 4PST 20A 125V |
3,833 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

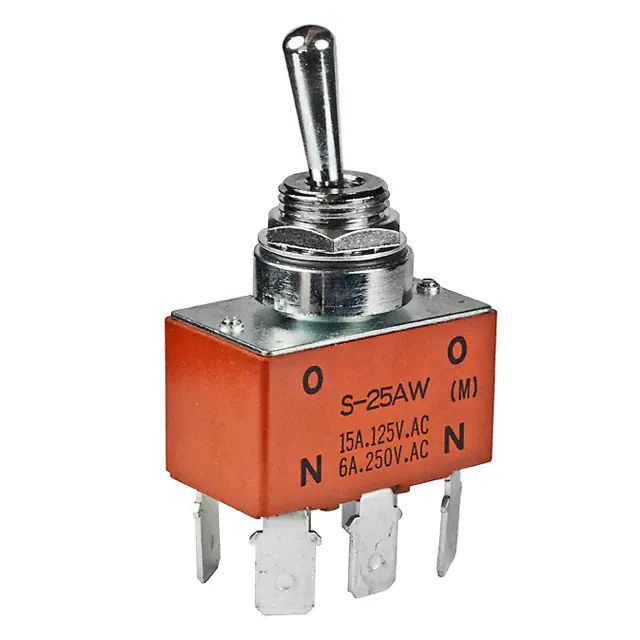

S25AWFSWITCH TOGGLE DPDT 15A 125V |
3,775 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
649HSWITCH TOGGLE DPDT 10A 250V |
1,051 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|

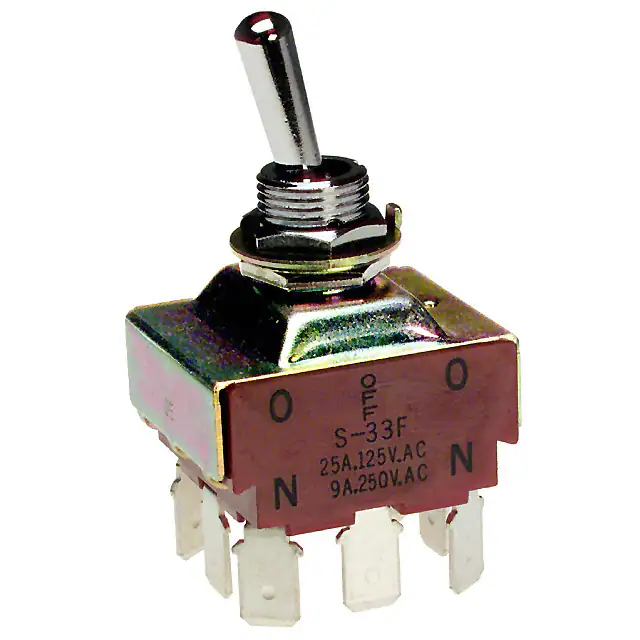

S33FSWITCH TOGGLE 3PDT 20A 125V |
4,207 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
645H/2SWITCH TOGGLE DPDT 10A 250V |
1,139 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|

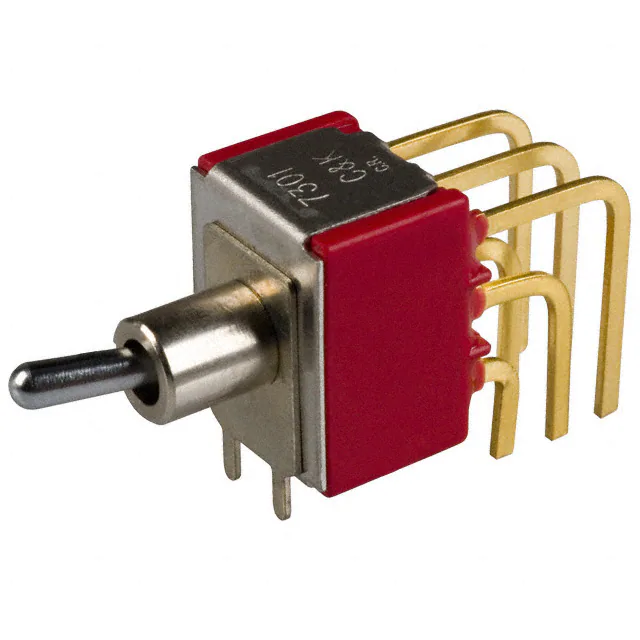

7301MD9ABESWITCH TOGGLE 3PDT 0.4VA 20V |
2,955 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S38SWITCH TOGGLE 3PDT 15A 125V |
2,655 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
.jpg)
|
S45SWITCH TOGGLE 4PDT 15A 125V |
1,324 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

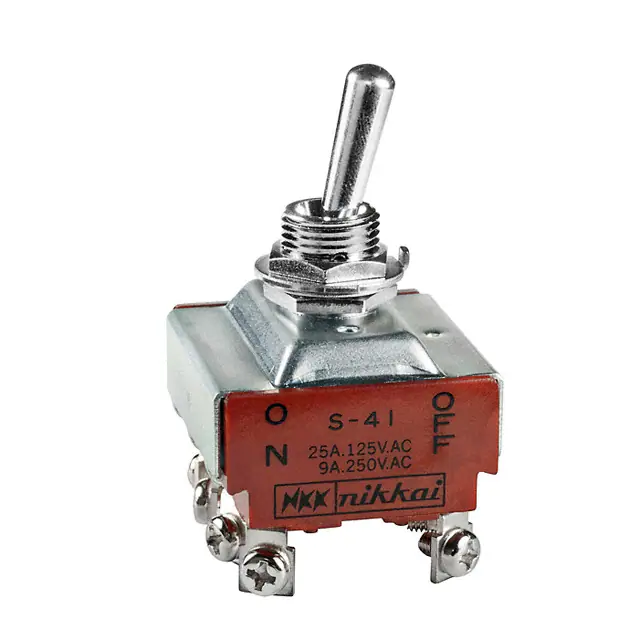

S41TSWITCH TOGGLE 4PST 20A 125V |
4,925 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

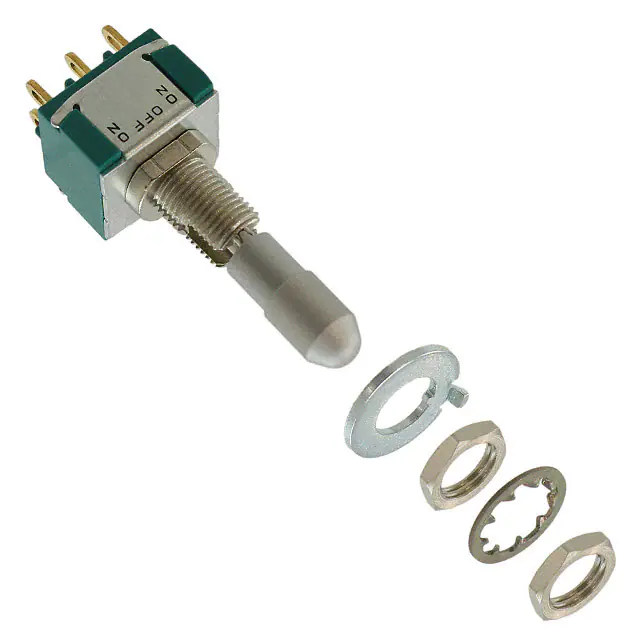

MTL206PSWITCH TOGGLE DPDT 6A 125V |
2,835 |
|
Datasheet |
MTL Green | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Off-On | Locking Lever | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

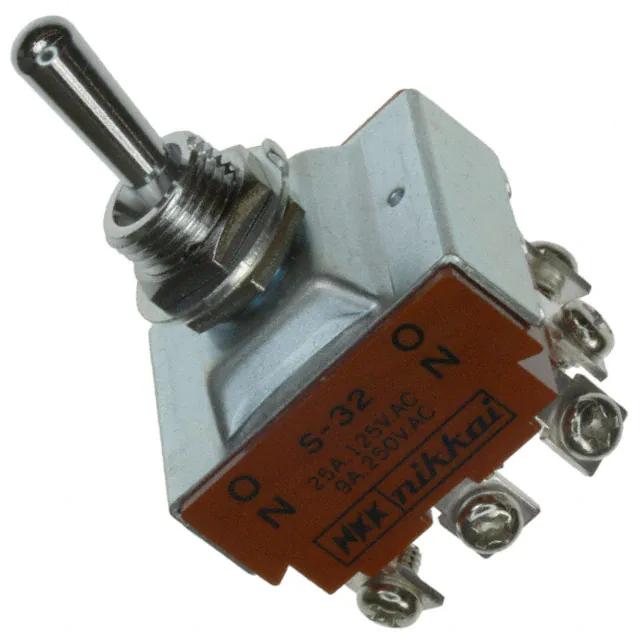

S32TSWITCH TOGGLE 3PDT 20A 125V |
3,472 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
31NT91-2SWITCH TOGGLE SPST 15A 125V |
4,178 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
55065-03SWITCH TOGGLE DPDT 25A 12V |
4,247 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 25A (DC) | - | 12 V | Mom-Off-Mom | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
|

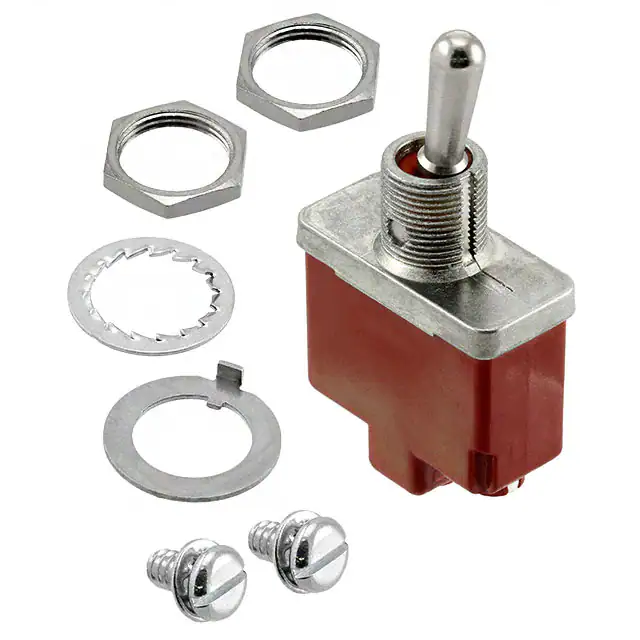

CT31001N000SWITCH TOGGLE SPST 10A 125V |
4,875 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPST | 10A (AC), 15A (DC) | 125 V | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|
7301K2ZQESWITCH TOGGLE 3PDT 5A 120V |
4,457 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
55065-02SWITCH TOGGLE DPDT 15A 24V |
4,388 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 15A (DC) | - | 24 V | Mom-Off-Mom | Standard Round | 38.10mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
