Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN18WBG01SWITCH TOGGLE |
3,466 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 20.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|

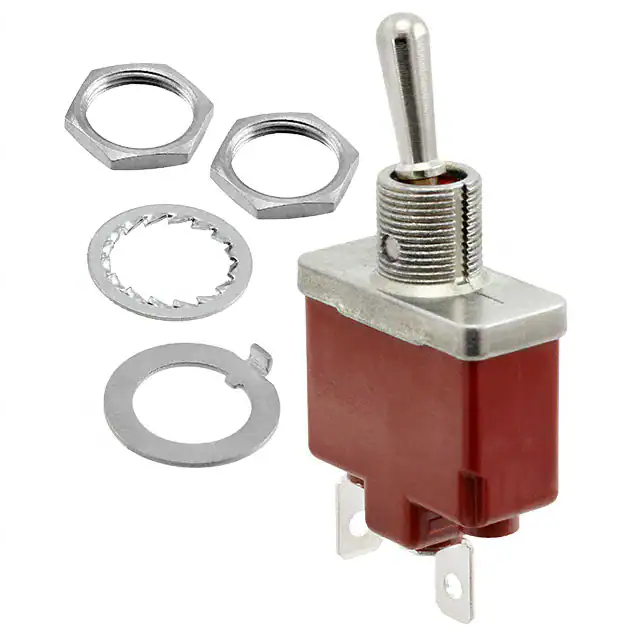

CT33021N000SWITCH TOGGLE SPST 10A 125V |
4,910 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPST | 10A (AC), 15A (DC) | 125 V | 28 V | Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder, Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|
2NT1-3SWITCH TOGGLE DPDT 15A 125V |
2,914 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|

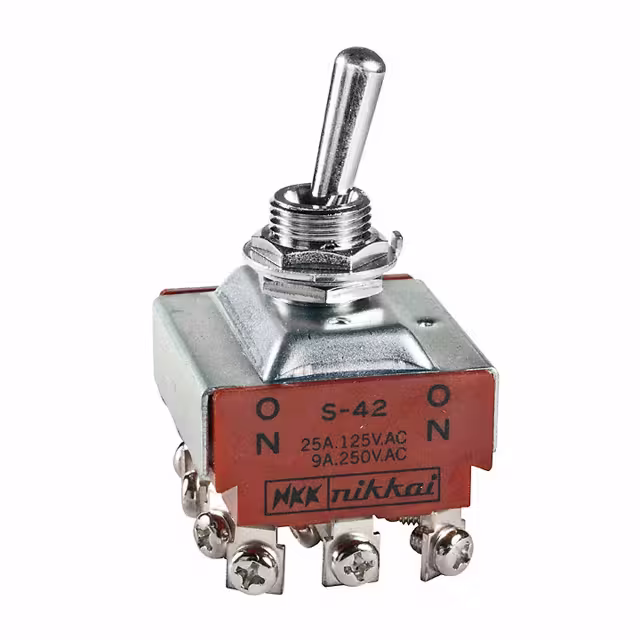

S42TSWITCH TOGGLE 4PDT 20A 125V |
3,666 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
S2AWBSWITCH TOGGLE SPDT 15A 125V |
4,467 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Waterproof Boot | -30°C ~ 70°C |
|

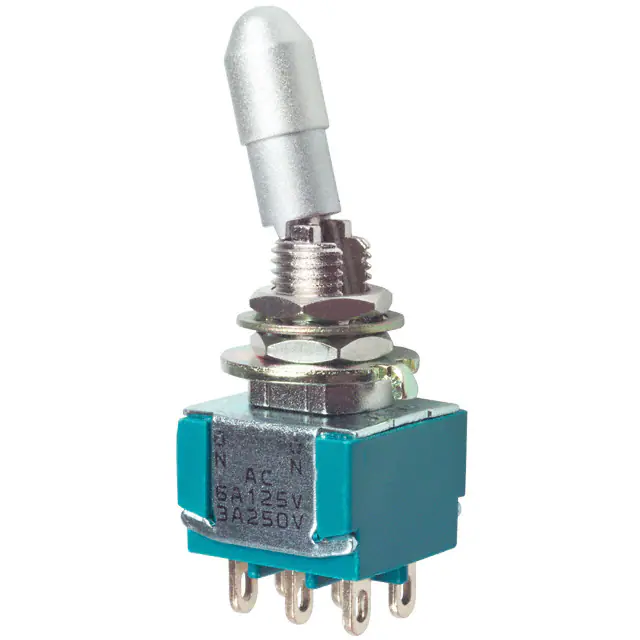

MTL206NSWITCH TOGGLE DPDT 6A 125V |
3,785 |
|
Datasheet |
MTL Green | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Locking Lever | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
31NT391-7-C08SWITCH TOGGLE SPDT 10A 125V |
3,189 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Flatted | 22.35mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Yellow Actuator | -40°C ~ 71°C |
|
7411SYZQESWITCH TOGGLE DP3T 5A 120V |
4,500 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
55046SWITCH TOGGLE DPDT 15A 24V |
2,459 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 15A (DC) | - | 24 V | Mom-Off-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | Polarity Reversing | - |
|

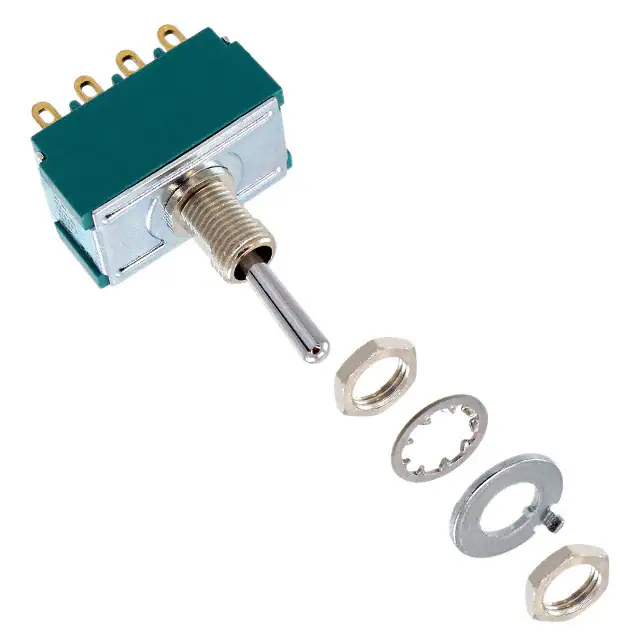

MTA406NSWITCH TOGGLE 4PDT 6A 125V |
4,881 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

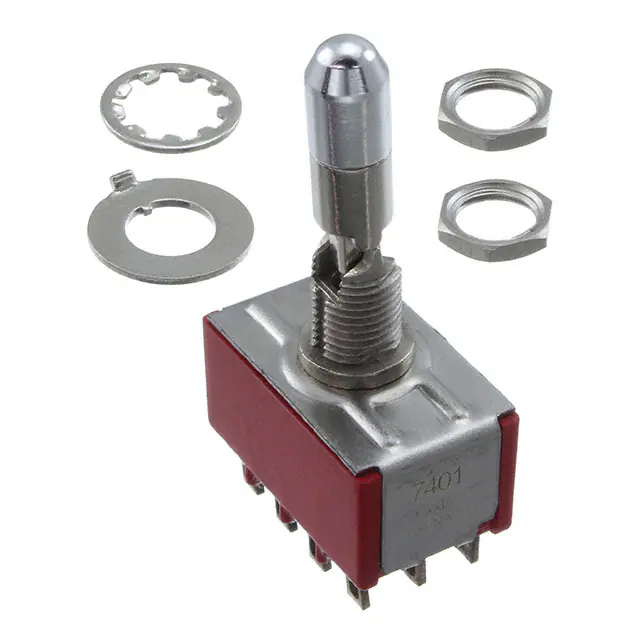

7401K2ZQESWITCH TOGGLE 4PDT 5A 120V |
3,930 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5637MABSWITCH TOGGLE SPDT 6A 125V |
4,647 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
7401P3D9CQESWITCH TOGGLE 4PDT 5A 120V |
3,325 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1TL1-4SWITCH TOGGLE SPST-NC 10A 125V |
4,724 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST-NC | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

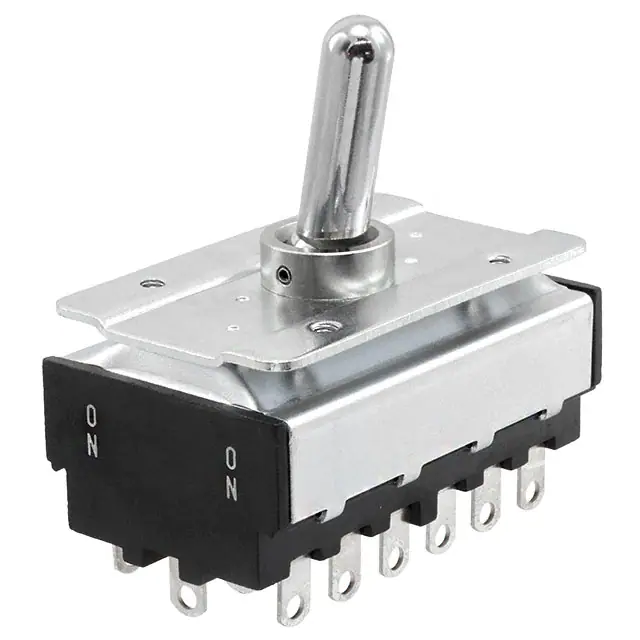

ET620N13-ZSWITCH TOGGLE 6PDT 20A 125V |
2,288 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | 6PDT | 20A (AC) | 125 V | - | On-On | Standard Round | 27.00mm | Non-Illuminated | - | - | - | Solder Lug | Unthreaded | Circular - 15.50mm Dia | - | - |
|

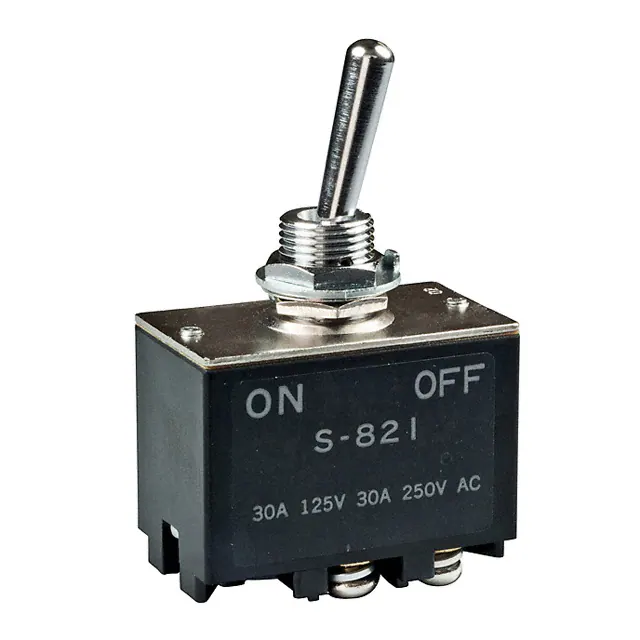

S821/C-ULSWITCH TOGGLE DPST 30A 125V |
4,323 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | 30A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
3646NF/2SWITCH TOGGLE DPDT 6A 125V |
4,766 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | DPDT | 6A (AC), 12A (DC) | 125 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | Sealed | -40°C ~ 85°C |
|
S823SWITCH TOGGLE DPDT 30A 125V |
1,945 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 30A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
1TL1-8SWITCH TOGGLE SPDT 10A 125V |
3,519 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
7411TZQESWITCH TOGGLE DP3T 5A 120V |
4,265 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
