Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2022EA1W03SWITCH TOGGLE DPDT 6A 125V |
2,844 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 13.21mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A13KBSWITCH TOGGLE SPDT 0.4VA 28V |
4,460 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
A13HHSWITCH TOGGLE SPDT 0.4VA 28V |
3,787 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
3-1825142-0SWITCH TOGGLE SPDT 0.4VA 20V |
4,555 |
|
Datasheet |
Gemini AE | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
AE103SD1CB04SWITCH TOGGLE SPDT |
2,891 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
M2012E4S4W01SWITCH TOGGLE SPDT 6A 125V |
4,113 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 21.30mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP12B3M1QTSWITCH TOGGLE SPDT 5A 125V |
2,414 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
A1SAHSWITCH TOGGLE SPDT 0.4VA 28V |
1,404 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
34CMDP14B7M1QTSWITCH TOGGLE DPDT 3A 125V |
2,779 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 11.68mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2023SD3W01-BASWITCH TOGGLE DPDT 6A 125V |
4,684 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
ET206K12-ZSWITCH TOGGLE DPST 6A 125V |
1,500 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPST | 6A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
|
5238WCDB16X404SWITCH TOGGLE SPDT 0.4VA 20V |
2,086 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 7.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
B22HWSWITCH TOGGLE DPDT 0.4VA 28V |
3,375 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A13KVSWITCH TOGGLE SPDT 0.4VA 28V |
1,620 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A13EVSWITCH TOGGLE SPDT 0.4VA 28V |
4,977 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

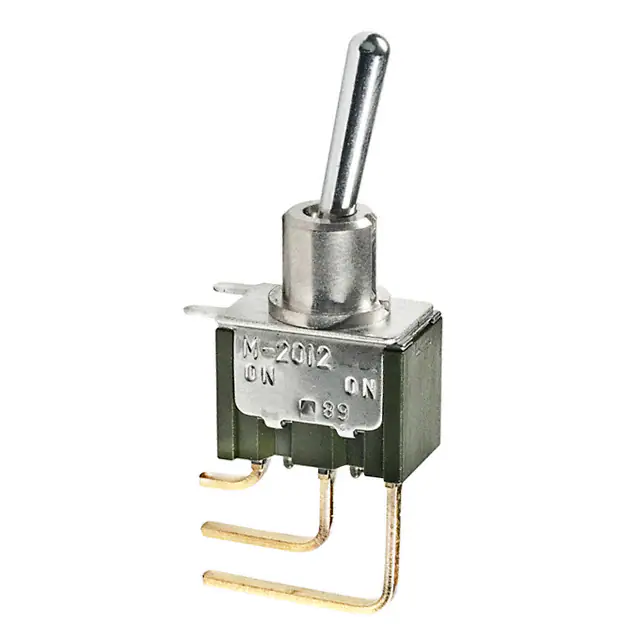

M2012SA2G40SWITCH TOGGLE SPDT 0.4VA 28V |
3,443 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B22EWSWITCH TOGGLE DPDT 0.4VA 28V |
3,023 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22J2PSWITCH TOGGLE DPDT 0.4VA 28V |
3,183 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Antistatic Bat | -30°C ~ 85°C |
|
|
34ASP11B9M2QTSWITCH TOGGLE SPDT 5A 125V |
1,849 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
M2025SS1W03-CGSWITCH TOGGLE DPDT 6A 125V |
2,086 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Blue Cap | -30°C ~ 85°C |
