| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B15KH-BASWITCH TOGGLE SPDT 0.4VA 28V |
2,695 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
B15KH-AASWITCH TOGGLE SPDT 0.4VA 28V |
2,928 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
M2021SD1G01SWITCH TOGGLE DPST 0.4VA 28V |
1,554 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP14B5M1QTSWITCH TOGGLE SPDT 3A 125V |
1,988 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34BWSP32B1M2QTSWITCH TOGGLE SPDT 5A 125V |
4,280 |
|
Datasheet |
34B | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 5.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022SS4W03SWITCH TOGGLE DPDT 6A 125V |
1,151 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B15KV-BASWITCH TOGGLE SPDT 0.4VA 28V |
2,437 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|

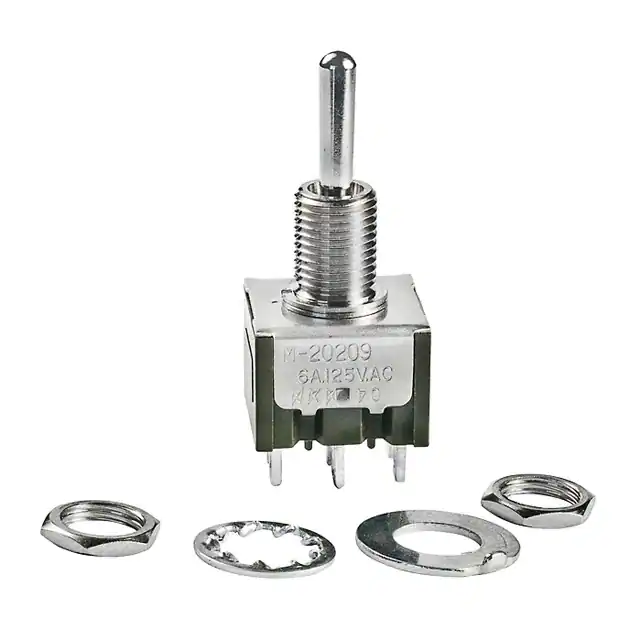

M2027SS1W01SWITCH TOGGLE SP3T 6A 125V |
2,345 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
34ASP41B1M1QTSWITCH TOGGLE SPDT 5A 125V |
3,413 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ASP48T7M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,032 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | - | -30°C ~ 85°C |
|
M2T29SA5W03SWITCH TOGGLE DPDT 6A 125V |
3,190 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
A12KP-BHSWITCH TOGGLE SPDT 0.4VA 28V |
1,921 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
|
34ASP32B3M2QTSWITCH TOGGLE SPDT 5A 125V |
1,509 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
M2022SA2A13SWITCH TOGGLE DPDT 6A 125V |
4,784 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2018E4S1W01SWITCH TOGGLE SPDT 6A 125V |
1,041 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Flatted | 21.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B22JB-JASWITCH TOGGLE DPDT 0.4VA 28V |
2,394 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
G3T15ABSWITCH TOGGLE SPDT 0.4VA 28V |
4,616 |
|
Datasheet |
G3T | Bulk | Active | Surface Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
34CMSP11B5M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,901 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.11mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B23AP-GASWITCH TOGGLE DPDT 0.4VA 28V |
3,656 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
M2023SS4W01SWITCH TOGGLE DPDT 6A 125V |
3,409 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
