| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2022LL3G01SWITCH TOGGLE DPDT 0.4VA 28V |
1,466 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP51B6M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,284 |
|
Datasheet |
34C | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 7.11mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B28HPSWITCH TOGGLE DPDT 0.4VA 28V |
1,020 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2015B2B3W01SWITCH TOGGLE SPDT 6A 125V |
4,249 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

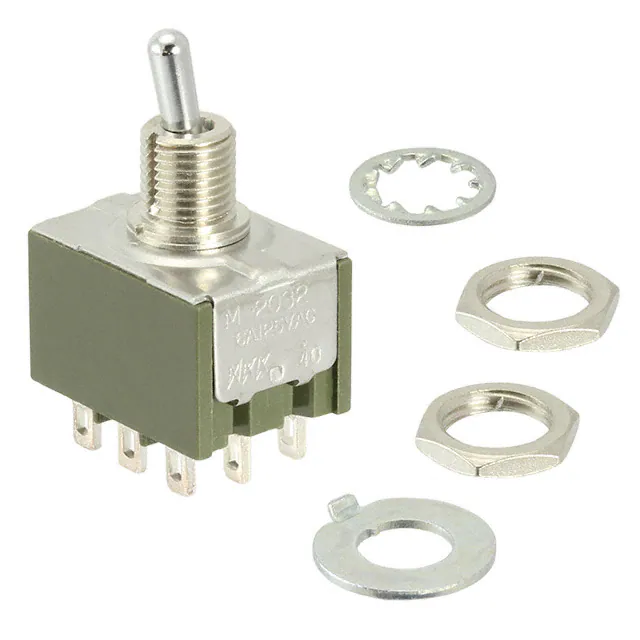

M2032S2A1W01SWITCH TOGGLE 3PDT 6A 125V |
1,187 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2027S2A2W30SWITCH TOGGLE SP3T 6A 125V |
4,189 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2011SD8W01SWITCH TOGGLE SPST 6A 125V |
4,384 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A23JWSWITCH TOGGLE DPDT 0.4VA 28V |
4,353 |
|
Datasheet |
A | Tube | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2022SS1G05SWITCH TOGGLE DPDT 0.4VA 28V |
100 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022LL3W03SWITCH TOGGLE DPDT 6A 125V |
3,614 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B29AWSWITCH TOGGLE DPDT 0.4VA 28V |
4,011 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

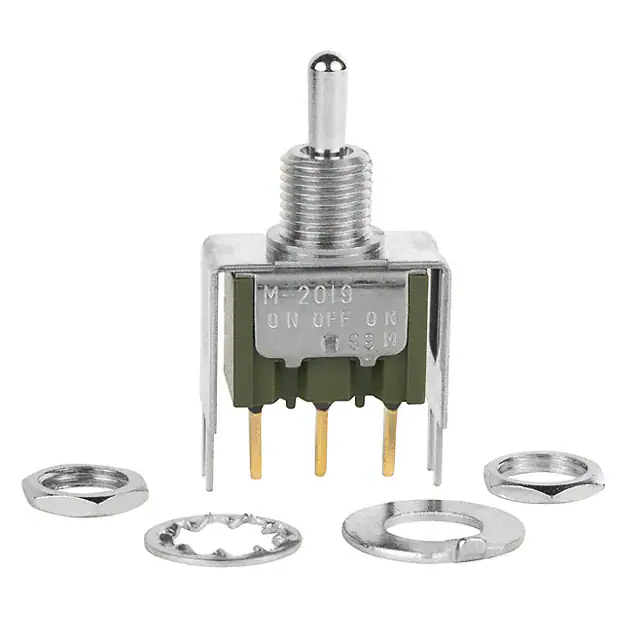

M2019S2A1G13SWITCH TOGGLE SPDT 0.4VA 28V |
4,340 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B28AWSWITCH TOGGLE DPDT 0.4VA 28V |
4,215 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B28APSWITCH TOGGLE DPDT 0.4VA 28V |
4,044 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
D22018PSWITCH TOGGLE SPDT 0.4VA 48V |
2,572 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 48 V | 48 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -10°C ~ 70°C |
|
|
G3T19ABSWITCH TOGGLE SPDT 0.4VA 28V |
3,731 |
|
Datasheet |
G3T | Bulk | Active | Surface Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2013ES1G01SWITCH TOGGLE SPDT 0.4VA 28V |
1,939 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
D22019PSWITCH TOGGLE SPDT 0.4VA 48V |
1,500 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -10°C ~ 70°C |
|
|
G3T18ABSWITCH TOGGLE SPDT 0.4VA 28V |
4,686 |
|
Datasheet |
G3T | Bulk | Active | Surface Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

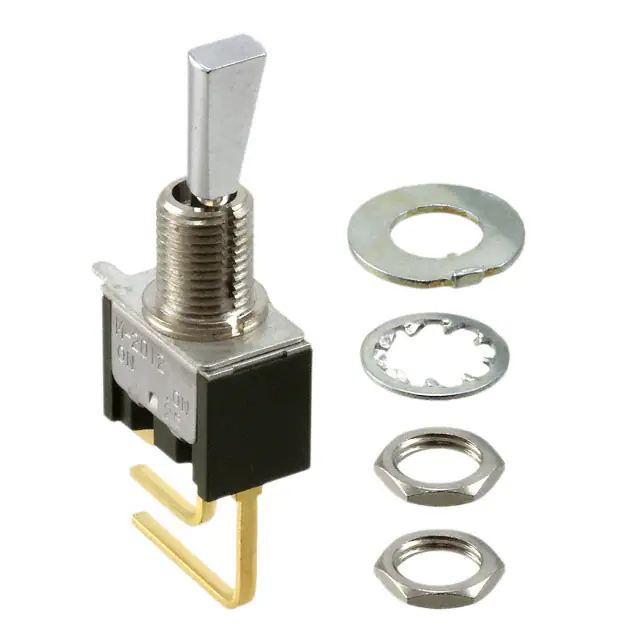

M2012ES1G40SWITCH TOGGLE SPDT 0.4VA 28V |
4,316 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
