| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D22015PSWITCH TOGGLE SPDT 0.4VA 48V |
1,930 |
|
Datasheet |
D2 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | - | -10°C ~ 70°C |
|
|
G3T19AHSWITCH TOGGLE SPDT 0.4VA 28V |
2,591 |
|
Datasheet |
G3T | Bulk | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | - | -30°C ~ 85°C |
|
|
D22013HSWITCH TOGGLE SPDT 0.4VA 48V |
2,167 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
M2022S2S1G06SWITCH TOGGLE DPDT 0.4VA 28V |
2,063 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

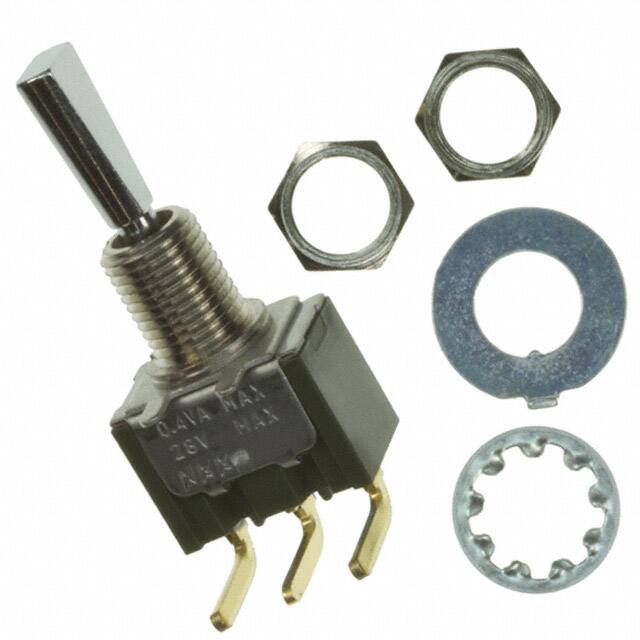

M2018ES1G30SWITCH TOGGLE SPDT 0.4VA 28V |
2,363 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

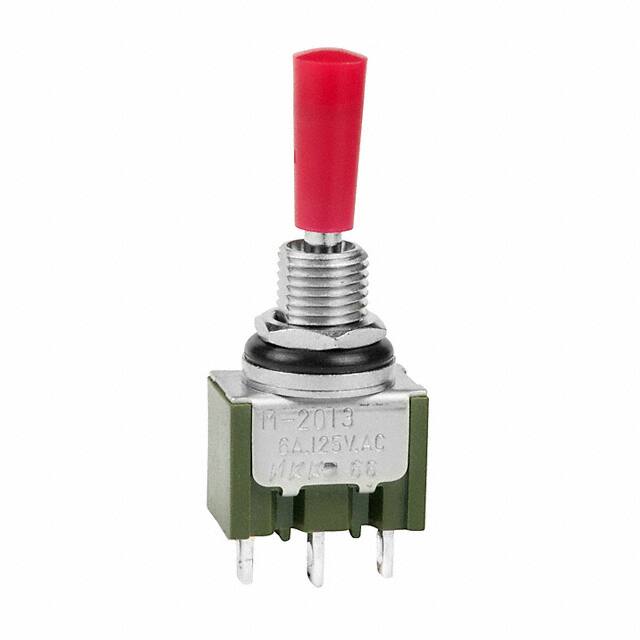

M2013SD3W01-CCSWITCH TOGGLE SPDT 6A 125V |
2,816 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
|
|
A19KP-AFSWITCH TOGGLE SPDT 0.4VA 28V |
2,890 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Green Actuator | -30°C ~ 85°C |
|
|
A19KP-AASWITCH TOGGLE SPDT 0.4VA 28V |
1,003 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|
7101P1DZBE22SWITCH TOGGLE SPDT 0.4VA 20V |
4,459 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 23.11mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Black Actuator | -30°C ~ 85°C |
|
M2032SS1W03/UCSWITCH TOGGLE 3PDT 6A 125V |
1,566 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2018SA1G13SWITCH TOGGLE SPDT 0.4VA 28V |
2,311 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 12.27mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B29JBSWITCH TOGGLE DPDT 0.4VA 28V |
3,346 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2019LL1W01SWITCH TOGGLE SPDT 6A 125V |
2,015 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A22EWSWITCH TOGGLE DPDT 0.4VA 28V |
4,722 |
|
Datasheet |
A | Tube | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A22HPSWITCH TOGGLE DPDT 0.4VA 28V |
4,571 |
|
Datasheet |
A | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A22HWSWITCH TOGGLE DPDT 0.4VA 28V |
3,688 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
E103SD1AV3GESWITCH TOGGLE SPDT 7.5A 125V |
1,012 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 7.5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2024LL1W01SWITCH TOGGLE SP3T 6A 125V |
3,731 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2012LL2W13SWITCH TOGGLE SPDT 6A 125V |
2,588 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET205N12-ZSWITCH TOGGLE DPDT 5A 125V |
4,384 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
