| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7103T1ZQESWITCH TOGGLE SPDT 5A 120V |
4,013 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 12.37mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201SYWBESWITCH TOGGLE DPDT 0.4VA 20V |
4,464 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201SD9CQESWITCH TOGGLE DPDT 5A 120V |
2,069 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022LL2A30SWITCH TOGGLE DPDT 6A 125V |
2,043 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101SPY1AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
4,761 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2112TFW01SWITCH TOGGLE SPDT 6A 125V |
3,075 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2021BB1W01-RA-AT402SSWITCH TOGGLE DPST 6A 125V |
4,470 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012LL4G01SWITCH TOGGLE SPDT 0.4VA 28V |
4,126 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2012BSWITCH TOGGLE SPDT 10A 125V |
2,219 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPDT | 10A (AC) | 125 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 85°C |
|
M2022S2A2W23/USWITCH TOGGLE DPDT 6A 125V |
1,717 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2A2W23SWITCH TOGGLE DPDT 6A 125V |
3,195 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2A2W23/CULSWITCH TOGGLE DPDT 6A 125V |
4,927 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2021LL4W01SWITCH TOGGLE DPST 6A 125V |
2,488 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

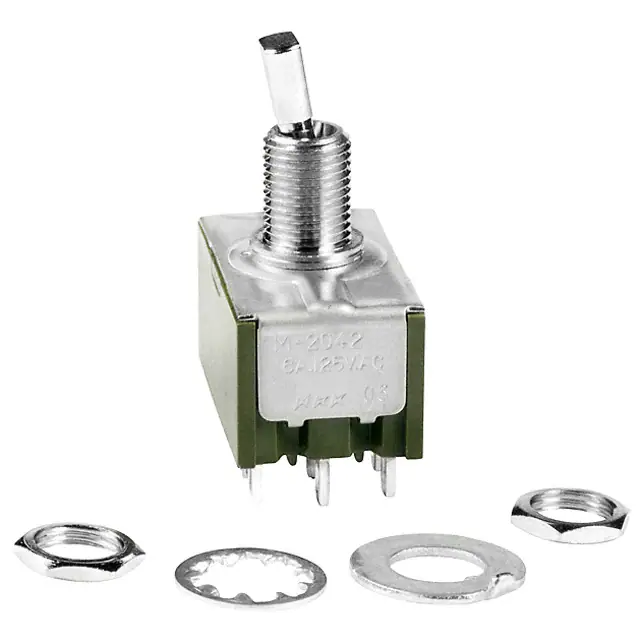

M2042E2S1W01SWITCH TOGGLE 4PDT 6A 125V |
4,035 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

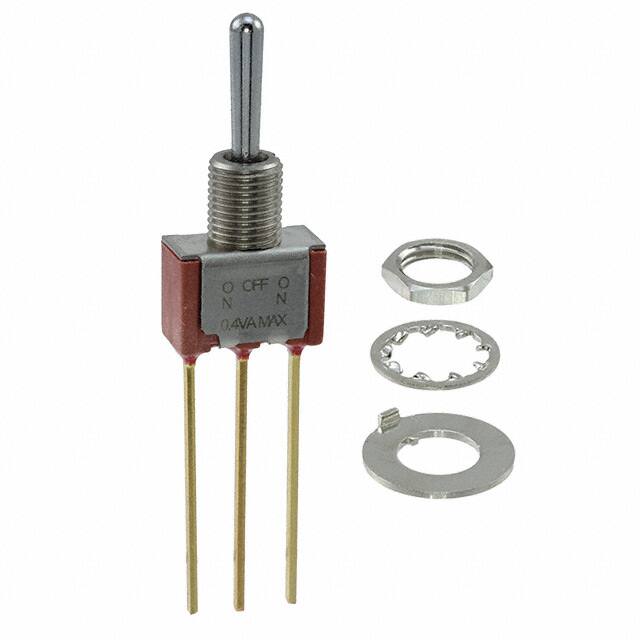

7107SDW1BESWITCH TOGGLE SPDT 0.4VA 20V |
4,656 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 12.45mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2019BB1W01-RE-AT402SSWITCH TOGGLE SPDT 6A 125V |
2,819 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2018BB1G01-AT402SSWITCH TOGGLE SPDT 0.4VA 28V |
3,125 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2025LL3G01SWITCH TOGGLE DPDT 0.4VA 28V |
4,262 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011B2B1W03-AT401ASWITCH TOGGLE SPST 6A 125V |
2,171 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
M2018B2B3W01SWITCH TOGGLE SPDT 6A 125V |
4,480 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
